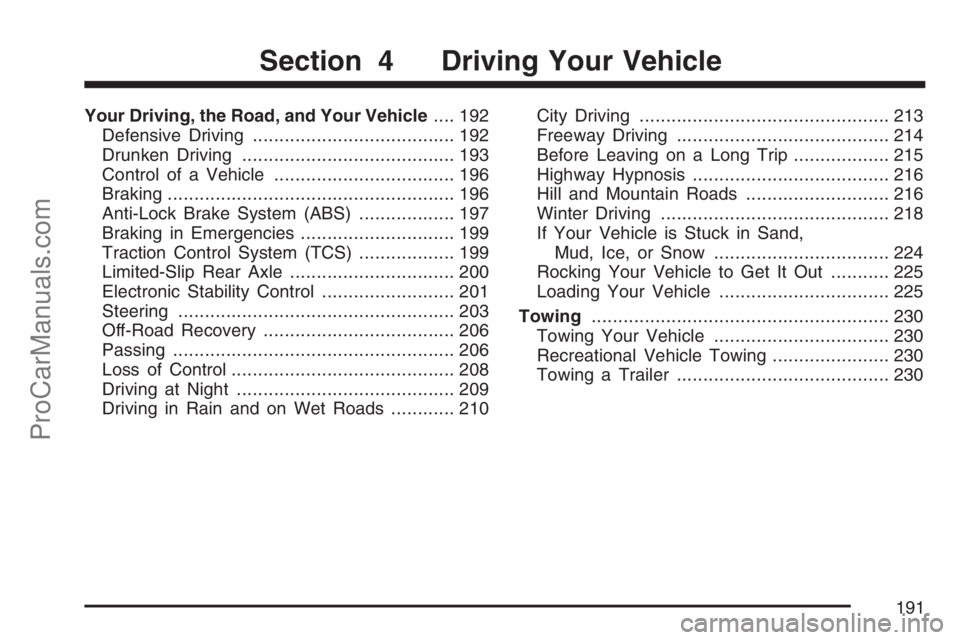

tow SATURN SKY 2007 User Guide

Your Driving, the Road, and Your Vehicle.... 192
Defensive Driving...................................... 192
Drunken Driving........................................ 193
Control of a Vehicle.................................. 196
Braking...................................................... 196
Anti-Lock Brake System (ABS).................. 197
Braking in Emergencies............................. 199
Traction Control System (TCS).................. 199
Limited-Slip Rear Axle............................... 200
Electronic Stability Control......................... 201
Steering.................................................... 203
Off-Road Recovery.................................... 206
Passing..................................................... 206
Loss of Control.......................................... 208
Driving at Night......................................... 209
Driving in Rain and on Wet Roads............ 210City Driving............................................... 213
Freeway Driving........................................ 214
Before Leaving on a Long Trip.................. 215
Highway Hypnosis..................................... 216
Hill and Mountain Roads........................... 216
Winter Driving........................................... 218
If Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow ................................. 224
Rocking Your Vehicle to Get It Out........... 225
Loading Your Vehicle................................ 225
Towing........................................................ 230
Towing Your Vehicle ................................. 230
Recreational Vehicle Towing...................... 230
Towing a Trailer........................................ 230
Section 4 Driving Your Vehicle
191
ProCarManuals.com

Rocking Your Vehicle to Get It Out
First, turn the steering wheel left and right.
That will clear the area around the front wheels.
If your vehicle has traction control, you should
turn the traction control system off. SeeTraction
Control System (TCS) on page 199andElectronic
Stability Control on page 201. Then shift back
and forth between REVERSE (R) and a forward
gear, or with a manual transmission between
FIRST (1) or SECOND (2) and REVERSE (R),
spinning the wheels as little as possible.
To prevent transmission wear, allow the wheels
to stop spinning before shifting gears. Release
the accelerator pedal while you shift, and
press lightly on the accelerator pedal when the
transmission is in gear. By slowly spinning
the wheels in the forward and reverse directions,
you will cause a rocking motion that may free
your vehicle. If that does not get your vehicle
out after a few tries, it may need to be towed out.
If your vehicle does need to be towed out, see
Towing Your Vehicle on page 230.
Loading Your Vehicle
It is very important to know how much weight
your vehicle can carry. This weight is called
the vehicle capacity weight and includes the
weight of all occupants, cargo, and all
nonfactory-installed options. Two labels on your
vehicle show how much weight it may properly
carry, the Tire and Loading Information label
and the Certication label.
{CAUTION:
Do not load your vehicle any heavier than
the Gross Vehicle Weight Rating (GVWR),
or either the maximum front or rear Gross
Axle Weight Rating (GAWR). If you do,
parts on your vehicle can break, and it
can change the way your vehicle handles.
These could cause you to lose control
and crash. Also, overloading can shorten
the life of your vehicle.
225
ProCarManuals.com

4. The resulting gure equals the available
amount of cargo and luggage load capacity.
For example, if the “XXX” amount equals
1400 lbs and there will be ve 150 lb
passengers in your vehicle, the amount of
available cargo and luggage load capacity is
650 lbs (1400−750 (5 x 150) = 650 lbs).
5. Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in Step 4.
6. If your vehicle will be towing a trailer, the load
from your trailer will be transferred to your
vehicle. Consult this manual to determine how
this reduces the available cargo and luggage
load capacity of your vehicle.
Your vehicle is neither designed nor intended
to tow a trailer.
Item Description Total
AVehicle Capacity
Weight for Example 1=400 lbs (181 kg)
BSubtract Occupant
Weight @ 150 lbs
(68 kg) x 1 =150 lbs (68 kg)
CAvailable Occupant
and Cargo Weight =250 lbs (113 kg) Example 1
227
ProCarManuals.com

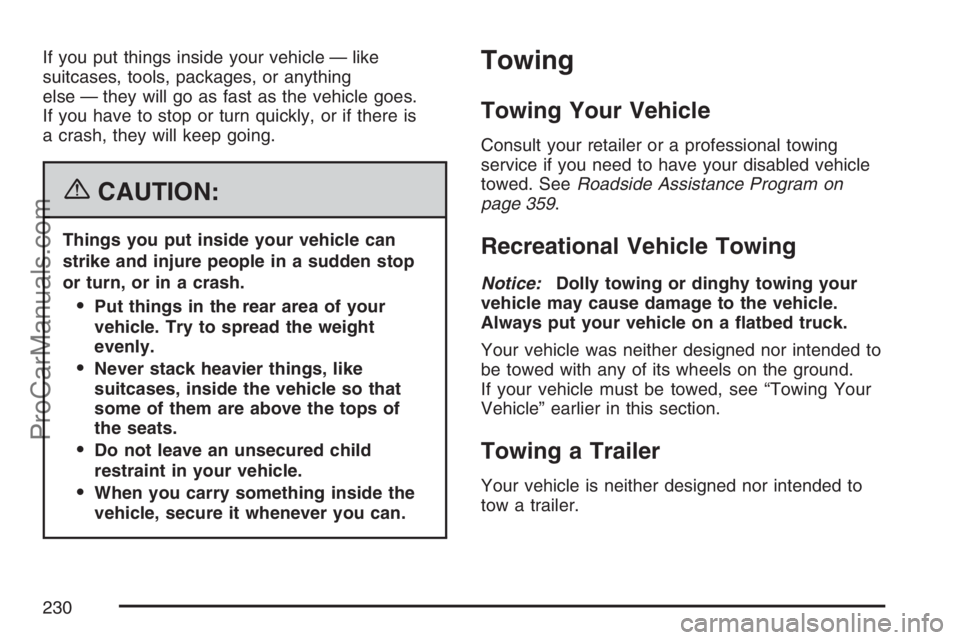

If you put things inside your vehicle — like
suitcases, tools, packages, or anything
else — they will go as fast as the vehicle goes.
If you have to stop or turn quickly, or if there is
a crash, they will keep going.
{CAUTION:
Things you put inside your vehicle can
strike and injure people in a sudden stop
or turn, or in a crash.
Put things in the rear area of your
vehicle. Try to spread the weight
evenly.
Never stack heavier things, like
suitcases, inside the vehicle so that
some of them are above the tops of
the seats.
Do not leave an unsecured child
restraint in your vehicle.
When you carry something inside the
vehicle, secure it whenever you can.
Towing
Towing Your Vehicle
Consult your retailer or a professional towing
service if you need to have your disabled vehicle
towed. SeeRoadside Assistance Program on
page 359.
Recreational Vehicle Towing
Notice:Dolly towing or dinghy towing your
vehicle may cause damage to the vehicle.
Always put your vehicle on a atbed truck.
Your vehicle was neither designed nor intended to
be towed with any of its wheels on the ground.
If your vehicle must be towed, see “Towing Your
Vehicle” earlier in this section.
Towing a Trailer
Your vehicle is neither designed nor intended to
tow a trailer.
230
ProCarManuals.com

A. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 267.
B. Coolant Surge Tank and Pressure Cap.
SeeCooling System on page 260.
C. Brake Master Cylinder Reservoir. See
“Brake Fluid” underBrakes on page 268
andHydraulic Clutch on page 254.
D. Engine Oil Dipstick. See “Checking Engine
Oil” underEngine Oil on page 245.
E. Engine Air Cleaner/Filter. SeeEngine
Air Cleaner/Filter on page 252.
F. Engine Oil Fill Cap. See “When to Add
Engine Oil” underEngine Oil on page 245.
G. Power Steering Fluid Reservoir. See
Power Steering Fluid on page 266.
H. Remote Negative (−) Ground (Out of View).
SeeJump Starting on page 272.
I. Battery (Out of View). SeeBattery on page 271.
J. Remote Positive (+) Terminal. SeeJump
Starting on page 272.
K. Underhood Fuse Block. SeeUnderhood
Fuse Block on page 328.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 242
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down
and check the level.
245
ProCarManuals.com

If your vehicle has Goodyear Eagle F1-GS1
P245/45R18 size tires, they are directional
tires and must roll in a certain direction for the
best overall performance. The direction is shown
by an arrow on the tire sidewall. Because
these tires are directional, they should be rotated
as shown here. These tires should only be
moved from front to rear and rear to front on
the same side of the vehicle.After the tires have been rotated, adjust the front
and rear ination pressures as shown on the
Tire and Loading Information label. SeeLoading
Your Vehicle on page 225for an example of
the Tire and Loading Information label and
its location on your vehicle. Make certain that all
wheel nuts are properly tightened. See “Wheel
Nut Torque” underCapacities and Specications
on page 331.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel could
come off and cause a crash. When you
change a wheel, remove any rust or dirt
from places where the wheel attaches to
the vehicle. In an emergency, you can use
a cloth or a paper towel to do this; but be
sure to use a scraper or wire brush later,
if you need to, to get all the rust or dirt off.Directional Tires
295
ProCarManuals.com

Each new wheel should have the same
load-carrying capacity, diameter, width, offset and
be mounted the same way as the one it replaces.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision
in which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.
If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new Saturn original equipment parts. This way,
you will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire clearance to the body
and chassis.{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel
could come off and cause a crash. When
you change a wheel, remove any rust or
dirt from places where the wheel attaches
to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if you need to, to get all the rust or
dirt off.
301
ProCarManuals.com

Tire Chains
{CAUTION:
Do not use tire chains. There is not
enough clearance. Tire chains used on
a vehicle without the proper amount of
clearance can cause damage to the
brakes, suspension, or other vehicle
parts. The area damaged by the tire
chains could cause you to lose control of
your vehicle and you or others may be
injured in a crash. Use another type of
traction device only if its manufacturer
recommends it for use on your vehicle
and tire size combination and road
conditions. Follow that manufacturer’s
instructions. To help avoid damage to
your vehicle, drive slowly, re-adjust or
remove the device if it is contacting your
vehicle, and do not spin your wheels.
If you do nd traction devices that will t,
install them on the rear tires.
If a Tire Goes Flat
Your vehicle has a tire inator kit. There is no
spare tire, no tire changing equipment, and
no place to store a tire.
It is unusual for a tire to blow out while you are
driving, especially if you maintain your tires
properly. SeeTires on page 284. If air goes out
of a tire, it is much more likely to leak out slowly.
But, if you should ever have a blow out, here are
a few tips about what to expect and what to do:
If a front tire fails, the at tire will create a drag
that pulls the vehicle toward that side. Take
your foot off the accelerator pedal and grip the
steering wheel rmly. Steer to maintain lane
position, and then gently brake to a stop well out
of the traffic lane.
A rear blow out, particularly on a curve, acts much
like a skid and may require the same correction
you would use in a skid. In any rear blow out,
remove your foot from the accelerator pedal.
303
ProCarManuals.com

7. Push the inator kit switch to the I (on)
position.
The inator kit will force sealant and air into
the tire. Sealant may leak from the puncture
hole until the vehicle is driven and the hole
has sealed.
8. Make sure there is a proper connection
between the tire valve stem and the
sealant lling hose by looking at the air
pressure gage. If there is not a pressure
reading while the compressor is running,
the connection between the inator kit and
the tire is bad.
Check the attachment between the sealant
lling hose and the tire valve stem.
9. Inate the tire up to the recommended
ination pressure, found on the Tire and
Loading Information label located on
the vehicle’s center pillar (B-pillar) below the
vehicle’s door latch, using the air pressure
gage on the top of the unit.
The pressure gage reading is slightly high
while the compressor is on. Turn the
compressor off to get an accurate pressure
reading.Notice:If the recommended pressure cannot
be reached after 15 minutes, the vehicle
should not be driven farther. Damage to the
tire is severe and the sealant will not be
effective. Remove the air compressor plug
from the accessory power outlet and unscrew
the inating hose from the tire valve. See
Roadside Assistance Program on page 359.
10. Push the inator kit switch to the O (off)
position once the correct tire pressure is
obtained.
11. Turn off the engine.
12. Unplug the air compressor accessory plug
from the accessory power outlet in the
vehicle.
13. Disconnect the sealant lling hose from the
tire valve stem, by turning it counterclockwise,
and replace the tire valve stem cap.
Be careful when handling the tire inator
components as they may be hot after usage.
14. Wrap the sealant lling hose around the air
compressor channel to stow it in its original
location.
309
ProCarManuals.com

15. Stow the air compressor accessory plug back
in the air compressor. To do this, wrap the
air compressor accessory plug, snap in
the plug, and then push in the bottom and
then the top of the wrapped air compressor
accessory plug.
16. If the at tire was
able to inate to
the recommended
ination pressure,
remove the
maximum speed
label from the
sealant canister.
Place it in a highly visible location such as
the inside of the upper left corner of the
windshield or to the face of the radio/clock.
The maximum speed label reminds you
to drive cautiously and not to exceed 55 mph
(90 km/h) until you have the damaged tire
inspected and repaired.
{CAUTION:
Storing the tire inator kit or other
equipment in the passenger compartment
of the vehicle could cause injury.
In a sudden stop or collision, loose
equipment could strike someone. Store
the tire inator kit in the proper place.
17. Return the equipment to the proper storage
location in the trunk of your vehicle. You may
need to loosen the retention strap to wrap
it around the inator kit and foam container.
To do this, pull apart the strap and loosen
the strap at the quick release buckle.
Then snap the buckle together, pull the strap
tight, and secure the loose end of the strap
by mating the ends.
310
ProCarManuals.com
