Page 1 of 384
Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 8
Safety Belts
............................................ 12
Child Restraints
...................................... 28
Airbag System
........................................ 43
Restraint System Check
......................... 56
Features and Controls
................................ 59
Keys
....................................................... 60
Doors and Locks
.................................... 66
Windows
................................................ 71
Theft-Deterrent Systems
......................... 73
Starting and Operating Your Vehicle
....... 77
Mirrors
.................................................... 93OnStar®System
..................................... 94
Storage Areas
........................................ 99
Convertible Top
.................................... 100
Instrument Panel
....................................... 105
Instrument Panel Overview
................... 108
Climate Controls
................................... 122
Warning Lights, Gages, and Indicators
.... 127
Driver Information Center (DIC)
............ 144
Audio System(s)
................................... 158
Driving Your Vehicle
................................. 191
Your Driving, the Road, and Your
Vehicle
.............................................. 192
Towing
................................................. 230
2007 Saturn SKY Owner ManualM
1
ProCarManuals.com
Page 29 of 384
{CAUTION:
Never do this.
Here two children are wearing the same
belt. The belt can not properly spread the
impact forces. In a crash, the two children
can be crushed together and seriously
injured. A belt must be used by only
one person at a time.
Q:What if a child is wearing a lap-shoulder
belt, but the child is so small that the
shoulder belt is very close to the child’s
face or neck?
A:Move the child toward the center of the
vehicle, but be sure that the shoulder belt still
is on the child’s shoulder, so that in a crash
the child’s upper body would have the restraint
that belts provide.
29
ProCarManuals.com
Page 34 of 384
Child Restraint Systems
An infant car bed (A), a special bed made for use
in a motor vehicle, is an infant restraint system
designed to restrain or position a child on a
continuous at surface. Make sure that the infant’s
head rests toward the center of the vehicle.A rear-facing infant seat (B) provides restraint
with the seating surface against the back of the
infant. The harness system holds the infant
in place and, in a crash, acts to keep the infant
positioned in the restraint.
34
ProCarManuals.com
Page 48 of 384

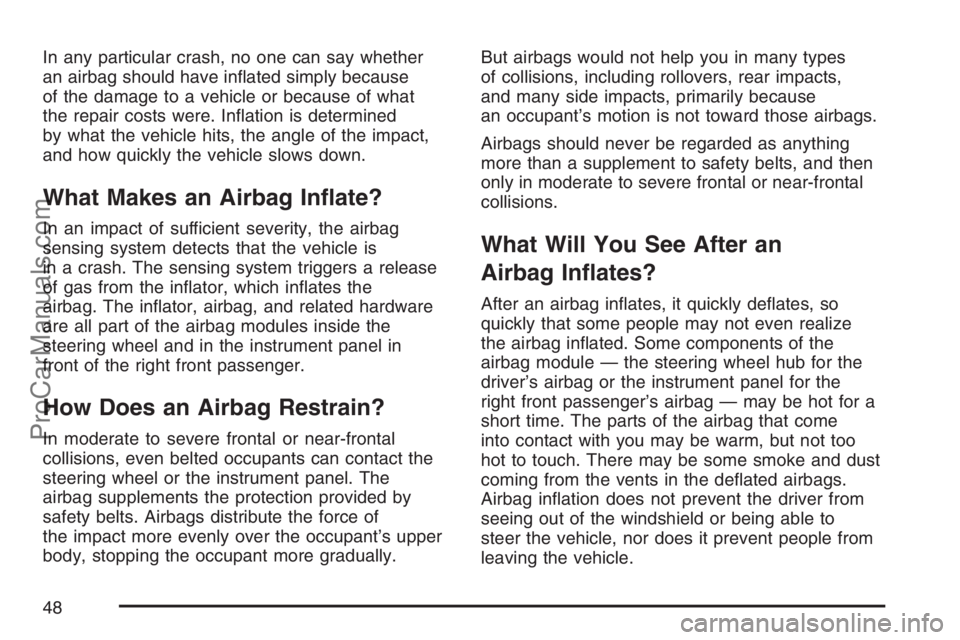

In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what
the repair costs were. In ation is determined
by what the vehicle hits, the angle of the impact,
and how quickly the vehicle slows down.
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a release
of gas from the in ator, which in ates the
airbag. The in ator, airbag, and related hardware
are all part of the airbag modules inside the
steering wheel and in the instrument panel in
front of the right front passenger.
How Does an Airbag Restrain?
In moderate to severe frontal or near-frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. The
airbag supplements the protection provided by
safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually.But airbags would not help you in many types
of collisions, including rollovers, rear impacts,
and many side impacts, primarily because
an occupant’s motion is not toward those airbags.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions.
What Will You See After an
Airbag In ates?
After an airbag in ates, it quickly de ates, so
quickly that some people may not even realize
the airbag in ated. Some components of the
airbag module — the steering wheel hub for the
driver’s airbag or the instrument panel for the
right front passenger’s airbag — may be hot for a
short time. The parts of the airbag that come
into contact with you may be warm, but not too
hot to touch. There may be some smoke and dust
coming from the vents in the de ated airbags.
Airbag in ation does not prevent the driver from
seeing out of the windshield or being able to
steer the vehicle, nor does it prevent people from
leaving the vehicle.
48
ProCarManuals.com
Page 67 of 384
There are a couple of ways to lock and unlock
your vehicle manually.
From inside the vehicle,
use the manual door
lock knob. Pull up or
down on the knob to
unlock or lock the door.
To lock either door from the outside, turn the key
toward the rear of the vehicle. To unlock the
door, turn the key toward the front of the vehicle.
Power Door Locks
You can use the Remote Keyless Entry (RKE)
transmitter to lock and unlock the doors from inside
or outside the vehicle. SeeRemote Keyless
Entry (RKE) System Operation on page 63for
more information.
The power door lock switches are located on the
driver’s and passenger’s door.
Press the top of the switch to unlock all doors.
Press the bottom of the switch to lock all doors.
Delayed Locking
If your vehicle has power door locks, it will have
the delayed locking feature. This feature delays the
actual locking of the doors when the Remote
Keyless Entry (RKE) transmitter is used to lock the
vehicle.
If any door is open when locking the vehicle using
the RKE transmitter, three chimes will sound
signaling that the delayed locking feature is active.
Five seconds after the last door is closed, both
doors will lock and the parking lamps will ash.
To cancel the delay and lock the doors immediately,
press the lock button on the RKE a second time.
If the key is in the ignition, this feature will not
lock the doors.
Your vehicle is programmed from the factory with
this feature turned off. To turn the feature on,
you must go through the Driver Information
Center (DIC). SeeDIC Vehicle Personalization
on page 152.
67
ProCarManuals.com
Page 72 of 384
Power Windows
If your vehicle has
power windows, the
switches on the driver’s
door armrest control
both windows.
In addition, the passenger’s door has a window
switch that controls that window. Press the front of
the switch to open the window. Pull the switch
up to close it.
Express-Down Window
The driver’s window has an express-down feature
which allows the window to be lowered fully without
pressing and holding the switch. Press the front of
the switch to the rst position, and the window will
open a small amount. Press the switch down fully
and the window will go all the way down.
To stop the window while it is lowering, pull the
front of the switch up.
Sun Visors
To use the sun visor(s), pull the edge of the visor
nearest to the windshield toward you.
Visor Vanity Mirror
Your vehicle may have a driver’s side vanity
mirror. Swing down the sun visor and slide the
cover to expose the mirror.
72
ProCarManuals.com
Page 83 of 384
Notice:Shifting to REVERSE (R) while your
vehicle is moving forward could damage the
transmission. The repairs would not be covered
by your warranty. Shift to REVERSE (R) only
after your vehicle is stopped.
REVERSE (R):Use this gear to back up.
At low vehicle speeds, you can also use
REVERSE (R) to rock your vehicle back and
forth to get out of snow, ice, or sand without
damaging your transmission. SeeIf Your
Vehicle is Stuck in Sand, Mud, Ice, or Snow
on page 224for additional information.
NEUTRAL (N):In this position, the engine does
not connect with the wheels. To restart when
you are already moving, use NEUTRAL (N) only.
You can also use NEUTRAL (N) when your
vehicle is being towed.
{CAUTION:
Shifting into a drive gear while your
engine is running at high speed is
dangerous. Unless your foot is rmly on
the brake pedal, your vehicle could move
very rapidly. You could lose control and
hit people or objects. Do not shift into a
drive gear while your engine is running
at high speed.
Notice:Shifting out of PARK (P) or
NEUTRAL (N) with the engine running at
high speed may damage the transmission.
The repairs would not be covered by your
warranty. Be sure the engine is not running
at high speed when shifting your vehicle.
83
ProCarManuals.com
Page 87 of 384
If you forget to release your parking brake, a chime
will sound and a warning message will be displayed
in the Driver Information Center (DIC) when the
vehicle is moving faster than 5 mph (8 kph). See
DIC Warnings and Messages on page 147.
Notice:Driving with the parking brake on
can overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
Shifting Into Park (P)
(Automatic Transmission)
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly set.
CAUTION: (Continued)
CAUTION: (Continued)
Your vehicle can roll. If you have left the
engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move, even
when you are on fairly level ground, use
the steps that follow.
1. Hold the brake pedal down and set the
parking brake.
2. Move the shift lever into PARK (P) by holding
the button on the shift lever and pushing
the lever all the way toward the front of the
vehicle.
3. Turn the ignition key to LOCK.
4. Remove the key and take it with you. If you
can leave your vehicle with the ignition key
in your hand, your vehicle is in PARK (P).
87
ProCarManuals.com
Page 112 of 384
Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will
return automatically.
An arrow on the
instrument panel cluster
will ash in the
direction of the turn or
lane change.
To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until you
complete your lane change. The lever will return
by itself when you release it.
As you signal a turn or a lane change, if the arrows
ash rapidly, a signal bulb may be burned out and
other drivers will not see your turn signal. If a bulb is
burned out, replace it to help avoid an accident.
If the arrows do not go on at all when you signal a
turn, check the fuse. SeeFuses and Circuit
Breakers on page 325.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high
beam, push the turn signal lever away from you.
When the high beams
are on, this light on the
instrument panel
cluster will also be on.
To change the headlamps from high beam to low
beam, pull the turn signal lever toward you.
Flash-to-Pass
This feature lets you use your high-beam
headlamps to signal a driver in front of you that
you want to pass.
To use it, pull the turn signal/multifunction lever
toward you until the high-beam headlamps
come on, then release the lever to turn them off.
112
ProCarManuals.com
Page 134 of 384
Brake System Warning Light
Your vehicle’s hydraulic brake system is divided
into two parts. If one part is not working, the other
part can still work and stop you. For good
braking, though, you need both parts working well.
If the warning light comes on, there is a brake
problem. Have your brake system inspected
right away.
This light should come on brie y when you turn
the ignition key to RUN. If it does not come
on then, have it xed so it will be ready to warn
you if there is a problem.When the ignition is on, the brake system warning
light will also come on when you set your
parking brake. The light will stay on if your parking
brake does not release fully. If it stays on after
your parking brake is fully released, it means you
have a brake problem.
If the light comes on while you are driving, pull off
the road and stop carefully. Make sure the parking
brake is fully released. You may notice that the
pedal is harder to push or, the pedal may go closer
to the oor. It may take longer to stop. If the light is
still on, have the vehicle towed for service. See
Towing Your Vehicle on page 230.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light
is on. Driving with the brake system
warning light on can lead to an accident.
If the light is still on after you have pulled
off the road and stopped carefully, have
the vehicle towed for service.
United StatesCanada
134
ProCarManuals.com
