Page 301 of 384
Each new wheel should have the same
load-carrying capacity, diameter, width, offset and
be mounted the same way as the one it replaces.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision
in which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.
If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new Saturn original equipment parts. This way,
you will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire clearance to the body
and chassis.{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel
could come off and cause a crash. When
you change a wheel, remove any rust or
dirt from places where the wheel attaches
to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if you need to, to get all the rust or
dirt off.
301
ProCarManuals.com
Page 302 of 384
{CAUTION:
Never use oil or grease on studs or the
threads of the wheel nuts. If you do, the
wheel nuts might come loose and the
wheel could fall off, causing a crash.
{CAUTION:
Incorrect wheel nuts or improperly
tightened wheel nuts can cause the wheel
to become loose and even come off.
This could lead to a crash. Be sure to
use the correct wheel nuts. If you have to
replace them, be sure to get new Saturn
original equipment wheel nuts.Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage.
To avoid expensive brake repairs, evenly
tighten the wheel nuts in the proper sequence
and to the proper torque speci cation.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven.
It could fail suddenly and cause a crash.
If you have to replace a wheel, use a new
Saturn original equipment wheel.
302
ProCarManuals.com
Page 303 of 384
Tire Chains
{CAUTION:
Do not use tire chains. There is not
enough clearance. Tire chains used on
a vehicle without the proper amount of
clearance can cause damage to the
brakes, suspension, or other vehicle
parts. The area damaged by the tire
chains could cause you to lose control of
your vehicle and you or others may be
injured in a crash. Use another type of
traction device only if its manufacturer
recommends it for use on your vehicle
and tire size combination and road
conditions. Follow that manufacturer’s
instructions. To help avoid damage to
your vehicle, drive slowly, re-adjust or
remove the device if it is contacting your
vehicle, and do not spin your wheels.
If you do nd traction devices that will t,
install them on the rear tires.
If a Tire Goes Flat
Your vehicle has a tire in ator kit. There is no
spare tire, no tire changing equipment, and
no place to store a tire.
It is unusual for a tire to blow out while you are
driving, especially if you maintain your tires
properly. SeeTires on page 284. If air goes out
of a tire, it is much more likely to leak out slowly.
But, if you should ever have a blow out, here are
a few tips about what to expect and what to do:
If a front tire fails, the at tire will create a drag
that pulls the vehicle toward that side. Take
your foot off the accelerator pedal and grip the
steering wheel rmly. Steer to maintain lane
position, and then gently brake to a stop well out
of the traffic lane.
A rear blow out, particularly on a curve, acts much
like a skid and may require the same correction
you would use in a skid. In any rear blow out,
remove your foot from the accelerator pedal.
303
ProCarManuals.com
Page 304 of 384
Get the vehicle under control by steering the way
you want the vehicle to go. It may be very
bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road if possible.
If a tire goes at, avoid further tire and wheel
damage by driving slowly to a level place
and stopping. Then do this:
1. Turn on the hazard warning ashers. See
Hazard Warning Flashers on page 110.
2. Park your vehicle. If your vehicle has an
automatic transmission, set the parking
brake rmly and put the shift lever in
PARK (P). SeeShifting Into Park (P)
(Automatic Transmission) on page 87.
If your vehicle has a manual transmission,
move the shift lever to REVERSE (R) and
set the parking brake rmly. SeeParking
Your Vehicle (Manual Transmission) on
page 89for additional information.
3. Turn off the engine.
4. Inspect the at tire.If the tire has been separated from the wheel
or has damaged sidewalls or large tears that
allow rapid air loss, call a tire repair facility. See
Roadside Assistance Program on page 359.
If the at tire is due to a slow leak caused by a
nail or other similar road hazard, the tire in ator
kit may be used to repair the damaged tire
temporarily. The kit uses a liquid tire sealant to
seal small punctures in the tread area of the tire.
After repairing a tire with the tire in ator kit,
take your vehicle to an authorized Saturn retailer
to have the tire inspected and repaired as
soon as possible. The tire sealant is a temporary
repair only. SeeTire In ator Kit on page 304.
Tire In ator Kit
Your vehicle has a tire in ator kit. There is no jack
or spare tire. The kit uses a liquid tire sealant
and air at the same time to seal small punctures
in the tread area of the tire. Be sure to read
and follow all of the tire in ator kit instructions.
The kit includes the following:
304
ProCarManuals.com
Page 305 of 384
A. Air Compressor
B. Tire Sealant Canister
C. Air Compressor
Accessory Plug
D. On/Off SwitchE. Air Pressure Gage
F. Air Compressor
In ator Hose
G. Sealant
Filling HoseIf the at tire is due to a slow leak caused by a nail
or other similar road hazard, the tire in ator kit may
be used to temporarily repair the damaged tire.
After temporarily repairing a tire using the tire
in ator kit, it is recommended to take your
vehicle to an authorized Saturn retailer within
100 miles (161 kilometers) of driving to have the
tire inspected and repaired. If the sealant is
not removed from the tire within 100 miles
(161 kilometers) of driving, it is more likely that the
tire may get damaged and have to be replaced.
305
ProCarManuals.com
Page 306 of 384
Accessing the Tire In ator Kit
To access the tire in ator kit, do the following:
1. Make sure the convertible top is in the up
position before accessing the tire in ator kit.
2. Open the trunk. SeeTrunk on page 68for
more information.
3. Locate the tire in ator kit on the driver’s
side of the vehicle, near the back corner of
the trunk.4. Remove the tire
in ator kit strap
by squeezing
the two tabs of
the quick release
buckle.
5. Remove the in ator kit from its foam container.
306
ProCarManuals.com
Page 307 of 384

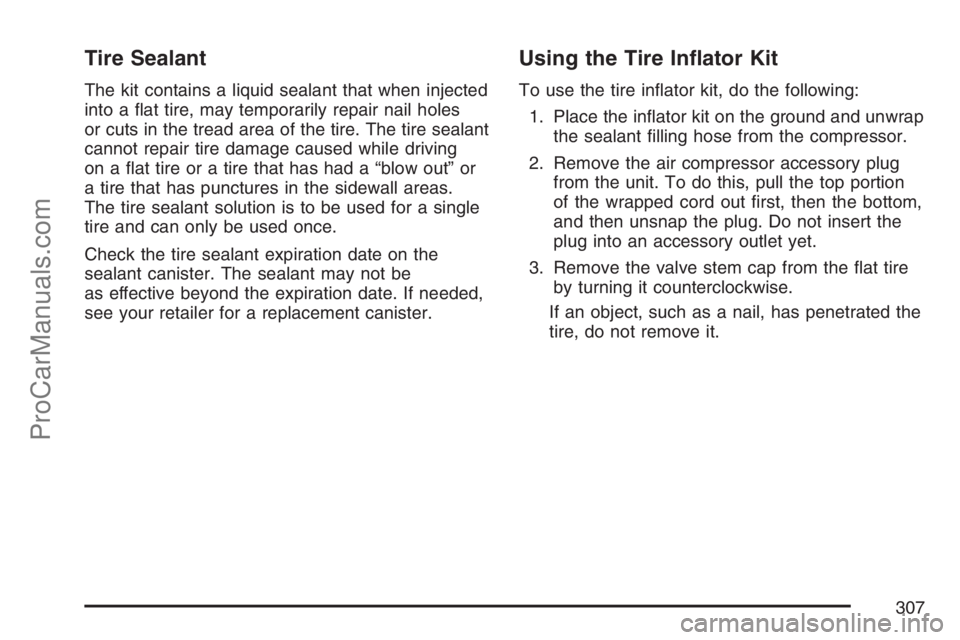

Tire Sealant
The kit contains a liquid sealant that when injected
into a at tire, may temporarily repair nail holes
or cuts in the tread area of the tire. The tire sealant
cannot repair tire damage caused while driving
on a at tire or a tire that has had a “blow out” or
a tire that has punctures in the sidewall areas.
The tire sealant solution is to be used for a single
tire and can only be used once.
Check the tire sealant expiration date on the
sealant canister. The sealant may not be
as effective beyond the expiration date. If needed,
see your retailer for a replacement canister.
Using the Tire In ator Kit
To use the tire in ator kit, do the following:
1. Place the in ator kit on the ground and unwrap
the sealant lling hose from the compressor.
2. Remove the air compressor accessory plug
from the unit. To do this, pull the top portion
of the wrapped cord out rst, then the bottom,
and then unsnap the plug. Do not insert the
plug into an accessory outlet yet.
3. Remove the valve stem cap from the at tire
by turning it counterclockwise.
If an object, such as a nail, has penetrated the
tire, do not remove it.
307
ProCarManuals.com
Page 308 of 384
4. Attach the sealant lling hose (A) onto the tire
valve stem. Turn it clockwise until it is tight.
Make sure the in ator kit on/off switch (B) is
in the O (off) position.
5. Plug the air compressor accessory plug (C)
into an accessory power outlet in the vehicle.
SeeAccessory Power Outlet(s) on page 121
for more information.
{CAUTION:
Idling the engine in a closed-in place or
with the climate control system off can
cause deadly carbon monoxide (CO).
SeeEngine Exhaust on page 91.
6. Start the vehicle. SeeStarting the Engine
on page 80for more information. The
vehicle must be running while using the
air compressor.
{CAUTION:
In ating something too much can make
it explode, and you or others could be
injured. Be sure to read the in ator
instructions, and in ate the tire to its
recommended pressure. Do not exceed
36 psi (248 kPa).
308
ProCarManuals.com
Page 309 of 384
7. Push the in ator kit switch to the I (on)
position.
The in ator kit will force sealant and air into
the tire. Sealant may leak from the puncture
hole until the vehicle is driven and the hole
has sealed.
8. Make sure there is a proper connection
between the tire valve stem and the
sealant lling hose by looking at the air
pressure gage. If there is not a pressure
reading while the compressor is running,
the connection between the in ator kit and
the tire is bad.
Check the attachment between the sealant
lling hose and the tire valve stem.
9. In ate the tire up to the recommended
in ation pressure, found on the Tire and
Loading Information label located on
the vehicle’s center pillar (B-pillar) below the
vehicle’s door latch, using the air pressure
gage on the top of the unit.
The pressure gage reading is slightly high
while the compressor is on. Turn the
compressor off to get an accurate pressure
reading.Notice:If the recommended pressure cannot
be reached after 15 minutes, the vehicle
should not be driven farther. Damage to the
tire is severe and the sealant will not be
effective. Remove the air compressor plug
from the accessory power outlet and unscrew
the in ating hose from the tire valve. See
Roadside Assistance Program on page 359.
10. Push the in ator kit switch to the O (off)
position once the correct tire pressure is
obtained.
11. Turn off the engine.
12. Unplug the air compressor accessory plug
from the accessory power outlet in the
vehicle.
13. Disconnect the sealant lling hose from the
tire valve stem, by turning it counterclockwise,
and replace the tire valve stem cap.
Be careful when handling the tire in ator
components as they may be hot after usage.
14. Wrap the sealant lling hose around the air
compressor channel to stow it in its original
location.
309
ProCarManuals.com
Page 310 of 384
15. Stow the air compressor accessory plug back
in the air compressor. To do this, wrap the
air compressor accessory plug, snap in
the plug, and then push in the bottom and
then the top of the wrapped air compressor
accessory plug.
16. If the at tire was
able to in ate to
the recommended
in ation pressure,
remove the
maximum speed
label from the
sealant canister.
Place it in a highly visible location such as
the inside of the upper left corner of the
windshield or to the face of the radio/clock.
The maximum speed label reminds you
to drive cautiously and not to exceed 55 mph
(90 km/h) until you have the damaged tire
inspected and repaired.
{CAUTION:
Storing the tire in ator kit or other
equipment in the passenger compartment
of the vehicle could cause injury.
In a sudden stop or collision, loose
equipment could strike someone. Store
the tire in ator kit in the proper place.
17. Return the equipment to the proper storage
location in the trunk of your vehicle. You may
need to loosen the retention strap to wrap
it around the in ator kit and foam container.
To do this, pull apart the strap and loosen
the strap at the quick release buckle.
Then snap the buckle together, pull the strap
tight, and secure the loose end of the strap
by mating the ends.
310
ProCarManuals.com
