Page 311 of 384
18. Immediately drive the vehicle 5 miles (8 km)
to distribute the sealant evenly in the tire.
Stop at a safe location and check the
tire pressure, refer to Steps 1 through 8 under
“Using the Air Compressor without Sealant”
next in this section. If the tire pressure
has fallen more then 10 psi (68 kPa), below
the recommended in ation pressure, stop
driving the vehicle. The tire is too damaged for
the sealant to work. SeeRoadside Assistance
Program on page 359.
If the tire pressure has not dropped more than
10 psi (68 kPa) from the recommended
in ation pressure, you can in ate the tire back
up to the recommended in ation pressure.
19. Dispose of the sealant canister at a local
retailer or in accordance with your local
state codes and practices.
After using the sealant canister, replace it
with a new canister from a retailer.
20. After temporarily repairing a tire with the
emergency at tire repair kit, take your
vehicle to an authorized retailer to have
the tire inspected and repaired.Using the Air Compressor without
Sealant
To use the air compressor by itself to in ate a tire,
do the following:
1. Remove the air compressor accessory plug
from the air compressor.
2. Unlock the air compressor hose from the
sealant canister by pulling up on the lever.
3. Pull the air compressor in ator hose from
the sealant canister.
4. Push the air compressor in ator hose onto
the tire valve stem and push the lever down
to secure in place.
311
ProCarManuals.com
Page 312 of 384
5. Plug the air compressor accessory plug into
an accessory power outlet in the vehicle. See
Accessory Power Outlet(s) on page 121for
more information.
{CAUTION:
Idling the engine in a closed-in place or
with the climate control system off can
cause deadly carbon monoxide (CO).
SeeEngine Exhaust on page 91.
6. Start the vehicle. SeeStarting the Engine
on page 80for more information. The
vehicle must be running while using the
air compressor.
{CAUTION:
In ating something too much can make
it explode, and you or others could be
injured. Be sure to read the in ator
instructions, and in ate the tire to its
recommended pressure. Do not exceed
36 psi (248 kPa).
7. Push the in ator kit switch to the I (on) position.
8. Make sure there is a proper connection
between the tire valve stem and the air
compressor hose by looking at the air
pressure gage. If there is not a pressure
reading while the compressor is running, the
connection between the in ator kit and
the tire is bad.
Check the attachment between the air
compressor hose and the tire valve stem.
312
ProCarManuals.com
Page 313 of 384
9. In ate the tire up to the recommended
in ation pressure using the air pressure gage
on the top of the unit.
10. Turn off the air compressor by moving the
switch to the O (off) position.
{CAUTION:
Storing the tire in ator kit or other
equipment in the passenger compartment
of the vehicle could cause injury. In a
sudden stop or collision, loose equipment
could strike someone. Store the tire
in ator kit in the proper place.
11. Disconnect the compressor in ator hose and
wrap the hose in the bottom of the in ator kit.
12. Place the equipment in the original location in
the trunk of your vehicle.
Removal and Installation of the
Sealant Canister
To remove the sealant canister, do the following:
1. Unlock the air compressor in ator hose from
the sealant canister by pulling the lever up.
2. Disconnect the air compressor in ator hose
from the sealant canister.
3. Unwrap the sealant lling hose from the
compressor.
313
ProCarManuals.com
Page 314 of 384
4. Turn the sealant canister so the in ator lling
hose is aligned with the slot in the
compressor.
5. Lift the sealant canister from the compressor
and replace with a new sealant canister.
See your retailer for more information.To install a new sealant canister, do the following:
1. Align the sealant lling hose with the slot
in the air compressor.
2. Push the sealant canister down and turn
it clockwise.
3. Wrap the sealant lling hose around the
air compressor channel to stow it in its
original location.
4. Push the air compressor in ator hose onto
the sealant canister inlet and push the
lever down.
314
ProCarManuals.com
Page 315 of 384
Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes
of heat that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and
garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
When cleaning your vehicle’s interior, only use
cleaners speci cally designed for the surfaces
being cleaned. Permanent damage may result from
using cleaners on surfaces for which they were
not intended. Use glass cleaner only on glass.Remove any accidental over-spray from other
surfaces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass and/or cause damage
to the rear window defogger. When cleaning
the glass on your vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to
all safety instructions on the label. While cleaning
your vehicle’s interior, maintain adequate
ventilation by opening your vehicle’s doors and
windows.
Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your retailer has a product for cleaning your
vehicle’s glass. Should it become necessary, you
can also obtain a product from your retailer to
remove odors from your vehicle’s upholstery.
315
ProCarManuals.com
Page 316 of 384

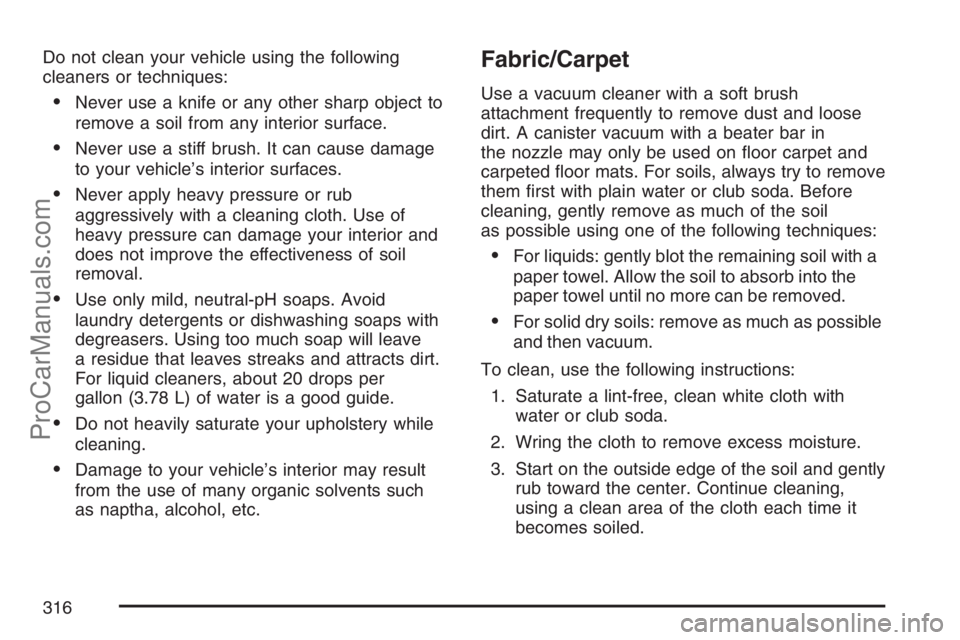

Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave
a residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per
gallon (3.78 L) of water is a good guide.
Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
Fabric/Carpet
Use a vacuum cleaner with a soft brush
attachment frequently to remove dust and loose
dirt. A canister vacuum with a beater bar in
the nozzle may only be used on oor carpet and
carpeted oor mats. For soils, always try to remove
them rst with plain water or club soda. Before
cleaning, gently remove as much of the soil
as possible using one of the following techniques:
For liquids: gently blot the remaining soil with a
paper towel. Allow the soil to absorb into the
paper towel until no more can be removed.
For solid dry soils: remove as much as possible
and then vacuum.
To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.
3. Start on the outside edge of the soil and gently
rub toward the center. Continue cleaning,
using a clean area of the cloth each time it
becomes soiled.
316
ProCarManuals.com
Page 317 of 384

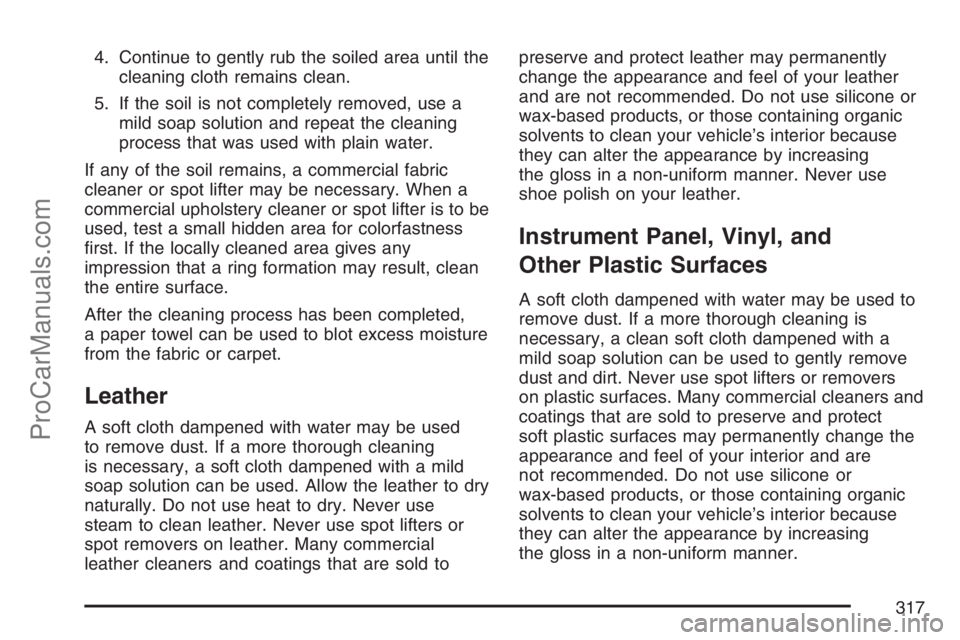

4. Continue to gently rub the soiled area until the
cleaning cloth remains clean.
5. If the soil is not completely removed, use a
mild soap solution and repeat the cleaning
process that was used with plain water.
If any of the soil remains, a commercial fabric
cleaner or spot lifter may be necessary. When a
commercial upholstery cleaner or spot lifter is to be
used, test a small hidden area for colorfastness
rst. If the locally cleaned area gives any
impression that a ring formation may result, clean
the entire surface.
After the cleaning process has been completed,
a paper towel can be used to blot excess moisture
from the fabric or carpet.
Leather
A soft cloth dampened with water may be used
to remove dust. If a more thorough cleaning
is necessary, a soft cloth dampened with a mild
soap solution can be used. Allow the leather to dry
naturally. Do not use heat to dry. Never use
steam to clean leather. Never use spot lifters or
spot removers on leather. Many commercial
leather cleaners and coatings that are sold topreserve and protect leather may permanently
change the appearance and feel of your leather
and are not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner. Never use
shoe polish on your leather.
Instrument Panel, Vinyl, and
Other Plastic Surfaces
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a clean soft cloth dampened with a
mild soap solution can be used to gently remove
dust and dirt. Never use spot lifters or removers
on plastic surfaces. Many commercial cleaners and
coatings that are sold to preserve and protect
soft plastic surfaces may permanently change the
appearance and feel of your interior and are
not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner.
317
ProCarManuals.com
Page 318 of 384

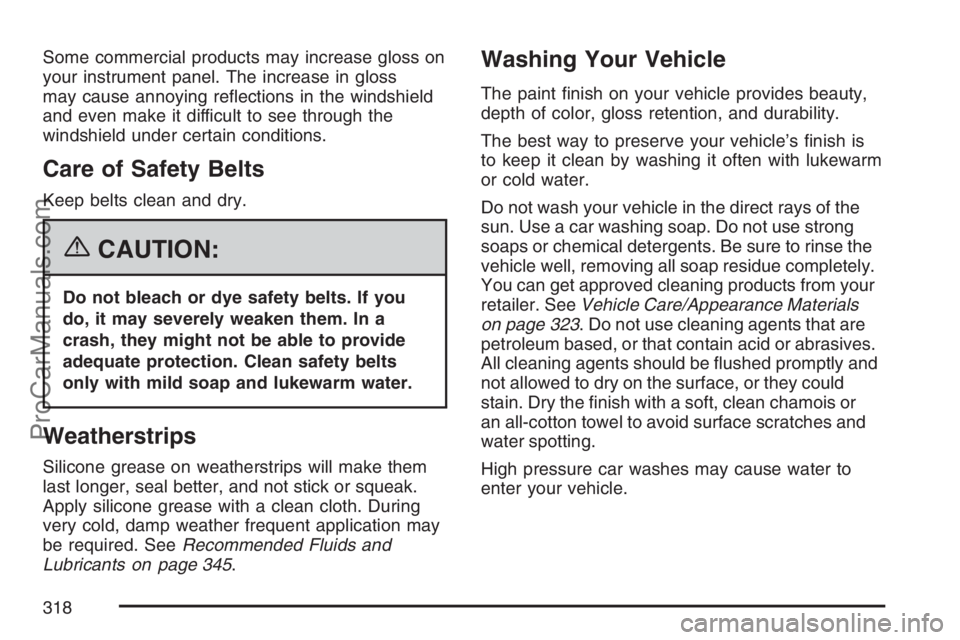

Some commercial products may increase gloss on
your instrument panel. The increase in gloss
may cause annoying re ections in the windshield
and even make it difficult to see through the
windshield under certain conditions.
Care of Safety Belts
Keep belts clean and dry.
{CAUTION:
Do not bleach or dye safety belts. If you
do, it may severely weaken them. In a
crash, they might not be able to provide
adequate protection. Clean safety belts
only with mild soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will make them
last longer, seal better, and not stick or squeak.
Apply silicone grease with a clean cloth. During
very cold, damp weather frequent application may
be required. SeeRecommended Fluids and
Lubricants on page 345.
Washing Your Vehicle
The paint nish on your vehicle provides beauty,
depth of color, gloss retention, and durability.
The best way to preserve your vehicle’s nish is
to keep it clean by washing it often with lukewarm
or cold water.
Do not wash your vehicle in the direct rays of the
sun. Use a car washing soap. Do not use strong
soaps or chemical detergents. Be sure to rinse the
vehicle well, removing all soap residue completely.
You can get approved cleaning products from your
retailer. SeeVehicle Care/Appearance Materials
on page 323. Do not use cleaning agents that are
petroleum based, or that contain acid or abrasives.
All cleaning agents should be ushed promptly and
not allowed to dry on the surface, or they could
stain. Dry the nish with a soft, clean chamois or
an all-cotton towel to avoid surface scratches and
water spotting.
High pressure car washes may cause water to
enter your vehicle.
318
ProCarManuals.com
Page 319 of 384

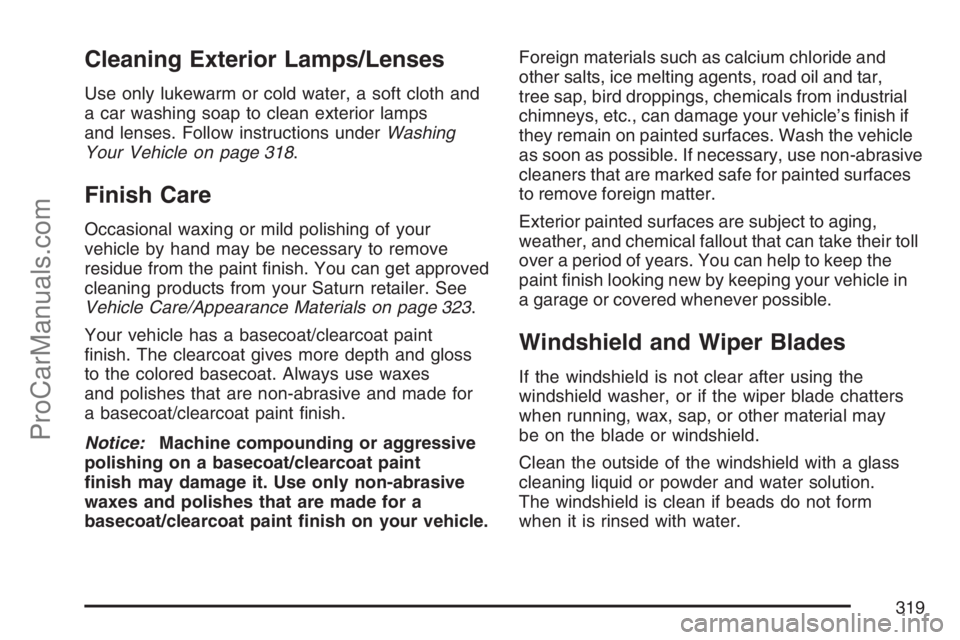

Cleaning Exterior Lamps/Lenses
Use only lukewarm or cold water, a soft cloth and
a car washing soap to clean exterior lamps
and lenses. Follow instructions underWashing
Your Vehicle on page 318.
Finish Care
Occasional waxing or mild polishing of your
vehicle by hand may be necessary to remove
residue from the paint nish. You can get approved
cleaning products from your Saturn retailer. See
Vehicle Care/Appearance Materials on page 323.
Your vehicle has a basecoat/clearcoat paint
nish. The clearcoat gives more depth and gloss
to the colored basecoat. Always use waxes
and polishes that are non-abrasive and made for
a basecoat/clearcoat paint nish.
Notice:Machine compounding or aggressive
polishing on a basecoat/clearcoat paint
nish may damage it. Use only non-abrasive
waxes and polishes that are made for a
basecoat/clearcoat paint nish on your vehicle.Foreign materials such as calcium chloride and
other salts, ice melting agents, road oil and tar,
tree sap, bird droppings, chemicals from industrial
chimneys, etc., can damage your vehicle’s nish if
they remain on painted surfaces. Wash the vehicle
as soon as possible. If necessary, use non-abrasive
cleaners that are marked safe for painted surfaces
to remove foreign matter.
Exterior painted surfaces are subject to aging,
weather, and chemical fallout that can take their toll
over a period of years. You can help to keep the
paint nish looking new by keeping your vehicle in
a garage or covered whenever possible.
Windshield and Wiper Blades
If the windshield is not clear after using the
windshield washer, or if the wiper blade chatters
when running, wax, sap, or other material may
be on the blade or windshield.
Clean the outside of the windshield with a glass
cleaning liquid or powder and water solution.
The windshield is clean if beads do not form
when it is rinsed with water.
319
ProCarManuals.com
Page 320 of 384
Grime from the windshield will stick to the wiper
blades and affect their performance. Clean
the blade by wiping vigorously with a cloth soaked
in full-strength windshield washer solvent. Then
rinse the blade with water.
Check the wiper blades and clean them as
necessary; replace blades that look worn.
Convertible Top
The vehicle’s convertible top should be cleaned
often. However, high pressure car washes
may cause water to enter your vehicle.
When you hand wash the top, do it in partial
shade. Use a mild soap, lukewarm water and a
soft sponge. A chamois or cloth may leave lint on
the top, and a brush can chafe the threads in
the top fabric. Do not use detergents, harsh
cleaners, solvents or bleaching agents.
Wet the entire vehicle and wash the top evenly
to avoid spots or rings. Let the soap remain on the
fabric for a few minutes. When the top is really
dirty, use a mild foam-type cleaner. Thoroughly
rinse the entire vehicle, then let the top dry
in direct sunlight.To protect the convertible top:
After you wash the vehicle, make sure the top
is completely dry before you lower it.
Do not get any cleaner on the vehicle’s
painted nish; it could leave streaks.
If you decide to go through an automatic car
wash, ask the manager if the equipment
could damage your top.
Aluminum or Chrome-Plated Wheels
Your vehicle may be equipped with either
aluminum or chrome-plated wheels.
Keep the wheels clean using a soft clean cloth
with mild soap and water. Rinse with clean water.
After rinsing thoroughly, dry with a soft clean
towel. A wax may then be applied.
Notice:If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or
cleaners that contain acid on aluminum or
chrome-plated wheels, you could damage the
surface of the wheel(s). The repairs would
not be covered by your warranty. Use only
Saturn-approved cleaners on aluminum or
chrome-plated wheels.
320
ProCarManuals.com
