SATURN SKY 2007 Owner's Guide

Every time infants and young children ride in
vehicles, they should have the protection provided
by appropriate restraints. Young children should
not use the vehicle’s adult safety belts alone,
unless there is no other choice. Instead, they
need to use a child restraint.
{CAUTION:
People should never hold a baby in their
arms while riding in a vehicle. A baby
does not weigh much — until a crash.
During a crash a baby will become so
heavy it is not possible to hold it. For
example, in a crash at only 25 mph
(40 km/h), a 12 lb (5.5 kg) baby will
suddenly become a 240 lb (110 kg) force
on a person’s arms. A baby should be
secured in an appropriate restraint.
31
ProCarManuals.com

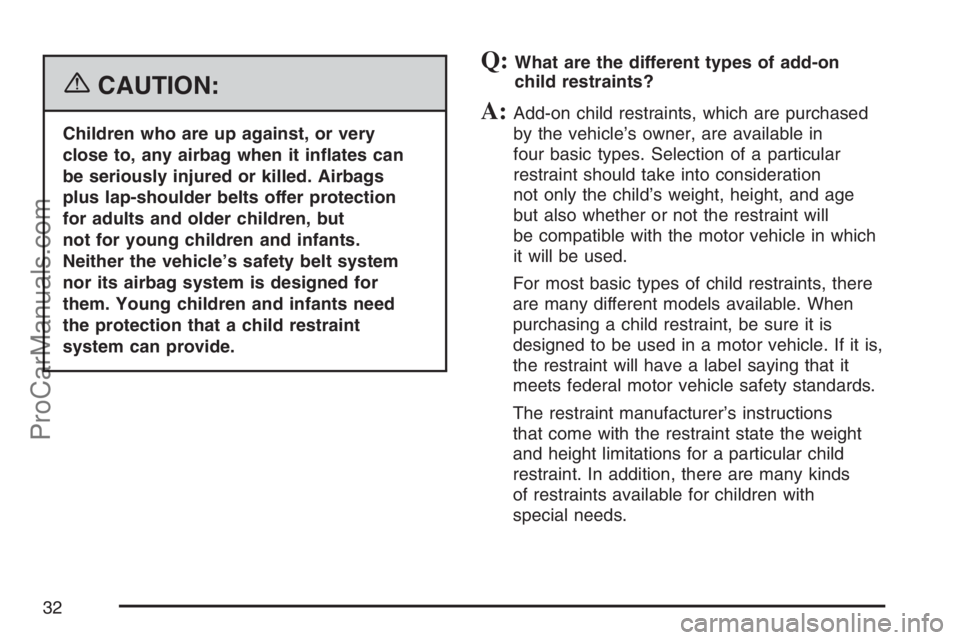

{CAUTION:
Children who are up against, or very
close to, any airbag when it inates can
be seriously injured or killed. Airbags
plus lap-shoulder belts offer protection
for adults and older children, but
not for young children and infants.
Neither the vehicle’s safety belt system
nor its airbag system is designed for
them. Young children and infants need
the protection that a child restraint
system can provide.
Q:What are the different types of add-on
child restraints?
A:Add-on child restraints, which are purchased
by the vehicle’s owner, are available in
four basic types. Selection of a particular
restraint should take into consideration
not only the child’s weight, height, and age
but also whether or not the restraint will
be compatible with the motor vehicle in which
it will be used.
For most basic types of child restraints, there
are many different models available. When
purchasing a child restraint, be sure it is
designed to be used in a motor vehicle. If it is,
the restraint will have a label saying that it
meets federal motor vehicle safety standards.
The restraint manufacturer’s instructions
that come with the restraint state the weight
and height limitations for a particular child
restraint. In addition, there are many kinds
of restraints available for children with
special needs.
32
ProCarManuals.com

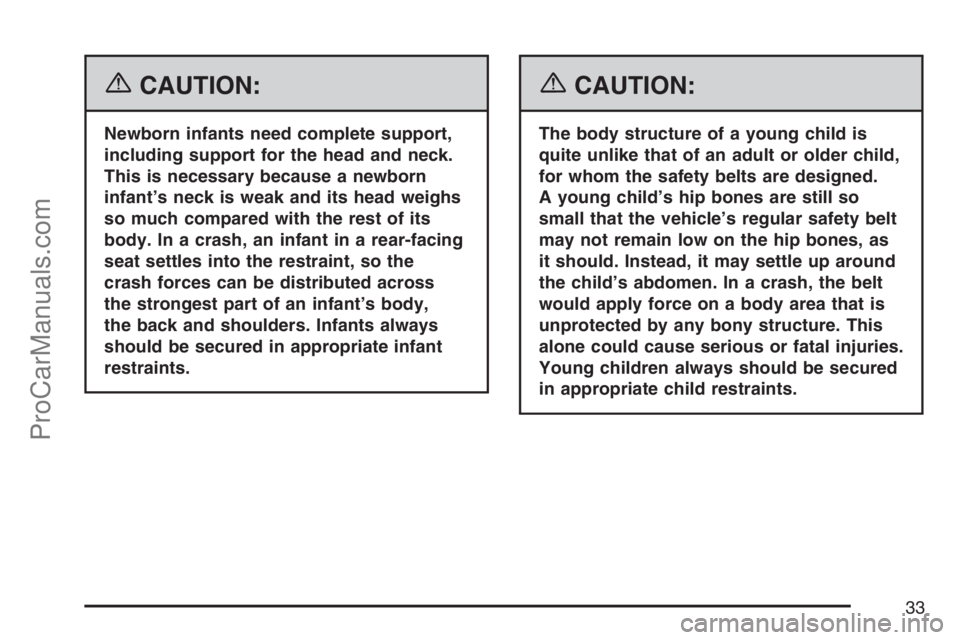

{CAUTION:
Newborn infants need complete support,
including support for the head and neck.
This is necessary because a newborn
infant’s neck is weak and its head weighs
so much compared with the rest of its
body. In a crash, an infant in a rear-facing
seat settles into the restraint, so the
crash forces can be distributed across
the strongest part of an infant’s body,
the back and shoulders. Infants always
should be secured in appropriate infant
restraints.
{CAUTION:
The body structure of a young child is
quite unlike that of an adult or older child,
for whom the safety belts are designed.
A young child’s hip bones are still so
small that the vehicle’s regular safety belt
may not remain low on the hip bones, as
it should. Instead, it may settle up around
the child’s abdomen. In a crash, the belt
would apply force on a body area that is
unprotected by any bony structure. This
alone could cause serious or fatal injuries.
Young children always should be secured
in appropriate child restraints.
33
ProCarManuals.com

Child Restraint Systems
An infant car bed (A), a special bed made for use
in a motor vehicle, is an infant restraint system
designed to restrain or position a child on a
continuous at surface. Make sure that the infant’s
head rests toward the center of the vehicle.A rear-facing infant seat (B) provides restraint
with the seating surface against the back of the
infant. The harness system holds the infant
in place and, in a crash, acts to keep the infant
positioned in the restraint.
34
ProCarManuals.com

A forward-facing child seat (C-E) provides restraint
for the child’s body with the harness and also
sometimes with surfaces such as T-shaped
or shelf-like shields.A booster seat (F-G) is a child restraint designed
to improve the t of the vehicle’s safety belt
system. Some booster seats have a shoulder belt
positioner, and some high-back booster seats
have a ve-point harness. A booster seat can also
help a child to see out the window.
35
ProCarManuals.com

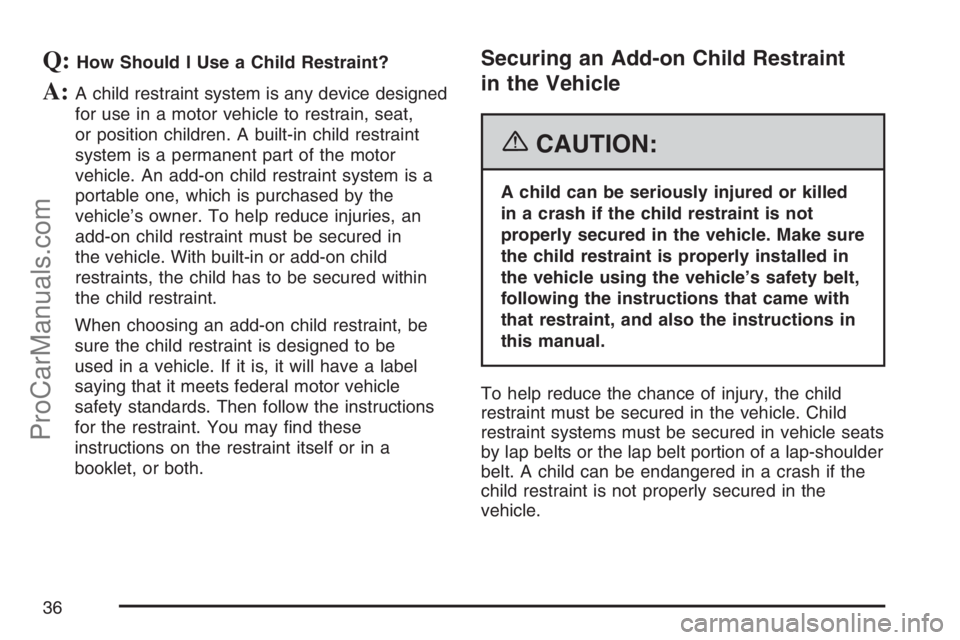

Q:How Should I Use a Child Restraint?
A:A child restraint system is any device designed
for use in a motor vehicle to restrain, seat,
or position children. A built-in child restraint
system is a permanent part of the motor
vehicle. An add-on child restraint system is a
portable one, which is purchased by the
vehicle’s owner. To help reduce injuries, an
add-on child restraint must be secured in
the vehicle. With built-in or add-on child
restraints, the child has to be secured within
the child restraint.
When choosing an add-on child restraint, be
sure the child restraint is designed to be
used in a vehicle. If it is, it will have a label
saying that it meets federal motor vehicle
safety standards. Then follow the instructions
for the restraint. You may nd these
instructions on the restraint itself or in a
booklet, or both.
Securing an Add-on Child Restraint
in the Vehicle
{CAUTION:
A child can be seriously injured or killed
in a crash if the child restraint is not
properly secured in the vehicle. Make sure
the child restraint is properly installed in
the vehicle using the vehicle’s safety belt,
following the instructions that came with
that restraint, and also the instructions in
this manual.
To help reduce the chance of injury, the child
restraint must be secured in the vehicle. Child
restraint systems must be secured in vehicle seats
by lap belts or the lap belt portion of a lap-shoulder
belt. A child can be endangered in a crash if the
child restraint is not properly secured in the
vehicle.
36
ProCarManuals.com

When securing an add-on child restraint, refer
to the instructions that come with the restraint
which may be on the restraint itself or in a booklet,
or both, and to this manual. The child restraint
instructions are important, so if they are not
available, obtain a replacement copy from the
manufacturer.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and
injure people in the vehicle. Be sure to properly
secure any child restraint in your vehicle — even
when no child is in it.
Securing the Child Within the
Child Restraint
There are several systems for securing the child
within the child restraint. One system, the
three-point harness, has straps that come down
over each of the infant’s shoulders and buckle
together at the crotch. The ve-point harness
system has two shoulder straps, two hip straps,
and a crotch strap.A shield may take the place of hip straps. A
T-shaped shield has shoulder straps that are
attached to a at pad which rests low against the
child’s body. A shelf- or armrest-type shield
has straps that are attached to a wide, shelf-like
shield that swings up or to the side.
{CAUTION:
A child can be seriously injured or killed
in a crash if the child is not properly
secured in the child restraint. Make sure
the child is properly secured, following
the instructions that came with that
restraint.
Because there are different systems, it is important
to refer to the instructions that come with the
restraint. A child can be endangered in a crash
if the child is not properly secured in the child
restraint.
37
ProCarManuals.com

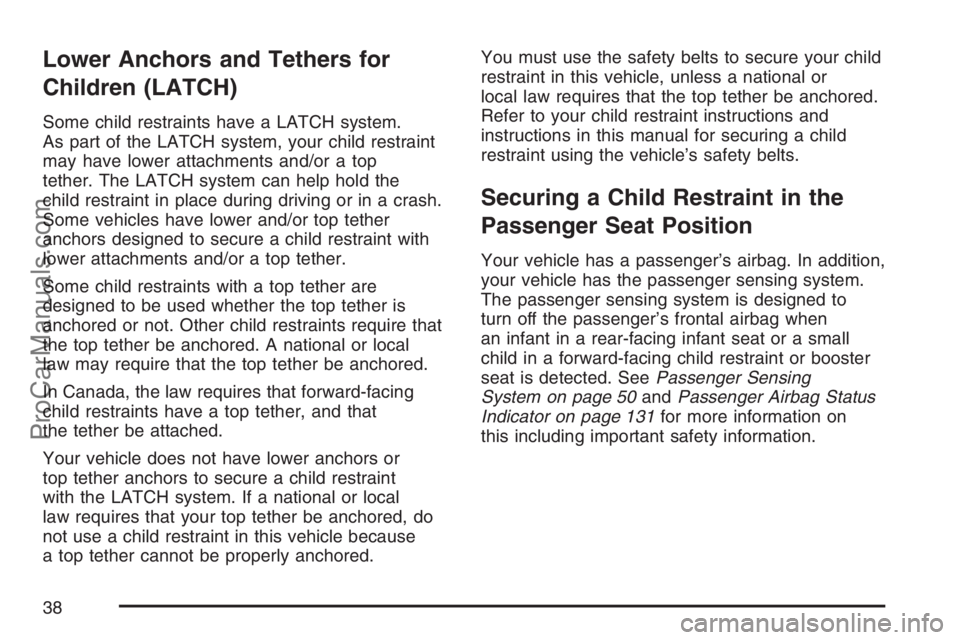

Lower Anchors and Tethers for
Children (LATCH)
Some child restraints have a LATCH system.
As part of the LATCH system, your child restraint
may have lower attachments and/or a top
tether. The LATCH system can help hold the
child restraint in place during driving or in a crash.
Some vehicles have lower and/or top tether
anchors designed to secure a child restraint with
lower attachments and/or a top tether.
Some child restraints with a top tether are
designed to be used whether the top tether is
anchored or not. Other child restraints require that
the top tether be anchored. A national or local
law may require that the top tether be anchored.
In Canada, the law requires that forward-facing
child restraints have a top tether, and that
the tether be attached.
Your vehicle does not have lower anchors or
top tether anchors to secure a child restraint
with the LATCH system. If a national or local
law requires that your top tether be anchored, do
not use a child restraint in this vehicle because
a top tether cannot be properly anchored.You must use the safety belts to secure your child
restraint in this vehicle, unless a national or
local law requires that the top tether be anchored.
Refer to your child restraint instructions and
instructions in this manual for securing a child
restraint using the vehicle’s safety belts.
Securing a Child Restraint in the
Passenger Seat Position
Your vehicle has a passenger’s airbag. In addition,
your vehicle has the passenger sensing system.
The passenger sensing system is designed to
turn off the passenger’s frontal airbag when
an infant in a rear-facing infant seat or a small
child in a forward-facing child restraint or booster
seat is detected. SeePassenger Sensing
System on page 50andPassenger Airbag Status
Indicator on page 131for more information on
this including important safety information.
38
ProCarManuals.com

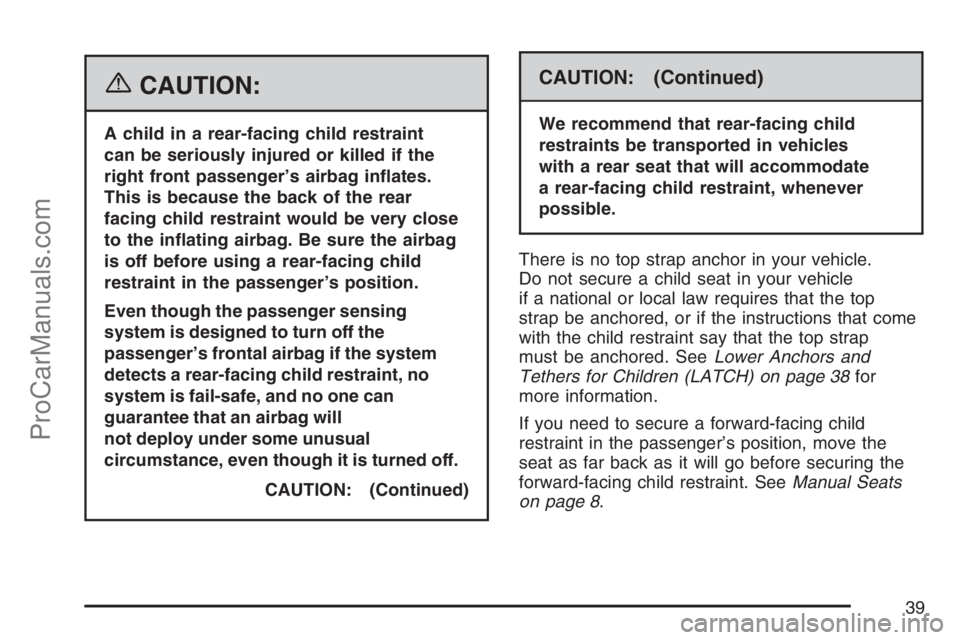

{CAUTION:
A child in a rear-facing child restraint
can be seriously injured or killed if the
right front passenger’s airbag inates.
This is because the back of the rear
facing child restraint would be very close
to the inating airbag. Be sure the airbag
is off before using a rear-facing child
restraint in the passenger’s position.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will
not deploy under some unusual
circumstance, even though it is turned off.
CAUTION: (Continued)
CAUTION: (Continued)
We recommend that rear-facing child
restraints be transported in vehicles
with a rear seat that will accommodate
a rear-facing child restraint, whenever
possible.
There is no top strap anchor in your vehicle.
Do not secure a child seat in your vehicle
if a national or local law requires that the top
strap be anchored, or if the instructions that come
with the child restraint say that the top strap
must be anchored. SeeLower Anchors and
Tethers for Children (LATCH) on page 38for
more information.
If you need to secure a forward-facing child
restraint in the passenger’s position, move the
seat as far back as it will go before securing the
forward-facing child restraint. SeeManual Seats
on page 8.
39
ProCarManuals.com

You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has a passenger’s frontal airbag.
SeePassenger Sensing System on page 50.
We recommend that rear-facing child
restraints not be transported in your vehicle,
even if the airbag is off. If your child restraint
is forward-facing, move the seat as far
back as it will go before securing the child
restraint in this seat. SeeManual Seats
on page 8.
When the passenger sensing system has
turned off the passenger’s frontal airbag, the
off indicator in the passenger airbag status
indicator should light and stay lit when
the vehicle is started. SeePassenger
Airbag Status Indicator on page 131.
2. Put the child restraint on the seat.3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
40
ProCarManuals.com
