5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
41
ProCarManuals.com

7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag is off, the off indicator on the
instrument panel will be lit and stay lit
when the vehicle is started.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall
the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters and seat massagers, located
between the seat cushion and the child restraint
or small occupant, can affect how the passenger
sensing system operates. Remove any additional
material from the seat cushion before reinstalling
or securing the child restraint and before a
small occupant, including a small adult, sits in
the passenger position.
If the on indicator is still lit, do not install a child
restraint in this vehicle and check with your retailer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
42
ProCarManuals.com

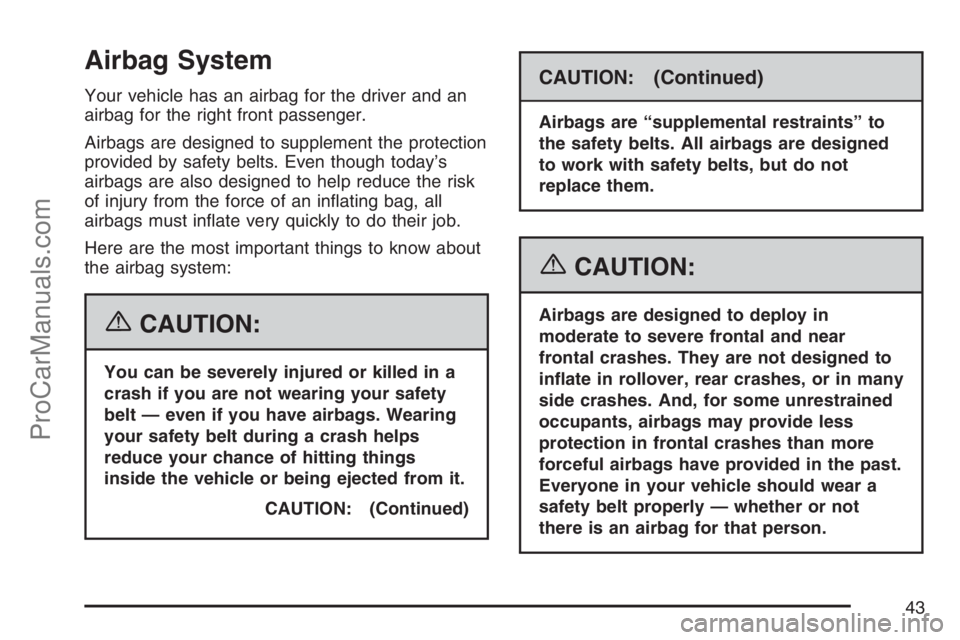

Airbag System
Your vehicle has an airbag for the driver and an
airbag for the right front passenger.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.
Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
CAUTION: (Continued)
CAUTION: (Continued)
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts, but do not
replace them.
{CAUTION:
Airbags are designed to deploy in
moderate to severe frontal and near
frontal crashes. They are not designed to
inate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, airbags may provide less
protection in frontal crashes than more
forceful airbags have provided in the past.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
43
ProCarManuals.com

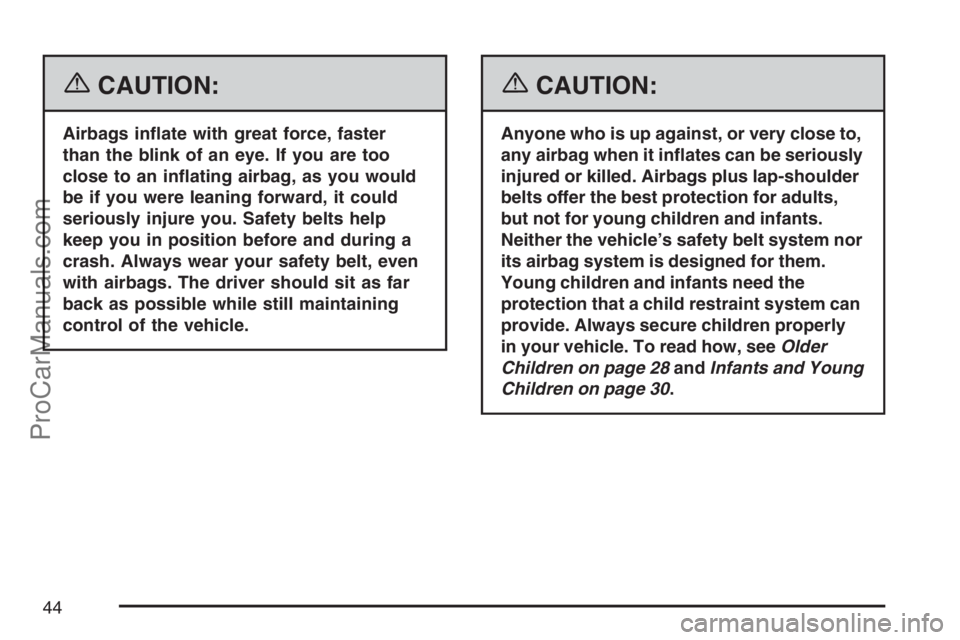

{CAUTION:
Airbags inate with great force, faster
than the blink of an eye. If you are too
close to an inating airbag, as you would
be if you were leaning forward, it could
seriously injure you. Safety belts help
keep you in position before and during a
crash. Always wear your safety belt, even
with airbags. The driver should sit as far
back as possible while still maintaining
control of the vehicle.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults,
but not for young children and infants.
Neither the vehicle’s safety belt system nor
its airbag system is designed for them.
Young children and infants need the
protection that a child restraint system can
provide. Always secure children properly
in your vehicle. To read how, seeOlder
Children on page 28andInfants and Young
Children on page 30.
44
ProCarManuals.com

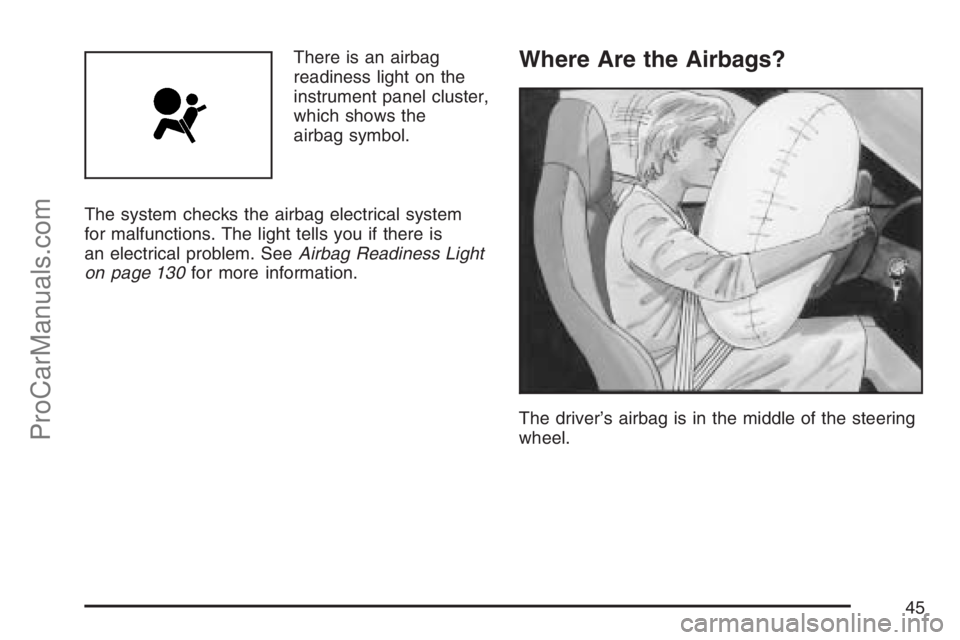

There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system
for malfunctions. The light tells you if there is
an electrical problem. SeeAirbag Readiness Light
on page 130for more information.Where Are the Airbags?
The driver’s airbag is in the middle of the steering
wheel.
45
ProCarManuals.com

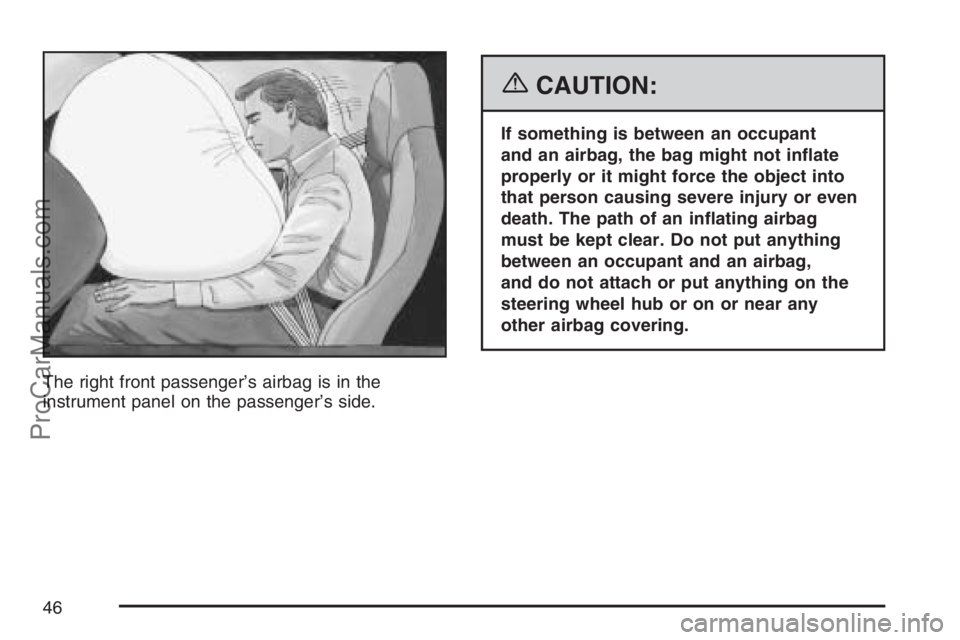

The right front passenger’s airbag is in the
instrument panel on the passenger’s side.
{CAUTION:
If something is between an occupant
and an airbag, the bag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag
must be kept clear. Do not put anything
between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering.
46
ProCarManuals.com

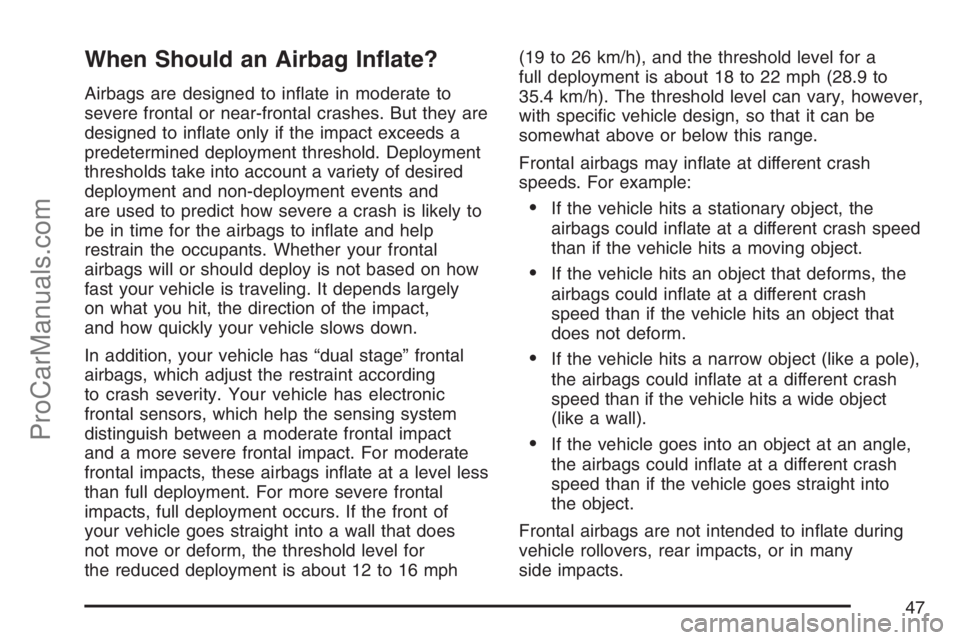

When Should an Airbag Inate?
Airbags are designed to inate in moderate to
severe frontal or near-frontal crashes. But they are
designed to inate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and
are used to predict how severe a crash is likely to
be in time for the airbags to inate and help
restrain the occupants. Whether your frontal
airbags will or should deploy is not based on how
fast your vehicle is traveling. It depends largely
on what you hit, the direction of the impact,
and how quickly your vehicle slows down.
In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according
to crash severity. Your vehicle has electronic
frontal sensors, which help the sensing system
distinguish between a moderate frontal impact
and a more severe frontal impact. For moderate
frontal impacts, these airbags inate at a level less
than full deployment. For more severe frontal
impacts, full deployment occurs. If the front of
your vehicle goes straight into a wall that does
not move or deform, the threshold level for
the reduced deployment is about 12 to 16 mph(19 to 26 km/h), and the threshold level for a
full deployment is about 18 to 22 mph (28.9 to
35.4 km/h). The threshold level can vary, however,
with specic vehicle design, so that it can be
somewhat above or below this range.
Frontal airbags may inate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could inate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could inate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could inate at a different crash
speed than if the vehicle goes straight into
the object.
Frontal airbags are not intended to inate during
vehicle rollovers, rear impacts, or in many
side impacts.
47
ProCarManuals.com

In any particular crash, no one can say whether
an airbag should have inated simply because
of the damage to a vehicle or because of what
the repair costs were. Ination is determined
by what the vehicle hits, the angle of the impact,
and how quickly the vehicle slows down.
What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a release
of gas from the inator, which inates the
airbag. The inator, airbag, and related hardware
are all part of the airbag modules inside the
steering wheel and in the instrument panel in
front of the right front passenger.
How Does an Airbag Restrain?
In moderate to severe frontal or near-frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. The
airbag supplements the protection provided by
safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually.But airbags would not help you in many types
of collisions, including rollovers, rear impacts,
and many side impacts, primarily because
an occupant’s motion is not toward those airbags.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions.
What Will You See After an
Airbag Inates?
After an airbag inates, it quickly deates, so
quickly that some people may not even realize
the airbag inated. Some components of the
airbag module — the steering wheel hub for the
driver’s airbag or the instrument panel for the
right front passenger’s airbag — may be hot for a
short time. The parts of the airbag that come
into contact with you may be warm, but not too
hot to touch. There may be some smoke and dust
coming from the vents in the deated airbags.
Airbag ination does not prevent the driver from
seeing out of the windshield or being able to
steer the vehicle, nor does it prevent people from
leaving the vehicle.
48
ProCarManuals.com

{CAUTION:
When an airbag inates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the
vehicle after an airbag inates, then get
fresh air by opening a window or a door.
If you experience breathing problems
following an airbag deployment, you
should seek medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on,
and turn the hazard warning ashers on when
the airbags inate. You can lock the doors again,
turn the interior lamps off, and turn the hazard
warning ashers off by using the controls for
those features.In many crashes severe enough to inate an
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage
may also occur from the right front passenger
airbag.
Airbags are designed to inate only once.
After they inate, you will need some new
parts for the airbag system. If you do not get
them, the airbag system will not be there
to help protect you in another crash. A new
system will include airbag modules and
possibly other parts. The service manual
for your vehicle covers the need to replace
other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection
and Event Data Recorders on page 363.
Let only qualied technicians work on the
airbag system. Improper service can mean
that an airbag system will not work properly.
See your retailer for service.
49
ProCarManuals.com

Passenger Sensing System
Your vehicle has a passenger sensing system.
The passenger airbag status indicator will be
visible when you turn your ignition key to
RUN or START.
The words ON and OFF or the symbol for on
and off, will be visible on the instrument panel
during the system check. When the system check
is complete, either the word ON or the word
OFF, or the symbol for on or the symbol for off will
be visible. SeePassenger Airbag Status Indicator
on page 131.The passenger sensing system will turn off the
passenger’s frontal airbag under certain conditions.
The driver’s airbag is not part of the passenger
sensing system.
The passenger sensing system works with
sensors that are part of the passenger’s seat.
The sensors are designed to detect the presence
of a properly-seated occupant and determine if
the passenger’s frontal airbag should be enabled
(may inate) or not.
Accident statistics show that children are safer
if they are restrained in the rear rather than
the front seat. We recommend that rear-facing
child restraints not be transported in your vehicle,
even if the airbag is off.
Never put a child in a rear-facing child restraint
in the right front passenger seat unless the
passenger airbag status indicator shows off
and the airbag is off. Here is why:
United StatesCanada
50
ProCarManuals.com
