Page 57 of 392
The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.If your vehicle has a side impact airbag for the driver
and the person seated directly behind the driver,
it is in the ceiling above the side windows.
1-51
ProCarManuals.com
Page 58 of 392
If your vehicle has a side impact airbag for the right
front passenger and the person seated directly behind
that passenger, it is in the ceiling above the side
windows.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not in ate properly or it
might force the object into that person causing
severe injury or even death. The path of an
in ating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, if your vehicle has
roof-mounted side impact airbags, never
secure anything to the roof of your vehicle
by routing the rope or tiedown through any
door or window opening. If you do, the path
of an in ating side impact airbag will be
blocked. The path of an in ating airbag must
be kept clear.
1-52
ProCarManuals.com
Page 59 of 392
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal airbags
are designed to in ate in moderate to severe frontal
or near-frontal crashes. But they are designed to in ate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to in ate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
If the front of your vehicle goes straight into a wal
that does not move or deform, the threshold level is
about 9 to 14 mph (14 to 23 km/h). (The threshold level
can vary, however, with speci c vehicle design, so
that it can be somewhat above or below this range.)
Airbags may in ate at different crash speeds. For
example:
If the vehicle hits a stationary object, the airbag
could in ate at a different crash speed than if
the object were moving.
If the object deforms, the airbag could in ate at a
different crash speed than if the object does not
deform.
If the vehicle hits a narrow object (like a pole) the
airbag could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbag could in ate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger)
are not intended to in ate during vehicle rollovers, rear
impacts, or in many side impacts because in ation
would not likely help the occupants.
Side impact airbags are designed to in ate in moderate
to severe side crashes. A side impact airbag will
in ate if the crash severity is above the system’s
designed “threshold level.” The threshold level can vary
with speci c vehicle design. Side impact airbags are
not designed to in ate in frontal or near-frontal impacts,
rollovers or rear impacts, because in ation would not
likely help the occupant. A side impact airbag will
only deploy on the side of the vehicle that is struck.
1-53
ProCarManuals.com
Page 60 of 392
In any particular crash, no one can say whether an
airbag should have in ated simply because of the
damage to a vehicle or because of what the repair
costs were. For frontal airbags, in ation is determined
by the angle of the impact and how quickly the
vehicle slows down in frontal and near-frontal impacts.
For side impact airbags, in ation is determined by
the location and severity of the impact.
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. For
both frontal and side impact airbags, the sensing system
triggers a release of gas from the in ator, which
in ates the airbag. The in ator, airbag, and related
hardware are all part of the airbag modules inside the
steering wheel and in the instrument panel in front of
the right front passenger. For vehicles with side impact
airbags, the airbag modules are located in the ceiling
of the vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Side impact airbags would not
help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
those airbags. Airbags should never be regarded
as anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe
side collisions for vehicles with a driver’s and right front
passenger’s side impact airbag.
1-54
ProCarManuals.com
Page 61 of 392
What Will You See After an
Airbag In ates?
After the airbag in ates, it quickly de ates, so quickly
that some people may not even realize the airbag
in ated. Some components of the airbag module will be
hot for a short time. These components include the
steering wheel hub for the driver’s frontal airbag and the
instrument panel for the right front passenger’s frontal
airbag. For vehicles with side impact airbags, the ceiling
of your vehicle near the side windows will be hot. The
parts of the bag that come into contact with you may
be warm, but not too hot to touch. There will be
some smoke and dust coming from the vents in the
de ated airbags. Airbag in ation does not prevent the
driver from seeing or being able to steer the vehicle,
nor does it stop people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is
safe to do so. If you have breathing problems
but can not get out of the vehicle after an
airbag in ates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment,
you should seek medical attention.
Your vehicle may have a feature that will automatically
unlock the doors, turn the interior dome lamp on
and ash the daytime running lights on and off when
the airbags in ate (if battery power is available). You can
lock the doors again and turn the interior lamps off by
using the door lock and interior lamp controls. You must
rst, however, turn your ignition key to the following
ignition switch positions:
1. Turn the ignition key to OFF.
2. Turn the ignition key to RUN.
3. Turn the ignition key to OFF.
1-55
ProCarManuals.com
Page 62 of 392
In many crashes severe enough to in ate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the right front passenger airbag.
Airbags are designed to in ate only once. After
an airbag in ates, you will need some new parts
for your airbag system. If you do not get them, the
airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers the need
to replace other parts.
Your vehicle is equipped with a crash sensing and
diagnostic module which records information after
a crash. SeeVehicle Data Collection and Event
Data Recorders on page 7-7.
Let only quali ed technicians work on your airbag
system. Improper service can mean that your
airbag system will not work properly. See your
Saturn retailer for service.Notice:If you damage the covering for the driver’s
or the right front passenger’s airbag, or the side
impact airbag covering on the ceiling near the
side windows, the airbag may not work properly.
You may have to replace the airbag module in
the steering wheel, both the airbag module and the
instrument panel for the right front passenger’s
airbag, or side impact airbag module and ceiling
covering for roof-mounted side impact airbags.
Do not open or break the airbag coverings.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are airbag system parts in several places around
your vehicle. You do not want the system to in ate
while someone is working on your vehicle. Your Saturn
retailer and the Saturn Service Manual have information
about servicing your vehicle and the airbag system.
To purchase a service manual, seeService Publications
Ordering Information on page 7-9.
1-56
ProCarManuals.com
Page 63 of 392
{CAUTION:
For up to 10 minutes after the ignition key is
turned off and the battery is disconnected,
an airbag can still in ate during improper
service. You can be injured if you are close
to an airbag when it in ates. Avoid yellow
connectors. They are probably part of the
airbag system. Be sure to follow proper
service procedures, and make sure the person
performing work for you is quali ed to do so.
The airbag system does not need regular maintenance.
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:If I add a luggage carrier or sunroof to the roof
of my vehicle, will it keep the roof-mounted side
impact airbags from working properly?
A:As long as the luggage carrier or sunroof is
properly installed so that the vehicle’s basic
structure is not changed, it is not likely to keep the
roof-mounted side impact airbags from working
properly in a crash.
1-57
ProCarManuals.com
Page 64 of 392
Restraint System Check
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors
and anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
Also look for any opened or broken airbag covers, and
have them repaired or replaced. (The airbag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or even death in
a crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
1-58
ProCarManuals.com
Page 65 of 392

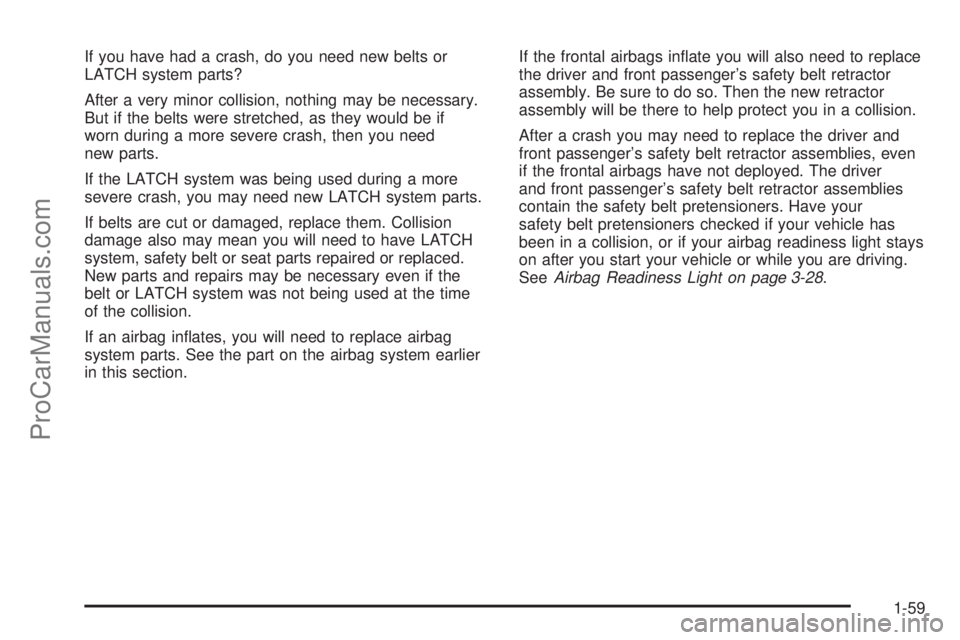

If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if
worn during a more severe crash, then you need
new parts.
If the LATCH system was being used during a more
severe crash, you may need new LATCH system parts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have LATCH
system, safety belt or seat parts repaired or replaced.
New parts and repairs may be necessary even if the
belt or LATCH system was not being used at the time
of the collision.
If an airbag in ates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.If the frontal airbags in ate you will also need to replace
the driver and front passenger’s safety belt retractor
assembly. Be sure to do so. Then the new retractor
assembly will be there to help protect you in a collision.
After a crash you may need to replace the driver and
front passenger’s safety belt retractor assemblies, even
if the frontal airbags have not deployed. The driver
and front passenger’s safety belt retractor assemblies
contain the safety belt pretensioners. Have your
safety belt pretensioners checked if your vehicle has
been in a collision, or if your airbag readiness light stays
on after you start your vehicle or while you are driving.
SeeAirbag Readiness Light on page 3-28.
1-59
ProCarManuals.com
Page 105 of 392
Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-7
Windshield Wiper Lever...................................3-9
Cruise Control (2.2L L4 Engine)......................3-11
Cruise Control (3.5L V6 Engine).....................3-14
Exterior Lamps.............................................3-17
Interior Lamps..............................................3-19
Accessory Power Outlets...............................3-20
Climate Controls............................................3-21
Climate Control System.................................3-21
Passenger Compartment Air Filter...................3-23
Warning Lights, Gages, and Indicators............3-25
Instrument Panel Cluster................................3-26
Speedometer and Odometer...........................3-27
Tachometer.................................................3-27
Safety Belt Reminder Light.............................3-28
Airbag Readiness Light..................................3-28
Battery Warning Light....................................3-29Up-Shift Light...............................................3-30
Brake System Warning Light..........................3-30
Anti-Lock Brake System Warning Light.............3-31
Traction Control System (TCS)
Warning Light...........................................3-32
Low Traction Light........................................3-33
Engine Coolant Temperature
Warning Light...........................................3-33
Engine Coolant Temperature Gage..................3-34
Low Coolant Warning Light............................3-34
Malfunction Indicator Lamp.............................3-35
Oil Pressure Light.........................................3-38
Change Engine Oil Light................................3-39
Security Light...............................................3-39
Reduced Engine Power Light.........................3-39
Daytime Running Lamps (DRL)
Indicator Light...........................................3-40
Gate Ajar Light.............................................3-40
Service Vehicle Soon Light............................3-40
Fuel Gage...................................................3-41
Low Fuel Warning Light.................................3-42
Section 3 Instrument Panel
3-1
ProCarManuals.com
