SATURN VUE 2004 Owners Manual

As shown in the viscosity chart, SAE 5W-20 is best for
your vehicle.
These numbers on an oil container show its viscosity, or
thickness. Do not use other viscosity oils such as
SAE 20W-50.
Oils meeting these
requirements should also
have the starburst
symbol on the container.
This symbol indicates
that the oil has been
certied by the American
Petroleum Institute (API).You should look for this information on the oil container,
and useonlythose oils that have the starburst symbol
on the front of the oil container.
Notice:Use only engine oil with the American
Petroleum Institute Certied For Gasoline Engines
starburst symbol. Failure to use the recommended
oil can result in engine damage not covered by
your warranty.
Engine Oil Additives
Do not add anything to your oil. The recommended oil
with the starburst symbol are all you will need for
good performance and engine protection.
5-19
ProCarManuals.com

When to Change Engine Oil
(GM Oil Life System)
Your vehicle has a computer system that lets you know
when to change the engine oil and lter. This is
based on engine revolutions and engine temperature,
and not on mileage. Based on driving conditions,
the mileage at which an oil change will be indicated can
vary considerably. For the oil life system to work
properly, you must reset the system every time the oil
is changed.
When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary. A CHANGE OIL SOON light will come on.
Change your oil as soon as possible within the next
two times you stop for fuel. It is possible that, if you are
driving under the best conditions, the oil life system
may not indicate that an oil change is necessary for over
a year. However, your engine oil and lter must be
changed at least once a year and at this time the system
must be reset. Your retailer has trained service people
who will perform this work using genuine Saturn
parts and reset the system. It is also important to check
your oil regularly and keep it at the proper level.
If the system is ever reset accidentally, you must change
your oil at 3,000 miles (5 000 km) since your last oil
change. Remember to reset the oil life system whenever
the oil is changed.
How to Reset the Oil Life System
The GM Oil Life System calculates when to change
your engine oil and lter based on vehicle use. Anytime
your oil is changed, reset the system so it can
calculate when the next oil change is required. If a
situation occurs where you change your oil prior to a
CHANGE OIL SOON light being turned on, reset
the system.
After changing the engine oil, reset the system by
performing the following steps:
1. Turn the ignition key to RUN with the engine off.
2. Fully press and release the accelerator pedal
three times within ve seconds.
If the Change Engine Oil light is ashing, the
system is reset. The light will ash for up to
30 seconds or until the ignition is turned off.
If the light comes on again and stays on for 30 seconds
at the next ignition cycle, it did not reset. You will
need to reset the system again.
5-20
ProCarManuals.com

What to Do with Used Oil
Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good
hand cleaner. Wash or properly dispose of clothing or
rags containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
lter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers, or into
streams or bodies of water. Instead, recycle it by
taking it to a place that collects used oil. If you have a
problem properly disposing of your used oil, ask
your dealer, a service station or a local recycling center
for help.
Engine Air Cleaner/Filter
Engine Air Cleaner/Filter Replacement
When to Inspect the Engine Air
Cleaner/Filter
Inspect the air cleaner/lter at every oil change and
replace at the rst oil change after 25,000 miles
(40 000 km).
5-21
ProCarManuals.com

How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/lter, remove the lter from
the vehicle and lightly shake lter to release loose dust
and dirt. If the lter remains “caked” with dirt, a new
lter is required.
The engine air cleaner/lter is located in the engine
compartment on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 5-12
for more information on location.
SeeScheduled Maintenance on page 6-4for information
on when to replace the engine air cleaner/lter.
{CAUTION:
Operating the engine with the air cleaner/lter
off can cause you or others to be burned.
The air cleaner not only cleans the air; it helps
to stop ame if the engine backres. If it is
not there and the engine backres, you could
be burned. Do not drive with it off, and be
careful working on the engine with the air
cleaner/lter off.Notice:If the air cleaner/lter is off, a backre can
cause a damaging engine re. And, dirt can
easily get into your engine, which will damage it.
Always have the air cleaner/lter in place when you
are driving.
To replace the engine air cleaner/lter, do the following:
1. Unscrew the clamp on the air duct hose.
5-22
ProCarManuals.com

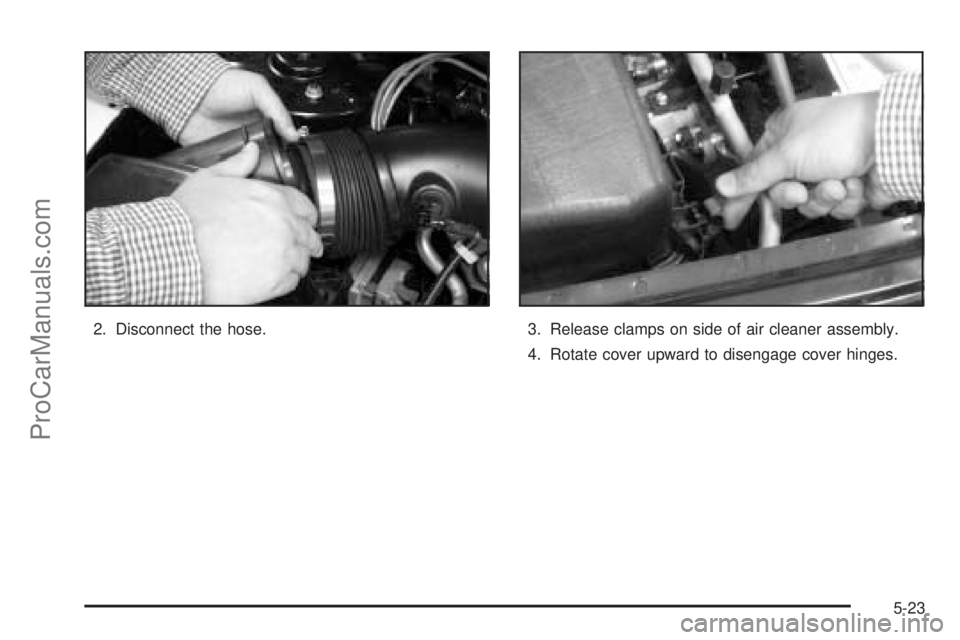

2. Disconnect the hose. 3. Release clamps on side of air cleaner assembly.
4. Rotate cover upward to disengage cover hinges.
5-23
ProCarManuals.com

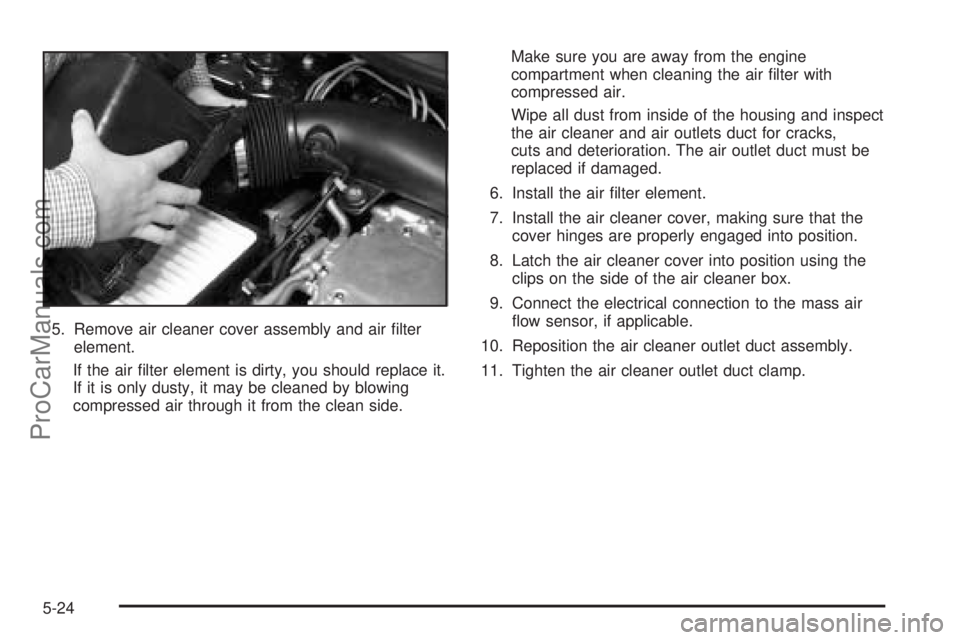

5. Remove air cleaner cover assembly and air lter
element.
If the air lter element is dirty, you should replace it.
If it is only dusty, it may be cleaned by blowing
compressed air through it from the clean side.Make sure you are away from the engine
compartment when cleaning the air lter with
compressed air.
Wipe all dust from inside of the housing and inspect
the air cleaner and air outlets duct for cracks,
cuts and deterioration. The air outlet duct must be
replaced if damaged.
6. Install the air lter element.
7. Install the air cleaner cover, making sure that the
cover hinges are properly engaged into position.
8. Latch the air cleaner cover into position using the
clips on the side of the air cleaner box.
9. Connect the electrical connection to the mass air
ow sensor, if applicable.
10. Reposition the air cleaner outlet duct assembly.
11. Tighten the air cleaner outlet duct clamp.
5-24
ProCarManuals.com

Automatic Transaxle Fluid
When to Check and Change
A good time to check your automatic transaxle uid
level is when the engine oil is changed.
Change the uid every 50,000 miles (83 000 km) if
the vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing recreational/trailer towing.
Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of these
conditions, change the uid at 100,000 miles
(166 000 km).
SeeScheduled Maintenance on page 6-4.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at the dealership service
department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
Notice:Too much or too little uid can damage the
transaxle. Too much can mean that some of the uid
could come out and fall on hot engine or exhaust
system parts, starting a re. Too little uid could
cause the transaxle to overheat. Be sure to get an
accurate reading if you check the transaxle uid.
Wait at least 30 minutes before checking the transaxle
uid level if you have been driving:
When outside temperatures are above 90°F (32°C).
At high speed for quite a while.
In heavy traffic – especially in hot weather.
While pulling a trailer.
To get the right reading, the uid should be at normal
operating temperature, which is 180°F to 200°F
(82°C to 93°C).
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
(10°C). If it’s colder than 50°F (10°C), you may have to
drive longer.
5-25
ProCarManuals.com

Checking the Fluid Level (Automatic
Transaxle with 2.2L L4 Engine)
Prepare your vehicle as follows:
Park your vehicle on a level place. Keep the
engine running.
With the parking brake applied, place the shift lever
in PARK (P).
With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the shift
lever in PARK (P).
Then, without shutting off the engine, follow these steps:
The transaxle uid dipstick handle is the black loop
near the rear of the engine compartment, toward
the center. SeeEngine Compartment Overview on
page 5-12for more information on location.
1. Pull out the dipstick and wipe it with a clean rag or
paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.
3. Check both sides of the dipstick, and read the
lower level. The uid level must be in the
cross-hatched area.
4. If the uid level is in the acceptable range, push the
dipstick back in all the way.
Checking the Fluid Level (Automatic
Transaxle with 3.5L V6 Engine)
Prepare your vehicle as follows:
Park your vehicle on a level place.
Warm the engine to normal operating temperature
until the electric radiator fan turns on at least once.
With the parking brake applied, place the shift lever
in PARK (P).
With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the shift
lever in PARK (P).
Then, turn off the engine and, follow these steps:
The transaxle uid dipstick handle is the yellow loop.
SeeEngine Compartment Overview on page 5-12
for more information on location.
1. Pull out the dipstick and wipe it with a clean rag or
paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.
3. Check both sides of the dipstick, and read the lower
level. The uid level must be between the upper
mark and the lower mark.
4. If the uid level is in the acceptable range, push the
dipstick back in all the way.
5-26
ProCarManuals.com

How to Add Fluid
Refer to the Maintenance Schedule to determine what
kind of transaxle uid to use. SeeRecommended Fluids
and Lubricants on page 6-14.
If the uid level is low, add only enough of the proper
uid to bring the level into the cross-hatched area on
the dipstick.
1. Pull out the dipstick.
2. Using a long-neck funnel, add enough uid at the
dipstick hole to bring it to the proper level.
It doesn’t take much uid, generally less than
one pint (0.5 L).Don’t overll.
Notice:Use of automatic transaxle uid other than
that listed in the Maintenance Schedule may
damage your vehicle, and the damages may not be
covered by your warranty. Always use the correct
automatic transaxle uid in your vehicle. See
Recommended Fluids and Lubricants on page 6-14
for the correct automatic transaxle uid.
3. After adding uid, recheck the uid level as
described under “How to Check” earlier in
this section.
4. When the correct uid level is obtained, push the
dipstick back in all the way.
Manual Transaxle Fluid
It is not necessary to check the transaxle uid level. A
transaxle uid leak is the only reason for uid loss.
If a leak occurs, take the vehicle to your retailer’s service
department and have it repaired as soon as possible.
You may also have your uid level checked by your
retailer or service center when you have your oil
changed. SeeRecommended Fluids and Lubricants on
page 6-14for the proper uid to use.
Notice:Use of manual transaxle uid other than
that listed in the Maintenance Schedule may damage
your vehicle, and the damages may not be covered
by your warranty. Always use the correct manual
transaxle uid in your vehicle. SeeRecommended
Fluids and Lubricants on page 6-14for the correct
manual transaxle uid.
5-27
ProCarManuals.com

Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The hydraulic clutch system does not
have its own reservoir. The system receives uid from
the brake master cylinder reservoir. It is lled with
DOT-3 brake uid. SeeBrakes on page 5-41for
more information.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is designed
to remain in your vehicle for ve years or 100,000 miles
(166 000 km), whichever occurs rst, if you add only
DEX-COOL
®extended life coolant.
The following explains your cooling system and how to
add coolant when it is low. If you have a problem
with engine overheating, seeEngine Overheating on
page 5-31.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
Notice:Using coolant other than DEX-COOL
®may
cause premature engine, heater core or radiator
corrosion. In addition, the engine coolant may
require changing sooner, at 30,000 miles (50 000 km)
or 24 months, whichever occurs rst. Any repairs
would not be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your vehicle.
5-28
ProCarManuals.com
