AC s SATURN VUE 2009 Owners Manual

Universal Home
Remote System
The Universal Home Remote
System provides a way to
replace up to three hand-held
Radio-Frequency (RF) transmitters
used to activate devices such
as garage door openers, security
systems, and home lighting.
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause
harmful interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation.This device complies with RSS-210
of Industry Canada. Operation
is subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to
this system by other than an
authorized service facility could void
authorization to use this equipment.
Universal Home Remote
System Operation
If there is one triangular Light
Emitting Diode (LED) indicator light
above the Universal Home Remote
buttons, follow the instructions
below.
This system provides a way to
replace up to three remote control
transmitters used to activate devices
such as garage door openers,
security systems, and home
automation devices.
Features and Controls 2-37
ProCarManuals.com

Do not use the Universal Home
Remote with any garage door
opener that does not have the stop
and reverse feature. This includes
any garage door opener model
manufactured before April 1, 1982.
Read the instructions completely
before attempting to program the
Universal Home Remote. Because of
the steps involved, it may be helpful
to have another person available to
assist you in the programming the
Universal Home Remote.
Keep the original hand-held
transmitter for use in other vehicles
as well as for future Universal Home
Remote programming. It is also
recommended that upon the sale
of the vehicle, the programmed
Universal Home Remote buttons
should be erased for security
purposes. See “Erasing Universal
Home Remote Buttons” later in this
section.When programming a garage
door, park outside of the garage.
Park directly in line with and facing
the garage door opener motor-head
or gate motor-head. Be sure that
people and objects are clear of the
garage door or gate that is being
programmed.
It is recommended that a new
battery be installed in your hand-held
transmitter for quicker and more
accurate transmission of the
radio-frequency signal.
Programming the Universal
Home Remote System
For questions or help programming
the Universal Home Remote System,
call 1-800-355-3515 or go to
homelink.com.
Programming a garage door opener
involves time-sensitive actions, so
read the entire procedure before
starting. Otherwise, the device will
time out and the procedure will have
to be repeated.To program up to three devices:
1. From inside the vehicle, press
and hold down the two outside
buttons at the same time,
releasing only when the Universal
Home Remote indicator light
begins to ash, after 20 seconds.
This step will erase the factory
settings or all previously
programmed buttons.
Do not hold down the buttons for
longer than 30 seconds and do
not repeat this step to program
the remaining two Universal
Home Remote buttons.
2-38 Features and Controls
ProCarManuals.com

2. Hold the end of your hand-held
transmitter about 1 to 3 inches
(3 to 8 cm) away from the
Universal Home Remote buttons
while keeping the indicator light in
view. The hand-held transmitter
was supplied by the manufacturer
of your garage door opener
receiver (motor head unit).
3. At the same time, press and hold
both the Universal Home Remote
button to be used to control the
garage door and the hand-held
transmitter button. Do not release
the Universal Home Remote
button or the hand-held
transmitter button until Step 4
has been completed.
Some entry gates and
garage door openers may
require substitution of Step 3
with the procedure noted in
“Gate Operator and Canadian
Programming” later in this
section.4. The indicator light on the
Universal Home Remote will
ash slowly at rst and then
rapidly after Universal Home
Remote successfully receives
the frequency signal from the
hand-held transmitter. Release
both buttons.
5. Press and hold the newly-trained
Universal Home Remote button
and observe the indicator light.
If the indicator light stays on
continuously, the programming is
complete and the garage door
should move when the Universal
Home Remote button is pressed
and released. There is no need to
continue programming Steps 6
through 8.
If the Universal Home Remote
indicator light blinks rapidly
for two seconds and then turns
to a constant light, continue
with the programming Steps 6
through 8.It may be helpful to have another
person assist with the remaining
steps.
6. After Steps 1 through 5 have
been completed, locate inside
the garage the garage door
opener receiver (motor-head
unit). Locate the “Learn” or
“Smart” button. The name and
color of the button may vary
by manufacturer.
Features and Controls 2-39
ProCarManuals.com

7. Firmly press and release the
“Learn” or “Smart” button.
After you press this button,
you will have 30 seconds
to complete Step 8.
8. Immediately return to the vehicle.
Firmly press and hold the
Universal Home Remote button,
chosen in Step 3 to control the
garage door, for two seconds,
and then release it. If the garage
door does not move, press and
hold the same button a second
time for two seconds, and then
release it. Again, if the door does
not move, press and hold the
same button a third time for
two seconds, and then release.
The Universal Home Remote
should now activate the
garage door.
To program the remaining two
Universal Home Remote buttons,
begin with Step 2 of “Programming
the Universal Home Remote
System.” Do not repeat Step 1,as this will erase all previous
programming from the Universal
Home Remote buttons.
Gate Operator and Canadian
Programming
If you have questions or need
help programming the Universal
Home Remote System, call
1-800-355-3515 or go to
homelink.com.
Canadian radio-frequency laws
require transmitter signals to time
out or quit after several seconds
of transmission. This may not be
long enough for Universal Home
Remote to pick up the signal during
programming. Similarly, some U.S.
gate operators are manufactured to
time out in the same manner.
If you live in Canada, or you are
having difficulty programming a
gate operator or garage door opener
by using the “Programming Universal
Home Remote” procedures,regardless of where you live,
replace Step 3 under “Programming
Universal Home Remote” with the
following:
Continue to press and hold the
Universal Home Remote button
while you press and release every
two seconds (cycle) the hand-held
transmitter button until the frequency
signal has been successfully
accepted by the Universal Home
Remote. The Universal Home
Remote indicator light will ash
slowly at rst and then rapidly.
Proceed with Step 4 under
“Programming Universal Home
Remote” to complete.
Using Universal Home Remote
Press and hold the appropriate
Universal Home Remote button for at
least half of a second. The indicator
light will come on while the signal is
being transmitted.
2-40 Features and Controls
ProCarManuals.com

Erasing Universal Home
Remote Buttons
The programmed buttons should
be erased when the vehicle is sold
or the lease ends.
To erase all programmed buttons on
the Universal Home Remote device:
1. Press and hold down the
two outside buttons until the
indicator light begins to ash,
after 20 seconds.
2. Release both buttons.
Reprogramming a Single
Universal Home Remote
Button
To reprogram any of the three
Universal Home Remote buttons,
repeat the programming instructions
earlier in this section, beginning
with Step 2.
For help or information on the
Universal Home Remote System,
call the customer assistance phone
number underCustomer Assistance
Offices on page 7-5.
Storage Areas
Glove Box
To open the glove box, lift up on
the lever. If the glove box has a lock
use the key to lock and unlock it.
The glove box divider can be
removed. The slots on the left side
are for storing the divider.
Cupholders
There are cupholders located in front
of and behind the center console.
To access the cupholders behind
the center console, push the button.
Features and Controls 2-41
ProCarManuals.com

Instrument Panel Storage
Your vehicle has a storage area
located to left of the steering wheel.
Pull down on the handle to access.
Sunglasses Storage
Compartment
Your vehicle may have a
sunglasses storage compartment
located near the rearview mirror.
Push the cover to open.
Front Storage Area
For vehicles with a storage area
located under the front passenger
seat, lift up on the end of the
tray and pull it forward to access it.
Center Console Storage
Your vehicle has a center console
with an upper, lower and rear
storage area. To access the upper
storage area, lift up on the top
lever. To access the lower storage
area, lift up on the bottom lever.
The top of the center console can
extend forward. To adjust, hold
the top of the lever up and pull the
top of the center console forward.
2-42 Features and Controls
ProCarManuals.com

To open the cover of the rear
storage area, push the button
located at the top.
Luggage Carrier
{CAUTION
If something is carried on top
of the vehicle that is longer
or wider than the luggage
carrier — like paneling, plywood,
or a mattress — the wind can
catch it while the vehicle is being
driven. This can cause a driver to
lose control. The item being
carried could be violently torn off,
and this could cause a collision,
and damage the vehicle. Items
may be carried inside. Never carry
something longer or wider than
the luggage carrier on top of the
vehicle.If your vehicle has a luggage carrier,
items can be loaded onto the top of
the vehicle. Crossrails may be
purchased at your dealer/retailer.
Notice:Loading cargo on the
luggage carrier that weighs more
than 200 lbs (91 kg) or hangs
over the rear or sides of the
vehicle can damage the vehicle.
Load cargo so that it rests as
far forward as possible and
against the side rails, making
sure to fasten it securely.
Do not exceed the maximum vehicle
capacity when loading your vehicle.
For more information on vehicle
capacity and loading, seeLoading
the Vehicle on page 4-28.
Check that all cargo is securely
fastened to prevent damage or loss
while driving.
Features and Controls 2-43
ProCarManuals.com

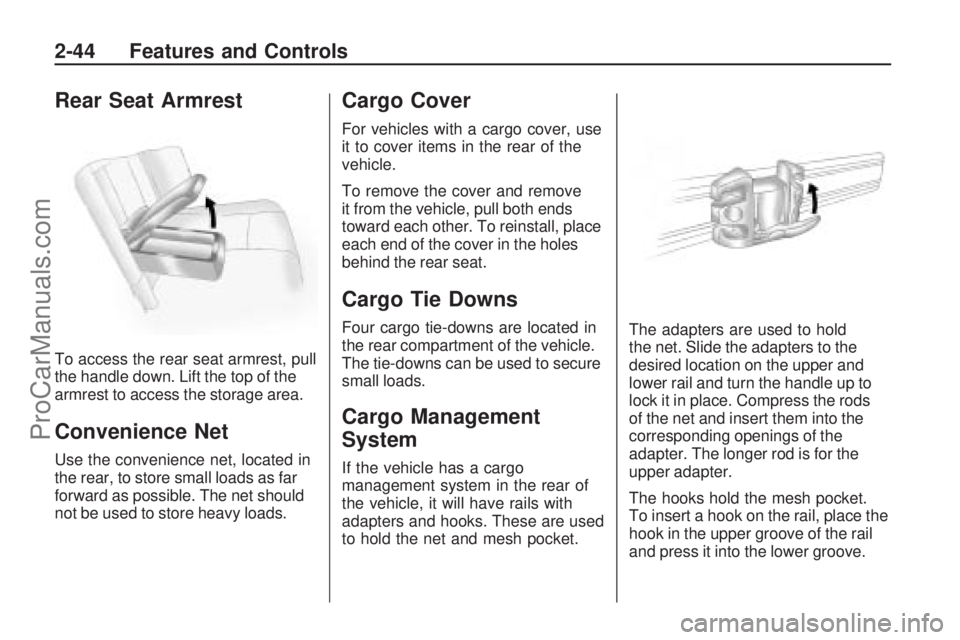

Rear Seat Armrest
To access the rear seat armrest, pull
the handle down. Lift the top of the
armrest to access the storage area.
Convenience Net
Use the convenience net, located in
the rear, to store small loads as far
forward as possible. The net should
not be used to store heavy loads.
Cargo Cover
For vehicles with a cargo cover, use
it to cover items in the rear of the
vehicle.
To remove the cover and remove
it from the vehicle, pull both ends
toward each other. To reinstall, place
each end of the cover in the holes
behind the rear seat.
Cargo Tie Downs
Four cargo tie-downs are located in
the rear compartment of the vehicle.
The tie-downs can be used to secure
small loads.
Cargo Management
System
If the vehicle has a cargo
management system in the rear of
the vehicle, it will have rails with
adapters and hooks. These are used
to hold the net and mesh pocket.The adapters are used to hold
the net. Slide the adapters to the
desired location on the upper and
lower rail and turn the handle up to
lock it in place. Compress the rods
of the net and insert them into the
corresponding openings of the
adapter. The longer rod is for the
upper adapter.
The hooks hold the mesh pocket.
To insert a hook on the rail, place the
hook in the upper groove of the rail
and press it into the lower groove.
2-44 Features and Controls
ProCarManuals.com

Sunroof
The sunroof switch is located
between the sun visors.
To operate the sunroof, the
ignition must be in ON/RUN,
ACC/ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 2-17.Open/Close:Slide and release the
switch rearward to express open
the sunroof. Slide the switch forward
or rearward to stop movement.
The sun shade opens automatically
with the sunroof or can be manually
operated. The sunshade cannot be
closed with the sunroof open.
Slide and hold the switch forward to
close the sunroof. The sunshade
must be closed manually.
Vent Open/Close:Press and
hold the switch to vent the sunroof.
Pull and hold the switch to close it.
The sunshade must be manually
operated when the sunroof is in the
vent position.
Features and Controls 2-45
ProCarManuals.com

✍NOTES
2-46 Features and Controls
ProCarManuals.com
