AC s SATURN VUE 2009 Owners Manual

To increase the speed in small
amounts, move the thumbwheel
up toward RES+ briey and then
release it. Each time this is done,
the vehicle goes about 1 mph
(1.6 km/h) faster.
Use the accelerator pedal to
reach the desired speed and
move the thumbwheel towards
−SET. The new desired speed
must be greater than the previous
set speed by a least 5 mph.
Reducing Speed While Using
Cruise Control
If the cruise control system is
already engaged,
Move the thumbwheel toward
−SET and hold until the desired
lower speed is reached, then
release it.
To slow down in very small
amounts, move the thumbwheel
toward−SET briey. Each time
this is done, the vehicle goes
about 1 mph (1.6 km/h) slower.Passing Another Vehicle While
Using Cruise Control
Use the accelerator pedal to
increase the vehicle’s speed.
When you take your foot off the
pedal, the vehicle will slow down
to the previously set cruise control
speed.
Using Cruise Control on Hills
How well the cruise control works
on hills depends upon the vehicle’s
speed, load, and the steepness of
the hills. When going up steep hills,
you might have to step on the
accelerator pedal to maintain the
vehicle’s speed. When going
downhill, you might have to brake or
shift to a lower gear to maintain the
vehicle’s speed. For some vehicles
the transmission may automatically
downshift when going down hills to
help maintain the vehicle’s speed.
When the brakes are applied the
cruise control shuts off.Ending Cruise Control
There are three ways to disengage
the cruise control:
Step lightly on the brake pedal
or clutch; when cruise control
disengages, the indicator light
on the instrument panel cluster
goes out.
PressEto turn off the cruise
control system.
Erasing Speed Memory
The cruise control set speed
memory is erased when the
cruise control or the ignition is
turned off.
Instrument Panel 3-11
ProCarManuals.com

Exterior Lamps
The exterior lamp control is located
on the instrument panel to the
left of the steering wheel.
The exterior lamp control can be
turned to the following positions:
9(Off):Turns off the exterior
lamps. The knob returns to the
AUTO position after it is released.AUTO (Automatic):Automatically
turns the exterior lamps on and
off, depending on outside lighting.
;(Parking Lamps):Turns on
the parking lamps together with the
following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
2(Headlamps):Turns on the
headlamps, together with the
previously listed lamps and lights.
Lamps On Reminder
A warning chime sounds, if the
driver door is opened while the
ignition is off and the lamps are on.
Wiper Activated
Headlamps
This feature automatically turns
on the headlamps and parking
lamps if the exterior lamp control is
set in the AUTO position and the
windshield wipers are turned on and
have completed eight wipe cycles.
SeeExterior Lamps on page 3-12
for additional information.
When the ignition is turned off,
the wiper-activated headlamps
immediately turn off. They also turn
off if the windshield wiper control is
turned off.
3-12 Instrument Panel
ProCarManuals.com

Daytime Running
Lamps (DRL)
Daytime Running Lamps (DRL) can
make it easier for others to see the
front of your vehicle during the day.
Fully functional daytime running
lamps are required on all vehicles
rst sold in Canada.
The DRL system makes the
low-beam headlamps come on
in daylight when the following
conditions are met:
The engine is running,
The exterior lamp band is in
AUTO, and
The light sensor determines it is
daytime.When the DRL are on, the
low-beam headlamps will be on.
The taillamps, sidemarker,
instrument panel lights and
other lamps will not be on.
When the exterior lamp band is
turned to the headlamp position,
the regular headlamps will come on.
The other lamps that come on with
the headlamps will also come on.
When the headlamps are turned off,
the regular lamps also turn off, and
the low-beam headlamps turn on.
The regular headlamp system
should be used when needed.
Automatic Headlamp
System
When it is dark enough outside, the
headlamps come on automatically.
There is a light sensor located on
top of the instrument panel. Do not
cover the sensor or the headlamps
will come on when they are not
needed.
The system may also turn on the
headlamps when driving through a
parking garage or tunnel.
Instrument Panel 3-13
ProCarManuals.com

Fog Lamps
For vehicles with fog lamps, the
button is located on the instrument
panel next to the exterior lamps
switch.
#:Press to turn the fog lamps on
or off.
The fog lamp indicator in the
instrument panel comes on when
the fog lamps are in use.
The parking lamps or low-beam
headlamps must be on, before the
fog lamps can be turned on.
If the exterior lamp control is set
to AUTO mode, the parking lamps
and low-beam headlamps come on
simultaneously when the fog lamps
are turned on.
When the high-beam headlamps
are turned on, the fog lamps turn off
automatically. When the high-beam
headlamps are turned off, the fog
lamps come on again.
Some localities have laws that
require the headlamps to be
on along with the fog lamps.
Instrument Panel
Brightness
This feature controls the brightness
of the instrument panel lights.
The thumbwheel for this feature
is located on the left side of
the steering wheel next to the
exterior lamps control.
Turn the thumbwheel to the right or
left to brighten or dim the lights.
Dome Lamp
*
(Dome Lamp Override):Press
this button to keep the dome lamps
and other interior lamps turned off
while any door is open. Press this
button again to return it to the out
position and the lamps automatically
come on when any door is opened.
+(On/Off):Press this button
to turn the dome lamps on and off
while the doors are closed.
Entry Lighting
If the dome lamp override button is
in the out position, the lamps inside
the vehicle automatically come on
when any door is opened or when
the Remote Keyless Entry (RKE)
unlock button is pressed. After the
door is opened the lights remain on
and stay on for 20 seconds after the
doors are closed, or until the key is
put into the ignition and turned to
the ACC/ACCESSORY position.
The lights will then gradually dim
until they are no longer lit.
3-14 Instrument Panel
ProCarManuals.com

Reading Lamps
The reading lamps are located on
the overhead console.
To turn the reading lamps on or off,
press the button located next to
each lamp.
Electric Power
Management
The vehicle has Electric Power
Management (EPM) that estimates
the battery’s temperature and state
of charge. It then adjusts the voltage
for best performance and extended
life of the battery.
When the battery’s state of charge is
low, the voltage is raised slightly to
quickly bring the charge back up.
When the state of charge is high,
the voltage is lowered slightly to
prevent overcharging. If the vehicle
has a voltmeter gage or a voltage
display on the Driver InformationCenter (DIC), you may see the
voltage move up or down. This is
normal. If there is a problem, an alert
will be displayed.
The battery can be discharged at
idle if the electrical loads are very
high. This is true for all vehicles. This
is because the generator (alternator)
may not be spinning fast enough at
idle to produce all the power that is
needed for very high electrical loads.
A high electrical load occurs when
several of the following are on,
such as: headlamps, high beams,
fog lamps, rear window defogger,
climate control fan at high speed,
heated seats, engine cooling fans,
trailer loads, and loads plugged into
accessory power outlets.
EPM works to prevent excessive
discharge of the battery. It does this
by balancing the generator’s output
and the vehicle’s electrical needs.It can increase engine idle speed to
generate more power, whenever
needed. It can temporarily reduce
the power demands of some
accessories.
Normally, these actions occur
in steps or levels, without being
noticeable. In rare cases at the
highest levels of corrective action,
this action may be noticeable to the
driver. If so, a Driver Information
Center (DIC) message might be
displayed, such as BATTERY
SAVER ACTIVE, BATTERY
VOLTAGE LOW, or LOW BATTERY.
If this message is displayed, it is
recommended that the driver reduce
the electrical loads as much as
possible. SeeDIC Warnings and
Messages on page 3-49.
Instrument Panel 3-15
ProCarManuals.com

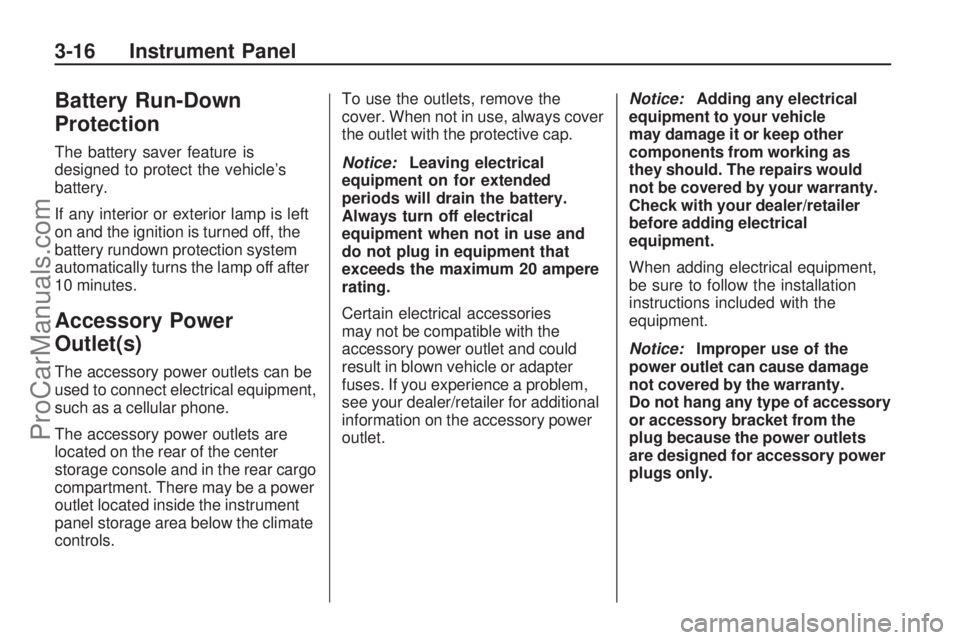

Battery Run-Down
Protection
The battery saver feature is
designed to protect the vehicle’s
battery.
If any interior or exterior lamp is left
on and the ignition is turned off, the
battery rundown protection system
automatically turns the lamp off after
10 minutes.
Accessory Power
Outlet(s)
The accessory power outlets can be
used to connect electrical equipment,
such as a cellular phone.
The accessory power outlets are
located on the rear of the center
storage console and in the rear cargo
compartment. There may be a power
outlet located inside the instrument
panel storage area below the climate
controls.To use the outlets, remove the
cover. When not in use, always cover
the outlet with the protective cap.
Notice:Leaving electrical
equipment on for extended
periods will drain the battery.
Always turn off electrical
equipment when not in use and
do not plug in equipment that
exceeds the maximum 20 ampere
rating.
Certain electrical accessories
may not be compatible with the
accessory power outlet and could
result in blown vehicle or adapter
fuses. If you experience a problem,
see your dealer/retailer for additional
information on the accessory power
outlet.Notice:Adding any electrical
equipment to your vehicle
may damage it or keep other
components from working as
they should. The repairs would
not be covered by your warranty.
Check with your dealer/retailer
before adding electrical
equipment.
When adding electrical equipment,
be sure to follow the installation
instructions included with the
equipment.
Notice:Improper use of the
power outlet can cause damage
not covered by the warranty.
Do not hang any type of accessory
or accessory bracket from the
plug because the power outlets
are designed for accessory power
plugs only.
3-16 Instrument Panel
ProCarManuals.com

Climate Controls
Climate Control System
The heating, cooling, and ventilation for the vehicle can be controlled with this
system. For vehicles with the remote start feature, the climate control system
functions as part of the remote start feature. SeeRemote Keyless Entry (RKE)
System Operation on page 2-4 .
A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning E. Outside Air
F. Recirculation
G. Rear Window Defogger
A(Fan Control):
Turn clockwise
or counterclockwise to increase or
decrease the fan speed. To turn
the fan off, turn the left knob all
the way counterclockwise. In any
setting other than off, the fan runs
continuously with the ignition on.
There will be some airow noticeable
from the various outlets when driving,
even with the fan in the off position.
To turn off the air completely, turn the
fan to
9and select the recirculation
button.
Temperature Control: Turn
clockwise or counterclockwise
to increase or decrease the
temperature inside the vehicle.
Air Delivery Mode Control: Turn
clockwise or counterclockwise
to change the current airow mode.
Select from the following air
delivery modes:
H(Vent): Air is directed to the
instrument panel outlets.
Instrument Panel 3-17
ProCarManuals.com

)(Bi-Level):Air is divided
between the instrument panel
and the oor outlets.
6(Floor):Air is directed to the
oor outlets with some air directed
to the windshield.
When this mode is selected, the
system turns the recirculation mode
off. Recirculation mode cannot
be selected while in oor mode.
This helps prevent window fogging.
-(Defog):This mode clears
the windows of fog or moisture.
Air is directed to the oor outlets,
with some air directed to the
windshield and side window outlets.
In this mode, the system turns the
recirculation mode off and runs the
air conditioning compressor unless
the outside air is at or below freezing.
Recirculation mode cannot be
selected while in defog mode.
This helps prevent window fogging.
0(Defrost):This mode removes
fog or frost from the windshield
more quickly. Air is directed to the
windshield and the side window
outlets. In this mode, the system
turns the recirculation mode off
automatically and runs the air
conditioning compressor unless the
outside air is at or below freezing.
Recirculation mode cannot be
selected while in defrost mode.
This helps prevent window fogging.
For best results, clear all snow and
ice from the windshield before
defrosting.
#(Air Conditioning):Press to
turn the air conditioning system on
or off. An indicator light comes on to
show that the air conditioning is on.
The air conditioning can be selected
in any mode as long as the fan is on
and the outside temperature is above
freezing. A ashing indicator light
indicates that the air conditioning
compressor is currently not available.On hot days, open the windows to
let hot inside air escape; then close
them. This helps reduce the time it
takes for the vehicle to cool down
and helps the system to operate
more efficiently.
For quick cool down on hot days,
select the following settings
together:
1. Select
Hmode.
2. Select
;.
3. Turn the
#on.
4. Select the coolest temperature
and highest fan speed.
5. Once the vehicle’s interior
temperature is below the outside
temperature, select recirculation
mode for enhanced cooling.
Using these settings together for
long periods of time may cause the
air inside the vehicle to become too
dry. To prevent this from happening,
after the air inside of the vehicle
has cooled, turn the recirculation
mode off.
3-18 Instrument Panel
ProCarManuals.com

The air conditioning system
removes moisture from the air, so a
small amount of water might drip
under the vehicle while idling or after
turning off the engine. This is normal.
;(Outside Air):Press to turn the
outside air mode on. An indicator
light comes on to show that outside
air is on. Air from outside the vehicle
will circulate throughout the vehicle.
The outside air mode can be used
with all modes, but it cannot be
used with the recirculation mode.
Pressing this button will cancel the
recirculation mode.
@(Recirculation):Press to
turn on the recirculation mode.
An indicator light comes on to show
that recirculation is on. This mode
recirculates and helps to quickly
cool or heat the air inside the vehicle.
It can be used to prevent outside air
and odors from entering the vehicle.
Avoid using the recirculation mode
during high periods of humidity
and cool outside temperatures
since this may result in increased
window fogging. If window fogging
is experienced, select the
defrost mode.
Recirculation mode is not available in
oor, defog or defrost modes and will
shut off automatically and change to
outside air. The indicator will ash if
the button is selected in any of these
modes. This helps prevent window
fogging and moisture building up
inside the vehicle.Rear Window Defogger
The rear window defogger uses a
warming grid to remove fog from the
rear window.
The rear window defogger only
works when the ignition is in
ON/RUN.
<(Rear Window Defogger):
Press to turn the rear window
defogger on or off. An indicator light
on the button comes on to show
that the rear window is activated.
The rear window defogger stays
on for approximately 10 minutes
after the button is pressed, unless
the ignition is turned to ACC/
ACCESSORY or LOCK/OFF.
If turned on again, the defogger only
runs for approximately ve minutes
before turning off again. At higher
vehicle speeds, the defogger may
stay on continuously. The defogger
can also be turned off by turning off
the engine.
Instrument Panel 3-19
ProCarManuals.com

For vehicles with the remote start
feature, the rear defogger will
automatically turn on.
Notice:Do not use anything
sharp on the inside of the rear
window. If you do, you could cut
or damage the warming grid, and
the repairs would not be covered
by the vehicle warranty. Do not
attach a temporary vehicle
license, tape, a decal or anything
similar to the defogger grid.
Remote Start Climate Control
Operation
For vehicles with the remote start
feature and if it is activated, the
climate control system heats and
cools the inside of the vehicle using
the modes that were set before the
vehicle was turned off and the rear
defogger automatically turns on.Automatic Climate Control System
The heating, cooling, and ventilation for the vehicle can be controlled with
this system. For vehicles with the remote start feature, the climate control
system functions as part of the remote start feature. See Remote Keyless
Entry (RKE) System Operation on page 2-4 .
A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning E. Outside Air
F. Recirculation
G. Rear Window Defogger
United States version shown, Canada version similar.
3-20 Instrument Panel
ProCarManuals.com
