key SATURN VUE 2009 Owner's Guide

The following can prevent more
serious damage to the vehicle:
Reduce vehicle speed.
Avoid hard accelerations.
Avoid steep uphill grades.
If towing a trailer, reduce the
amount of cargo being hauled
as soon as it is possible.
If the light continues to ash,
when it is safe to do so, stop
the vehicle. Find a safe place to
park the vehicle. Turn the key
off, wait at least 10 seconds, and
restart the engine. If the light is
still ashing, follow the previous
steps and see your dealer/retailer
for service as soon as possible.
Light On Steady:An emission
control system malfunction has been
detected on the vehicle. Diagnosis
and service might be required.An emission system malfunction
might be corrected by checking the
following items:
Make sure the fuel cap is fully
installed. SeeFilling the Tank
on page 5-8. The diagnostic
system can determine if the fuel
cap has been left off or improperly
installed. A loose or missing fuel
cap allows fuel to evaporate into
the atmosphere. A few driving
trips with the cap properly
installed should turn the light off.
If the vehicle has been driven
through a deep puddle of water,
the vehicle’s electrical system
might be wet. The condition is
usually corrected when the
electrical system dries out.
A few driving trips should turn
the light off.
Make sure to fuel the vehicle
with quality fuel. Poor fuel quality
causes the engine not to run as
efficiently as designed and may
cause: stalling after start-up,
stalling when the vehicle is
changed into gear, misring,
hesitation on acceleration,
or stumbling on acceleration.
These conditions might go away
once the engine is warmed up.
If one or more of these conditions
occurs, change the fuel brand
used. It will require at least one
full tank of the proper fuel to turn
the light off.
SeeGasoline Octane on
page 5-5.
If none of the above have made the
light turn off, your dealer/retailer can
check the vehicle. The dealer/retailer
has the proper test equipment and
diagnostic tools to x any mechanical
or electrical problems that might
have developed.
3-36 Instrument Panel
ProCarManuals.com

Emissions Inspection and
Maintenance Programs
Some state/provincial and local
governments have or might begin
programs to inspect the emission
control equipment on the vehicle.
Failure to pass this inspection
could prevent getting a vehicle
registration.
Here are some things to know to
help the vehicle pass an inspection:
The vehicle will not pass this
inspection if the check engine
light is on with the engine
running, or if the key is in
ON/RUN and the light is not on.
The vehicle will not pass
this inspection if the OBD II
(on-board diagnostic) system
determines that critical emission
control systems have not
been completely diagnosed
by the system. The vehicle
would be considered not readyfor inspection. This can happen
if the battery has recently been
replaced or if the battery has run
down. The diagnostic system is
designed to evaluate critical
emission control systems during
normal driving. This can take
several days of routine driving.
If this has been done and the
vehicle still does not pass the
inspection for lack of OBD II
system readiness, your dealer/
retailer can prepare the vehicle
for inspection.
Oil Pressure Light
{CAUTION
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches re.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced.Notice:Lack of proper engine oil
maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule in this manual for
changing engine oil.
The oil pressure light should come
on briey as the engine is started. If it
does not come on have the vehicle
serviced by your dealer/retailer.
If the light comes on and stays on, it
means that oil is not owing through
the engine properly. The vehicle
could be low on oil and might have
some other system problem.
Instrument Panel 3-37
ProCarManuals.com

Change Engine Oil Light
When the change engine oil light
comes on, it means that service is
required on the vehicle.
SeeScheduled Maintenance
on page 6-3andEngine Oil on
page 5-14for more information.
After the engine oil is changed the
engine oil life system needs to be
reset in order to turn off this light.
SeeEngine Oil Life System on
page 5-16for more information.
Security Light
For information regarding this light
and the vehicle’s security system,
seePASS-Key
®III+ Electronic
Immobilizer on page 2-13.
Fog Lamp Light
The fog lamp light comes on when
the fog lamps are in use.The light goes out when the fog
lamps are turned off. SeeFog
Lamps on page 3-14for more
information.
Cruise Control Light
The cruise control light comes on
whenever the cruise control is set.
The light goes out when the
cruise control is turned off.
SeeCruise Control on page 3-9
for more information.
3-38 Instrument Panel
ProCarManuals.com

DIC Buttons
The buttons are the trip/fuel,
vehicle information, customization,
and set/reset buttons. The button
functions are detailed in the
following pages.
3(Trip/Fuel):Press this
button to display the odometer,
trip odometer, fuel range, average
economy, fuel used, and elapsed
time. Some vehicles also display
instantaneous economy. The
compass and outside temperature
will also be shown in the display.
The temperature will be shown
in °F or °C depending on the units
selected.
T(Vehicle Information):Press
this button to display the oil life,
units, tire pressure readings
for vehicles with the Tire Pressure
Monitor System (TPMS), Remote
Keyless Entry (RKE) transmitter
programming, compass zone
setting, compass recalibration on
vehicles with this feature, coolant
temperature, and battery voltage.
U(Customization):Press this
button to customize the feature
settings on your vehicle. SeeDIC
Vehicle Customization on page 3-57
for more information.
V(Set/Reset):Press this button
to set or reset certain functions
and to turn off or acknowledge
messages on the DIC.
Trip/Fuel Menu Items
3(Trip/Fuel):Press this button
to scroll through the following
menu items:
Odometer
Press the trip/fuel button until
ODOMETER displays. This display
shows the distance the vehicle
has been driven in either miles (mi)
or kilometers (km). Pressing the
trip odometer reset stem will
also display the odometer.
To switch between English and
metric measurements, see “Units”
later in this section.
Instrument Panel 3-43
ProCarManuals.com

When the remaining oil life is low,
the CHANGE ENGINE OIL SOON
message will appear on the display.
See “CHANGE ENGINE OIL SOON”
underDIC Warnings and Messages
on page 3-49. You should change
the oil as soon as you can. See
Engine Oil on page 5-14. In addition
to the engine oil life system
monitoring the oil life, additional
maintenance is recommended in
the Maintenance Schedule in
this manual. SeeScheduled
Maintenance on page 6-3for
more information.
Units
Press the vehicle information button
until UNITS displays. This display
allows you to select between English
or Metric units of measurement.
Once in this display, press the
set/reset button to select between
ENGLISH or METRIC units. All of
the vehicle information will then be
displayed in the unit of measurement
selected.Tire Pressure
If your vehicle has the Tire Pressure
Monitor System (TPMS), the
pressure for each tire can be viewed
in the DIC. The tire pressure will be
shown in either pounds per square
inch (psi) or kilopascals (kPa).
Press the vehicle information button
until the DIC displays FRONT TIRES
PSI (kPa) LEFT ## RIGHT ##. Press
the vehicle information button again
until the DIC displays REAR TIRES
PSI (kPa) LEFT ## RIGHT ##.
If a low or high tire pressure
condition is detected by the system
while driving, a message advising
you to check the pressure in a
specic tire will appear in the display.
SeeInflation - Tire Pressure on
page 5-49andDIC Warnings and
Messages on page 3-49for more
information.
If the tire pressure display shows
dashes instead of a value, there
may be a problem with your vehicle.
If this consistently occurs, see
your dealer/retailer for service.Relearn Remote Key
This display allows you to match
Remote Keyless Entry (RKE)
transmitters to your vehicle.
This procedure will erase all
previously learned transmitters.
Therefore, they must be relearned
as additional transmitters.
To match an RKE transmitter to
your vehicle:
1. Press the vehicle information
button until PRESS
VTO
RELEARN REMOTE KEY
displays.
2. Press the set/reset button until
REMOTE KEY LEARNING
ACTIVE is displayed.
3. Press and hold the lock and
unlock buttons on the rst
transmitter at the same time
for about 15 seconds.
A chime will sound indicating
that the transmitter is matched
and REMOTE KEY LEARNING
COMPLETE will be shown
on the display.
3-46 Instrument Panel
ProCarManuals.com

4. To match additional transmitters
at this time, repeat Step 3.
Each vehicle can have a
maximum of eight transmitters
matched to it.
5. To exit the programming mode,
you must cycle the key to
LOCK/OFF.
Compass Zone Setting
This display allows for setting the
compass zone. SeeDIC Compass
on page 3-47for more information.
Compass Recalibration
This display allows for calibrating
the compass. SeeDIC Compass on
page 3-47for more information.Coolant Temperature
Press the vehicle info button
until the coolant temperature is
displayed. The temperature will
be shown in °F or °C depending
on the units selected.
If the coolant temperature display
shows dashes instead of a value,
there may be a problem with the
vehicle. If this happens often, see
your dealer/retailer for service.
Battery Voltage
Press the vehicle info button until
the battery voltage is displayed.
If the battery voltage display shows
dashes instead of a value, there
may be a problem with the vehicle.
If this happens often, see your
dealer/retailer for service.
Blank Display
This display shows no information.DIC Compass
Your vehicle may have a
compass in the Driver Information
Center (DIC).
Compass Zone
The zone is set to zone eight
upon leaving the factory. Your
dealer/retailer will set the correct
zone for your location.
Under certain circumstances,
such as during a long distance
cross-country trip or moving to a new
state or province, it will be necessary
to compensate for compass variance
by resetting the zone through the
DIC if the zone is not set correctly.
Compass variance is the difference
between the earth’s magnetic north
and true geographic north. If the
compass is not set to the zone where
you live, the compass may give false
readings. The compass must be set
to the variance zone in which the
vehicle is traveling.
Instrument Panel 3-47
ProCarManuals.com

ICE POSSIBLE DRIVE
WITH CARE
This message displays when the
outside air temperature is cold
enough to create icy road
conditions. Adjust your driving
accordingly.
LIFTGATE OPEN
This message displays when the
liftgate is not closed completely.
Close the liftgate completely.
SeeLiftgate on page 2-9.
OIL PRESSURE LOW STOP
ENGINE
Notice:If you drive your vehicle
while the engine oil pressure
is low, severe engine damage
may occur. If a low oil pressure
warning appears on the Driver
Information Center (DIC), stop
the vehicle as soon as possible.Do not drive the vehicle until the
cause of the low oil pressure
is corrected. SeeEngine Oil on
page 5-14for more information.
This message displays when the
vehicle’s engine oil pressure is low.
The oil pressure light also appears
on the instrument panel cluster.
SeeOil Pressure Light on page 3-37.
Stop the vehicle immediately,
as engine damage can result
from driving a vehicle with low oil
pressure. Have the vehicle serviced
by your dealer/retailer as soon as
possible when this message is
displayed.PASSENGER DOOR OPEN
This message displays when one
or more of the passenger doors
are not closed properly. Close the
doors completely.
REMOTE KEY LEARNING
ACTIVE
This message displays while
matching a Remote Keyless
Entry (RKE) transmitter to your
vehicle. See “MATCHING
TRANSMITTERS TO YOUR
VEHICLE” underRemote Keyless
Entry (RKE) System Operation on
page 2-4andDIC Operation and
Displays on page 3-42for more
information.
REMOTE KEY LEARNING
COMPLETE
This message displays while
matching a Remote Keyless Entry
(RKE) transmitter to your vehicle.
See “MATCHING TRANSMITTERS
TO YOUR VEHICLE” underRemote
Keyless Entry (RKE) System
Operation on page 2-4andDIC
Operation and Displays on
page 3-42for more information.
Instrument Panel 3-53
ProCarManuals.com

REPLACE REMOTE KEY FOB
BATTERY
This message displays if a Remote
Keyless Entry (RKE) transmitter
battery is low. The battery needs
to be replaced in the transmitter.
See “Battery Replacement” under
Remote Keyless Entry (RKE)
System Operation on page 2-4.
SERVICE A/C
(Air Conditioning) SYSTEM
This message displays when there
is a problem detected in the air
conditioning system. Have the
vehicle serviced by your dealer/
retailer.
SERVICE AIR BAG
This message displays when
there is a problem with the airbag
system. Have your vehicle serviced
by your dealer/retailer immediately.
SeeAirbag Readiness Light on
page 3-29for more information.
SERVICE BRAKE SYSTEM
This message displays along with
the brake system warning light if
there is a problem with the brake
system or when the brake uid level
is low. SeeBrake System Warning
Light on page 3-31. Have the brake
system serviced by your dealer/
retailer as soon as possible.
SERVICE POWER STEERING
If the vehicle has electric power
steering, this message displays if
a problem has been detected with
the power steering. SeeSteering
on page 4-9for more information.
SERVICE STABILITRAK
This message displays if there
has been a problem detected with
StabiliTrak
®. A warning light also
appears on the instrument panel
cluster. SeeStabiliTrak
®Indicator
Light on page 3-33. SeeStabiliTrak®
System on page 4-7for more
information.If this message turns on while you
are driving, pull off the road as soon
as possible and stop carefully. Try
resetting the system by turning the
ignition off and then back on. If this
message still stays on or turns back
on again while you are driving, your
vehicle needs service. Have the
system inspected by your dealer/
retailer as soon as possible.
SERVICE TIRE MONITORING
SYSTEM
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays if a part on the
TPMS is not working properly.
The tire pressure light also ashes
and then remains on during the
same ignition cycle. SeeTire
Pressure Light on page 3-34.
Several conditions may cause
this message to appear. SeeTire
Pressure Monitor Operation on
page 5-53for more information.
If the warning comes on and stays
on, there may be a problem with the
TPMS. See your dealer/retailer.
3-54 Instrument Panel
ProCarManuals.com

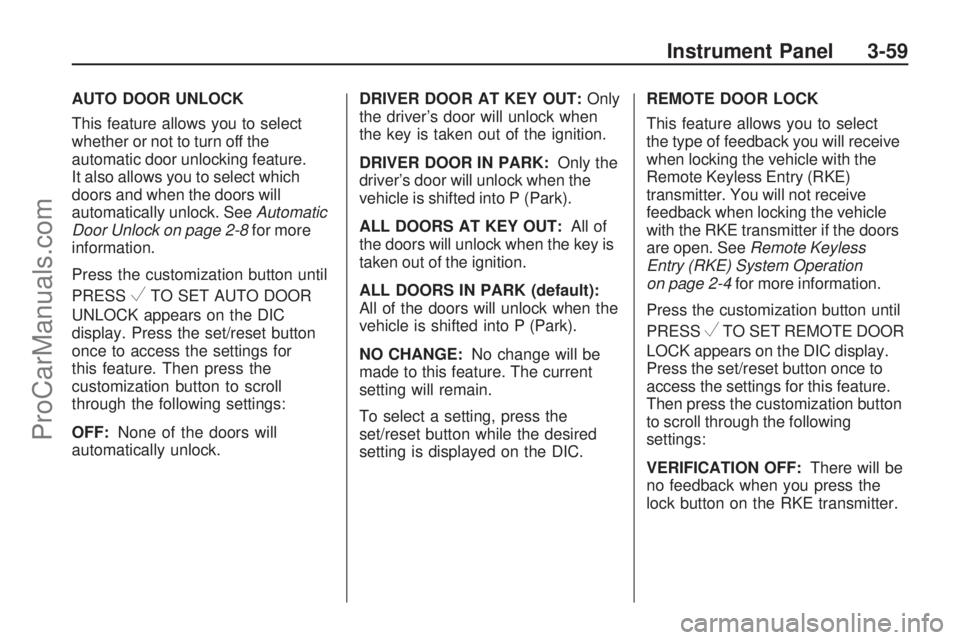

AUTO DOOR UNLOCK
This feature allows you to select
whether or not to turn off the
automatic door unlocking feature.
It also allows you to select which
doors and when the doors will
automatically unlock. SeeAutomatic
Door Unlock on page 2-8for more
information.
Press the customization button until
PRESS
VTO SET AUTO DOOR
UNLOCK appears on the DIC
display. Press the set/reset button
once to access the settings for
this feature. Then press the
customization button to scroll
through the following settings:
OFF:None of the doors will
automatically unlock.DRIVER DOOR AT KEY OUT:Only
the driver’s door will unlock when
the key is taken out of the ignition.
DRIVER DOOR IN PARK:Only the
driver’s door will unlock when the
vehicle is shifted into P (Park).
ALL DOORS AT KEY OUT:All of
the doors will unlock when the key is
taken out of the ignition.
ALL DOORS IN PARK (default):
All of the doors will unlock when the
vehicle is shifted into P (Park).
NO CHANGE:No change will be
made to this feature. The current
setting will remain.
To select a setting, press the
set/reset button while the desired
setting is displayed on the DIC.REMOTE DOOR LOCK
This feature allows you to select
the type of feedback you will receive
when locking the vehicle with the
Remote Keyless Entry (RKE)
transmitter. You will not receive
feedback when locking the vehicle
with the RKE transmitter if the doors
are open. SeeRemote Keyless
Entry (RKE) System Operation
on page 2-4for more information.
Press the customization button until
PRESS
VTO SET REMOTE DOOR
LOCK appears on the DIC display.
Press the set/reset button once to
access the settings for this feature.
Then press the customization button
to scroll through the following
settings:
VERIFICATION OFF:There will be
no feedback when you press the
lock button on the RKE transmitter.
Instrument Panel 3-59
ProCarManuals.com

VERIFICATION LIGHTS ONLY:The
exterior lamps will ash when you
press the lock button on the RKE
transmitter.
VERIFICATION HORN ONLY:
The horn will sound on the second
press of the lock button on the
RKE transmitter.
VERIFICATION HORN & LIGHTS
(default):The exterior lamps will
ash when you press the lock button
on the RKE transmitter, and the horn
will sound when the lock button is
pressed again within ve seconds
of the previous command.
VERIFICATION NO CHANGE:No
change will be made to this feature.
The current setting will remain.
To select a setting, press the
set/reset button while the desired
setting is displayed on the DIC.REMOTE DOOR UNLOCK
This feature allows you to select
the type of feedback you will receive
when unlocking the vehicle with
the Remote Keyless Entry (RKE)
transmitter. You will not receive
feedback when unlocking the vehicle
with the RKE transmitter if the doors
are open. SeeRemote Keyless
Entry (RKE) System Operation on
page 2-4for more information.
Press the customization button
until PRESS
VTO SET REMOTE
DOOR UNLOCK appears on the
DIC display. Press the set/reset
button once to access the settingsfor this feature. Then press the
customization button to scroll
through the following settings:
VERIF LIGHTS OFF:The exterior
lamps will not ash when you press
the unlock button on the RKE
transmitter.
VERIF LIGHTS ON (default):
The exterior lamps will ash when
you press the unlock button on
the RKE transmitter.
VERIF NO CHANGE:No change
will be made to this feature.
The current setting will remain.
To select a setting, press the
set/reset button while the desired
setting is displayed on the DIC.
3-60 Instrument Panel
ProCarManuals.com
