Battery Replacement
Replace the battery if the
REPLACE REMOTE KEY FOB
BATTERY message displays on
the Driver Information Center (DIC).
See “REPLACE REMOTE KEY FOB
BATTERY” underDIC Warnings and
Messages on page 3-49.
Notice:When replacing the
battery, do not touch any of the
circuitry on the transmitter. Static
from your body could damage
the transmitter.To replace the battery:
1. Separate the transmitter with a
at, thin object inserted into the
notch on the side.
2. Remove the old battery. Do not
use a metal object.
3. Insert the new battery, positive
side facing down. Replace with
a CR2032 or equivalent battery.
4. Reassemble the transmitter.
Remote Vehicle Start
This vehicle may have a remote
starting feature that starts the engine
from outside of the vehicle.
It may also start the vehicle’s
heating or air conditioning systems
and rear window defogger. Normal
operation of the climate control
system returns after the key is
turned to the ON/RUN position.
The climate control system turns
on at the setting the vehicle was
set to when the vehicle was
last turned off.
Laws in some communities may
restrict the use of remote starters.
For example, some laws may require
a person using the remote start to
have the vehicle in view when doing
so. Check local regulations for any
requirements on remote starting of
vehicles.
If the vehicle is low on fuel, only one
10 minute remote start is allowed to
help avoid running out of fuel.
Features and Controls 2-5
ProCarManuals.com

Climate Controls
Climate Control System
The heating, cooling, and ventilation for the vehicle can be controlled with this
system. For vehicles with the remote start feature, the climate control system
functions as part of the remote start feature. SeeRemote Keyless Entry (RKE)
System Operation on page 2-4 .
A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning E. Outside Air
F. Recirculation
G. Rear Window Defogger
A(Fan Control):
Turn clockwise
or counterclockwise to increase or
decrease the fan speed. To turn
the fan off, turn the left knob all
the way counterclockwise. In any
setting other than off, the fan runs
continuously with the ignition on.
There will be some airow noticeable
from the various outlets when driving,
even with the fan in the off position.
To turn off the air completely, turn the
fan to
9and select the recirculation
button.
Temperature Control: Turn
clockwise or counterclockwise
to increase or decrease the
temperature inside the vehicle.
Air Delivery Mode Control: Turn
clockwise or counterclockwise
to change the current airow mode.
Select from the following air
delivery modes:
H(Vent): Air is directed to the
instrument panel outlets.
Instrument Panel 3-17
ProCarManuals.com

For vehicles with the remote start
feature, the rear defogger will
automatically turn on.
Notice:Do not use anything
sharp on the inside of the rear
window. If you do, you could cut
or damage the warming grid, and
the repairs would not be covered
by the vehicle warranty. Do not
attach a temporary vehicle
license, tape, a decal or anything
similar to the defogger grid.
Remote Start Climate Control
Operation
For vehicles with the remote start
feature and if it is activated, the
climate control system heats and
cools the inside of the vehicle using
the modes that were set before the
vehicle was turned off and the rear
defogger automatically turns on.Automatic Climate Control System
The heating, cooling, and ventilation for the vehicle can be controlled with
this system. For vehicles with the remote start feature, the climate control
system functions as part of the remote start feature. See Remote Keyless
Entry (RKE) System Operation on page 2-4 .
A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning E. Outside Air
F. Recirculation
G. Rear Window Defogger
United States version shown, Canada version similar.
3-20 Instrument Panel
ProCarManuals.com

Engine Coolant
Temperature Warning
Light
The engine coolant temperature
light should come on briey as
the engine is started. If it does not
come on have the vehicle serviced
by your dealer/retailer.
Notice:Driving with the engine
coolant temperature warning light
on could cause the vehicle to
overheat. SeeEngine Overheating
on page 5-25. The vehicle’s engine
could be damaged, and it might
not be covered by the vehicle
warranty. Never drive with the
engine coolant temperature
warning light on.If this light comes on and stays on,
the engine has overheated. Pull over
and seeEngine Overheating on
page 5-25for more information.Tire Pressure Light
If the vehicle has a tire pressure
monitoring system, the tire pressure
light provides information about tire
pressures and the Tire Pressure
Monitoring System. The light should
come on briey as the engine is
started. If it does not, have the
vehicle serviced by your dealer/
retailer.When the Light is On Steady
This indicates that one or
more of the tires are signicantly
underinated.
A tire pressure message in the
Driver Information Center (DIC),
can accompany the light. SeeDIC
Warnings and Messages on
page 3-49for more information.
Stop and check the tires as soon
as it is safe to do so. If underinated,
inate to the proper pressure.
SeeTires on page 5-43for more
information.
When the Light Flashes First and
Then is On Steady
This indicates that there could be
a problem with the Tire Pressure
Monitor System. The light ashes
for about a minute and stays on
steady for the remainder of the
ignition cycle. This sequence
repeats with every ignition cycle.
SeeTire Pressure Monitor System
on page 5-51for more information.
3-34 Instrument Panel
ProCarManuals.com

CHECK TIRE PRESSURE
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays when the pressure
in one or more of the vehicle’s tires
needs to be checked. This message
also displays LEFT FRONT, RIGHT
FRONT, LEFT REAR, or RIGHT
REAR to indicate which tire needs to
be checked. You can receive more
than one tire pressure message at a
time. To read the other messages
that may have been sent at the same
time, press the set/reset button. If a
tire pressure message appears on
the DIC, stop as soon as you can.
Have the tire pressures checked
and set to those shown on the Tire
Loading Information label. SeeTires
on page 5-43,Loading the Vehicle
on page 4-28, andInflation - Tire
Pressure on page 5-49. The DIC
also shows the tire pressure values.
SeeDIC Operation and Displays on
page 3-42. If the tire pressure is low,
the low tire pressure warning light
comes on. SeeTire Pressure Light
on page 3-34.
COMPASS CALIBRATION
COMPLETE
This message displays when the
compass calibration is complete.
SeeDIC Compass on page 3-47.
CRUISE CONTROL SET
TO XXX
This message displays whenever
the cruise control is set. SeeCruise
Control on page 3-9for more
information.
DRIVER DOOR OPEN
This message displays when the
driver door is not closed properly.
Close the door completely.
ENGINE HOT A/C
(Air Conditioning) OFF
This message displays when the
engine coolant becomes hotter than
the normal operating temperature.
To avoid added strain on a hotengine, the air conditioning
compressor is automatically turned
off. When the coolant temperature
returns to normal, the A/C operation
automatically resumes. You can
continue to drive your vehicle.
ENGINE OVERHEATED IDLE
ENGINE
Notice:If you drive your vehicle
while the engine is overheating,
severe engine damage may occur.
If an overheat warning appears
on the instrument panel cluster
and/or DIC, stop the vehicle as
soon as possible. Do not increase
the engine speed above normal
idling speed. SeeEngine
Overheating on page 5-25for
more information.
This message displays when the
engine coolant temperature is
too hot. Stop and allow the vehicle
to idle until it cools down.
Instrument Panel 3-51
ProCarManuals.com

ENGINE OVERHEATED
STOP ENGINE
Notice:If you drive your vehicle
while the engine is overheating,
severe engine damage may occur.
If an overheat warning appears
on the instrument panel cluster
and/or DIC, stop the vehicle
as soon as possible. SeeEngine
Overheating on page 5-25for
more information.
This message displays along with a
continuous chime when the engine
has overheated. Stop and turn the
engine off immediately to avoid
severe engine damage. SeeEngine
Overheating on page 5-25.
ENGINE POWER IS REDUCED
This message displays when the
vehicle’s engine power is reduced.
Reduced engine power can affect
the vehicle’s ability to accelerate.
If this message is on, but there is no
reduction in performance, proceed to
your destination. The performance
may be reduced the next time the
vehicle is driven. The vehicle may
be driven at a reduced speed while
this message is on, but acceleration
and speed may be reduced. Anytime
this message stays on, the vehicle
should be taken to your dealer/
retailer for service as soon as
possible.
FUEL LEVEL LOW
This message displays when your
vehicle is low on fuel. Rell the
fuel tank as soon as possible.
SeeFuel Gage on page 3-41and
Filling the Tank on page 5-8for
more information.
HOOD OPEN
If your vehicle has the remote start
feature, this message displays along
with a chime when the hood is not
closed properly. Make sure that
the hood is closed completely.
SeeHood Release on page 5-11.
This message displays while the
ignition is in ON/RUN. Press any
of the DIC buttons to acknowledge
this message and to clear it from
the screen.
This message continues to display
for two seconds if it has not been
acknowledged when the engine is
turned off. The message comes back
on for two seconds if it has been
acknowledged, but the condition
still exists when the engine is turned
off. If the condition still exists, the
message reappears when the engine
is turned on.
3-52 Instrument Panel
ProCarManuals.com

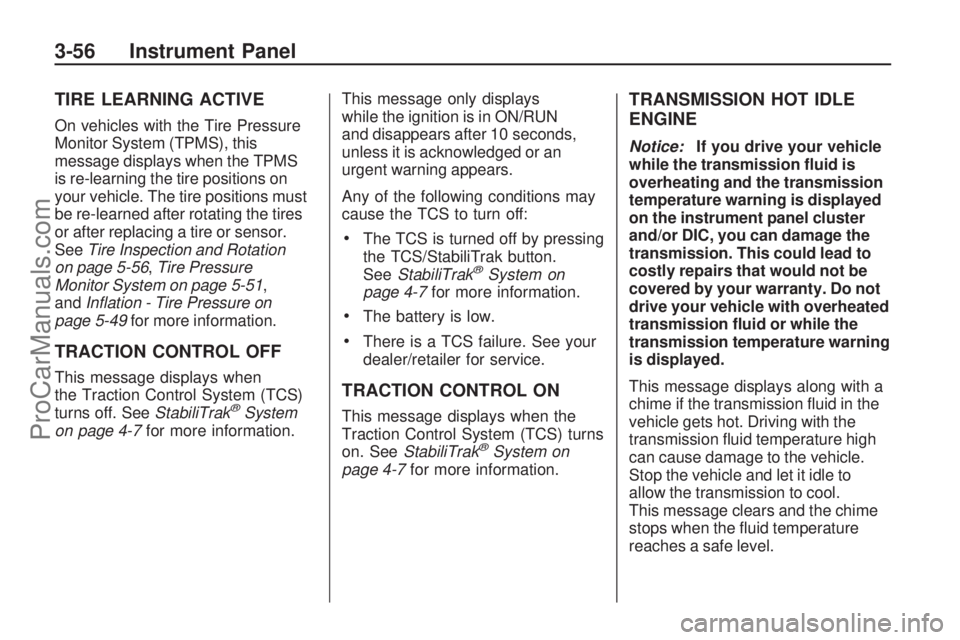

TIRE LEARNING ACTIVE
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays when the TPMS
is re-learning the tire positions on
your vehicle. The tire positions must
be re-learned after rotating the tires
or after replacing a tire or sensor.
SeeTire Inspection and Rotation
on page 5-56,Tire Pressure
Monitor System on page 5-51,
andInflation - Tire Pressure on
page 5-49for more information.
TRACTION CONTROL OFF
This message displays when
the Traction Control System (TCS)
turns off. SeeStabiliTrak
®System
on page 4-7for more information.This message only displays
while the ignition is in ON/RUN
and disappears after 10 seconds,
unless it is acknowledged or an
urgent warning appears.
Any of the following conditions may
cause the TCS to turn off:
The TCS is turned off by pressing
the TCS/StabiliTrak button.
SeeStabiliTrak
®System on
page 4-7for more information.
The battery is low.
There is a TCS failure. See your
dealer/retailer for service.
TRACTION CONTROL ON
This message displays when the
Traction Control System (TCS) turns
on. SeeStabiliTrak
®System on
page 4-7for more information.
TRANSMISSION HOT IDLE
ENGINE
Notice:If you drive your vehicle
while the transmission uid is
overheating and the transmission
temperature warning is displayed
on the instrument panel cluster
and/or DIC, you can damage the
transmission. This could lead to
costly repairs that would not be
covered by your warranty. Do not
drive your vehicle with overheated
transmission uid or while the
transmission temperature warning
is displayed.
This message displays along with a
chime if the transmission uid in the
vehicle gets hot. Driving with the
transmission uid temperature high
can cause damage to the vehicle.
Stop the vehicle and let it idle to
allow the transmission to cool.
This message clears and the chime
stops when the uid temperature
reaches a safe level.
3-56 Instrument Panel
ProCarManuals.com

Press and release this button to turn
off TCS. The TCS warning light will
be displayed on the instrument panel
cluster. The traction control system
can be turned back on by pressing
the TCS/StabiliTrak button.
If the system is limiting wheel spin
when the button is pressed, the
system will not turn off until there is
no longer a current need to limit
wheel spin. The system can
be turned back on at any time by
pressing the button again. If the TCS
light does not come on, TCS may
not be functioning properly and
the vehicle should be serviced at
your dealer/retailer.
Adding non-dealer/non-retailer
accessories can affect the vehicle’s
performance. SeeAccessories
and Modifications on page 5-3for
more information.All-Wheel Drive (AWD)
System
If the vehicle has all-wheel drive
(AWD), the AWD system operates
automatically without any action
required by the driver. If the front
drive wheels begin to slip, the rear
wheels will automatically begin to
drive the vehicle as required. There
may be a slight engagement noise
during hard use but this is normal.
This light is located on the
instrument panel cluster.
It will come on and stay on to
indicate there may be a problem
with the drive system and service is
required. If the light stays on, it must
be reset. To reset the light, turn the
ignition off and then back on again.
If the light stays on, see your
dealer/retailer for service.If the vehicle is exposed to extended
heavy AWD usage, the AWD system
will shut off to protect the system
from overheating. When the system
cools down, the AWD system will
activate again automatically; this
cool-down can take up to 20 minutes
depending on outside temperature
and vehicle use.
Steering
Electric Power Steering
If the vehicle has the electric power
steering system and the engine
stalls while driving, the power
steering assist system will continue
to operate until you are able to
stop the vehicle. If power steering
assist is lost because the electric
power steering system is not
functioning, the vehicle can be
steered but it will take more effort.
Driving Your Vehicle 4-9
ProCarManuals.com

Making Turns
Notice:Making very sharp turns
while trailering could cause the
trailer to come in contact with the
vehicle. The vehicle could be
damaged. Avoid making very
sharp turns while trailering.
When turning with a trailer,
make wider turns than normal. Do
this so the trailer will not strike soft
shoulders, curbs, road signs, trees or
other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
Turn Signals When Towing a
Trailer
The arrows on the instrument panel
ash whenever signaling a turn or
lane change. Properly hooked up,
the trailer lamps also ash, telling
other drivers the vehicle is turning,
changing lanes or stopping.
When towing a trailer, the arrows on
the instrument panel ash for turns
even if the bulbs on the trailer are
burned out. For this reason you may
think other drivers are seeing thesignal when they are not. It is
important to check occasionally to be
sure the trailer bulbs are still working.
Driving on Grades
Notice:Do not tow on steep
continuous grades exceeding
6 miles (9.6 km). Extended,
higher than normal engine and
transmission temperatures may
result and damage the vehicle.
Frequent stops are very important
to allow the engine and
transmission to cool.
Vehicles can tow in D (Drive). Shift
the transmission to a lower gear if the
transmission shifts too often under
heavy loads and/or hilly conditions.
Reduce speed and shift to a lower
gearbeforestarting down a long or
steep downgrade. If the transmission
is not shifted down, the brakes
might have to be used so much that
they would get hot and no longer
work well.On a long uphill grade, shift down
and reduce the vehicle’s speed
to around 45 mph (70 km/h)
to reduce the possibility of the
engine and the transmission
overheating.
When towing at high altitude on
steep uphill grades, consider the
following: Engine coolant will boil at a
lower temperature than at normal
altitudes. If the engine is turned off
immediately after towing at high
altitude on steep uphill grades, the
vehicle may show signs similar to
engine overheating. To avoid this,
let the engine run while parked,
preferably on level ground, with the
automatic transmission in P (Park)
for a few minutes before turning the
engine off. If the overheat warning
comes on, seeEngine Overheating
on page 5-25.
4-42 Driving Your Vehicle
ProCarManuals.com

Parking on Hills
{CAUTION
Parking the vehicle on a hill with
the trailer attached can be
dangerous. If something goes
wrong, the rig could start to move.
People can be injured, and both
the vehicle and the trailer can be
damaged. When possible, always
park the rig on a at surface.
If parking the rig on a hill:
1. Press the brake pedal, but do
not shift into P (Park) yet.
Turn the wheels into the curb if
facing downhill or into traffic
if facing uphill.
2. Have someone place chocks
under the trailer wheels.3. When the wheel chocks are
in place, release the regular
brakes until the chocks absorb
the load.
4. Reapply the brake pedal. Then
apply the parking brake and
shift into P (Park).
5. Release the brake pedal.
Leaving After Parking on a Hill
1. Apply and hold the brake pedal
while you:
Start the engine
Shift into a gear
Release the parking brake
2. Let up on the brake pedal.
3. Drive slowly until the trailer is
clear of the chocks.
4. Stop and have someone pick up
and store the chocks.
Maintenance When Trailer
Towing
The vehicle needs service more
often when pulling a trailer. See
Scheduled Maintenance on page 6-3
for more information. Things that
are especially important in trailer
operation are automatic transmission
uid, engine oil, axle lubricant, belts,
cooling system and brake system.
It is a good idea to inspect these
before and during the trip.
Check periodically to see that all
hitch nuts and bolts are tight.
Engine Cooling When Trailer
Towing
The cooling system may temporarily
overheat during severe operating
conditions. SeeEngine Overheating
on page 5-25.
Driving Your Vehicle 4-43
ProCarManuals.com
