Keys
{CAUTION
Leaving children in a vehicle with
the ignition key is dangerous for
many reasons, children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in
a vehicle with children.The two keys can be used for the
ignition and all locks.
The key code is stamped on the
key number plate and can be used
to make new keys at any dealer/
retailer. Store this information in
a safe place outside the vehicle.
Notice:If you ever lock your
keys in the vehicle, you may have
to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of the vehicle,
contact Roadside Assistance.
SeeRoadside Assistance Program
on page 7-6for more information.
2-2 Features and Controls
ProCarManuals.com

Retained Accessory
Power (RAP)
These vehicle accessories may be
used for up to 10 minutes after the
ignition key is turned to the LOCK
position:
Outside Mirror
Power Windows
Sunroof (if equipped)
Radio
The outside mirror, power windows
and sunroof will function until a
door is opened.
The radio will function until the
driver door is opened.
Starting the Engine
Move the shift lever to P (Park) or
N (Neutral). The engine will not start
in any other position. To restart the
engine when the vehicle is already
moving, use N (Neutral) only.Notice:Do not try to shift to
P (Park) if the vehicle is moving.
If you do, you could damage
the transmission. Shift to P (Park)
only when the vehicle is stopped.
Starting Procedure
1. With your foot off the accelerator
pedal, turn the ignition to START.
When the engine starts, let go of
the key. The idle speed will slow
down as the engine warms. Do
not race the engine immediately
after starting it. Operate the
engine and transmission gently
to allow the oil to warm up and
lubricate all moving parts.
The vehicle has a
Computer-Controlled
Cranking System. This feature
assists in starting the engine
and protects components.
If the ignition key is turned to
the START position, and then
released when the engine beginscranking, the engine will continue
cranking for a few seconds or
until the vehicle starts. If the
engine does not start and the key
is held in START, cranking will
be stopped after 15 seconds to
prevent cranking motor damage.
To prevent gear damage, this
system also prevents cranking if
the engine is already running.
Engine cranking can be stopped
by turning the ignition switch to
the ACC/ACCESSORY or
LOCK/OFF position.
Notice:Cranking the engine for
long periods of time, by returning
the key to the START position
immediately after cranking has
ended, can overheat and damage
the cranking motor, and drain the
battery. Wait at least 15 seconds
between each try, to let the
cranking motor cool down.
Features and Controls 2-17
ProCarManuals.com

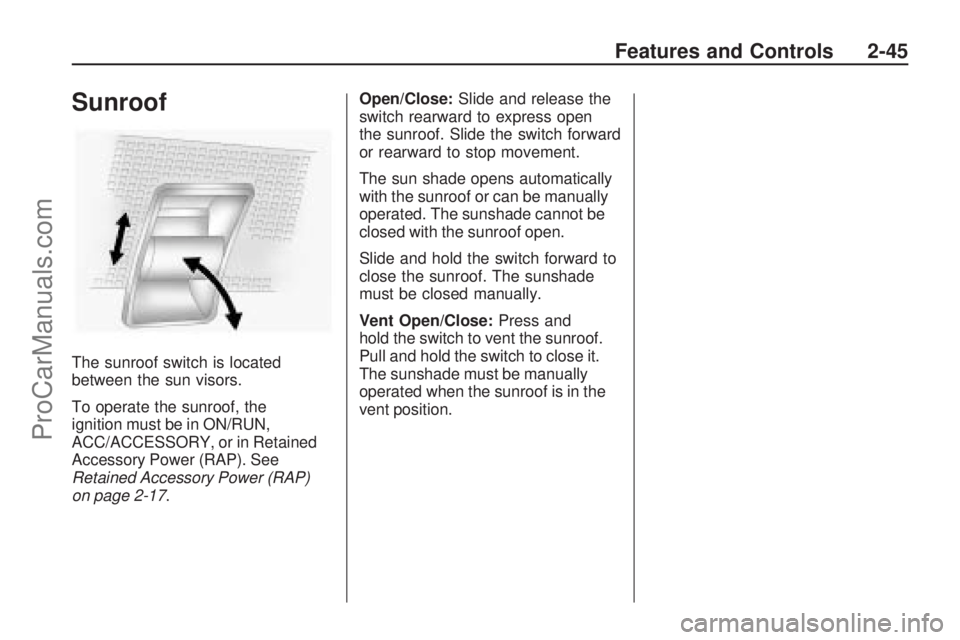

Sunroof
The sunroof switch is located
between the sun visors.
To operate the sunroof, the
ignition must be in ON/RUN,
ACC/ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 2-17.Open/Close:Slide and release the
switch rearward to express open
the sunroof. Slide the switch forward
or rearward to stop movement.
The sun shade opens automatically
with the sunroof or can be manually
operated. The sunshade cannot be
closed with the sunroof open.
Slide and hold the switch forward to
close the sunroof. The sunshade
must be closed manually.
Vent Open/Close:Press and
hold the switch to vent the sunroof.
Pull and hold the switch to close it.
The sunshade must be manually
operated when the sunroof is in the
vent position.
Features and Controls 2-45
ProCarManuals.com

If the DIC display does not show a
heading, for example, N for North,
or the heading does not change after
making turns, there may be a strong
magnetic eld interfering with the
compass. Such interference may
be caused by a magnetic CB or cell
phone antenna mount, a magnetic
emergency light, magnetic note pad
holder, or any other magnetic item.
Turn off the vehicle, move the
magnetic item, then turn on the
vehicle and calibrate the compass.
To calibrate the compass, use the
following procedure:
Compass Calibration Procedure
1. Before calibrating the compass,
make sure the compass is set to
the variance zone in which the
vehicle is located. See “Compass
Variance (Zone) Procedure”
earlier in this section.Do not operate any switches
such as window, sunroof, climate
controls, seats, etc. during the
calibration procedure.
2. Press the vehicle information
button until PRESS
VTO
CALIBRATE COMPASS
displays.
3. Press the set/reset button to start
the compass calibration.
4. The DIC will display
CALIBRATING COMPASS:
TURN IN CIRCLES. Drive the
vehicle in tight circles at less than
5 mph (8 km/h) to complete the
calibration. The DIC will display
COMPASS CALIBRATION
COMPLETE for a few seconds
when the calibration is complete.
The DIC display will then return to
the previous menu.
DIC Warnings and
Messages
Messages are displayed on the DIC
to notify the driver that the status
of the vehicle has changed and that
some action may be needed by
the driver to correct the condition.
Multiple messages may appear
one after another.
Some messages may not require
immediate action, but you can
press any of the DIC buttons,
or the trip odometer reset stem
on the instrument panel cluster to
acknowledge that you received the
messages and to clear them from
the display.
Some messages cannot be cleared
from the DIC display because they
are more urgent. These messages
require action before they can be
cleared. Take any messages that
appear on the display seriously
and remember that clearing the
messages will only make the
messages disappear, not correct
the problem.
Instrument Panel 3-49
ProCarManuals.com

FM Stereo
FM signals only reach about
10 to 40 miles (16 to 65 km).
Although the radio has a built-in
electronic circuit that automatically
works to reduce interference,
some static can occur, especially
around tall buildings or hills, causing
the sound to fade in and out.
XM™ Satellite Radio Service
XM Satellite Radio Service
gives digital radio reception from
coast-to-coast in the 48 contiguous
United States, and in Canada.
Just as with FM, tall buildings or
hills can interfere with satellite radio
signals, causing the sound to fade
in and out. In addition, traveling
or standing under heavy foliage,
bridges, garages, or tunnels may
cause loss of the XM signal for a
period of time.
Cellular Phone Usage
Cellular phone usage may cause
interference with the vehicle’s radio.
This interference may occur when
making or receiving phone calls,
charging the phone’s battery, or
simply having the phone on. This
interference causes an increased
level of static while listening to the
radio. If static is received while
listening to the radio, unplug the
cellular phone and turn it off.
Fixed Mast Antenna
The xed mast antenna can
withstand most car washes without
being damaged as long as it is
securely attached to the base.
If the mast becomes slightly bent,
straighten it out by hand. If the
mast is badly bent, replace it.
Occasionally check to make sure
the antenna is tightened to its base.
If tightening is required, tighten
by hand.
XM™ Satellite Radio
Antenna System
The XM Satellite Radio antenna is
located on the roof of the vehicle.
Keep the antenna clear of
obstructions for clear radio reception.
If the vehicle has a sunroof, the
performance of the XM system may
be affected if the sunroof is open.
Chime Level Adjustment
The radio may be used to adjust the
vehicle’s chime level. If the radio can
be used to change the volume level
of the chime, press and hold the sixth
FAV softkey with the ignition on and
the radio power off. The volume level
changes between Normal and Loud.
The selected volume level appears
on the radio display.
Removing the radio and not
replacing it with a factory radio or
chime module will disable vehicle
chimes.
Instrument Panel 3-93
ProCarManuals.com

FusesUsage
PWR SEAT Power Seat PASS
P/WIN Passenger Side
Power Window
DRIV
P/WIN Driver Side Power
Window
S/ROOF Sunroof ModuleFuses Usage
CIGAR Cigarette Lighter
ECM/TCM Engine Control
Module (ECM)/
Transmission
Control Module
(TCM)
FSCM Fuel Storage Control
Module
Fuses
Usage
ISRVM Inside Rearview
Mirror
CLUSTER Instrument Panel
Cluster
AIR BAG Airbag System
OSRVM Outside Rearview
Mirror
KEY CAP Key Capture
Solenoid
WHL S/W Steering Wheel
Switch
F/DR LCK Front Driver
Door Lock
APO2 Accessory Power
Outlet 2
BCM (VB3) Body Control Module
(BCM) (VB3)
DR LCK Door Lock
BCM (VB6) Body Control
Module (VB6)
Service and Appearance Care 5-81
ProCarManuals.com

FusesUsage

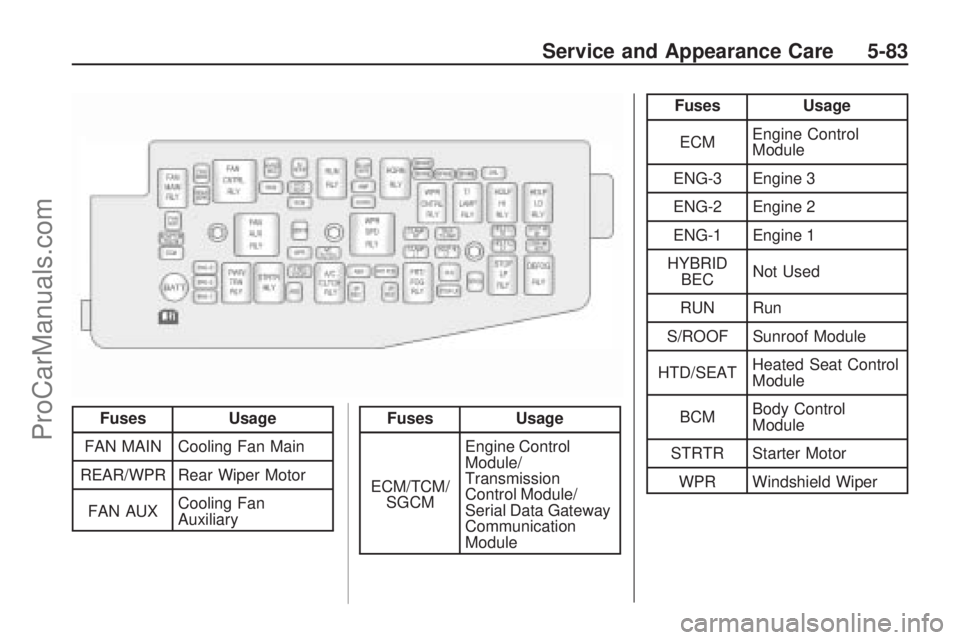

FAN MAIN Cooling Fan Main
REAR/WPR Rear Wiper Motor
FAN AUX Cooling Fan
AuxiliaryFuses
Usage
ECM/TCM/ SGCM Engine Control
Module/
Transmission
Control Module/
Serial Data Gateway
Communication
Module
Fuses
Usage
ECM Engine Control
Module
ENG-3 Engine 3
ENG-2 Engine 2
ENG-1 Engine 1
HYBRID BEC Not Used
RUN Run
S/ROOF Sunroof Module
HTD/SEAT Heated Seat Control
Module
BCM Body Control
Module
STRTR Starter Motor WPR Windshield Wiper
Service and Appearance Care 5-83
ProCarManuals.com

Maintenance Footnotes
†The U.S. Environmental Protection
Agency or the California Air
Resources Board has determined
that the failure to perform this
maintenance item will not nullify the
emission warranty or limit recall
liability prior to the completion of the
vehicle’s useful life. We, however,
urge that all recommended
maintenance services be performed
at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc.
Inspect disc brake pads for wear
and rotors for surface condition.
Inspect other brake parts, including
calipers, parking brake, etc.
(b)Visually inspect front and rear
suspension and steering system for
damaged, loose, or missing parts
or signs of wear.(c)Visually inspect hoses and have
them replaced if they are cracked,
swollen, or deteriorated. Inspect
all pipes, fittings, and clamps;
replace with genuine parts as
needed. To help ensure proper
operation, a pressure test of
the cooling system and pressure
cap and cleaning the outside of the
radiator and air conditioning
condenser is recommended at least
once a year.
(d)Inspect wiper blades for wear,
cracking, or contamination.
Clean the windshield and wiper
blades, if contaminated. Replace
wiper blades that are worn or
damaged. See Windshield Wiper
Blade Replacement on page 5-42
and Windshield and Wiper
Blades on page 5-76 for more
information.(e)Make sure the safety belt
reminder light and safety belt
assemblies are working properly.
Look for any other loose or
damaged safety belt system parts. If
you see anything that might keep
a safety belt system from doing
its job, have it repaired. Have any
torn or frayed safety belts replaced.
Also see Checking the Restraint
Systems on page 1-58.
(f)Lubricate all key lock cylinders,
door hinges and latches, hood
hinges and latches, glove box
hinges, sunroof (if equipped), and
any folding seat hardware. More
frequent lubrication may be required
when exposed to a corrosive
environment. Applying silicone
grease on weatherstrips with a clean
cloth will make them last longer,
seal better, and not stick or squeak.
6-8 Maintenance Schedule
ProCarManuals.com

UsageFluid/Lubricant
Transfer Case and Carrier Assembly - Differential SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 89021677,
in Canada 89021678) meeting GM Specication 9986115.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (Saturn Part No. 21038869 or
GM Part No. U.S. 12346293, in Canada 992723) or lubricant
meeting requirements of NLGI #2, Category LB or GC-LB.
Hood, Liftgate Door, and Rear Folding Seat Hinges Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Sunroof Track Lubriplate Lubricant Aerosol (Saturn Part No. 21038869 or
GM Part No. U.S. 12346293, in Canada 992723) or lubricant
meeting requirements of NLGI #2, Category LB or GC-LB.
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770,
in Canada 10953518) or Dielectric Silicone Grease
(GM Part No. U.S. 12345579, in Canada 992887).
6-14 Maintenance Schedule
ProCarManuals.com
