Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat
during severe operating conditions. SeeEngine
Overheating on page 309.
Changing a Tire When Trailer Towing
If you get a at tire while towing a trailer, be
sure to secure the trailer and disconnect it from
the vehicle before changing the tire.
Trailer Wiring
Additional wire length has been provided for
connecting trailer wiring to your vehicle. A loop of
ve wires is located in the storage compartment on
the driver’s side of the cargo area. The wires are
fused in both the underhood and instrument fuse
block. SeeInstrument Panel Fuse Block on
page 381andUnderhood Fuse Block on page 382.The wires do not have a connector and should be
wired to the trailer by a quali ed electrical
technician. The technician can use the following
information when connecting a trailer wiring
harness to your vehicle.
Yellow: Left Turn Signal
Brown: Parking Lamps
Light Blue: Stop Lamps
Black: Ground Wire
Dark Green: Right Turn Signal
When connecting a trailer harness, be sure you
leave it loose enough so the wiring does not bend
or break, but not so loose that it drags on the
ground. Store the harness in the storage
compartment on the driver’s side of the cargo area
when the harness is not in use. Wrap the harness
together and tie it neatly so it will not be damaged.
284
ProCarManuals.com
Page 297 of 438
A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 302.
B. Remote Negative (−) Terminal (On generator).
SeeJump Starting on page 322.
C. Engine Oil Dipstick (out of view). SeeEngine
Oil on page 297.
D. Engine Oil Fill Cap. SeeEngine Oil on
page 297.
E. Hybrid Underhood Fuse Block (Under engine
cover).
F. Brake Fluid Reservoir (Under engine cover).
SeeBrakes on page 318.
G. Main Underhood Fuse Block. Contains Remote
Positive (+) Terminal (Under engine cover).
SeeJump Starting on page 322.
H. Engine Coolant Surge Tank. SeeCooling
System on page 311.
I. Windshield Washer Fluid Reservoir. See
Windshield Washer Fluid on page 317.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 296
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
297
ProCarManuals.com
Page 310 of 438
If No Steam Is Coming From
Your Engine
If you get an engine overheat warning, but see or
hear no steam, the problem may not be too
serious. Sometimes the engine can get a little
too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with no sign of
steam, try this for a minute or so:
1. If you have an air conditioner and it is on,
turn it off.
2. Turn on your heater to full hot at the highest
fan speed and open the windows as
necessary.
3. Try to minimize engine load. If you are in a
traffic jam, shift to NEUTRAL (N); otherwise,
shift to the highest gear possible while driving.If you no longer have the overheat warning,
you can drive. Just to be safe, drive slower for
about ten minutes. If the warning does not come
back on, you can drive normally.
If the warning continues and you have not
stopped, pull over, stop, and park your vehicle
right away.
If there is still no sign of steam, you can idle the
engine for three minutes while you are parked.
If you still have the warning, turn off the engine
and get everyone out of the vehicle until it
cools down.
You may decide not to lift the hood but to get
service help right away.
310
ProCarManuals.com
Page 333 of 438
4. Insert a at blade tool through the opening in
the top. Make sure the tool ts through the
opening in the headlamp bracket lower arm.5. Push the locking tab toward the rear of the
vehicle with the tool to lift the headlamp
bracket lower arm.
6. Pull back on the front fascia and then pull the
headlamp assembly out from the vehicle. You
may need someone to assist you with this step.
7. Disconnect the electrical connector from the
bulb assembly.
8. Turn the bulb assembly counterclockwise to
remove it from the housing.
9. Replace the old bulb with a new one.
10. Reverse Steps 1 through 8 to reinstall.
333
ProCarManuals.com
Page 349 of 438
Make certain that all wheel nuts are properly
tightened. See “Wheel Nut Torque” under
Capacities and Speci cations.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel
could come off and cause a crash. When
you change a wheel, remove any rust or
dirt from places where the wheel attaches
to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if you need to, to get all the rust or
dirt off.
When It Is Time for New Tires
One way to tell when it
is time for new tires is
to check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of tread
remaining.
You need a new tire if any of the following
statements are true:
You can see the indicators at three or more
places around the tire.
You can see cord or fabric showing through
the tire’s rubber.
The tread or sidewall is cracked, cut, or
snagged deep enough to show cord or fabric.
The tire has a bump, bulge, or split.
The tire has a puncture, cut, or other damage
that cannot be repaired well because of the
size or location of the damage.
349
ProCarManuals.com
Page 354 of 438
Each new wheel should have the same
load-carrying capacity, diameter, width, offset and
be mounted the same way as the one it replaces.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision in
which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.
If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new Saturn original equipment parts. This way,
you will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire clearance to the body
and chassis.{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel could
come off and cause a crash. When you
change a wheel, remove any rust or dirt
from places where the wheel attaches to
the vehicle. In an emergency, you can use a
cloth or a paper towel to do this; but be
sure to use a scraper or wire brush later, if
you need to, to get all the rust or dirt off.
354
ProCarManuals.com
Page 357 of 438
Notice:If your vehicle has a tire size other
than P235/65R16, P235/60R17 or 245/50R18
size tires, use tire chains only where legal
and only when you must. Use only
SAE Class “S” type chains that are the
proper size for your tires. Install them on the
front tires and tighten them as tightly as
possible with the ends securely fastened.
Drive slowly and follow the chain
manufacturer’s instructions. If you can hear
the chains contacting your vehicle, stop
and retighten them. If the contact continues,
slow down until it stops. Driving too fast
or spinning the wheels with chains on will
damage your vehicle.If a Tire Goes Flat
Your vehicle has a tire in ator kit. There is no
spare tire, no tire changing equipment, and
no place to store a tire.
It is unusual for a tire to blow out while you are
driving, especially if you maintain your tires
properly. SeeTires on page 339. If air goes out
of a tire, it is much more likely to leak out slowly.
But, if you should ever have a blow out, here are a
few tips about what to expect and what to do:
If a front tire fails, the at tire creates a drag that
pulls the vehicle toward that side. Take your
foot off the accelerator pedal and grip the steering
wheel rmly. Steer to maintain lane position,
and then gently brake to a stop well out of the
traffic lane.
357
ProCarManuals.com
Page 364 of 438

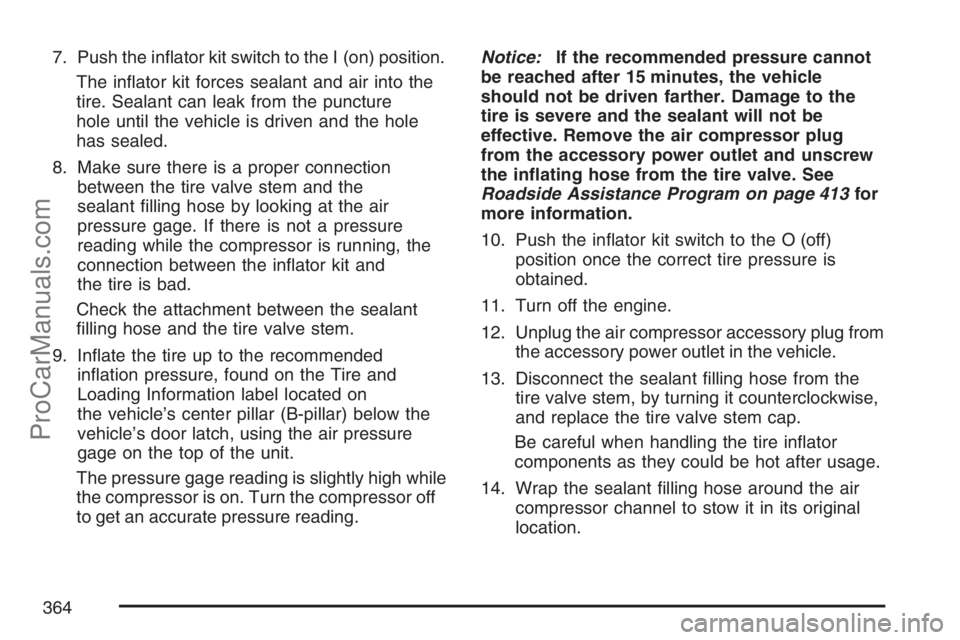

7. Push the in ator kit switch to the I (on) position.
The in ator kit forces sealant and air into the
tire. Sealant can leak from the puncture
hole until the vehicle is driven and the hole
has sealed.
8. Make sure there is a proper connection
between the tire valve stem and the
sealant lling hose by looking at the air
pressure gage. If there is not a pressure
reading while the compressor is running, the
connection between the in ator kit and
the tire is bad.
Check the attachment between the sealant
lling hose and the tire valve stem.
9. In ate the tire up to the recommended
in ation pressure, found on the Tire and
Loading Information label located on
the vehicle’s center pillar (B-pillar) below the
vehicle’s door latch, using the air pressure
gage on the top of the unit.
The pressure gage reading is slightly high while
the compressor is on. Turn the compressor off
to get an accurate pressure reading.Notice:If the recommended pressure cannot
be reached after 15 minutes, the vehicle
should not be driven farther. Damage to the
tire is severe and the sealant will not be
effective. Remove the air compressor plug
from the accessory power outlet and unscrew
the in ating hose from the tire valve. See
Roadside Assistance Program on page 413for
more information.
10. Push the in ator kit switch to the O (off)
position once the correct tire pressure is
obtained.
11. Turn off the engine.
12. Unplug the air compressor accessory plug from
the accessory power outlet in the vehicle.
13. Disconnect the sealant lling hose from the
tire valve stem, by turning it counterclockwise,
and replace the tire valve stem cap.
Be careful when handling the tire in ator
components as they could be hot after usage.
14. Wrap the sealant lling hose around the air
compressor channel to stow it in its original
location.
364
ProCarManuals.com
Page 365 of 438
15. Stow the air compressor accessory plug back
in the air compressor. To do this, wrap the air
compressor accessory plug, snap in the
plug, and then push in the bottom and then
the top of the wrapped air compressor
accessory plug.
16. If the at tire was
able to in ate to the
recommended
in ation pressure,
remove the
maximum speed
label from the
sealant canister.
The maximum speed label reminds you to
drive cautiously and not to exceed 55 mph
(90 km/h) until you have the damaged
tire inspected and repaired.
17. Place it in a highly visible location such as the
inside of the upper left corner of the windshield
or to the face of the radio/clock.18. Return the equipment to the proper storage
location in the rear of your vehicle. To do
this, insert the tire in ator kit back into
the foam container and place the foam
container onto the storage bracket. Securely
tighten down the foam container with the
foam retainer bolt.
{CAUTION:
Storing the tire in ator kit or other
equipment in the passenger compartment
of the vehicle could cause injury. In a
sudden stop or collision, loose equipment
could strike someone. Store the tire
in ator kit in the proper place.
19. Reverse Steps 1 through 4 under Accessing
the Tire In ator Kit earlier in this section.
365
ProCarManuals.com
Page 369 of 438
4. Turn the sealant canister so the in ator
lling hose is aligned with the slot in the
compressor.
5. Lift the sealant canister from the compressor
and replace with a new sealant canister.
See your retailer for more information.To install a new sealant canister, do the following:
1. Align the sealant lling hose with the slot in
the air compressor.
2. Push the sealant canister down and turn it
clockwise.
3. Wrap the sealant lling hose around the air
compressor channel to stow it in its original
location.
4. Push the air compressor in ator hose onto the
sealant canister inlet and push the lever down.
369
ProCarManuals.com
