coolant temperature SATURN VUE HYBRID 2007 Owners Manual

Keys.............................................................. 98
Remote Keyless Entry (RKE) System............ 99
Remote Keyless Entry (RKE) System
Operation............................................... 100
Doors and Locks........................................ 103
Door Locks................................................ 103
Power Door Locks..................................... 104
Delayed Locking........................................ 104
Programmable Automatic Door Locks........ 104
Rear Door Security Locks......................... 105
Lockout Protection..................................... 106
Liftgate...................................................... 106
Windows...................................................... 107
Power Windows........................................ 108
Sun Visors................................................ 108
Theft-Deterrent Systems............................. 109
Content Theft-Deterrent............................. 109
Passlock
®.................................................. 110
Starting and Operating Your Vehicle......... 111
New Vehicle Break-In................................ 111
Ignition Positions....................................... 111
Starting the Engine
(Automatic Engine Start/Stop)................. 113
Engine Coolant Heater.............................. 116Automatic Transaxle Operation.................. 118
Parking Brake........................................... 121
Regenerative Braking................................ 121
Shifting Into Park (P) ................................. 122
Shifting Out of Park (P)............................. 123
Parking Over Things That Burn................. 124
Engine Exhaust......................................... 125
Running the Engine While Parked............. 126
Mirrors......................................................... 127
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display.............................. 127
Outside Power Mirrors............................... 130
Outside Convex Mirror............................... 130
OnStar
®System.......................................... 131
Storage Areas............................................. 134
Glove Box................................................. 134
Cupholder(s).............................................. 134
Floor Console Storage Area...................... 135
Center Console Storage Area.................... 135
Garment Hooks......................................... 135
Cargo Area............................................... 135
Cargo Tie Downs...................................... 137
Sunroof....................................................... 137
Section 2 Features and Controls
97
ProCarManuals.com

The Engine Will Restart When:

The brake pedal is released.
The accelerator pedal is applied.
When shifting from DRIVE (D) to PARK (P) or
NEUTRAL (N), the engine will restart after
3.5 seconds.
When shifting from DRIVE (D) to
INTERMEDIATE (I), LOW (L) or
REVERSE (R) the engine will restart
immediately.
If the A/C button (green light illuminated
on A/C) button is selected, the duration of the
AUTO STOP will depend on the outside
temperature. This economy mode improves
fuel economy by limiting the effects of the
air conditioning. The warmer it is outside,
the shorter the time before the engine
is restarted to provide cabin cooling.
The climate control system is turned from
Off to On (econ or normal A/C, or
oor/defog/defrost). SeeClimate Control
System on page 156for more information.
The engine is required to run for either
heater or climate control performance.
See “Air Conditioning and Engine Start/Stop”
underClimate Control System on page 156
for more information.
The hybrid battery pack charge is low and
requires recharging.
Auto Stop time is greater than two minutes.
Engine Coolant Heater
If your vehicle has this feature, in very cold
weather 0°F (−18°C) or colder, the engine coolant
heater can help. You will get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged
in a minimum of four hours prior to starting your
vehicle. At temperatures above 32°F (0°C), use of
the coolant heater is not required.
116
ProCarManuals.com

To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical
cord. The cord is located near the air
cleaner assembly.
3. Plug it into a normal, grounded 110-volt
AC outlet.
{CAUTION:
Plugging the cord into an ungrounded
outlet could cause an electrical shock.
Also, the wrong kind of extension cord
could overheat and cause a re. You
could be seriously injured. Plug the cord
into a properly grounded three-prong
110-volt AC outlet. If the cord will not
reach, use a heavy-duty three-prong
extension cord rated for at least 15 amps.4. Before starting the engine, be sure to unplug
and store the cord as it was before to keep it
away from moving engine parts. If you do
not, it could be damaged.
How long should you keep the coolant heater
plugged in? The answer depends on the outside
temperature, the kind of oil you have, and
some other things. Instead of trying to list
everything here, we ask that you contact your
retailer in the area where you will be parking your
vehicle. The retailer can give you the best
advice for that particular area.
117
ProCarManuals.com

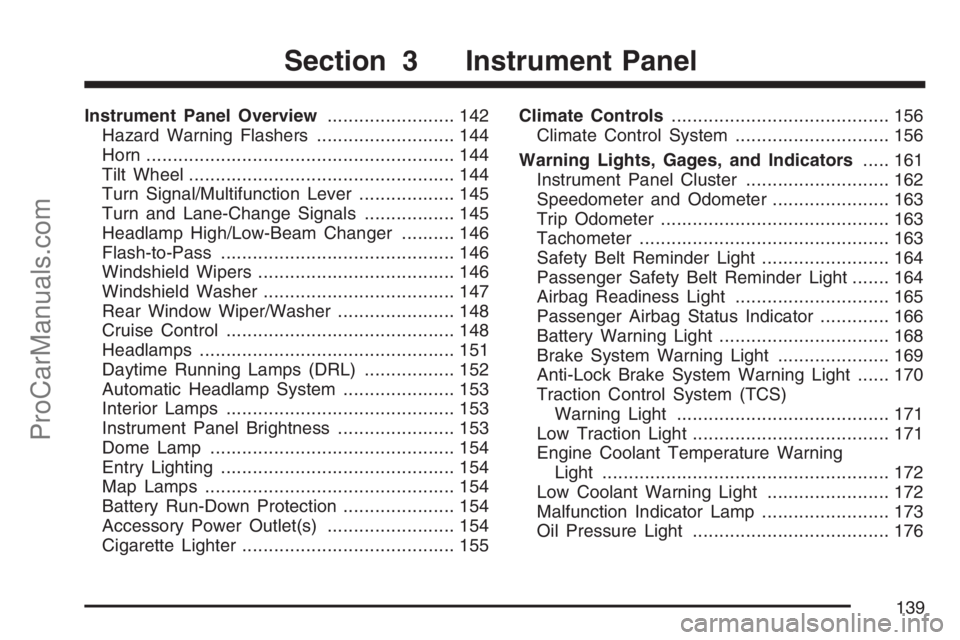

Instrument Panel Overview........................ 142
Hazard Warning Flashers.......................... 144
Horn.......................................................... 144
Tilt Wheel.................................................. 144
Turn Signal/Multifunction Lever.................. 145
Turn and Lane-Change Signals................. 145
Headlamp High/Low-Beam Changer.......... 146
Flash-to-Pass............................................ 146
Windshield Wipers..................................... 146
Windshield Washer.................................... 147
Rear Window Wiper/Washer...................... 148
Cruise Control........................................... 148
Headlamps................................................ 151
Daytime Running Lamps (DRL)................. 152
Automatic Headlamp System..................... 153
Interior Lamps........................................... 153
Instrument Panel Brightness...................... 153
Dome Lamp.............................................. 154
Entry Lighting............................................ 154
Map Lamps............................................... 154
Battery Run-Down Protection..................... 154
Accessory Power Outlet(s)........................ 154
Cigarette Lighter........................................ 155Climate Controls......................................... 156
Climate Control System............................. 156
Warning Lights, Gages, and Indicators..... 161
Instrument Panel Cluster........................... 162
Speedometer and Odometer...................... 163
Trip Odometer........................................... 163
Tachometer............................................... 163
Safety Belt Reminder Light........................ 164
Passenger Safety Belt Reminder Light....... 164
Airbag Readiness Light............................. 165
Passenger Airbag Status Indicator............. 166
Battery Warning Light................................ 168
Brake System Warning Light..................... 169
Anti-Lock Brake System Warning Light...... 170
Traction Control System (TCS)
Warning Light........................................ 171
Low Traction Light..................................... 171
Engine Coolant Temperature Warning
Light...................................................... 172
Low Coolant Warning Light....................... 172
Malfunction Indicator Lamp........................ 173
Oil Pressure Light..................................... 176
Section 3 Instrument Panel
139
ProCarManuals.com

Engine Coolant Temperature
Warning Light
The engine coolant
temperature warning
light will come on when
the engine has
overheated.
If this happens you should pull over and seeEngine
Overheating on page 309for more information.
Notice:Driving with the engine coolant
temperature warning light on could cause your
vehicle to overheat. SeeEngine Overheating
on page 309. Your vehicle could be damaged,
and it might not be covered by your warranty.
Never drive with the engine coolant
temperature warning light on.
This light will come on and ash when the
temperature of the automatic transaxle uid is too
high. If this happens you should pull over, shift
into PARK (P) and let the engine idle until the light
goes out.
This light will also come on briey when starting your
vehicle. If it does not, have your vehicle serviced.
Low Coolant Warning Light
This light comes on
briey when you turn
your ignition on.
If this light comes on and stays on, the coolant
level in your vehicle is low. If the light is on along
with an overheat warning, you may have a
serious overheating problem.
Notice:Driving with the low coolant warning
light on could cause your vehicle to overheat.
See “Engine Overheating” underEngine
Coolant on page 306. Your vehicle could be
damaged and the damages might not be
covered by your warranty.
SeeEngine Coolant on page 306for information
on what to do. Your vehicle should be serviced as
soon as possible.
172
ProCarManuals.com

Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years
or 150,000 miles (240 000 km), whichever
occurs rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 309.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core,
or radiator corrosion. In addition, the engine
coolant may require changing sooner, at
the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would not
be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
306
ProCarManuals.com

{CAUTION:
You can be burned if you spill coolant on
hot engine parts. Coolant contains
ethylene glycol, and it will burn if the
engine parts are hot enough. Do not spill
coolant on a hot engine.
When replacing the pressure cap, make sure it is
hand-tight and fully seated.
Coolant Surge Tank Pressure Cap
Notice:If the pressure cap is not tightly
installed, coolant loss and possible engine
damage may occur. Be sure the cap is properly
and tightly secured.
If you need to replace your coolant surge tank
pressure cap, see your retailer.
Engine Overheating
You will nd a coolant temperature warning light
on the vehicle’s instrument panel. SeeEngine
Coolant Temperature Warning Light on page 172.
If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can
burn you badly, even if you just open
the hood. Stay away from the engine if
you see or hear steam coming from it.
Just turn it off and get everyone away
from the vehicle until it cools down.
Wait until there is no sign of steam or
coolant before you open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch re.
You or others could be badly burned.
Stop your engine if it overheats, and get
out of the vehicle until the engine is cool.
Notice:If your engine catches re because
you keep driving with no coolant, your vehicle
can be badly damaged. The costly repairs
would not be covered by your warranty.
309
ProCarManuals.com

Windshield Washer Fluid
What to Use
When you need windshield or rear window washer
uid, be sure to read the manufacturer’s
instructions before use. If you will be operating
your vehicle in an area where the temperature may
fall below freezing, use a uid that has sufficient
protection against freezing.
Adding Windshield Washer Fluid
Open the cap with the
washer symbol on it.
Add washer uid
until the tank is full. See
Engine Compartment
Overview on page 296
for reservoir location.Notice:
When using concentrated washer uid,
follow the manufacturer’s instructions
for adding water.
Do not mix water with ready-to-use washer
uid. Water can cause the solution to
freeze and damage your washer uid tank
and other parts of the washer system.
Also, water does not clean as well
as washer uid.
Fill your washer uid tank only
three-quarters full when it is very cold.
This allows for expansion if freezing
occurs, which could damage the tank if it
is completely full.
Do not use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.
317
ProCarManuals.com

(h)Severe service is when the vehicle is mainly
driven under one or more of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i)Drain, ush, and rell cooling system.
This service can be complex; you should have
your retailer perform this service. See Engine
Coolant on page 306 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(j)A uid loss in any vehicle system could indicate
a problem. Have the system inspected and
repaired and the uid level checked. Add uid if
needed.(k)Or every 12 months, whichever occurs rst. If
you drive regularly under dusty conditions, the
lter may require replacement more often.
(l)If you drive regularly under dusty conditions,
inspect the lter at each engine oil change.
(m)Visually inspect belt for fraying, excessive
cracks, or obvious damage. Replace belt if
necessary.
Owner Checks and Services
These owner checks and services should be
performed at the intervals specied to help ensure
the safety, dependability, and emission control
performance of your vehicle. Your Saturn retailer
can assist you with these checks and services.
Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown inRecommended Fluids and
Lubricants on page 401.
397
ProCarManuals.com

Cargo Area................................................. 135
Cargo Tie Downs........................................ 137
CD, MP3 ..................................................... 205
Center Console Storage Area...................... 135
Center High-Mounted
Stoplamp (CHMSL).................................. 335
Chains, Tire................................................. 356
Charge/Assist Gage..................................... 182
Check
Engine Light............................................ 173
Checking Things Under the Hood................ 294
Chemical Paint Spotting.............................. 377
Child Restraints
Child Restraint Systems............................. 51
Infants and Young Children........................ 47
Lower Anchors and Tethers for Children....... 58
Older Children........................................... 44
Securing a Child Restraint in a
Rear Outside Seat Position.................... 64
Securing a Child Restraint in the
Center Rear Seat Position...................... 67
Securing a Child Restraint in the
Right Front Seat Position........................ 69
Where to Put the Restraint........................ 56
Cigarette Lighter.......................................... 155Cleaning
Aluminum Wheels.................................... 376
Exterior Lamps/Lenses............................. 374
Fabric/Carpet........................................... 372
Finish Care.............................................. 374
Inside of Your Vehicle .............................. 370
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 373
Tires........................................................ 376
Underbody Maintenance........................... 377
Washing Your Vehicle .............................. 374
Weatherstrips........................................... 373
Windshield and Wiper Blades................... 375
Climate Control System............................... 156
Clock.......................................................... 186
Collision Damage Repair............................. 418
Comfort Guides, Rear Safety Belt................. 40
Compass..................................................... 127
Content Theft-Deterrent............................... 109
Control of a Vehicle..................................... 237
Coolant
Engine Temperature Warning Light........... 172
Heater, Engine......................................... 116
Low Warning Light................................... 172
Surge Tank Pressure Cap........................ 309
Cooling System........................................... 311
427
ProCarManuals.com
