cooling SATURN VUE HYBRID 2007 Owners Manual

Lockout Protection
If you press the power door lock switch when the
key is in the ignition and any door is open, all
the doors will lock and then the driver’s door will
unlock. Be sure to remove the key from the ignition
when locking your vehicle.
If the remote keyless entry transmitter is used to
lock the doors while the key is in the ignition,
a chime will sound three times. All doors will
then lock.
Liftgate
{CAUTION:
It can be dangerous to drive with the
liftgate open because carbon monoxide
(CO) gas can come into your vehicle.
You cannot see or smell CO. It can cause
CAUTION: (Continued)
CAUTION: (Continued)
unconsciousness and even death. If you
must drive with the liftgate open or if
electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle. See
Climate Control System on page 156.
If you have air outlets on or under the
instrument panel, open them all the
way. SeeEngine Exhaust on page 125.
Use your remote keyless entry transmitter or
power door lock switches to unlock the liftgate.
To open the liftgate, lift the handle located in the
center of the liftgate.
106
ProCarManuals.com

The Engine Will Restart When:

The brake pedal is released.
The accelerator pedal is applied.
When shifting from DRIVE (D) to PARK (P) or
NEUTRAL (N), the engine will restart after
3.5 seconds.
When shifting from DRIVE (D) to
INTERMEDIATE (I), LOW (L) or
REVERSE (R) the engine will restart
immediately.
If the A/C button (green light illuminated
on A/C) button is selected, the duration of the
AUTO STOP will depend on the outside
temperature. This economy mode improves
fuel economy by limiting the effects of the
air conditioning. The warmer it is outside,
the shorter the time before the engine
is restarted to provide cabin cooling.
The climate control system is turned from
Off to On (econ or normal A/C, or
oor/defog/defrost). SeeClimate Control
System on page 156for more information.
The engine is required to run for either
heater or climate control performance.
See “Air Conditioning and Engine Start/Stop”
underClimate Control System on page 156
for more information.
The hybrid battery pack charge is low and
requires recharging.
Auto Stop time is greater than two minutes.
Engine Coolant Heater
If your vehicle has this feature, in very cold
weather 0°F (−18°C) or colder, the engine coolant
heater can help. You will get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged
in a minimum of four hours prior to starting your
vehicle. At temperatures above 32°F (0°C), use of
the coolant heater is not required.
116
ProCarManuals.com

Climate Controls
Climate Control System
With this system you can control the heating,
cooling, and ventilation for the vehicle.
Operation
To change the current mode, use the right knob to
select one of the following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs air to the
instrument panel outlets and to the oor outlets.
Cooler air is directed to the upper outlets and
warmer air to the oor outlets.
6(Floor):This mode directs most of the air to
the oor outlets with some air directed to the
windshield.
When the oor mode is selected, the system will
turn recirculation mode off and run the air
conditioning compressor unless the outside air is
at or below freezing. Entering this mode may
force the engine into the start/stop mode. See “Air
Conditioning and Engine Start/Stop” later in this
section. Recirculation mode cannot be selected
while in oor mode. This helps prevent window
fogging and moisture building up within the cabin.
The right knob can also be used to select defog
or defrost mode. See “Defogging and Defrosting”
later in this section.
156
ProCarManuals.com

Hill and Mountain Roads
Driving on steep hills or mountains is different
from driving in at or rolling terrain.If you drive regularly in steep country, or if you are
planning to visit there, here are some tips that
can make your trips safer and more enjoyable.
Keep your vehicle in good shape. Check
all uid levels and also the brakes, tires,
cooling system, and transaxle. These parts
can work hard on mountain roads.
{CAUTION:
If you do not shift down, the brakes could
get so hot that they would not work well.
You would then have poor braking or
even none going down a hill. You could
crash. Shift down to let the engine assist
the brakes on a steep downhill slope.
255
ProCarManuals.com

3. When the chocks are in place, release the
regular brakes until the chocks absorb
the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P).
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store
the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you’re pulling a trailer. SeeScheduled Maintenance
on page 392for more information. Things that
are especially important in trailer operation are
automatic transaxle uid (don’t overll), engine oil,
drive belt, cooling system and brake system.
Each of these is covered in this manual, and the
Index will help you nd them quickly. If you’re
trailering, it’s a good idea to review this information
before you start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
283
ProCarManuals.com

Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat
during severe operating conditions. SeeEngine
Overheating on page 309.
Changing a Tire When Trailer Towing
If you get a at tire while towing a trailer, be
sure to secure the trailer and disconnect it from
the vehicle before changing the tire.
Trailer Wiring
Additional wire length has been provided for
connecting trailer wiring to your vehicle. A loop of
ve wires is located in the storage compartment on
the driver’s side of the cargo area. The wires are
fused in both the underhood and instrument fuse
block. SeeInstrument Panel Fuse Block on
page 381andUnderhood Fuse Block on page 382.The wires do not have a connector and should be
wired to the trailer by a qualied electrical
technician. The technician can use the following
information when connecting a trailer wiring
harness to your vehicle.
Yellow: Left Turn Signal
Brown: Parking Lamps
Light Blue: Stop Lamps
Black: Ground Wire
Dark Green: Right Turn Signal
When connecting a trailer harness, be sure you
leave it loose enough so the wiring does not bend
or break, but not so loose that it drags on the
ground. Store the harness in the storage
compartment on the driver’s side of the cargo area
when the harness is not in use. Wrap the harness
together and tie it neatly so it will not be damaged.
284
ProCarManuals.com

Service........................................................ 287
Accessories and Modications................... 287
California Proposition 65 Warning.............. 288
Doing Your Own Service Work.................. 288
Adding Equipment to the Outside of
Your Vehicle.......................................... 289
Fuel............................................................. 289
Gasoline Octane........................................ 289
Gasoline Specications.............................. 289
California Fuel........................................... 290
Additives................................................... 290
Fuels in Foreign Countries........................ 291
Filling the Tank......................................... 292
Filling a Portable Fuel Container............... 294
Checking Things Under the Hood.............. 294
Hood Release........................................... 295
Engine Compartment Overview.................. 296
Engine Oil................................................. 297
Engine Oil Life System.............................. 300
Engine Air Cleaner/Filter............................ 302
Automatic Transaxle Fluid......................... 305Engine Coolant.......................................... 306
Coolant Surge Tank Pressure Cap............ 309
Engine Overheating................................... 309
Cooling System......................................... 311
Windshield Washer Fluid........................... 317
Brakes...................................................... 318
Battery...................................................... 321
Jump Starting............................................ 322
Headlamp Aiming........................................ 328
Bulb Replacement....................................... 331
Halogen Bulbs........................................... 331
Headlamps................................................ 331
Front Turn Signal and Parking Lamps....... 334
Center High-Mounted
Stoplamp (CHMSL)................................ 335
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps...................................... 336
License Plate Lamp................................... 337
Replacement Bulbs................................... 337
Windshield Wiper Blade Replacement....... 338
Section 5 Service and Appearance Care
285
ProCarManuals.com

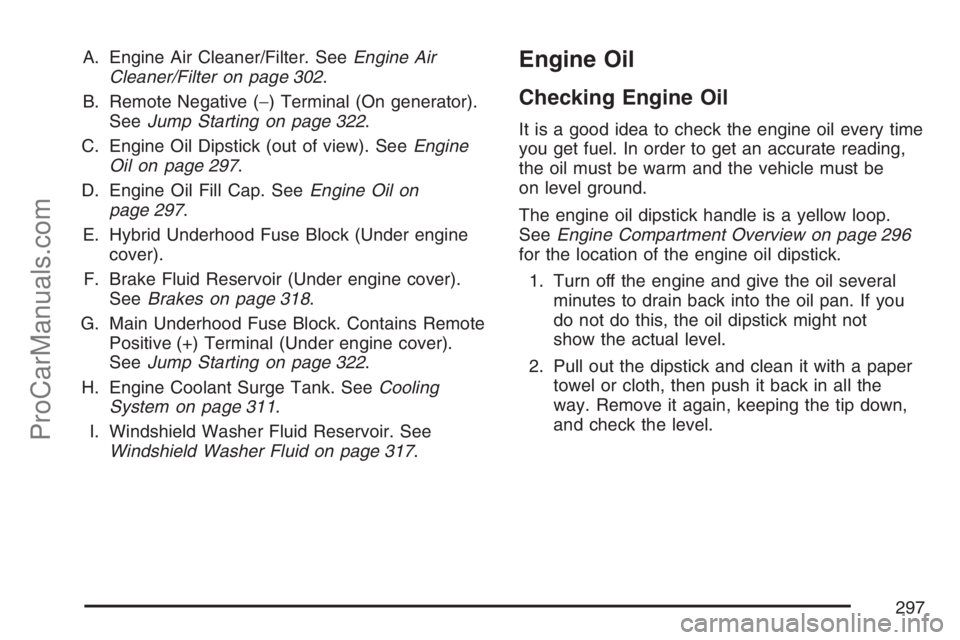

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 302.
B. Remote Negative (−) Terminal (On generator).
SeeJump Starting on page 322.
C. Engine Oil Dipstick (out of view). SeeEngine
Oil on page 297.
D. Engine Oil Fill Cap. SeeEngine Oil on
page 297.
E. Hybrid Underhood Fuse Block (Under engine
cover).
F. Brake Fluid Reservoir (Under engine cover).
SeeBrakes on page 318.
G. Main Underhood Fuse Block. Contains Remote
Positive (+) Terminal (Under engine cover).
SeeJump Starting on page 322.
H. Engine Coolant Surge Tank. SeeCooling
System on page 311.
I. Windshield Washer Fluid Reservoir. See
Windshield Washer Fluid on page 317.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 296
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
297
ProCarManuals.com

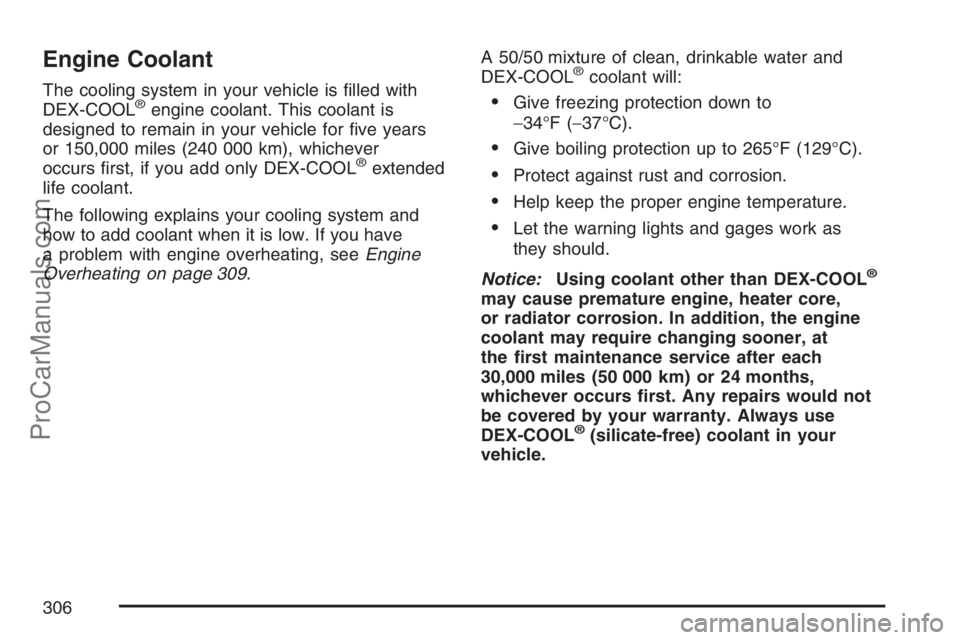

Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years
or 150,000 miles (240 000 km), whichever
occurs rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 309.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core,
or radiator corrosion. In addition, the engine
coolant may require changing sooner, at
the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would not
be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
306
ProCarManuals.com

What to Use
Use a mixture of one-half clean, drinkable water
and one-half DEX-COOL®coolant which will
not damage aluminum parts. If you use this coolant
mixture, you do not need to add anything else.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.Notice:If you use an improper coolant
mixture, your engine could overheat and be
badly damaged. The repair cost would not be
covered by your warranty. Too much water
in the mixture can freeze and crack the engine,
radiator, heater core, and other parts.
If you have to add coolant more than four times
a year, have your retailer check your cooling
system.
Notice:If you use extra inhibitors and/or
additives in your vehicle’s cooling system,
you could damage your vehicle. Use only the
proper mixture of the engine coolant listed
in this manual for the cooling system.
SeeRecommended Fluids and Lubricants on
page 401for more information.
307
ProCarManuals.com
