Checking Things
Under the Hood
{CAUTION
An electric fan under the hood can
start up and injure you even when
the engine is not running. Keep
hands, clothing, and tools away
from any underhood electric fan.
{CAUTION
Things that burn can get on hot
engine parts and start a re.
These include liquids like fuel, oil,
coolant, brake uid, windshield
washer and other uids, and
plastic or rubber. You or others
could be burned. Be careful not to
drop or spill things that will burn
onto a hot engine.
Hood Release
To open the hood, do the following:
1. Pull the handle with this symbol
on it. It is located under the
instrument panel on the driver
side of the vehicle.
2. Then go to the front of the
vehicle and lift up on the
secondary hood release lever.
3. Lift the hood.
Before closing the hood, be sure
all the ller caps are on properly.
Then pull the hood down and close
it rmly.
Service and Appearance Care 5-9
ProCarManuals.com

A. SeeEngine Air Cleaner/Filter on
page 5-15.
B. Remote Negative (−) Terminal.
SeeJump Starting on page 5-28.
C. Engine Oil Fill Cap. SeeEngine
Oil on page 5-11.
D. Engine Coolant Surge Tank. See
Cooling System on page 5-17.
E. Engine Coolant Surge Tank
Protection Cap. SeeCoolant
Surge Tank Pressure Cap
on page 5-22.
F. SeeUnderhood Fuse Block on
page 5-77.
G. Remote Positive (+) Terminal.
SeeJump Starting on page 5-28.H. Windshield Washer Fluid
Reservoir. SeeWindshield
Washer Fluid on page 5-24.
I. Engine Oil Dipstick (out of view).
SeeEngine Oil on page 5-11.
Engine Oil
Checking Engine Oil
It is a good idea to check the
engine oil level at each fuel ll. In
order to get an accurate reading, the
oil must be warm and the vehicle
must be on level ground.The engine oil dipstick handle is a
yellow loop. SeeEngine
Compartment Overview on
page 5-10for the location of the
engine oil dipstick.
1. Turn off the engine and give the
oil several minutes to drain back
into the oil pan. If this is not
done, the oil dipstick might not
show the actual level.
2. Pull the dipstick and clean it with
a paper towel or cloth, then push
it back in all the way. Remove
it again, keeping the tip down and
check the level.
Service and Appearance Care 5-11
ProCarManuals.com

Tire Terminology and
Denitions
Air Pressure:The amount of
air inside the tire pressing
outward on each square inch of
the tire. Air pressure is
expressed in pounds per square
inch (psi) or kilopascal (kPa).
Accessory Weight
:This means
the combined weight of
optional accessories. Some
examples of optional
accessories are, automatic
transmission, power steering,
power brakes, power windows,
power seats, and air
conditioning.
Aspect Ratio
:The relationship
of a tire’s height to its width.
Belt
:A rubber coated layer of
cords that is located between the
plies and the tread. Cords
may be made from steel or other
reinforcing materials.Bead
:The tire bead contains
steel wires wrapped by steel
cords that hold the tire onto
the rim.
Bias Ply Tire
:A pneumatic tire
in which the plies are laid at
alternate angles less than
90 degrees to the centerline of
the tread.
Cold Tire Pressure
:The
amount of air pressure in a tire,
measured in pounds per
square inch (psi) or kilopascals
(kPa) before a tire has built
up heat from driving. See
Inflation - Tire Pressure on
page 5-43.
Curb Weight
:The weight of a
motor vehicle with standard
and optional equipment including
the maximum capacity of fuel,
oil, and coolant, but without
passengers and cargo.DOT Markings
:A code molded
into the sidewall of a tire
signifying that the tire is in
compliance with the U.S.
Department of Transportation
(DOT) motor vehicle safety
standards. The DOT code
includes the Tire Identication
Number (TIN), an alphanumeric
designator which can also
identify the tire manufacturer,
production plant, brand, and date
of production.
GVWR
:Gross Vehicle Weight
Rating. SeeLoading the Vehicle
on page 4-18.
GAWR FRT
:Gross Axle Weight
Rating for the front axle. See
Loading the Vehicle on
page 4-18.
GAWR RR
:Gross Axle Weight
Rating for the rear axle. See
Loading the Vehicle on
page 4-18.
Service and Appearance Care 5-41
ProCarManuals.com

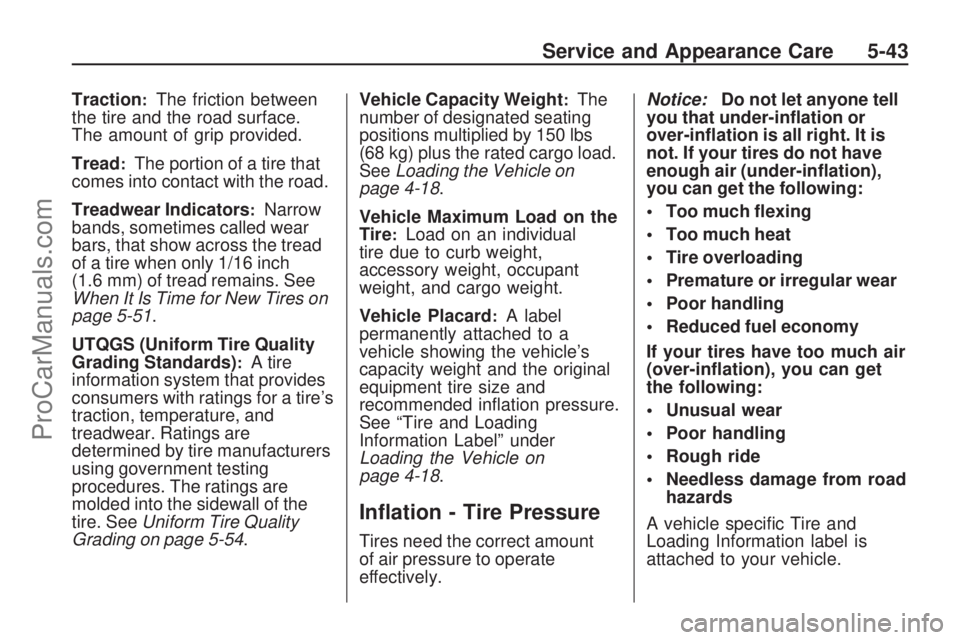

Traction:The friction between
the tire and the road surface.
The amount of grip provided.
Tread
:The portion of a tire that
comes into contact with the road.
Treadwear Indicators
:Narrow
bands, sometimes called wear
bars, that show across the tread
of a tire when only 1/16 inch
(1.6 mm) of tread remains. See
When It Is Time for New Tires on
page 5-51.
UTQGS (Uniform Tire Quality
Grading Standards)
:A tire
information system that provides
consumers with ratings for a tire’s
traction, temperature, and
treadwear. Ratings are
determined by tire manufacturers
using government testing
procedures. The ratings are
molded into the sidewall of the
tire. SeeUniform Tire Quality
Grading on page 5-54.Vehicle Capacity Weight
:The
number of designated seating
positions multiplied by 150 lbs
(68 kg) plus the rated cargo load.
SeeLoading the Vehicle on
page 4-18.
Vehicle Maximum Load on the
Tire
:Load on an individual
tire due to curb weight,
accessory weight, occupant
weight, and cargo weight.
Vehicle Placard
:A label
permanently attached to a
vehicle showing the vehicle’s
capacity weight and the original
equipment tire size and
recommended ination pressure.
See “Tire and Loading
Information Label” under
Loading the Vehicle on
page 4-18.
Ination - Tire Pressure
Tires need the correct amount
of air pressure to operate
effectively.Notice:Do not let anyone tell
you that under-ination or
over-ination is all right. It is
not. If your tires do not have
enough air (under-ination),
you can get the following:
Too much exing
Too much heat
Tire overloading
Premature or irregular wear
Poor handling
Reduced fuel economy
If your tires have too much air
(over-ination), you can get
the following:
Unusual wear
Poor handling
Rough ride
Needless damage from road
hazards
A vehicle specic Tire and
Loading Information label is
attached to your vehicle.
Service and Appearance Care 5-43
ProCarManuals.com

Fuses Usage
ISRVMInside Rearview
Mirror
CLUSTERInstrument Panel
Cluster
AIR BAG Airbag System
OSRVMOutside Rearview
Mirror
KEY CAPKey Capture
Solenoid
WHL S/WSteering Wheel
Switch
F/DR LCKFront Driver Door
Lock
APO2Accessory Power
Outlet 2
BCM (VB3)Body Control
Module (BCM)
(VB3)
DR LCK Door Lock
BCM (VB6)Body Control
Module (VB6)
BCM (VB4)Body Control
Module (VB4)Fuses Usage
BCM (VB5)Body Control
Module (VB5)
TRL Trailer
AIRCON Air Conditioner
AUDIO Audio
BCM (VB7)Body Control
Module (VB7)
IGN SW Ignition Switch
AIR BAG Air Bag System
WASHER Washer Pump
APO1Accessory Power
Outlet 1
FSCMFuel Storage Control
Module
RR CLR Rear Closure
BCM (VB2)Body Control
Module (VB2)
DRLDaytime Running
Light
BCM (VB1)Body Control
Module (VB1)
ONSTAR OnStar
®
Relays Usage
RELAY
ACC/RAPAccessory, Retained
Accessory Power
(RAP) Relay
RELAY
RUN/C
RANKRun/Crank Relay
Underhood Fuse Block
The underhood fuse block is located
on the driver side of the engine
compartment, near the battery.
Notice:Spilling liquid on
any electrical components on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Service and Appearance Care 5-77
ProCarManuals.com

Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located under the hood. See your retailer for more information.
Cooling System 9.5 qt9.0 L
Engine Oil with Filter 5.0 qt4.7 L
Fuel Tank 18.0 gal68.1 L
Transmission (Bottom Pan Removal) 6.9 qt6.5 L
Wheel Nut Torque 100 ft lb140Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
Engine Specications
Engine VIN CodeTransmission Spark Plug Gap
2.4L L4 Engine ZAutomatic 0.040 in (1.01 mm)
Service and Appearance Care 5-81
ProCarManuals.com

See Engine Coolant on page 5-20
for what to use. Inspect hoses. Clean
radiator, condenser, pressure cap,
and filler neck. Pressure test the
cooling system and pressure cap.
(j)A fluid loss in any vehicle system
could indicate a problem. Have
the system inspected and repaired
and the fluid level checked. Add
fluid if needed.
(k)Or every 12 months, whichever
occurs first. If driving regularly
under dusty conditions, the filter may
require replacement more often.
(l)If driving regularly under dusty
conditions, inspect the filter at each
engine oil change.
(m)Visually inspect belt for fraying,
excessive cracks, or obvious
damage. Replace belt if necessary.
(n)Vehicles using DOT-4 brake
fluid only: Drain, flush, and
refill brake hydraulic system at a
regular maintenance service (IorII)
every two years. This service can
be complex; you should haveyour dealer/retailer perform this
service. See Brakes on page 5-25
andRecommended Fluids and
Lubricants on page 6-11.
Owner Checks and
Services
These owner checks and services
should be performed at the intervals
specied to help ensure vehicle
safety, dependability, and emission
control performance. Your dealer/
retailer can assist with these checks
and services.
Be sure any necessary repairs are
completed at once. Whenever
any uids or lubricants are added to
the vehicle, make sure they are
the proper ones, as shown in
Recommended Fluids and
Lubricants on page 6-11.
At Each Fuel Fill
It is important to perform these
underhood checks at each fuel fill.
Engine Oil Level Check
Notice:It is important to check
the engine oil regularly and
keep it at the proper level. Failure
to keep the engine oil at the
proper level can cause damage to
the engine not covered by the
vehicle warranty.
Check the engine oil level and add
the proper oil if necessary. See
Engine Oil on page 5-11.
Engine Coolant Level Check
Check the engine coolant level
and add DEX-COOL®coolant
mixture if necessary. SeeEngine
Coolant on page 5-20.
6-8 Maintenance Schedule
ProCarManuals.com

Audio System(s)..................3-58
Auto Stop Mode..................3-35
Automatic Climate Control
System...........................3-17
Automatic Door Lock.............. 2-7
Automatic Door Unlock........... 2-7
Automatic Headlamp
System...........................3-13
Automatic Transmission
Fluid...............................5-17
Operation........................2-20
B
Battery...............................5-27
Electric Power
Management.................3-14
Run-Down Protection.........3-15
Bluetooth
®..........................3-72
Brake
Emergencies...................... 4-6
Brake Fluid.........................5-25
Brakes...............................5-25
Regenerative Braking........2-23
System Warning Light.......3-27
Braking................................ 4-5Braking in Emergencies.......... 4-6
Break-In, New Vehicle..........2-14
Bulb Replacement................5-35
Front Turn Signal and
Parking Lamps..............5-36
Halogen Bulbs..................5-35
Headlamp Aiming..............5-33
Headlamps......................5-35
License Plate Lamps.........5-37
Replacement Bulbs...........5-37
Taillamps, Turn Signal,
Stoplamps and Back-up
Lamps .........................5-36
Buying New Tires.................5-51
C
Calibration..........................3-40
California Fuel....................... 5-5
California Perchlorate
Materials Requirements....... 5-4
California Proposition 65
Warning............................ 5-3
Canadian Owners..................... ii
Capacities and
Specications...................5-81Carbon Monoxide.........2-26, 4-15
Care of
Safety Belts.....................5-69
Cargo Cover.......................2-38
Cargo Management
System...........................2-39
Cargo Tie Downs.................2-39
CD, MP3 ............................3-66
Center Console
Storage Area....................2-37
Chains, Tire........................5-57
Charge/Assist Gage..............3-35
Charging System Light..........3-27
Check
Engine Lamp...................3-30
Checking Things Under
the Hood ........................... 5-9
Chemical Paint Spotting........5-73
Child Restraints
Child Restraint Systems.....1-27
Infants and Young
Children.......................1-25
Lower Anchors and Tethers
for Children..................1-31
Older Children..................1-22
Securing a Child Restraint
in a Rear Seat
Position.......................1-36
i-2 INDEX
ProCarManuals.com
