Page 139 of 346
T(Vehicle Information):Press
this button to display the oil life,
units, tire pressure readings
for vehicles with the Tire Pressure
Monitor System (TPMS), Remote
Keyless Entry (RKE) transmitter
programming, economy light on/off,
compass zone setting, and
compass recalibration on vehicles
with this feature.
U(Customization):Press this
button to customize the feature
settings on your vehicle. SeeDIC
Vehicle Customization on page 3-49
for more information.
V(Set/Reset):Press this button to
set or reset certain functions and
to turn off or acknowledge
messages on the DIC.
Trip/Fuel Menu Items
3(Trip/Fuel):Press this button
to scroll through the following
menu items:
Odometer
Press the trip/fuel button until
ODOMETER displays. This display
shows the distance the vehicle
has been driven in either miles (mi)
or kilometers (km). Pressing the
trip odometer reset stem will
also display the odometer.
To switch between English and
metric measurements, see “Units”
later in this section.
Trip Odometer
Press the trip/fuel button until TRIP
displays. This display shows the
current distance traveled in
either miles (mi) or kilometers (km)
since the last reset for the trip
odometer. Pressing the trip
odometer reset stem will also
display the trip odometer.The trip odometer can be reset to
zero by pressing the set/reset button
while the trip odometer is displayed.
You can also reset the trip
odometer while it is displayed by
pressing and holding the trip
odometer reset stem.
Fuel Range
Press the trip/fuel button until
FUEL RANGE displays. This
display shows the approximate
number of remaining miles (mi) or
kilometers (km) the vehicle can be
driven without refueling. The display
will show LOW if the fuel level is low.
The fuel range estimate is based on
an average of the vehicle’s fuel
economy over recent driving history
and the amount of fuel remaining
in the fuel tank. This estimate
will change if driving conditions
change. For example, if driving in
traffic and making frequent
stops, this display may read one
number, but if the vehicle is driven
on a freeway, the number may
change even though the same
Instrument Panel 3-37
ProCarManuals.com
Page 141 of 346
oil life system monitoring the
oil life, additional maintenance is
recommended in the Maintenance
Schedule in this manual. See
Scheduled Maintenance on page 6-3
for more information.
Units
Press the vehicle information button
until UNITS displays. This display
allows you to select between English
or Metric units of measurement.
Once in this display, press the
set/reset button to select between
ENGLISH or METRIC units. All
of the vehicle information will then
be displayed in the unit of
measurement selected.
Tire Pressure
If your vehicle has the Tire Pressure
Monitor System (TPMS), the
pressure for each tire can be viewed
in the DIC. The tire pressure will
be shown in either pounds per
square inch (psi) or kilopascals
(kPa). Press the vehicle information
button until the DIC displaysFRONT TIRES PSI (kPa) LEFT ##
RIGHT ##. Press the vehicle
information button again until the
DIC displays REAR TIRES PSI
(kPa) LEFT ## RIGHT ##.
If a low or high tire pressure
condition is detected by the system
while driving, a message advising
you to check the pressure in a
speci c tire will appear in the
display. SeeInflation - Tire Pressure
on page 5-43andDIC Warnings
and Messages on page 3-42
for more information.
If the tire pressure display shows
dashes instead of a value, there
may be a problem with your vehicle.
If this consistently occurs, see
your dealer/retailer for service.Relearn Remote Key
This display allows you to match
Remote Keyless Entry (RKE)
transmitters to your vehicle. To
match an RKE transmitter to your
vehicle:
1. Press the vehicle information
button until PRESS
VTO
RELEARN REMOTE KEY
displays.
2. Press the set/reset button until
REMOTE KEY LEARNING
ACTIVE is displayed.
3. Press and hold the lock and
unlock buttons on the rst
transmitter at the same time for
about 15 seconds.
A chime will sound indicating
that the transmitter is matched
and REMOTE KEY LEARNING
COMPLETE will be shown
on the display.
Instrument Panel 3-39
ProCarManuals.com
Page 145 of 346
Acknowledging this message will
not reset the OIL LIFE REMAINING
display. That must be done at
the OIL LIFE screen. See “OIL LIFE”
underDIC Operation and Displays
on page 3-36andEngine Oil
Life System on page 5-14for more
information.
CHANGE TRANSMISSION
FLUID
Notice:Use of the incorrect
automatic transmission uid may
damage the vehicle, and the
damages may not be covered by
the vehicle’s warranty. Always
use the automatic transmission
uid listed inRecommended
Fluids and Lubricants on
page 6-11.
This message displays when the life
of the transmission uid has
expired and it should be changed.
SeeScheduled Maintenance
on page 6-3andRecommended
Fluids and Lubricants on page 6-11
for the proper uid and change
intervals.
CHECK TIRE PRESSURE
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays when the
pressure in one or more of the
vehicle’s tires needs to be checked.
This message also displays LEFT
FRONT, RIGHT FRONT, LEFT
REAR, or RIGHT REAR to indicate
which tire needs to be checked.
You can receive more than one tire
pressure message at a time. To
read the other messages that may
have been sent at the same
time, press the set/reset button. If a
tire pressure message appears
on the DIC, stop as soon as
you can. Have the tire pressures
checked and set to those shown on
the Tire Loading Information
label. SeeTires on page 5-38,
Loading the Vehicle on page 4-18,
andInflation - Tire Pressure on
page 5-43. The DIC also shows the
tire pressure values. SeeDIC
Operation and Displays on
page 3-36. If the tire pressure islow, the low tire pressure warning
light comes on. SeeTire Pressure
Light on page 3-29.
COMPASS CALIBRATION
COMPLETE
This message displays when the
compass calibration is complete.
SeeDIC Compass on page 3-40.
CRUISE CONTROL SET
TO XXX
This message displays whenever
the cruise control is set. SeeCruise
Control on page 3-9for more
information.
DRIVER DOOR OPEN
This message displays when the
driver door is not closed properly.
Close the door completely.
Instrument Panel 3-43
ProCarManuals.com
Page 149 of 346
SERVICE STABILITRAK
This message displays if there has
been a problem detected with
StabiliTrak
®. A warning light also
appears on the instrument
panel cluster. SeeStabiliTrak
®/
Traction Control System (TCS)
Warning Light on page 3-28. See
StabiliTrak
®System on page 4-7for
more information.
If this message turns on while you
are driving, pull off the road as soon
as possible and stop carefully.
Try resetting the system by turning
the ignition off and then back
on. If this message still stays on or
turns back on again while you
are driving, your vehicle needs
service. Have the system inspected
by your dealer/retailer as soon
as possible.
SERVICE TIRE MONITORING
SYSTEM
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays if a part on the
TPMS is not working properly.
The tire pressure light also ashes
and then remains on during the
same ignition cycle. SeeTire
Pressure Light on page 3-29.
Several conditions may cause this
message to appear. SeeTire
Pressure Monitor Operation on
page 5-46for more information. If
the warning comes on and stays on,
there may be a problem with the
TPMS. See your dealer/retailer.
SERVICE TRACTION
CONTROL
This message displays when the
Traction Control System (TCS)
is not functioning properly. A
warning light also appears on the
instrument panel cluster. See
StabiliTrak
®/Traction Control System
(TCS) Warning Light on page 3-28
andTraction Control System(TCS) on page 4-8for more
information. Have the TCS serviced
by your dealer/retailer as soon
as possible.
SERVICE TRANSMISSION
This message displays when there
is a problem with the transmission.
See your dealer/retailer for
service.
SERVICE VEHICLE SOON
This message displays when
a non-emissions related malfunction
occurs. Have the vehicle serviced
by your dealer/retailer as soon
as possible.
SPEED LIMITED TO
XXX MPH (KM/H)
This message displays when your
vehicle speed is limited to 80 mph
(128 km/h) because the vehicle
detects a problem in the speed
variable assist steering system.
Have your vehicle serviced by your
dealer/retailer.
Instrument Panel 3-47
ProCarManuals.com
Page 150 of 346
STABILITRAK NOT READY
If your vehicle has StabiliTrak, this
message may display and the
StabiliTrak indicator light on the
instrument panel cluster may be on
after rst driving the vehicle and
exceeding 20 mph (32 km/h)
for 30 seconds. The StabiliTrak
system is not functional until the light
has turned off. SeeStabiliTrak
®
System on page 4-7for more
information.
STABILITRAK OFF
If your vehicle has StabiliTrak, this
message displays when you
turn off the StabiliTrak, or when the
stability control has been
automatically disabled. To limit
wheel spin and realize the full
bene ts of the stability enhancement
system, you should normally
leave StabiliTrak on. However, you
should turn StabiliTrak off if your
vehicle gets stuck in sand, mud, ice,
or snow and you want to rock
your vehicle to attempt to free it, or
if you are driving in extremeoff-road conditions and require more
wheel spin. SeeIf Your Vehicle is
Stuck in Sand, Mud, Ice, or Snow on
page 4-17. To turn the StabiliTrak
system on or off, seeStabiliTrak
®
System on page 4-7.
TIGHTEN GAS CAP
This message may display along
with the check engine light on
the instrument panel cluster if the
vehicle’s fuel cap is not tightened
properly. SeeMalfunction Indicator
Lamp on page 3-30. Reinstall
the fuel cap fully. SeeFilling the
Tank on page 5-7. The diagnostic
system can determine if the fuel cap
has been left off or improperly
installed. A loose or missing fuel
cap allows fuel to evaporate into the
atmosphere. A few driving trips
with the cap properly installed
should turn this light and
message off.
TIRE LEARNING ACTIVE
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays when the TPMS
is re-learning the tire positions
on your vehicle. The tire positions
must be re-learned after rotating the
tires or after replacing a tire or
sensor. SeeTire Inspection
and Rotation on page 5-50,Tire
Pressure Monitor System on
page 5-45, andInflation - Tire
Pressure on page 5-43for more
information.
TRACTION CONTROL OFF
This message displays when
the Traction Control System (TCS)
turns off. SeeTraction Control
System (TCS) on page 4-8for more
information.
This message only displays while
the ignition is in ON/RUN and
disappears after 10 seconds, unless
it is acknowledged or an urgent
warning appears.
3-48 Instrument Panel
ProCarManuals.com
Page 265 of 346
Tire Pressure Monitor
System
The Tire Pressure Monitor System
(TPMS) uses radio and sensor
technology to check tire pressure
levels. The TPMS sensors monitor
the air pressure in your vehicle’s tires
and transmit tire pressure readings to
a receiver located in the vehicle.
Each tire, including the spare
(if provided), should be checked
monthly when cold and in ated to the
in ation pressure recommended by
the vehicle manufacturer on the
vehicle placard or tire in ation
pressure label. (If your vehicle has
tires of a different size than the size
indicated on the vehicle placard or
tire in ation pressure label, you
should determine the proper tire
in ation pressure for those tires.)
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale when one or more of your
tires is signi cantly under-in ated.Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and in ate them to
the proper pressure. Driving on a
signi cantly under-in ated tire
causes the tire to overheat and can
lead to tire failure. Under-in ation
also reduces fuel efficiency and tire
tread life, and may affect the
vehicle’s handling and stopping
ability.
Please note that the TPMS is not
a substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct
tire pressure, even if under-in ation
has not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been
equipped with a TPMS malfunction
indicator to indicate when the
system is not operating properly.
The TPMS malfunction indicator
is combined with the low tire
pressure telltale. When thesystem detects a malfunction, the
telltale will ash for approximately
one minute and then remain
continuously illuminated. This
sequence will continue upon
subsequent vehicle start-ups as
long as the malfunction exists.
When the malfunction indicator is
illuminated, the system may
not be able to detect or signal low
tire pressure as intended. TPMS
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires
or wheels on the vehicle that prevent
the TPMS from functioning
properly. Always check the TPMS
malfunction telltale after replacing
one or more tires or wheels on your
vehicle to ensure that the
replacement or alternate tires and
wheels allow the TPMS to continue
to function properly.
SeeTire Pressure Monitor
Operation on page 5-46for
additional information.
Service and Appearance Care 5-45
ProCarManuals.com
Page 266 of 346
Federal Communications
Commission (FCC) and
Industry and Science Canada
The Tire Pressure Monitor System
(TPMS) operates on a radio
frequency and complies with
Part 15 of the FCC Rules.
Operation is subject to the
following two conditions:
1. This device may not cause
harmful interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation.The TPMS operates on a radio
frequency and complies with
RSS-210 of Industry and Science
Canada. Operation is subject to the
following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modi cations to this
system by other than an authorized
service facility could void
authorization to use this equipment.
Tire Pressure Monitor
Operation
This vehicle may have a Tire
Pressure Monitor System (TPMS).
The TPMS is designed to warn
the driver when a low tire pressure
condition exists. TPMS sensors
are mounted onto each tire
and wheel assembly. The TPMS
sensors monitor the air pressure in
the vehicle’s tires and transmits
the tire pressure readings to
a receiver located in the vehicle.
When a low tire pressure condition is
detected, the TPMS turns on the low
tire pressure warning light located on
the instrument panel cluster.
5-46 Service and Appearance Care
ProCarManuals.com
Page 267 of 346
At the same time a message to
check the pressure in a speci c tire
appears on the Driver Information
Center (DIC) display. The low tire
pressure warning light and the DIC
warning message come on at each
ignition cycle until the tires are
in ated to the correct in ation
pressure. Using the DIC, tire
pressure levels can be viewed by the
driver. For additional information and
details about the DIC operation and
displays seeDIC Operation and
Displays on page 3-36andDIC
Warnings and Messages on
page 3-42.
The low tire pressure warning light
may come on in cool weather
when the vehicle is rst started, and
then turn off as you start to drive.
This could be an early indicator that
the air pressure in the tire(s) are
getting low and need to be in ated
to the proper pressure.A Tire and Loading Information label
shows the size of your vehicle’s
original equipment tires and
the correct in ation pressure for
your vehicle’s tires when they
are cold. SeeLoading the Vehicle
on page 4-18, for an example of the
Tire and Loading Information
label and its location on your
vehicle. Also seeInflation - Tire
Pressure on page 5-43.
Your vehicle’s TPMS system can
warn you about a low tire pressure
condition but it does not replace
normal tire maintenance. SeeTire
Inspection and Rotation on
page 5-50andTires on page 5-38.Notice:Using non-approved tire
sealants could damage the
Tire Pressure Monitor System
(TPMS) sensors. TPMS sensor
damage caused by using an
incorrect tire sealant is not
covered by the vehicle warranty.
Always use the GM approved
tire sealant available through your
dealer/retailer.
Your vehicle, when new, included a
factory-installed Tire In ator Kit.
This kit uses a GM approved liquid
tire sealant. Using non-approved
tire sealants could damage the
TPMS sensors. See Tire Sealant
and Compressor Kit for information
regarding the in ator kit materials
and instructions.
Service and Appearance Care 5-47
ProCarManuals.com
Page 268 of 346

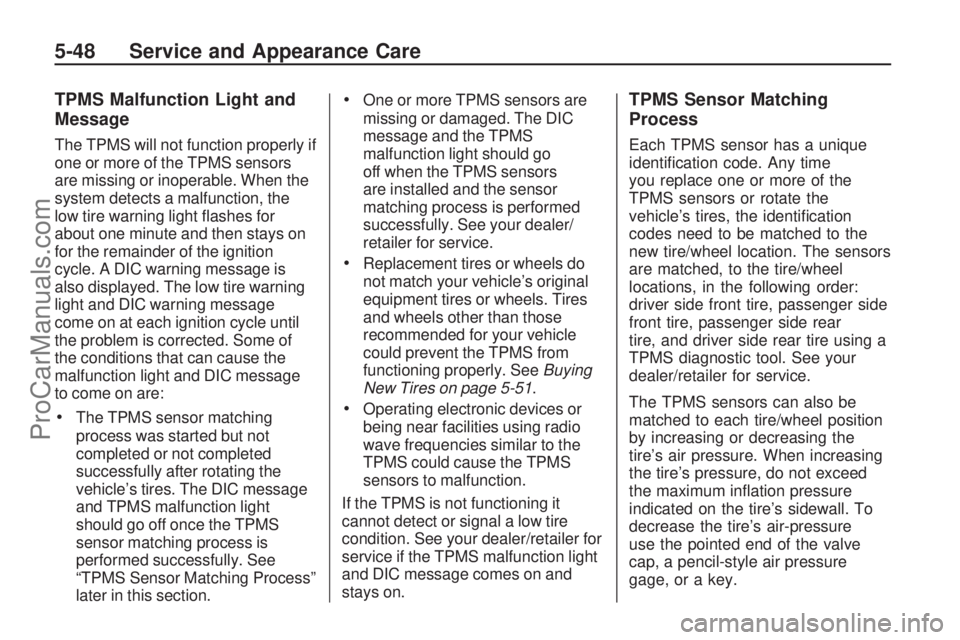

TPMS Malfunction Light and
Message
The TPMS will not function properly if
one or more of the TPMS sensors
are missing or inoperable. When the
system detects a malfunction, the
low tire warning light ashes for
about one minute and then stays on
for the remainder of the ignition
cycle. A DIC warning message is
also displayed. The low tire warning
light and DIC warning message
come on at each ignition cycle until
the problem is corrected. Some of
the conditions that can cause the
malfunction light and DIC message
to come on are:
The TPMS sensor matching
process was started but not
completed or not completed
successfully after rotating the
vehicle’s tires. The DIC message
and TPMS malfunction light
should go off once the TPMS
sensor matching process is
performed successfully. See
“TPMS Sensor Matching Process”
later in this section.
One or more TPMS sensors are
missing or damaged. The DIC
message and the TPMS
malfunction light should go
off when the TPMS sensors
are installed and the sensor
matching process is performed
successfully. See your dealer/
retailer for service.
Replacement tires or wheels do
not match your vehicle’s original
equipment tires or wheels. Tires
and wheels other than those
recommended for your vehicle
could prevent the TPMS from
functioning properly. SeeBuying
New Tires on page 5-51.
Operating electronic devices or
being near facilities using radio
wave frequencies similar to the
TPMS could cause the TPMS
sensors to malfunction.
If the TPMS is not functioning it
cannot detect or signal a low tire
condition. See your dealer/retailer for
service if the TPMS malfunction light
and DIC message comes on and
stays on.
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identi cation code. Any time
you replace one or more of the
TPMS sensors or rotate the
vehicle’s tires, the identi cation
codes need to be matched to the
new tire/wheel location. The sensors
are matched, to the tire/wheel
locations, in the following order:
driver side front tire, passenger side
front tire, passenger side rear
tire, and driver side rear tire using a
TPMS diagnostic tool. See your
dealer/retailer for service.
The TPMS sensors can also be
matched to each tire/wheel position
by increasing or decreasing the
tire’s air pressure. When increasing
the tire’s pressure, do not exceed
the maximum in ation pressure
indicated on the tire’s sidewall. To
decrease the tire’s air-pressure
use the pointed end of the valve
cap, a pencil-style air pressure
gage, or a key.
5-48 Service and Appearance Care
ProCarManuals.com
Page 269 of 346
You have two minutes to match
each tire and wheel position.
If it takes longer than two minutes to
match any tire and wheel position,
the matching process stops and you
need to start over.
The TPMS matching process is
outlined below:
1. Set the parking brake.
2. Turn the ignition switch to
ON/RUN with the engine off.
3. Press and hold the Remote
Keyless Entry (RKE) transmitter’s
LOCK and UNLOCK buttons,
at the same time, for about
ve seconds to start the TPMS
learn mode. The horn sounds
twice indicating the TPMS
receiver is ready and in
learn mode.
4. Start with the driver side front
tire. The driver side front turn
signal also comes on to indicate
that corner’s sensor is ready
to be learned.5. Remove the valve cap from the
tire’s valve stem. Activate the
TPMS sensor by increasing
or decreasing the tire’s air
pressure for about eight seconds.
The horn chirp, can take up to
30 seconds to sound. It
chirps one time and then all the
turn signals ash one time to
con rm the sensor identi cation
code has been matched to
the tire/wheel position.
6. The passenger side front turn
signal comes on to indicate
that corner sensor is ready to be
learned. Proceed to the
passenger side front tire and
repeat the procedure in Step 5.
7. The passenger side rear
turn signal comes on to indicate
that corner sensor is ready to
be learned. Proceed to the
passenger side rear tire and
repeat the procedure in Step 5.
8. The driver side rear turn signal
comes on to indicate that
corner sensor is ready to belearned. Proceed to the driver
side rear tire, and repeat
the procedure in Step 5.
9. After hearing the single horn
chirp for the driver side rear
tire, two additional horn chirps
sound to indicate the tire learning
process is done. Turn the
ignition switch to LOCK/OFF.
If no tires are learned after
entering the TPMS learn mode,
or if communication with the
receiver stops, or if the time limit
has expired, turn the ignition
switch to LOCK/OFF and
start over beginning with Step 2.
10. Set all four tires to the
recommended air pressure level
as indicated on the Tire and
Loading Information label.
11. Put the valve caps back on the
valve stems.
Service and Appearance Care 5-49
ProCarManuals.com
