Seats and
Restraint System
Head Restraints
Head Restraints..................1-2
Front Seats
Manual Seats.....................1-3
Seat Height Adjuster...........1-4
Power Seat........................1-4
Manual Lumbar..................1-5
Heated Seats.....................1-5
Reclining Seatbacks...........1-5
Passenger Folding
Seatback...........................1-7
Rear Seats
Split Folding Rear Seat......1-9
Safety Belts
Safety Belts: They Are
for Everyone...................1-10
How to Wear Safety
Belts Properly..................1-13
Lap-Shoulder Belt.............1-17
Safety Belt Use During
Pregnancy.......................1-22
Safety Belt Extender.........1-22
Child Restraints
Older Children..................1-22
Infants and Young
Children..........................1-25
Child Restraint Systems. . . .1-27
Where to Put the
Restraint.........................1-29
Lower Anchors and
Tethers for Children
(LATCH)
..........................1-31
Securing a Child
Restraint in a Rear
Seat Position
...................1-36
Securing a Child
Restraint in the Right
Front Seat Position
.........1-38
Airbag System
Airbag System..................1-41
Where Are the Airbags?. . .1-44
When Should an Airbag
Inate?............................1-45
What Makes an Airbag
Inate?............................1-47
How Does an Airbag
Restrain?........................1-47
What Will You See After
an Airbag Inates?..........1-48
Passenger Sensing
System............................1-49
Servicing Your
Airbag-Equipped
Vehicle
............................1-54
Adding Equipment to
Your Airbag-Equipped
Vehicle
............................1-55
Restraint System Check
Checking the Restraint
Systems..........................1-56
Replacing Restraint
System Parts After a
Crash
..............................1-57
Seats and Restraint System 1-1
ProCarManuals.com

Q:If I am a good driver, and I
never drive far from home,
why should I wear safety
belts?
A:You may be an excellent driver,
but if you are in a crash — even
one that is not your fault — you
and your passenger(s) can be
hurt. Being a good driver does not
protect you from things beyond
your control, such as bad drivers.
Most accidents occur within
25 miles (40 km) of home. And
the greatest number of
serious injuries and deaths occur
at speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts
Properly
This section is only for people of
adult size.
Be aware that there are special
things to know about safety
belts and children. And there are
different rules for smaller children
and infants. If a child will be riding in
the vehicle, seeOlder Children on
page 1-22orInfants and Young
Children on page 1-25. Follow those
rules for everyone’s protection.
It is very important for all occupants
to buckle up. Statistics show that
unbelted people are hurt more often
in crashes than those who are
wearing safety belts.
Occupants who are not buckled up
can be thrown out of the vehicle
in a crash. And they can strike
others in the vehicle who are
wearing safety belts.First, before you or your
passenger(s) wear a safety belt,
there is important information
you should know.
Sit up straight and always keep your
feet on the oor in front of you.
The lap part of the belt should be
worn low and snug on the hips, just
touching the thighs. In a crash,
this applies force to the strong pelvic
bones and you would be less
likely to slide under the lap belt. If
you slid under it, the belt would
apply force on your abdomen. This
could cause serious or even
Seats and Restraint System 1-13
ProCarManuals.com

The lap-shoulder belt may lock if
you pull the belt across you
very quickly. If this happens, let
the belt go back slightly to
unlock it. Then pull the belt
across you more slowly.
If the shoulder portion of a
passenger belt is pulled out all
the way, the child restraint
locking feature may be engaged.
If this happens, let the belt go
back all the way and start again.
Engaging the child restraint
locking feature in the right front
seating position may affect
the passenger sensing system.
SeePassenger Sensing
System on page 1-49for more
information.3. Push the latch plate into the
buckle until it clicks.
Pull up on the latch plate to
make sure it is secure. If the belt
is not long enough, seeSafety
Belt Extender on page 1-22.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
4. If equipped with a shoulder belt
height adjuster, move it to the
height that is right for you.
See “Shoulder Belt HeightAdjustment” later in this section
for instructions on use and
important safety information.
5. To make the lap part tight, pull
up on the shoulder belt.
It may be necessary to pull the
stitching on the safety belt
through the latch plate to fully
tighten the lap belt on smaller
occupants.
1-18 Seats and Restraint System
ProCarManuals.com

Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety
belt pretensioners cannot be seen,
they are part of the safety belt
assembly. They can help tighten the
safety belts during the early
stages of a moderate to severe
frontal, near frontal, or rear crash if
the threshold conditions for
pretensioner activation are met.
And, for vehicles with side impact
airbags, safety belt pretensioners
can help tighten the safety belts in a
side crash or a rollover event.
Pretensioners work only once. If the
pretensioners activate in a crash,
they will need to be replaced,
and probably other new parts for the
vehicle’s safety belt system. See
Replacing Restraint System
Parts After a Crash on page 1-57.
Rear Safety Belt Comfort
Guides
Rear shoulder belt comfort guides
may provide added safety belt
comfort for older children who have
outgrown booster seats and for
some adults. When installed on a
shoulder belt, the comfort guide
positions the shoulder belt away
from the neck and head.
There is one guide for each
outboard passenger position in the
rear seat. Here is how to install
a comfort guide to the safety belt:
1. Remove the guide from its
storage location, which is a
pocket on the side of the seat.2. Place the guide over the belt and
insert the two edges of the belt
into the slots of the guide.
1-20 Seats and Restraint System
ProCarManuals.com

Safety Belt Use During
Pregnancy
Safety belts work for everyone,
including pregnant women. Like all
occupants, they are more likely
to be seriously injured if they do not
wear safety belts.
A pregnant woman should wear a
lap-shoulder belt, and the lap portion
should be worn as low as possible,
below the rounding, throughout
the pregnancy.The best way to protect the fetus is to
protect the mother. When a safety
belt is worn properly, it is more likely
that the fetus will not be hurt in a
crash. For pregnant women, as for
anyone, the key to making safety
belts effective is wearing them
properly.
Safety Belt Extender
If the safety belt will fasten around
you, you should use it.
But if a safety belt is not long
enough, your dealer/retailer will
order you an extender. When you go
in to order it, take the heaviest
coat you will wear, so the extender
will be long enough for you. To
help avoid personal injury, do not let
someone else use it, and use it
only for the seat it is made to t. The
extender has been designed for
adults. Never use it for securing
child seats. To wear it, attach it to
the regular safety belt. For more
information, see the instruction
sheet that comes with the extender.
Child Restraints
Older Children
Older children who have outgrown
booster seats should wear the
vehicle’s safety belts.
1-22 Seats and Restraint System
ProCarManuals.com

The manufacturer’s instructions that
come with the booster seat, state
the weight and height limitations for
that booster. Use a booster seat
with a lap-shoulder belt until
the child passes the below t test:
Sit all the way back on the
seat. Do the knees bend at the
seat edge? If yes, continue.
If no, return to the booster seat.
Buckle the lap-shoulder
belt. Does the shoulder belt rest
on the shoulder? If yes,
continue. If no, try using the rear
safety belt comfort guide. See
“Rear Safety Belt Comfort
Guides” underLap-Shoulder Belt
on page 1-17for more
information. If the shoulder belt
still does not rest on the shoulder,
then return to the booster seat.
Does the lap belt t low and snug
on the hips, touching the thighs?
If yes, continue. If no, return
to the booster seat.
Can proper safety belt t be
maintained for the length of
the trip? If yes, continue. If no,
return to the booster seat.
Q:What is the proper way to
wear safety belts?
A:An older child should wear a
lap-shoulder belt and get the
additional restraint a shoulder
belt can provide. The shoulder
belt should not cross the face or
neck. The lap belt should t
snugly below the hips, just
touching the top of the thighs.
This applies belt force to
the child’s pelvic bones in a
crash. It should never be worn
over the abdomen, which
could cause severe or even fatal
internal injuries in a crash.Also see “Rear Safety Belt Comfort
Guides” underLap-Shoulder Belt
on page 1-17.
According to accident statistics,
children and infants are safer when
properly restrained in a child
restraint system or infant restraint
system secured in a rear seating
position.
In a crash, children who are not
buckled up can strike other people
who are buckled up, or can be
thrown out of the vehicle. Older
children need to use safety
belts properly.
Seats and Restraint System 1-23
ProCarManuals.com

{CAUTION
Never do this.
Never allow two children to wear
the same safety belt. The safety
belt can not properly spread the
impact forces. In a crash, the two
children can be crushed together
and seriously injured. A safety
belt must be used by only one
person at a time.
{CAUTION
Never do this.
Never allow a child to wear the
safety belt with the shoulder belt
behind their back. A child can be
seriously injured by not wearing
the lap-shoulder belt properly. In a
crash, the child would not be
restrained by the shoulder belt.
The child could move too far
forward increasing the chance of
head and neck injury. The child
might also slide under the lap
belt. The belt force would then be
applied right on the abdomen.
That could cause serious or fatal
injuries. The shoulder belt should
go over the shoulder and across
the chest.
1-24 Seats and Restraint System
ProCarManuals.com

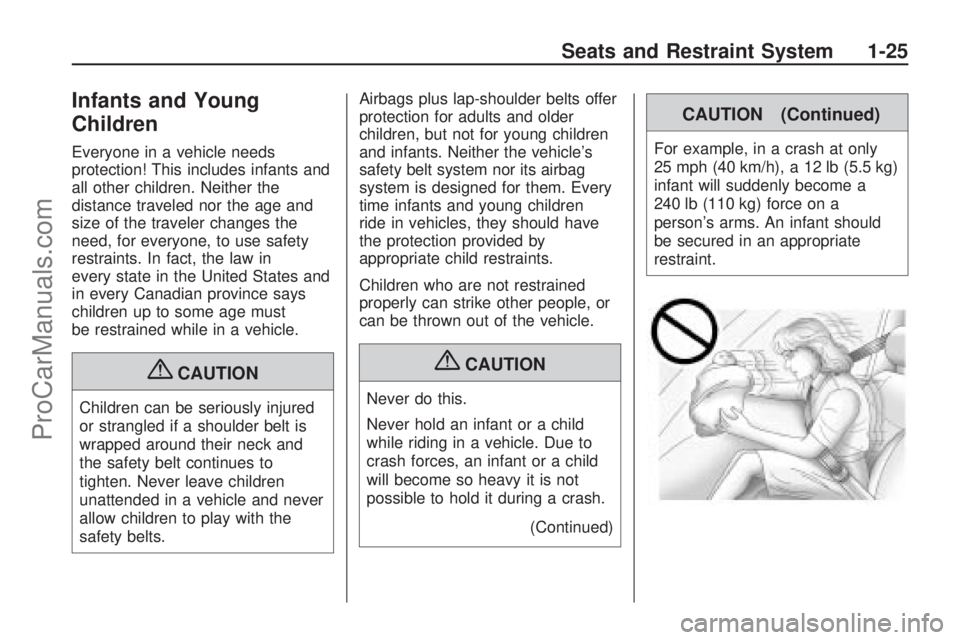

Infants and Young
Children
Everyone in a vehicle needs
protection! This includes infants and
all other children. Neither the
distance traveled nor the age and
size of the traveler changes the
need, for everyone, to use safety
restraints. In fact, the law in
every state in the United States and
in every Canadian province says
children up to some age must
be restrained while in a vehicle.
{CAUTION
Children can be seriously injured
or strangled if a shoulder belt is
wrapped around their neck and
the safety belt continues to
tighten. Never leave children
unattended in a vehicle and never
allow children to play with the
safety belts.Airbags plus lap-shoulder belts offer
protection for adults and older
children, but not for young children
and infants. Neither the vehicle’s
safety belt system nor its airbag
system is designed for them. Every
time infants and young children
ride in vehicles, they should have
the protection provided by
appropriate child restraints.
Children who are not restrained
properly can strike other people, or
can be thrown out of the vehicle.
{CAUTION
Never do this.
Never hold an infant or a child
while riding in a vehicle. Due to
crash forces, an infant or a child
will become so heavy it is not
possible to hold it during a crash.
(Continued)
CAUTION (Continued)
For example, in a crash at only
25 mph (40 km/h), a 12 lb (5.5 kg)
infant will suddenly become a
240 lb (110 kg) force on a
person’s arms. An infant should
be secured in an appropriate
restraint.
Seats and Restraint System 1-25
ProCarManuals.com
