Seats and Restraint
System............................... 1-1
Head Restraints
.............. 1-2
Front Seats
.................... 1-3
Rear Seats
.................... 1-9
Safety Belts
..................1-10
Child Restraints
.............1-22
Airbag System
..............1-41
Restraint System
Check
......................1-56
Features and Controls...... 2-1
Keys
............................. 2-2
Doors and Locks
............ 2-6
Windows
........................ 2-9
Theft-Deterrent
Systems
...................2-10
Starting and Operating
Your Vehicle
.............2-14
Mirrors
.........................2-27
OnStar
®System
............2-29
Universal Home Remote
System
.....................2-32
Storage Areas
...............2-37
Instrument Panel............... 3-1
Instrument Panel
Overview
.................... 3-4
Climate Controls
............3-17
Warning Lights, Gages,
and Indicators
............3-22
Driver Information
Center (DIC)
.............3-36
Audio System(s)
............3-56
Driving Your Vehicle......... 4-1
Your Driving, the Road,
and the Vehicle
........... 4-1
Towing
........................4-22
Service and
Appearance Care............... 5-1
Service
.......................... 5-3
Fuel
.............................. 5-5
Checking Things Under
the Hood
.................... 5-9
Headlamp Aiming
..........5-33
Bulb Replacement
.........5-35Windshield Wiper Blade
Replacement
.............5-38
Tires
...........................5-38
Appearance Care
..........5-66
Vehicle Identi cation
......5-74
Electrical System
...........5-74
Capacities and
Speci cations
............5-81
Maintenance Schedule...... 6-1
Maintenance Schedule
..... 6-1
Customer Assistance
Information........................ 7-1
Customer Assistance and
Information
................. 7-1
Reporting Safety
Defects
.....................7-12
Vehicle Data Recording
and Privacy
...............7-14
Index....................................i-1
2009 Saturn VUE Green Line Hybrid Owner ManualM
ProCarManuals.com
Page 16 of 346
or the instrument panel...
or the safety belts!With safety belts, you slow down as
the vehicle does. You get more
time to stop. You stop over more
distance, and your strongest bones
take the forces. That is why
safety belts make such good sense.
Questions and Answers
About Safety Belts
Q:
Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A:Youcouldbe — whether you are
wearing a safety belt or not. But
your chance of being conscious
during and after an accident, so
youcanunbuckle and get out, is
muchgreater if you are belted.
And you can unbuckle a safety
belt, even if you are upside down.
Q:If my vehicle has airbags, why
should I have to wear safety
belts?
A:Airbags are supplemental
systems only; so they workwith
safety belts — not instead of
them. Whether or not an airbag
is provided, all occupants
still have to buckle up to get the
most protection. That is true
not only in frontal collisions, but
especially in side and other
collisions.
1-12 Seats and Restraint System
ProCarManuals.com
Page 46 of 346

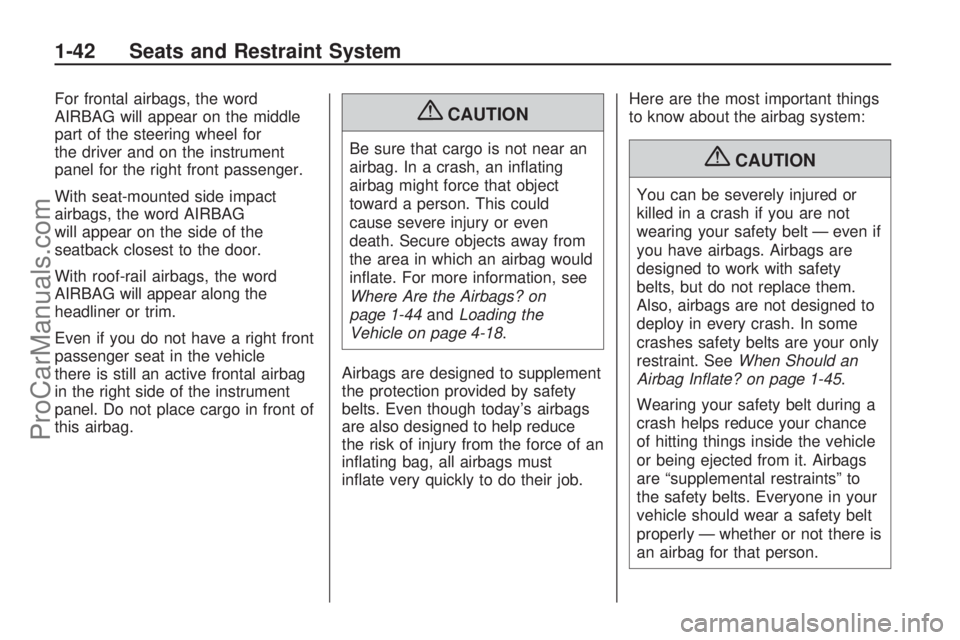

For frontal airbags, the word
AIRBAG will appear on the middle
part of the steering wheel for
the driver and on the instrument
panel for the right front passenger.
With seat-mounted side impact
airbags, the word AIRBAG
will appear on the side of the
seatback closest to the door.
With roof-rail airbags, the word
AIRBAG will appear along the
headliner or trim.
Even if you do not have a right front
passenger seat in the vehicle
there is still an active frontal airbag
in the right side of the instrument
panel. Do not place cargo in front of
this airbag.{CAUTION
Be sure that cargo is not near an
airbag. In a crash, an in ating
airbag might force that object
toward a person. This could
cause severe injury or even
death. Secure objects away from
the area in which an airbag would
in ate. For more information, see
Where Are the Airbags? on
page 1-44andLoading the
Vehicle on page 4-18.
Airbags are designed to supplement
the protection provided by safety
belts. Even though today’s airbags
are also designed to help reduce
the risk of injury from the force of an
in ating bag, all airbags must
in ate very quickly to do their job.Here are the most important things
to know about the airbag system:{CAUTION
You can be severely injured or
killed in a crash if you are not
wearing your safety belt — even if
you have airbags. Airbags are
designed to work with safety
belts, but do not replace them.
Also, airbags are not designed to
deploy in every crash. In some
crashes safety belts are your only
restraint. SeeWhen Should an
Airbag Inflate? on page 1-45.
Wearing your safety belt during a
crash helps reduce your chance
of hitting things inside the vehicle
or being ejected from it. Airbags
are “supplemental restraints” to
the safety belts. Everyone in your
vehicle should wear a safety belt
properly — whether or not there is
an airbag for that person.
1-42 Seats and Restraint System
ProCarManuals.com
Page 47 of 346
{CAUTION
Airbags in ate with great force,
faster than the blink of an eye.
Anyone who is up against, or very
close to, any airbag when it
in ates can be seriously injured or
killed. Do not sit unnecessarily
close to the airbag, as you would
be if you were sitting on the edge
of your seat or leaning forward.
Safety belts help keep you in
position before and during a
crash. Always wear your safety
belt, even with airbags. The driver
should sit as far back as possible
while still maintaining control of
the vehicle.
Occupants should not lean on or
sleep against the door or side
windows in seating positions with
seat-mounted side impact airbags
and/or roof-rail airbags.
{CAUTION
Children who are up against, or
very close to, any airbag when it
in ates can be seriously injured or
killed. Airbags plus lap-shoulder
belts offer protection for adults
and older children, but not for
young children and infants.
Neither the vehicle’s safety belt
system nor its airbag system is
designed for them. Young children
and infants need the protection
that a child restraint system can
provide. Always secure children
properly in your vehicle. To read
how, seeOlder Children on
page 1-22orInfants and Young
Children on page 1-25.There is an airbag readiness light
on the instrument panel cluster,
which shows the airbag symbol.
The system checks the airbag
electrical system for malfunctions.
The light tells you if there is an
electrical problem. SeeAirbag
Readiness Light on page 3-25for
more information.
Seats and Restraint System 1-43
ProCarManuals.com
Page 48 of 346
Where Are the Airbags?
The driver frontal airbag is in the
middle of the steering wheel.The right front passenger frontal
airbag is in the instrument panel on
the passenger side.
The seat-mounted side impact
airbags for the driver and right front
passenger are in the side of the
seatbacks closest to the door.Driver Side shown, Passenger
Side similar
1-44 Seats and Restraint System
ProCarManuals.com
Page 51 of 346
is determined by the location and
severity of the side impact. In
a rollover event, roof-rail airbag
deployment is determined by
the direction of the roll.
What Makes an Airbag
In ate?
In a deployment event, the sensing
system sends an electrical signal
triggering a release of gas from the
in ator. Gas from the in ator lls
the airbag causing the bag to break
out of the cover and deploy. The
in ator, the airbag, and related
hardware are all part of the airbag
module.
Frontal airbag modules are located
inside the steering wheel and
instrument panel. For vehicles with
seat-mounted side impact airbags,
there are airbag modules in the side
of the front seatbacks closest to
the door. For vehicles with roof-rail
airbags, there are airbag modulesin the ceiling of the vehicle, near the
side windows that have occupant
seating positions.
How Does an Airbag
Restrain?
In moderate to severe frontal or
near frontal collisions, even belted
occupants can contact the steering
wheel or the instrument panel.
In moderate to severe side
collisions, even belted occupants
can contact the inside of the vehicle.
Airbags supplement the protection
provided by safety belts. Frontal
airbags distribute the force of
the impact more evenly over the
occupant’s upper body, stopping the
occupant more gradually.
Seat-mounted side impact and
roof-rail airbags distribute the force
of the impact more evenly over
the occupant’s upper body.Rollover capable roof-rail airbags
are designed to help contain
the head and chest of occupants in
the outboard seating positions in
the rst and second rows. The
rollover capable roof-rail airbags are
designed to help reduce the risk
of full or partial ejection in rollover
events, although no system can
prevent all such ejections.
But airbags would not help in many
types of collisions, primarily
because the occupant’s motion is
not toward those airbags. SeeWhen
Should an Airbag Inflate? on
page 1-45for more information.
Airbags should never be regarded
as anything more than a supplement
to safety belts.
Seats and Restraint System 1-47
ProCarManuals.com
Page 53 of 346
The vehicle has a crash sensing
and diagnostic module which
records information after a crash.
SeeVehicle Data Recording
and Privacy on page 7-14
andEvent Data Recorders on
page 7-14.
Let only quali ed technicians
work on the airbag systems.
Improper service can mean that
an airbag system will not
work properly. See your
dealer/retailer for service.
Passenger Sensing
System
The vehicle has a passenger
sensing system for the right front
passenger position. The passenger
airbag status indicator will be
visible on the instrument panel when
the vehicle is started.
The words ON and OFF, or the
symbol for on and off, are visible
during the system check. If you are
using remote start, if equipped,
to start the vehicle from a distance,
you may not see the systemcheck. When the system check is
complete, either the word ON
or OFF, or the symbol for on or off,
will be visible. SeePassenger
Airbag Status Indicator on
page 3-26.
The passenger sensing system
turns off the right front passenger
frontal airbag and seat-mounted
side impact airbag under certain
conditions. The driver airbags
and the roof-rail airbags are not
affected by the passenger sensing
system.
The passenger sensing system
works with sensors that are part of
the right front passenger seat
and safety belt. The sensors are
designed to detect the presence of
a properly-seated occupant and
determine if the right front
passenger frontal airbag and
seat-mounted side impact airbag
should be enabled (may in ate)
or not. United States
Canada
Seats and Restraint System 1-49
ProCarManuals.com
Page 59 of 346
Adding Equipment to
Your Airbag-Equipped
Vehicle
Q:Is there anything I might add
to or change about the
vehicle that could keep the
airbags from working
properly?
A:Yes. If you add things that
change the vehicle’s frame,
bumper system, height, front end
or side sheet metal, they may
keep the airbag system from
working properly. Changing or
moving any parts of the front
seats, safety belts, the airbag
sensing and diagnostic module,
steering wheel, instrument
panel, roof-rail airbag modules,
ceiling headliner or pillar
garnish trim, front sensors, side
impact sensors, rollover
sensor module, or airbag wiring
can affect the operation of
the airbag system.In addition, the vehicle has a
passenger sensing system for the
right front passenger position,
which includes sensors that are
part of the passenger seat. The
passenger sensing system may
not operate properly if the original
seat trim is replaced with non-GM
covers, upholstery or trim, or
with GM covers, upholstery or
trim designed for a different
vehicle. Any object, such as an
aftermarket seat heater or a
comfort enhancing pad or device,
installed under or on top of
the seat fabric, could also
interfere with the operation of
the passenger sensing system.
This could either prevent proper
deployment of the passenger
airbag(s) or prevent the
passenger sensing system from
properly turning off the passenger
airbag(s). SeePassenger
Sensing System on page 1-49.If you have questions, call
Customer Assistance. The phone
numbers and addresses for
Customer Assistance are in Step
Two of the Customer Satisfaction
Procedure in this manual. See
Customer Satisfaction Procedure
on page 7-1.
If the vehicle has rollover
roof-rail airbags, seeDifferent
Size Tires and Wheels on
page 5-53for additional
important information.
Seats and Restraint System 1-55
ProCarManuals.com
Page 70 of 346
Liftgate
{CAUTION
Exhaust gases may enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through the
seal between the body and the
trunk/hatch or liftgate. Engine
exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
Close all of the windows.
Fully open the air outlets on or
under the instrument panel.
Adjust the Climate Control
system to a setting that brings
in only outside air and set the
fan speed to the highest
setting. See Climate Control
System in the Index.
(Continued)
CAUTION (Continued)
If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, seeEngine
Exhaust on page 2-26.
To lock or unlock the liftgate, press
the button on the Remote Keyless
Entry (RKE) transmitter twice
or the power door lock switch.
To open the liftgate, press
the touchpad on the underside of
the liftgate handle and pull up.
To close the liftgate, pull down using
the handle and close until it latches.Liftgate Operation with Loss of
Power
To open the liftgate if the vehicle’s
battery is disconnected or the
voltage is low, access the release
lever. Remove the interior trim cover
on the inside of the liftgate. Use a
tool to push the lever on the
latch until the liftgate releases.
2-8 Features and Controls
ProCarManuals.com
Page 72 of 346
To open or close a window, press
or pull up on the switch.
The power windows operate when
the ignition is in ON/RUN or
ACC/ACCESSORY, or while in
Retained Accessory Power (RAP).
SeeRetained Accessory Power
(RAP) on page 2-15.
Express-Down Window
The driver window switch has an
express-down feature that lowers
the window without holding the
switch. Press the switch part way
and the window will open a
small amount. Press the switch
down all the way and release it and
the window lowers all the way.
To stop the window while it
is lowering, press and release the
switch.
Window Lockout
o(Window Lockout):The
vehicle has a lockout feature to
prevent rear seat passengers from
operating the windows. Press
the lockout button, located with the
power window switches, to turn
the feature on and off.
Sun Visors
To block out glare, swing the sun
visor down, or detach the driver sun
visor from the center mount and
slide it along the rod from
side-to-side.
On a visor with a mirror, lift the
cover to use it.
Theft-Deterrent
Systems
Vehicle theft is big business,
especially in some cities. This vehicle
has theft-deterrent features,
however, they do not make it
impossible to steal.
Content Theft-Deterrent
This vehicle may have a content
theft-deterrent alarm system.
The security light is located near the
center of the instrument panel.United States shown,
Canada similar
2-10 Features and Controls
ProCarManuals.com
