Airbag system33
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
•Always properly adjust the front seats.
Conditions for fitting a rear facing child seat in the front
passenger seat
Rear-facing child seats must never be used on the front
passenger seat when the front passenger airbag is enabled.
An enabled front airbag on the front passenger side is potentially a major
danger to a child Ÿ . The front passenger seat is life threatening to a child
if you transport the child in a rear-facing child seat. You should always trans-
port all children up to 12 years of age on the rear seat.
If a rear-facing child seat is secured to the front passenger seat, an inflating
airbag can strike it with such great force that critical or fatal injuries may
result.
Therefore we urgently recommend that you transport children on the rear
seats. That is the safest place in the vehicle for children. Alternatively, the
front and side airbags for the front passenger Ÿpage 43can be disabled with
the ignition key. When transporting children, use a child seat appropriate to
the age and size of each child.
WARNING
If a child seat is mounted in the front passenger seat, the child is exposed
to a greater risk in the event of an accident.
•Never secure a rear-facing child seat to the front passenger seat if the
front passenger airbag is enabled. The child can suffer critical or fatal inju-
ries when the front passenger airbag is triggered.
•An inflating front passenger airbag can strike the rear-facing child seat
and hurl it with great force against the door, the roof or the backrest.
•If, under special circumstances, it should be necessary to transport a
child in a rear-facing child seat on the front passenger seat, it is absolutely
essential that you observe the following safety measures:
−Disabling front and side airbags for front passenger Ÿpage 43
−The child seat must be approved by the child seat manufacturer for
use on a front passenger seat with front or side airbag.
−Follow the installation instructions of the child seat manufacturer
and absolutely observe the warnings Ÿpage 45.
−Before properly installing the child seat, push the front passenger
seat all the way to the rear so that the greatest possible distance to the
front passenger airbag is ensured.
−Ensure that no objects prevent the front passenger seat from being
pushed completely back.
−The backrest of the front passenger seat must be in an upright
position.
Warning lamp for airbag and belt tension device system T
This warning lamp monitors the airbag and belt tension
device system.
The warning lamp monitors all airbags and belt tension devices in the
vehicle, including control units and wiring connections.
WARNING (continued)WARNING (continued)

Airbag system 44
– Open centre compartment on instrument panel:
– Using the ignition key, turn the switch to ON Ÿpage 43, fig. 28.
– Check if, when the ignition is switched on, that the warning lamp
“PASS AIRBAG OFF” on the instrument panel Ÿpage 43, fig. 29
does not light up Ÿ.
– Close centre compartment on instrument panel:
WARNING
•The driver is responsible for the proper position of the key-operated
switch.
•You should only disable the front and side passenger airbags if, in
exceptional cases, you have to use a rear-facing child seat on the front
passenger seat Ÿpage 45
•Never fit a child seat in the passenger seat, where the child faces back-
wards to the direction of travel and the frontal airbag has not been deacti-
vated. This is highly dangerous for the child. However, if it is necessary in
exceptional circumstances to transport a child in a rear-facing child seat on
the front passenger seat, you must always disable the front passenger
airbag.
•As soon as the child seat will no longer be used on the front passenger
seat, enable the front and side passenger airbag again.
•Only deactivate the front and side passenger airbag when the ignition
is off, otherwise a fault may occur in the airbag system, this will create the
risk of the front, curtain or side airbag not deploying properly or not at all
in the event of an accident.
•If, while the front and side passenger airbag is turned off, the indicator
PASS. AIRBAG OFF on the instrument panel does not remain lit, this could
indicate a fault in the airbag system:−Have the airbag system inspected immediately by a qualified work-
shop.
−Do not use a child seat on the front passenger seat! The front and
side passenger airbag may deploy during an accident in spite of the
fault.
−It is impossible to determine whether the front or side airbags will be
triggered in case of accident. Inform your passengers of this.
WARNING (continued)

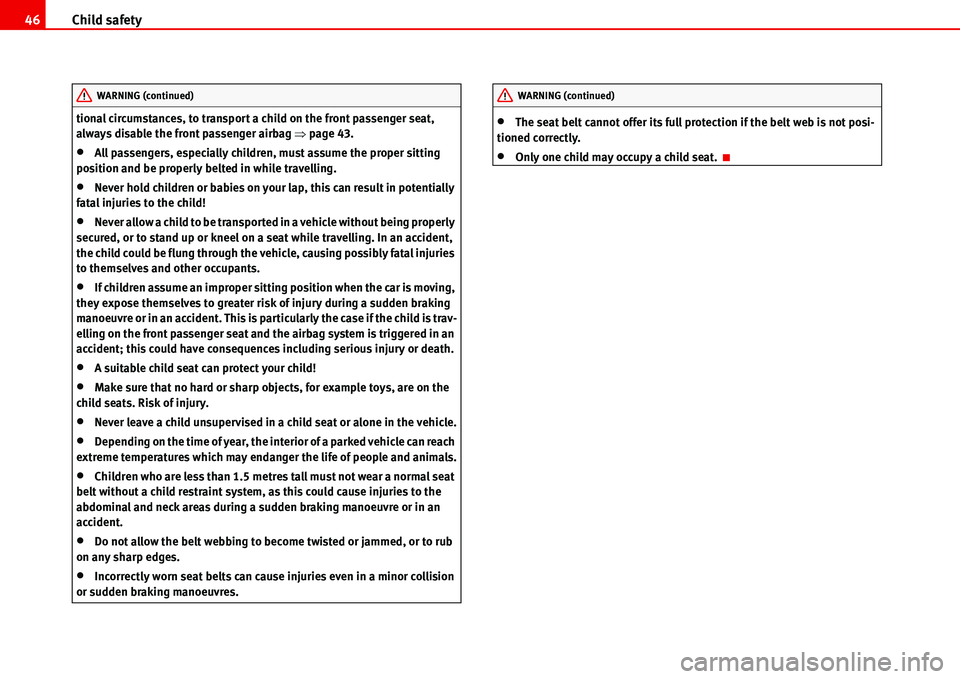

Child safety 46
tional circumstances, to transport a child on the front passenger seat,
always disable the front passenger airbag Ÿpage 43.
•All passengers, especially children, must assume the proper sitting
position and be properly belted in while travelling.
•Never hold children or babies on your lap, this can result in potentially
fatal injuries to the child!
•Never allow a child to be transported in a vehicle without being properly
secured, or to stand up or kneel on a seat while travelling. In an accident,
the child could be flung through the vehicle, causing possibly fatal injuries
to themselves and other occupants.
•If children assume an improper sitting position when the car is moving,
they expose themselves to greater risk of injury during a sudden braking
manoeuvre or in an accident. This is particularly the case if the child is trav-
elling on the front passenger seat and the airbag system is triggered in an
accident; this could have consequences including serious injury or death.
•A suitable child seat can protect your child!
•Make sure that no hard or sharp objects, for example toys, are on the
child seats. Risk of injury.
•Never leave a child unsupervised in a child seat or alone in the vehicle.
•Depending on the time of year, the interior of a parked vehicle can reach
extreme temperatures which may endanger the life of people and animals.
•Children who are less than 1.5 metres tall must not wear a normal seat
belt without a child restraint system, as this could cause injuries to the
abdominal and neck areas during a sudden braking manoeuvre or in an
accident.
•Do not allow the belt webbing to become twisted or jammed, or to rub
on any sharp edges.
•Incorrectly worn seat belts can cause injuries even in a minor collision
or sudden braking manoeuvres.
•The seat belt cannot offer its full protection if the belt web is not posi-
tioned correctly.
• Only one child may occupy a child seat.
WARNING (continued)WARNING (continued)

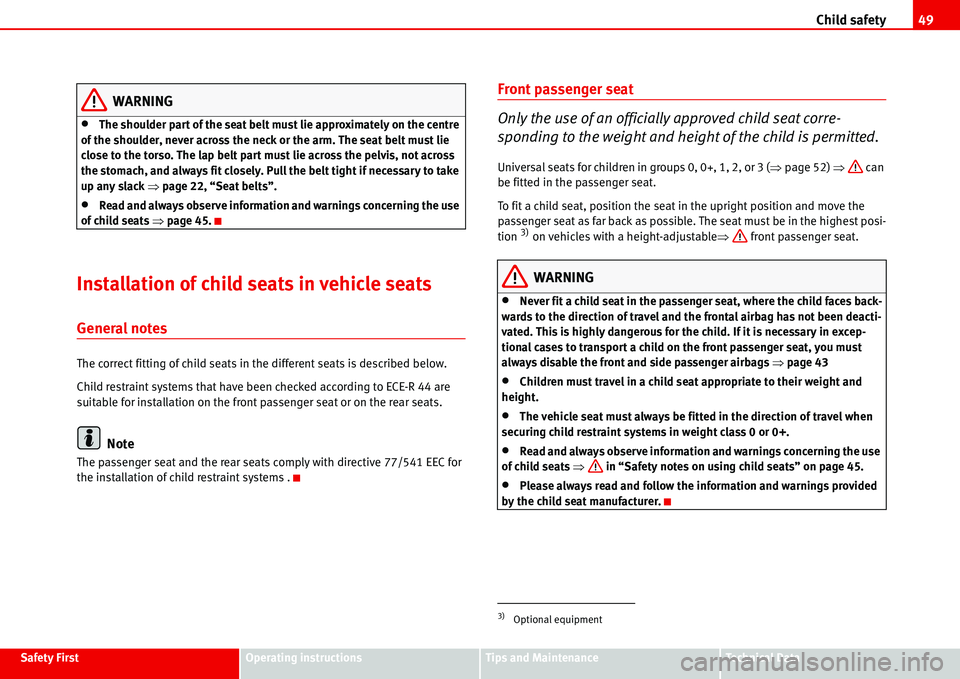

Child safety49
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
•The shoulder part of the seat belt must lie approximately on the centre
of the shoulder, never across the neck or the arm. The seat belt must lie
close to the torso. The lap belt part must lie across the pelvis, not across
the stomach, and always fit closely. Pull the belt tight if necessary to take
up any slack Ÿpage 22, “Seat belts”.
•Read and always observe information and warnings concerning the use
of child seats Ÿpage 45.
Installation of child seats in vehicle seats
General notes
The correct fitting of child seats in the different seats is described below.
Child restraint systems that have been checked according to ECE-R 44 are
suitable for installation on the front passenger seat or on the rear seats.
Note
The passenger seat and the rear seats comply with directive 77/541 EEC for
the installation of child restraint systems .
Front passenger seat
Only the use of an officially approved child seat corre-
sponding to the weight and height of the child is permitted.
Universal seats for children in groups 0, 0+, 1, 2, or 3 (Ÿpage 52) Ÿ can
be fitted in the passenger seat.
To fit a child seat, position the seat in the upright position and move the
passenger seat as far back as possible. The seat must be in the highest posi-
tion
3) on vehicles with a height-adjustableŸ front passenger seat.
WARNING
•Never fit a child seat in the passenger seat, where the child faces back-
wards to the direction of travel and the frontal airbag has not been deacti-
vated. This is highly dangerous for the child. If it is necessary in excep-
tional cases to transport a child on the front passenger seat, you must
always disable the front and side passenger airbags Ÿpage 43
•Children must travel in a child seat appropriate to their weight and
height.
•The vehicle seat must always be fitted in the direction of travel when
securing child restraint systems in weight class 0 or 0+.
•Read and always observe information and warnings concerning the use
of child seats Ÿ in “Safety notes on using child seats” on page 45.
•Please always read and follow the information and warnings provided
by the child seat manufacturer.
3)Optional equipment
