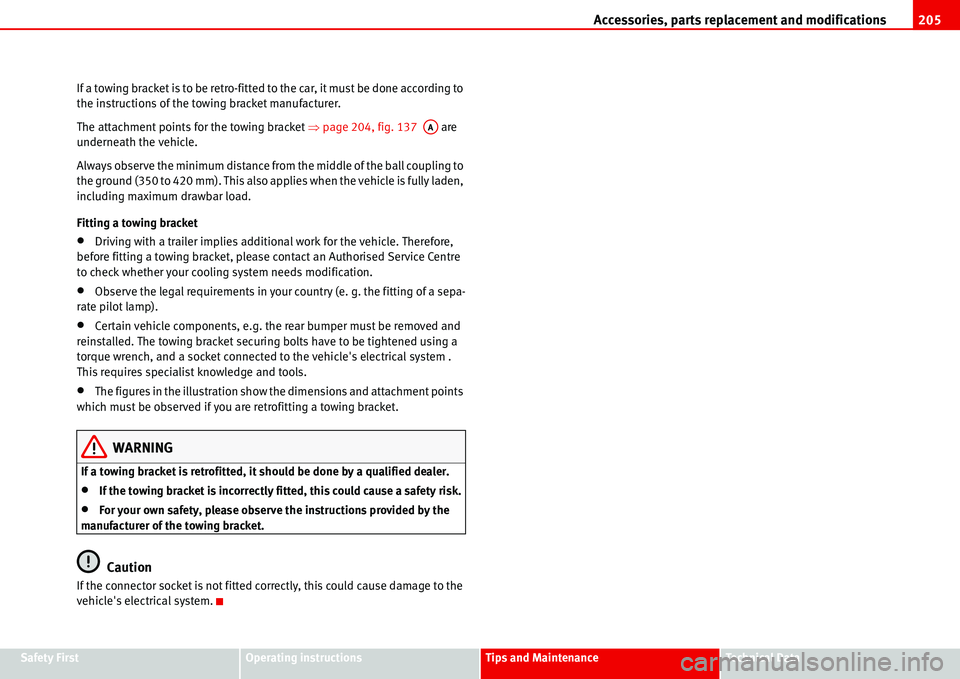

Accessories, parts replacement and modifications205
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a If a towing bracket is to be retro-fitted to the car, it must be done according to
the instructions of the towing bracket manufacturer.
The attachment points for the towing bracket Ÿpage 204, fig. 137 are
underneath the vehicle.
Always observe the minimum distance from the middle of the ball coupling to
the ground (350 to 420 mm). This also applies when the vehicle is fully laden,
including maximum drawbar load.
Fitting a towing bracket
•Driving with a trailer implies additional work for the vehicle. Therefore,
before fitting a towing bracket, please contact an Authorised Service Centre
to check whether your cooling system needs modification.
•Observe the legal requirements in your country (e. g. the fitting of a sepa-
rate pilot lamp).
•Certain vehicle components, e.g. the rear bumper must be removed and
reinstalled. The towing bracket securing bolts have to be tightened using a
torque wrench, and a socket connected to the vehicle's electrical system .
This requires specialist knowledge and tools.
•The figures in the illustration show the dimensions and attachment points
which must be observed if you are retrofitting a towing bracket.
WARNING
If a towing bracket is retrofitted, it should be done by a qualified dealer.
•If the towing bracket is incorrectly fitted, this could cause a safety risk.
•For your own safety, please observe the instructions provided by the
manufacturer of the towing bracket.
Caution
If the connector socket is not fitted correctly, this could cause damage to the
vehicle's electrical system.
AA

Technical Data285
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Dimensions and capacities
Dimensions
Length, width182.44 in/ 186.57 in 71.26 in/ 71.50 in
Height at kerb weight67.20 in/ 71.65 in
Front and rear projection35.12 in/ 35.71 in
Wheelbase111.61 in
Turning circle13.05 yd
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
60.31 in 59.76 in
59.84 in 59.29 in
Capacities
Fuel tank70 l. Reserve 8 l.
Windscreen washer fluid container with headlight washer 0.92 gal/ 1.59 gal
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
