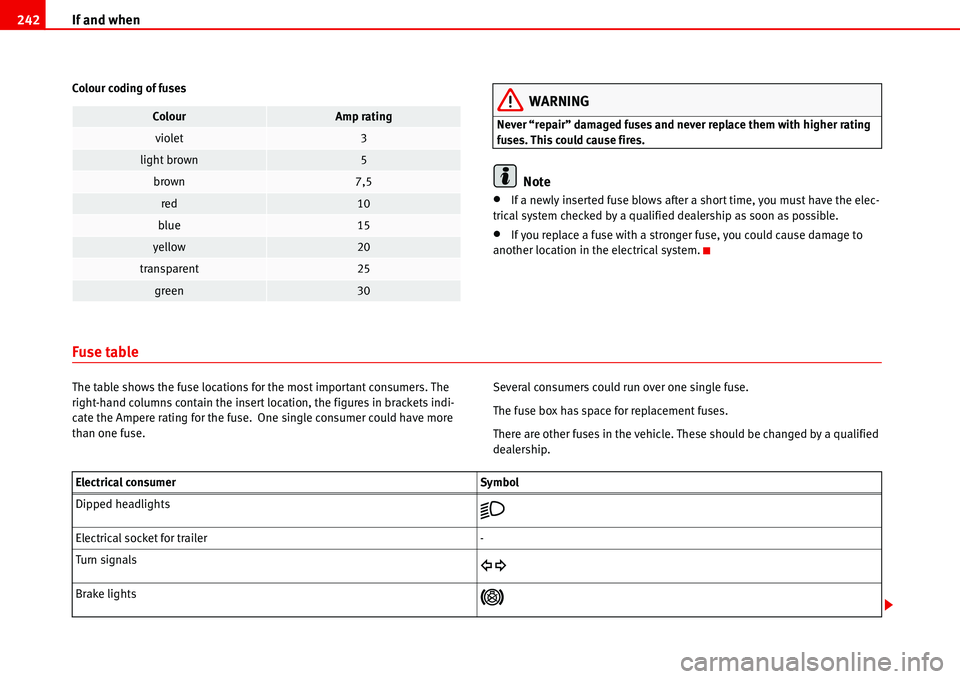

Colour coding of fusesWARNING
Never “repair” damaged fuses and never replace them with higher rating
fuses. This could cause fires.
Note
•If a newly inserted fuse blows after a short time, you must have the elec-
trical system checked by a qualified dealership as soon as possible.
•If you replace a fuse with a stronger fuse, you could cause damage to
another location in the electrical system.
Fuse table
The table shows the fuse locations for the most important consumers. The
right-hand columns contain the insert location, the figures in brackets indi-
cate the Ampere rating for the fuse. One single consumer could have more
than one fuse.Several consumers could run over one single fuse.
The fuse box has space for replacement fuses.
There are other fuses in the vehicle. These should be changed by a qualified
dealership.
ColourAmp rating
violet3
light brown5
brown7,5
red10
blue15
yellow20
transparent25
green30
Electrical consumerSymbol
Dipped headlights
Electrical socket for trailer-
Turn signals
Brake lights E
