lumbar support Seat Alhambra 2006 Owner's Manual

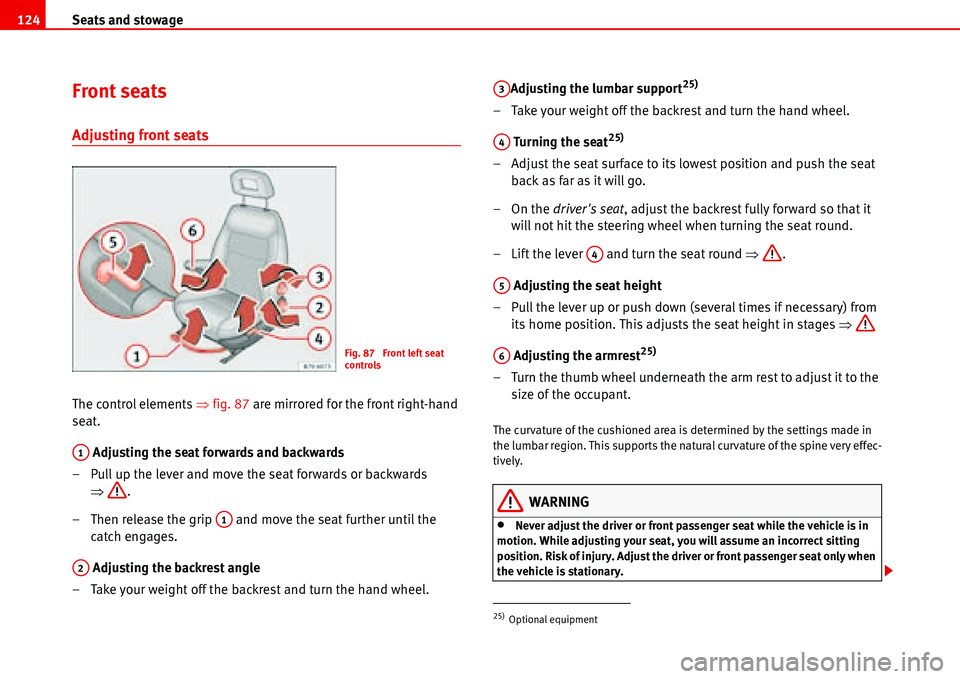

Seats and stowage 124
Front seats
Adjusting front seats
The control elements Ÿfig. 87 are mirrored for the front right-hand
seat.
Adjusting the seat forwards and backwards
– Pull up the lever and move the seat forwards or backwards
Ÿ.
– Then release the grip and move the seat further until the
catch engages.
Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel.Adjusting the lumbar support
25)
– Take your weight off the backrest and turn the hand wheel.
Turning the seat
25)
– Adjust the seat surface to its lowest position and push the seat
back as far as it will go.
–On the driver's seat, adjust the backrest fully forward so that it
will not hit the steering wheel when turning the seat round.
– Lift the lever and turn the seat round Ÿ.
Adjusting the seat height
– Pull the lever up or push down (several times if necessary) from
its home position. This adjusts the seat height in stages Ÿ
Adjusting the armrest
25)
– Turn the thumb wheel underneath the arm rest to adjust it to the
size of the occupant.
The curvature of the cushioned area is determined by the settings made in
the lumbar region. This supports the natural curvature of the spine very effec-
tively.
WARNING
•Never adjust the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of injury. Adjust the driver or front passenger seat only when
the vehicle is stationary.
Fig. 87 Front left seat
controls
A1
A1
A2
25)Optional equipment
A3
A4
A4
A5
A6

Index287
Index
4MOTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
A
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 161
Additional instruction manual
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Adjust seats
rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Adjusting lumbar support . . . . . . . . . . . . . . . . . 124
Air conditioning manual
faults in operation . . . . . . . . . . . . . . . . . . . . 157
Air conditioning system
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 151
General notes . . . . . . . . . . . . . . . . . . . . . . . . 157
Air recirculation mode
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Airbag cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 36
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 33
Airbags
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 95
Alterations to the vehicle . . . . . . . . . . . . . . . . . 202
Alternator
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 76
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Anti-lock brake system
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Anti-locking brake system . . . . . . . . . . . . . . . . 180
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . 234
Sealing and inflating tyres . . . . . . . . . . . . . 235
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 95
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 95
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 238
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130Ashtrays
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Automatic belt retractor . . . . . . . . . . . . . . . . . . . 22
Automatic car washes . . . . . . . . . . . . . . . . . . . . 194
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 166
Safety interlock for ignition key . . . . . . . . . 162
Automatic gearbox with Tiptronic . . . . . . . . . . 171
Automatic mode
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Automatic wipe
Windscreen wiper and washer . . . . . . . . . . 116
automatic wipe
Rear window wiper and wash . . . . . . . . . . . 117
B
Ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Battery
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Winter conditions . . . . . . . . . . . . . . . . . . . . 223
Belt height adjustment . . . . . . . . . . . . . . . . . 26, 29
Belt retainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Belt tension device
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 33
