navigation system Seat Alhambra 2006 Owner's Manual

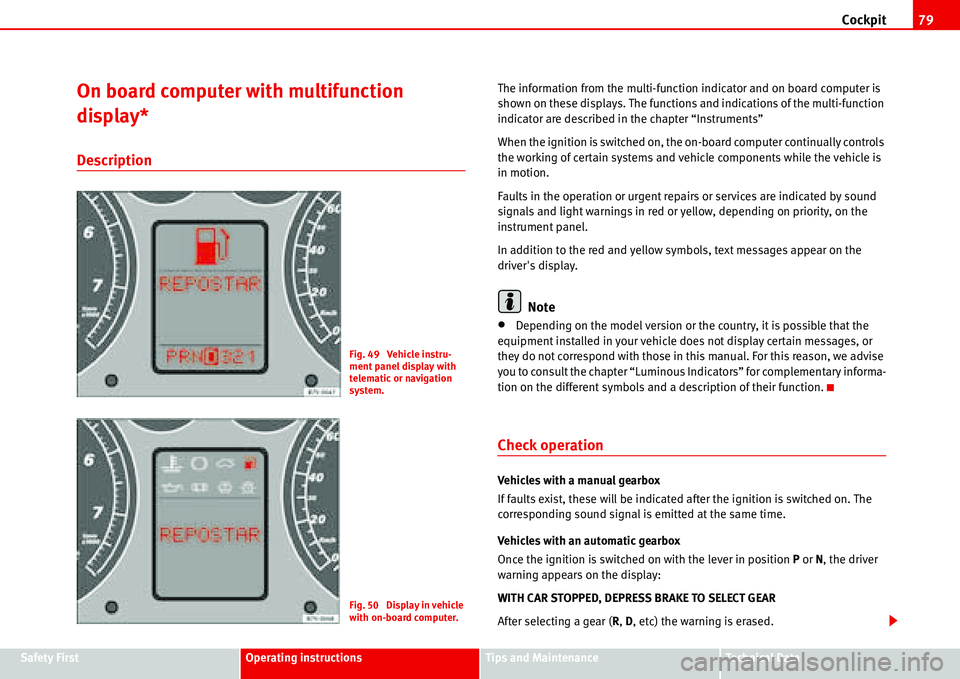

Cockpit79
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
On board computer with multifunction
display*
Description
The information from the multi-function indicator and on board computer is
shown on these displays. The functions and indications of the multi-function
indicator are described in the chapter “Instruments”
When the ignition is switched on, the on-board computer continually controls
the working of certain systems and vehicle components while the vehicle is
in motion.
Faults in the operation or urgent repairs or services are indicated by sound
signals and light warnings in red or yellow, depending on priority, on the
instrument panel.
In addition to the red and yellow symbols, text messages appear on the
driver's display.
Note
•Depending on the model version or the country, it is possible that the
equipment installed in your vehicle does not display certain messages, or
they do not correspond with those in this manual. For this reason, we advise
you to consult the chapter “Luminous Indicators” for complementary informa-
tion on the different symbols and a description of their function.
Check operation
Vehicles with a manual gearbox
If faults exist, these will be indicated after the ignition is switched on. The
corresponding sound signal is emitted at the same time.
Vehicles with an automatic gearbox
Once the ignition is switched on with the lever in position P or N, the driver
warning appears on the display:
WITH CAR STOPPED, DEPRESS BRAKE TO SELECT GEAR
After selecting a gear (R, D, etc) the warning is erased.
Fig. 49 Vehicle instru-
ment panel display with
telematic or navigation
system.
Fig. 50 Display in vehicle
with on-board computer.

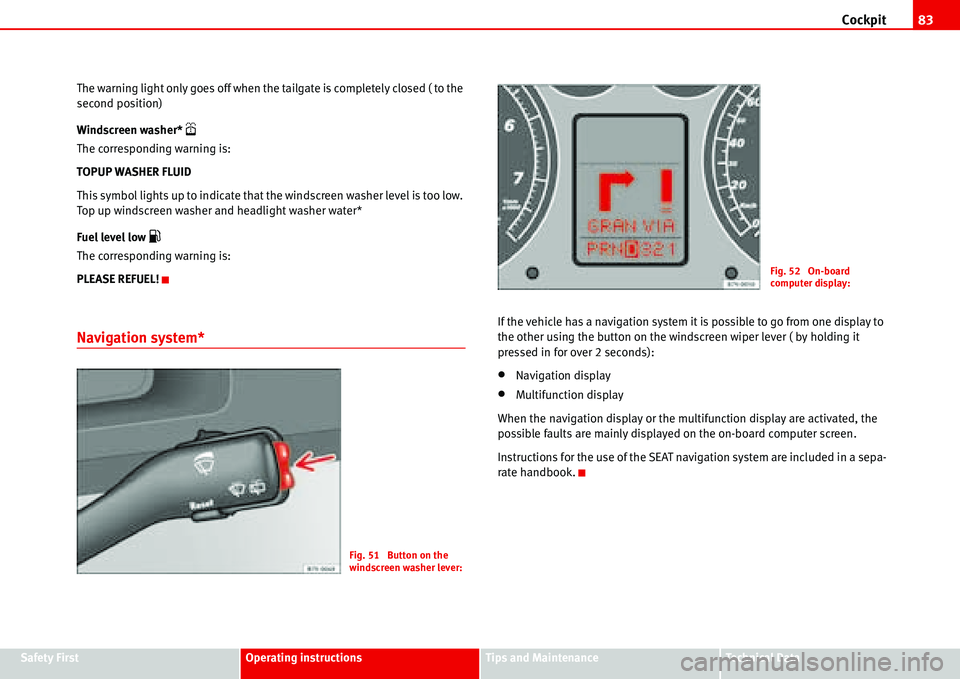

Cockpit83
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a The warning light only goes off when the tailgate is completely closed ( to the
second position)
Windscreen washer*
S
The corresponding warning is:
TOPUP WASHER FLUID
This symbol lights up to indicate that the windscreen washer level is too low.
Top up windscreen washer and headlight washer water*
Fuel level low
z
The corresponding warning is:
PLEASE REFUEL!
Navigation system*
If the vehicle has a navigation system it is possible to go from one display to
the other using the button on the windscreen wiper lever ( by holding it
pressed in for over 2 seconds):
•Navigation display
•Multifunction display
When the navigation display or the multifunction display are activated, the
possible faults are mainly displayed on the on-board computer screen.
Instructions for the use of the SEAT navigation system are included in a sepa-
rate handbook.
Fig. 51 Button on the
windscreen washer lever:
Fig. 52 On-board
computer display:

Steering wheel controls85
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Rocker switch for various functions:
−Button for: station search, forwards (radio), listening to TIM
messages, starting with oldest (radio / navigation), fast forward
(cassette mode), next track (CD mode).
−Button for: station search, backwards (radio), listening to TIM
messages, starting with latest (radio / navigation), fast reverse
(cassette mode), previous track (CD mode).
Pushbutton for switching lighting on and off on the controls on the multi-
function steering wheel (on the side of the steering wheel).
Note
The cruise control system is switched on and off using the button on the turn-
signal / main beam lever .
A4
…
†
A5

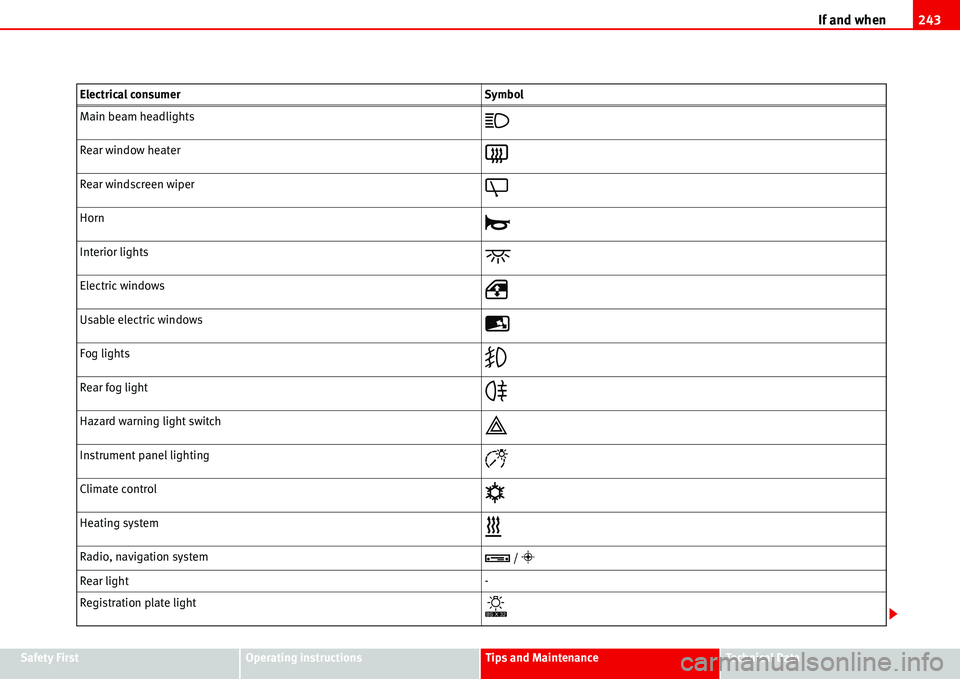

If and when243
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Main beam headlights

Rear window heater=
Rear windscreen wiperZ
Horn—
Interior lights
Electric windowsp
Usable electric windows
Fog lights
Rear fog light

Hazard warning light switch
Instrument panel lighting
Climate control;
Heating system>
Radio, navigation system° / Á
Rear light-
Registration plate light
±
Electrical consumerSymbol

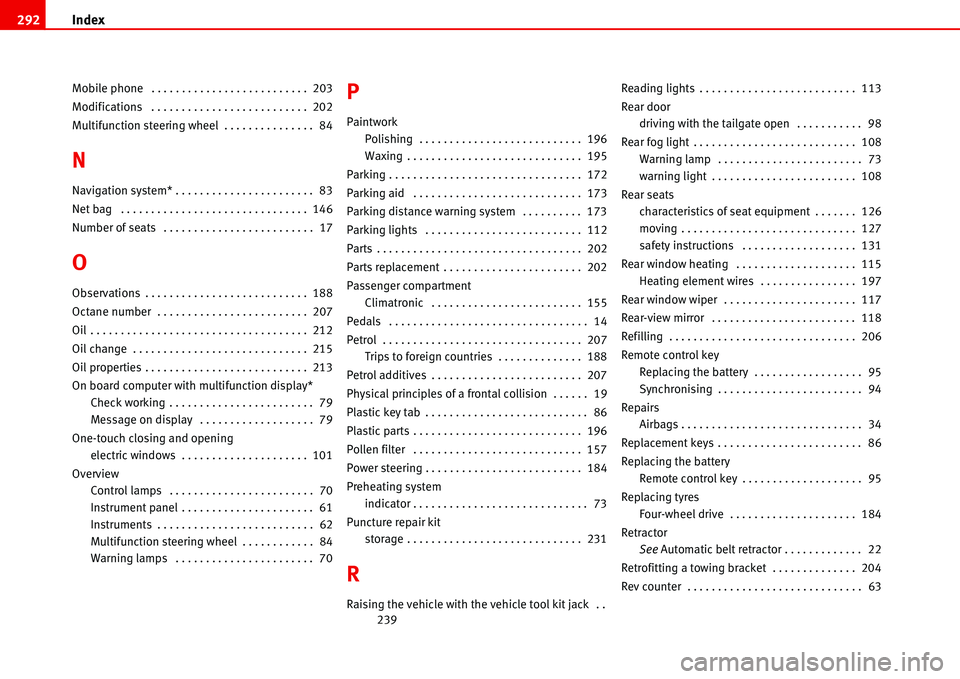

Index 292
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Multifunction steering wheel . . . . . . . . . . . . . . . 84
N
Navigation system* . . . . . . . . . . . . . . . . . . . . . . . 83
Net bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 17
O
Observations . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 207
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
On board computer with multifunction display*
Check working . . . . . . . . . . . . . . . . . . . . . . . . 79
Message on display . . . . . . . . . . . . . . . . . . . 79
One-touch closing and opening
electric windows . . . . . . . . . . . . . . . . . . . . . 101
Overview
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 70
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 61
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Multifunction steering wheel . . . . . . . . . . . . 84
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 70
P
Paintwork
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking distance warning system . . . . . . . . . . 173
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 202
Passenger compartment
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . 155
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Trips to foreign countries . . . . . . . . . . . . . . 188
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 207
Physical principles of a frontal collision . . . . . . 19
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Preheating system
indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Puncture repair kit
storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
R
Raising the vehicle with the vehicle tool kit jack . .
239Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Rear door
driving with the tailgate open . . . . . . . . . . . 98
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 73
warning light . . . . . . . . . . . . . . . . . . . . . . . . 108
Rear seats
characteristics of seat equipment . . . . . . . 126
moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
safety instructions . . . . . . . . . . . . . . . . . . . 131
Rear window heating . . . . . . . . . . . . . . . . . . . . 115
Heating element wires . . . . . . . . . . . . . . . . 197
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 117
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 118
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Remote control key
Replacing the battery . . . . . . . . . . . . . . . . . . 95
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 94
Repairs
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 86
Replacing the battery
Remote control key . . . . . . . . . . . . . . . . . . . . 95
Replacing tyres
Four-wheel drive . . . . . . . . . . . . . . . . . . . . . 184
Retractor
SeeAutomatic belt retractor . . . . . . . . . . . . . 22
Retrofitting a towing bracket . . . . . . . . . . . . . . 204
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
