Checking and refilling levels223
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Battery
Warnings on handling the battery
WARNING
Always be aware of the danger of injury and chemical burns as well as the
risk of accident or fire when working on the battery and the electrical
system:
•Wear eye protection. Protect your eyes, skin and clothing from acid and
particles containing lead.
•Battery acid is very corrosive and caustic. Wear protective gloves and
eye protection. Do not tilt the batteries. This could spill acid through the
vents. Rinse battery acid from eyes immediately for several minutes with
clear water. Then seek medical care immediately. Neutralize any acid
splashes on the skin or clothing with a soapy solution, and rinse off with
plenty of water. If acid is swallowed by mistake, consult a doctor immedi-
ately.
•Fires, sparks, naked lights and smoking are prohibited. When handling
cables and electrical equipment, avoid causing sparks and electrostatic charge. Never short the battery terminals. High-energy sparks can cause
injury.
•A highly explosive mixture of gases is released when the battery is
under charge. The batteries should be charged in a well-ventilated room
only.
•Keep children away from acid and batteries.
•Before working on the electrical system, you must switch off the
engine, the ignition and all consumers. The negative cable on the battery
must be disconnected. When a light bulb is changed, you need only switch
off the light.
•Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alarm will otherwise be triggered.
•When disconnecting the battery from the vehicle electrical system,
disconnect first the negative cable and then the positive cable.
•Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never
reverse the polarity of the connections. This could cause an electrical fire.
•Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery which
has frozen. A flat battery can freeze at temperatures around 0
°C.
•Ensure that the vent hose is always connected to the battery.
•Never use a defective battery. This may be fatally explosive. Replace a
damaged battery immediately.
Caution
•Never disconnect the battery if the ignition is switched on or if the engine
is running. This could damage the electrical system or electronic compo-
nents.
•Do not expose the battery to direct sunlight over a long period of time, as
the intense ultraviolet radiation can damage the battery housing.
Wear eye protection
Battery acid is very corrosive and caustic. Wear protec-
tive gloves and eye protection!
ŽFires, sparks, naked lights and smoking are prohibited!
ŸA highly explosive mixture of gases is released when the
battery is under charge.
Keep children away from acid and batteries!
WARNING (continued)

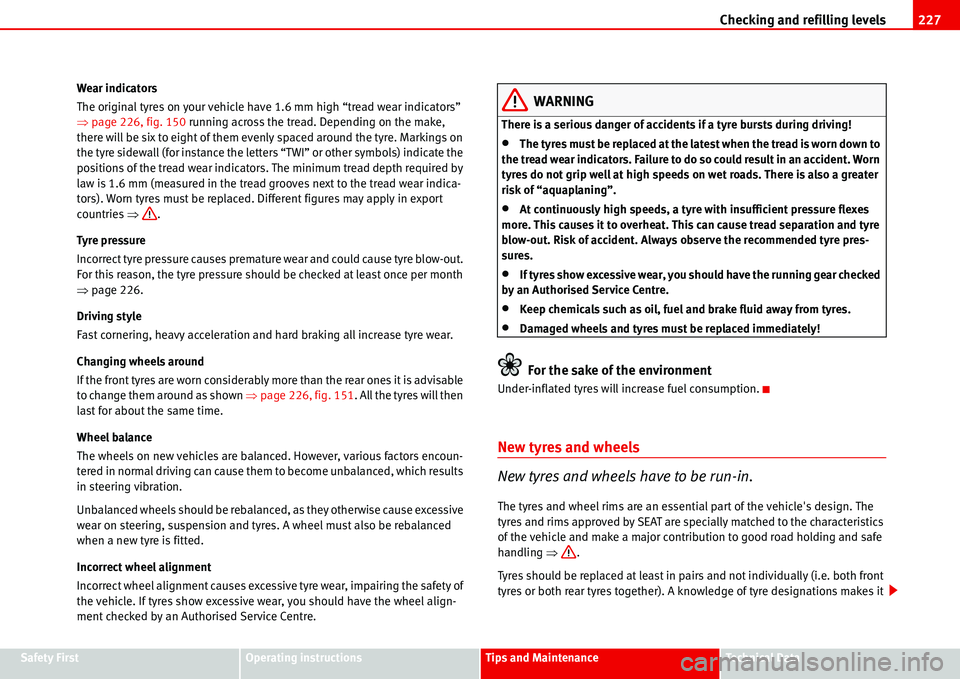

Checking and refilling levels227
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Wear indicators
The original tyres on your vehicle have 1.6 mm high “tread wear indicators”
Ÿpage 226, fig. 150 running across the tread. Depending on the make,
there will be six to eight of them evenly spaced around the tyre. Markings on
the tyre sidewall (for instance the letters “TWI” or other symbols) indicate the
positions of the tread wear indicators. The minimum tread depth required by
law is 1.6 mm (measured in the tread grooves next to the tread wear indica-
tors). Worn tyres must be replaced. Different figures may apply in export
countries Ÿ.
Tyre pressure
Incorrect tyre pressure causes premature wear and could cause tyre blow-out.
For this reason, the tyre pressure should be checked at least once per month
Ÿpage 226.
Driving style
Fast cornering, heavy acceleration and hard braking all increase tyre wear.
Changing wheels around
If the front tyres are worn considerably more than the rear ones it is advisable
to change them around as shown Ÿpage 226, fig. 151. All the tyres will then
last for about the same time.
Wheel balance
The wheels on new vehicles are balanced. However, various factors encoun-
tered in normal driving can cause them to become unbalanced, which results
in steering vibration.
Unbalanced wheels should be rebalanced, as they otherwise cause excessive
wear on steering, suspension and tyres. A wheel must also be rebalanced
when a new tyre is fitted.
Incorrect wheel alignment
Incorrect wheel alignment causes excessive tyre wear, impairing the safety of
the vehicle. If tyres show excessive wear, you should have the wheel align-
ment checked by an Authorised Service Centre.
WARNING
There is a serious danger of accidents if a tyre bursts during driving!
•The tyres must be replaced at the latest when the tread is worn down to
the tread wear indicators. Failure to do so could result in an accident. Worn
tyres do not grip well at high speeds on wet roads. There is also a greater
risk of “aquaplaning”.
•At continuously high speeds, a tyre with insufficient pressure flexes
more. This causes it to overheat. This can cause tread separation and tyre
blow-out. Risk of accident. Always observe the recommended tyre pres-
sures.
•If tyres show excessive wear, you should have the running gear checked
by an Authorised Service Centre.
•Keep chemicals such as oil, fuel and brake fluid away from tyres.
•Damaged wheels and tyres must be replaced immediately!
For the sake of the environment
Under-inflated tyres will increase fuel consumption.
New tyres and wheels
New tyres and wheels have to be run-in.
The tyres and wheel rims are an essential part of the vehicle's design. The
tyres and rims approved by SEAT are specially matched to the characteristics
of the vehicle and make a major contribution to good road holding and safe
handling Ÿ.
Tyres should be replaced at least in pairs and not individually (i.e. both front
tyres or both rear tyres together). A knowledge of tyre designations makes it

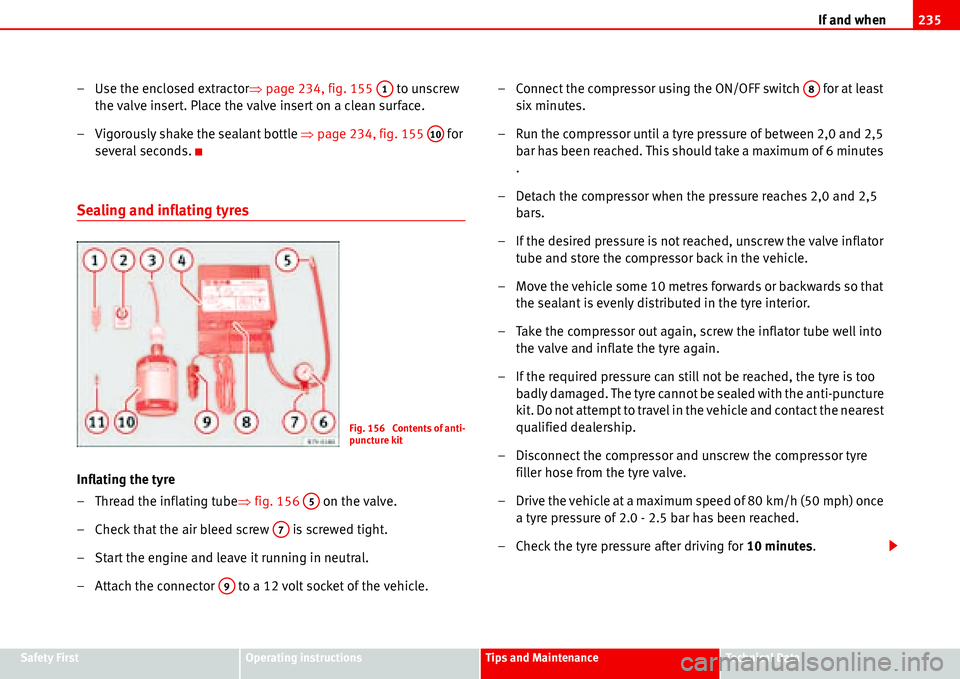

If and when235
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
– Use the enclosed extractorŸpage 234, fig. 155 to unscrew
the valve insert. Place the valve insert on a clean surface.
– Vigorously shake the sealant bottle Ÿpage 234, fig. 155 for
several seconds.
Sealing and inflating tyres
Inflating the tyre
– Thread the inflating tubeŸfig. 156 on the valve.
– Check that the air bleed screw is screwed tight.
– Start the engine and leave it running in neutral.
– Attach the connector to a 12 volt socket of the vehicle.– Connect the compressor using the ON/OFF switch for at least
six minutes.
– Run the compressor until a tyre pressure of between 2,0 and 2,5
bar has been reached. This should take a maximum of 6 minutes
.
– Detach the compressor when the pressure reaches 2,0 and 2,5
bars.
– If the desired pressure is not reached, unscrew the valve inflator
tube and store the compressor back in the vehicle.
– Move the vehicle some 10 metres forwards or backwards so that
the sealant is evenly distributed in the tyre interior.
– Take the compressor out again, screw the inflator tube well into
the valve and inflate the tyre again.
– If the required pressure can still not be reached, the tyre is too
badly damaged. The tyre cannot be sealed with the anti-puncture
kit. Do not attempt to travel in the vehicle and contact the nearest
qualified dealership.
– Disconnect the compressor and unscrew the compressor tyre
filler hose from the tyre valve.
– Drive the vehicle at a maximum speed of 80 km/h (50 mph) once
a tyre pressure of 2.0 - 2.5 bar has been reached.
– Check the tyre pressure after driving for 10 minutes.
A1
A10
Fig. 156 Contents of anti-
puncture kit
A5
A7
A9
A8

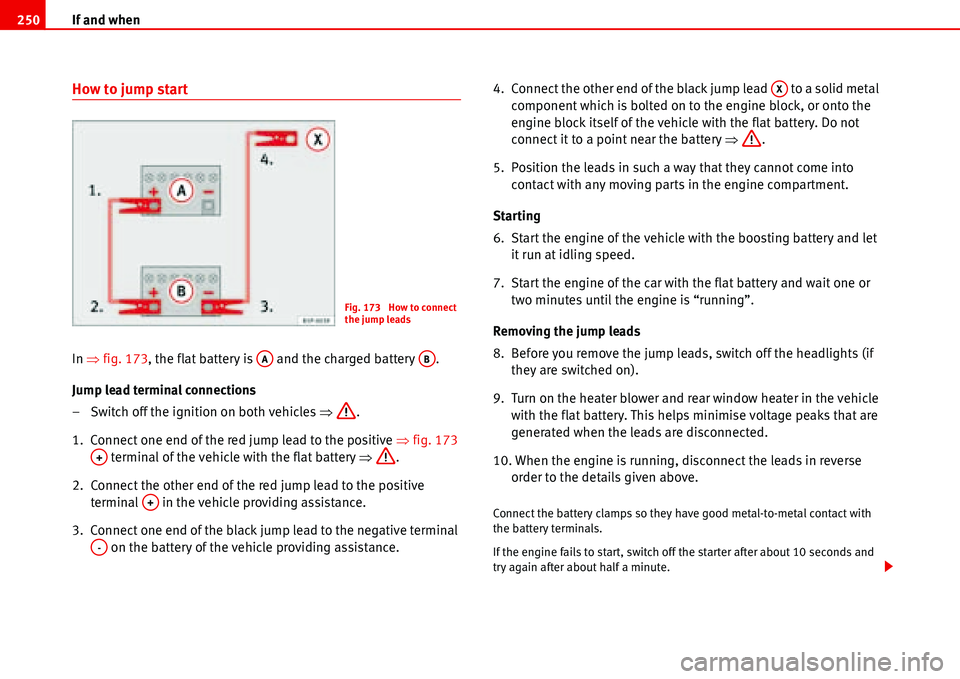

If and when 250
How to jump start
In Ÿfig. 173, the flat battery is and the charged battery .
Jump lead terminal connections
– Switch off the ignition on both vehicles Ÿ.
1. Connect one end of the red jump lead to the positive Ÿfig. 173
terminal of the vehicle with the flat battery Ÿ.
2. Connect the other end of the red jump lead to the positive
terminal in the vehicle providing assistance.
3. Connect one end of the black jump lead to the negative terminal
on the battery of the vehicle providing assistance.4. Connect the other end of the black jump lead to a solid metal
component which is bolted on to the engine block, or onto the
engine block itself of the vehicle with the flat battery. Do not
connect it to a point near the battery Ÿ.
5. Position the leads in such a way that they cannot come into
contact with any moving parts in the engine compartment.
Starting
6. Start the engine of the vehicle with the boosting battery and let
it run at idling speed.
7. Start the engine of the car with the flat battery and wait one or
two minutes until the engine is “running”.
Removing the jump leads
8. Before you remove the jump leads, switch off the headlights (if
they are switched on).
9. Turn on the heater blower and rear window heater in the vehicle
with the flat battery. This helps minimise voltage peaks that are
generated when the leads are disconnected.
10. When the engine is running, disconnect the leads in reverse
order to the details given above.
Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
Fig. 173 How to connect
the jump leads
AAAB
A+
A+
A-
AX
