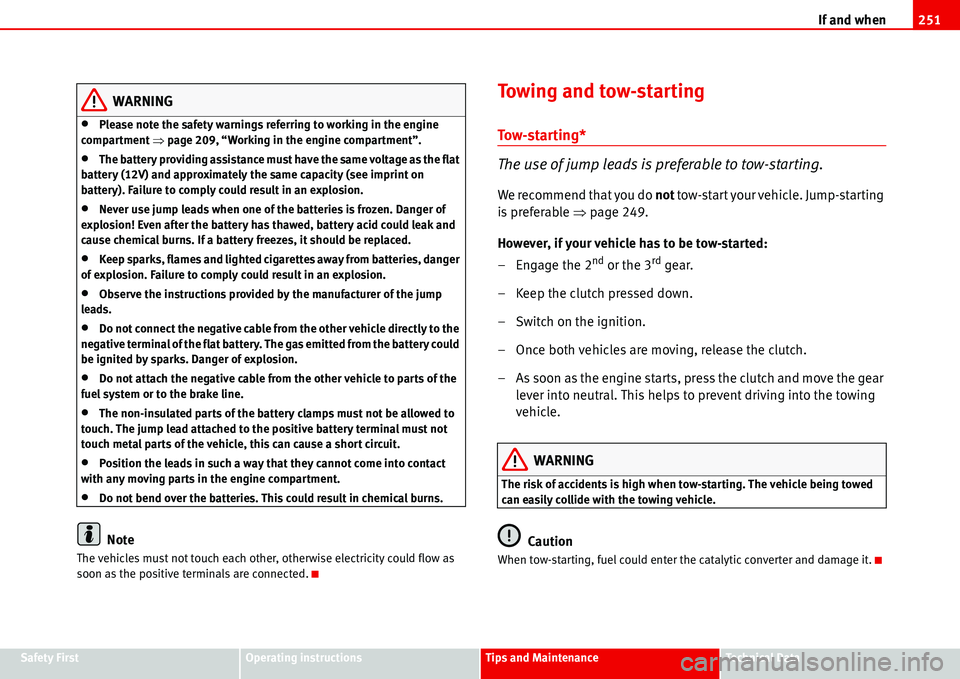

If and when251
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
•Please note the safety warnings referring to working in the engine
compartment Ÿpage 209, “Working in the engine compartment”.
•The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•Observe the instructions provided by the manufacturer of the jump
leads.
•Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•Do not bend over the batteries. This could result in chemical burns.
Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
Towing and tow-starting
Tow-starting*
The use of jump leads is preferable to tow-starting.
We recommend that you do not tow-start your vehicle. Jump-starting
is preferable Ÿpage 249.
However, if your vehicle has to be tow-started:
– Engage the 2
nd or the 3rd gear.
– Keep the clutch pressed down.
– Switch on the ignition.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear
lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.

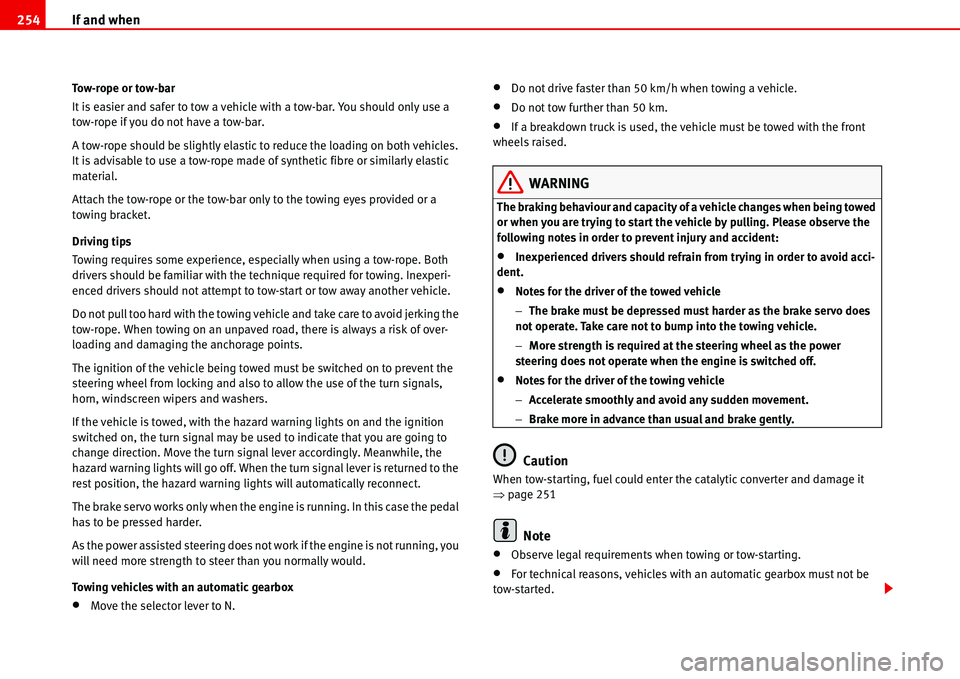

If and when 254
Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving tips
Towing requires some experience, especially when using a tow-rope. Both
drivers should be familiar with the technique required for towing. Inexperi-
enced drivers should not attempt to tow-start or tow away another vehicle.
Do not pull too hard with the towing vehicle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
If the vehicle is towed, with the hazard warning lights on and the ignition
switched on, the turn signal may be used to indicate that you are going to
change direction. Move the turn signal lever accordingly. Meanwhile, the
hazard warning lights will go off. When the turn signal lever is returned to the
rest position, the hazard warning lights will automatically reconnect.
The brake servo works only when the engine is running. In this case the pedal
has to be pressed harder.
As the power assisted steering does not work if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•Move the selector lever to N.
•Do not drive faster than 50 km/h when towing a vehicle.
•Do not tow further than 50 km.
•If a breakdown truck is used, the vehicle must be towed with the front
wheels raised.
WARNING
The braking behaviour and capacity of a vehicle changes when being towed
or when you are trying to start the vehicle by pulling. Please observe the
following notes in order to prevent injury and accident:
•Inexperienced drivers should refrain from trying in order to avoid acci-
dent.
•Notes for the driver of the towed vehicle
−The brake must be depressed must harder as the brake servo does
not operate. Take care not to bump into the towing vehicle.
−More strength is required at the steering wheel as the power
steering does not operate when the engine is switched off.
•Notes for the driver of the towing vehicle
−Accelerate smoothly and avoid any sudden movement.
−Brake more in advance than usual and brake gently.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it
Ÿpage 251
Note
•Observe legal requirements when towing or tow-starting.
•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.

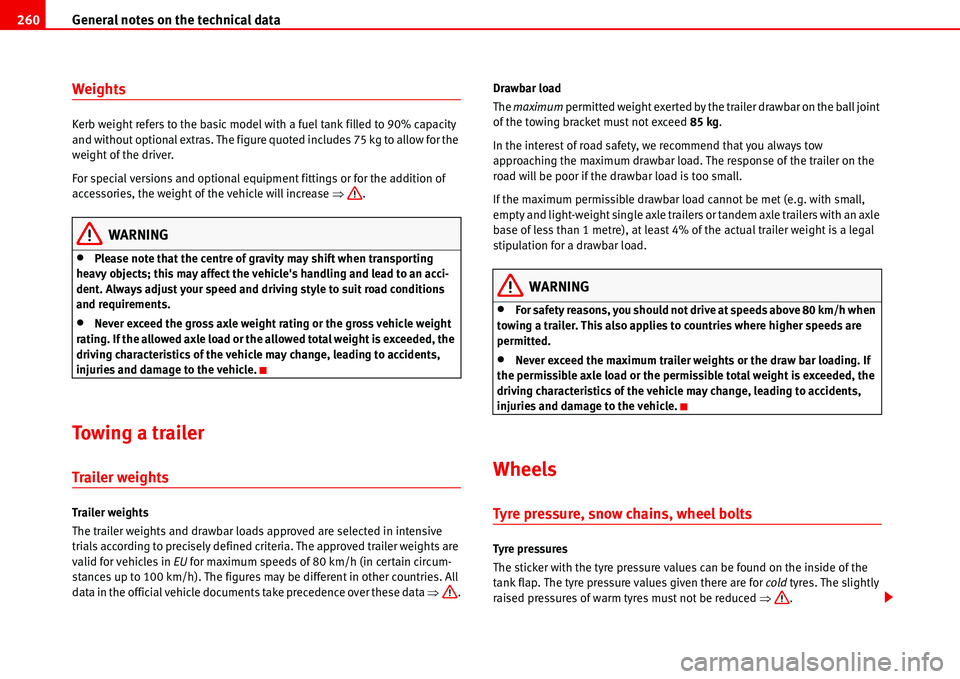

General notes on the technical data 260
Weights
Kerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase Ÿ.
WARNING
•Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle's handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
and requirements.
•Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
Towing a trailer
Trailer weights
Trailer weights
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in EU for maximum speeds of 80 km/h (in certain circum-
stances up to 100 km/h). The figures may be different in other countries. All
data in the official vehicle documents take precedence over these data Ÿ.Drawbar load
The maximum permitted weight exerted by the trailer drawbar on the ball joint
of the towing bracket must not exceed 85 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if the drawbar load is too small.
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with an axle
base of less than 1 metre), at least 4% of the actual trailer weight is a legal
stipulation for a drawbar load.
WARNING
•For safety reasons, you should not drive at speeds above 80 km/h when
towing a trailer. This also applies to countries where higher speeds are
permitted.
•Never exceed the maximum trailer weights or the draw bar loading. If
the permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
Wheels
Tyre pressure, snow chains, wheel bolts
Tyre pressures
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given there are for cold tyres. The slightly
raised pressures of warm tyres must not be reduced Ÿ.

Index 294
Steering wheel audio controls
audio + telephone version . . . . . . . . . . . . . . 84
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 84
Steering wheel height adjustment . . . . . . . . . . 159
Stowage
Other stowage areas . . . . . . . . . . . . . . . . . . 135
Stowage compartment
Front passenger side . . . . . . . . . . . . . . . . . 133
Sun visor
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Sunroof blind
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 105
Switches
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 119
Hazard warning lights . . . . . . . . . . . . . . . . . 110
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 104
Switching off the engine
With the ignition key . . . . . . . . . . . . . . . . . . 164
T
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Convenience opening . . . . . . . . . . . . . . . . . . 97
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
safety instructions . . . . . . . . . . . . . . . . . . . . . 99
Tailgate open display*
warning light . . . . . . . . . . . . . . . . . . . . . . . . . 77Tank
Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 64
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
TCS (Traction control system)
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 74
The danger of not using the seat belt . . . . . . . . 20
Thermos box
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Tightening torque of wheel bolts . . . . . . . . . . . 261
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Towing a trailer . . . . . . . . . . . . . . . . . . . . . 188, 260
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 189
storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Towline anchorage
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . 251, 253
Traction control system . . . . . . . . . . . . . . . . . . 183
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 74
Trailer turn signals
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 72
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 112
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Warning lamp . . . . . . . . . . . . . . . . . . . . 73, 112Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Tyres and wheels
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 227
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 227
Tyres with directional tread pattern . . . . . . . . . 225
U
Underbody sealant . . . . . . . . . . . . . . . . . . . . . . 198
Unfastening seat belt
(with one buckle) . . . . . . . . . . . . . . . . . . . . . 26
Unfastening seat belts
(with two buckles) . . . . . . . . . . . . . . . . . . . . . 27
Upper right stowage on instrument panel . . . 134
V
Vehicle
Lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 223
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Vehicle identification data . . . . . . . . . . . . . . . . 258
Vehicle identification number . . . . . . . . . . . . . 258
Vehicle onboard tools . . . . . . . . . . . . . . . . . . . . 231
Vehicle paint
Car care products . . . . . . . . . . . . . . . . . . . . 193
Vehicle tool kit jack . . . . . . . . . . . . . . . . . . . . . . 239
