wipers Seat Alhambra 2006 Owner's Manual

Lights and visibility 116
Windscreen washers
Windscreen wiper U
The windscreen wiper lever controls the windscreen wipers
and the automatic wash and wipe.
The windscreen wiper lever Ÿfig. 80 has the following positions:
Intermittent wipe
– Move the lever up to position .
– Move the control to the left or right to set the length of the
intervals. Control to the left - longer wipe pause, control to the
right - shorter wipe pauses. Four wiper interval stages can be set
using switch .Slow wipe
– Move the lever up to position .
Continuous wipe
– Move the lever up to position .
Brief wipe
– Move the lever down to position to give the windscreen a brief
wipe.
Windscreen wiper and washer system
– Pull the lever to position . A jet of water will be sprayed on the
windscreen while the lever is held in this position.
– Return the lever back to the rest position. The wipers will keep
running for approximately 4 seconds.
Switching off the wipers
– Move the lever to position .WARNING
Worn and dirty wiper blades obstruct visibility and reduce safety levels.
•In cold conditions, you should not use the wash / wipe system unless
you have warmed the windscreen with the heating and ventilation system.
The washer fluid could otherwise freeze on the windscreen and obscure
your view of the road.
•Observe the warnings “Changing wiper blades”.
Fig. 80 Windscreen wiper
and windscreen wash
lever
A1
AA
AA
A2
A3
A4
A5
A0

Lights and visibility117
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Caution
In icy conditions, always check that the wiper blades are not frozen to the
glass before using the wipers for the first time. If you switch on the wipers
when the wiper blades are frozen to the windscreen, you could damage both
the wiper blades and the wiper motor.
Rear window wiper ]
The windscreen wiper lever controls the rear window wipers
and the automatic rear window wash and wipe.
Connecting the intermittent wipe
– Press the lever forwards to position Ÿfig. 81 . The wiper will
wipe the window approximately every 6 seconds.Switching off the interval wipe function
– Pull the lever back from position towards the steering wheel.
The wiper will continue to function for a short period if you switch
off whilst the wipers are in motion.
Connect the rear window automatic wipe
– Press the lever fully forwards to position Ÿfig. 81 . The rear
window washer starts to work immediately while the rear window
wiper starts a little later and continues working while the lever is
in this position.
– Return the lever back to the rest position. The wiper then wipes
for approximately 4 seconds, and then in intervals again.
WARNING
•A worn or dirty wiper blade will obstruct visibility and reduce safety.
•Observe the warnings “Changing wiper blades”.
Caution
In icy conditions, always check that the wiper blade is not frozen to the glass
before using the wiper for the first time. If you switch on the wiper when the
wiper blade is frozen to the glass, this could damage both the wiper blade
and the wiper motor.
Note
•The rear window wiper will only function when the ignition is switched on
and the tailgate is closed.
•The rear window wiper is automatically connected when the windscreen
wiper is on and reverse gear is engaged (manual gearbox) or the selector
lever of the automatic gear box is placed in position R.
Fig. 81 Windscreen wiper
and windscreen wash
lever
A6
A6
A7

Checking and refilling levels219
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.
•When working in the engine compartment, always observe the safety
warnings Ÿpage 209
Caution
•Never put radiator anti-freeze or other additives into the windscreen
washer fluid.
•Always use approved windscreen cleansing products diluted as per
instructions. If you use other washer fluids or soap solutions, the tiny holes
in the fan-shaped nozzles could become blocked.
Changing the front windscreen wiper blades
Damaged wiper blades should be replaced immediately.
Check the condition of the wiper blades regularly. Change them as
required.
Change the windscreen wiper blades
– Lift the wiper arm away from the glass. Do not pull the arm by the
blade.
– Turn the wiper blade as shown by arrow Ÿfig. 146 as far as
it will go and then pull it off as shown by arrow Ÿfig. 147 .
– Push a new wiper blade of the same length and version onto the
wiper arm and turn the wiper blade to the stop against the direc-
tion shown by arrow .
– Place the wiper arm in the starting position.
These are available from SEAT Service®.
If the windscreen wipers scrape, they should be replaced if they are
damaged, or cleaned if they are soiled.
Fig. 146 Windscreen
wipers raised
Fig. 147 Removing front
wipers
A1
A2
A1

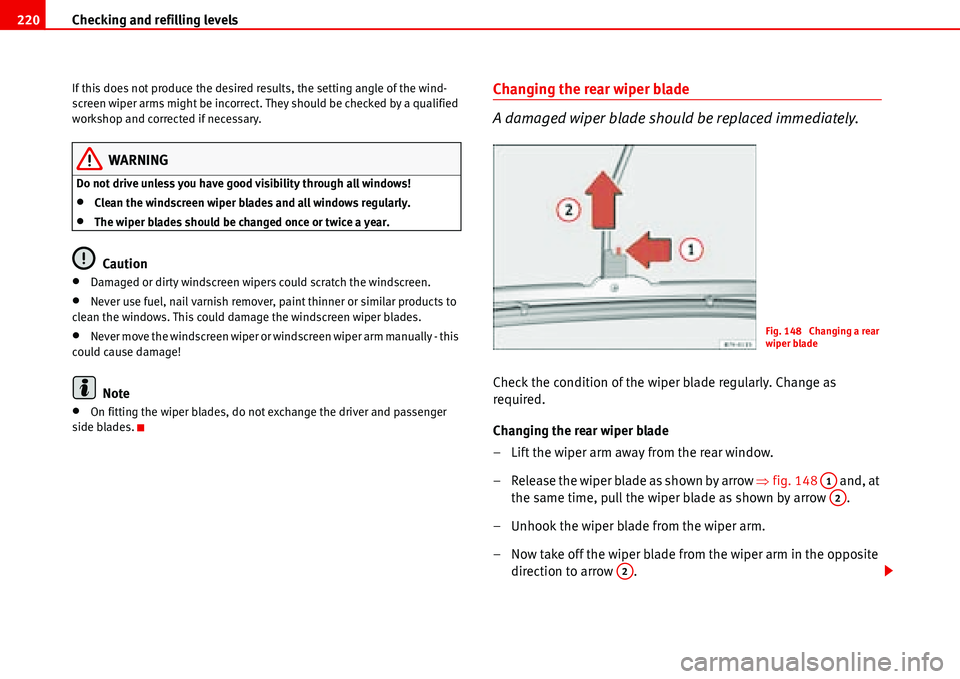

Checking and refilling levels 220
If this does not produce the desired results, the setting angle of the wind-
screen wiper arms might be incorrect. They should be checked by a qualified
workshop and corrected if necessary.
WARNING
Do not drive unless you have good visibility through all windows!
•Clean the windscreen wiper blades and all windows regularly.
•The wiper blades should be changed once or twice a year.
Caution
•Damaged or dirty windscreen wipers could scratch the windscreen.
•Never use fuel, nail varnish remover, paint thinner or similar products to
clean the windows. This could damage the windscreen wiper blades.
•Never move the windscreen wiper or windscreen wiper arm manually - this
could cause damage!
Note
•On fitting the wiper blades, do not exchange the driver and passenger
side blades.
Changing the rear wiper blade
A damaged wiper blade should be replaced immediately.
Check the condition of the wiper blade regularly. Change as
required.
Changing the rear wiper blade
– Lift the wiper arm away from the rear window.
– Release the wiper blade as shown by arrow Ÿfig. 148 and, at
the same time, pull the wiper blade as shown by arrow .
– Unhook the wiper blade from the wiper arm.
– Now take off the wiper blade from the wiper arm in the opposite
direction to arrow .
Fig. 148 Changing a rear
wiper blade
A1
A2
A2

Checking and refilling levels221
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
– Insert a new wiper blade of the same length and design in the
direction of arrow and hook the blade back onto the wiper
arm.
– Now pull the wiper blade against the direction of arrow until
it engages.
– Push the wiper arm back against the glass.
These are available from SEAT Service®.
If the windscreen wiper scrapes, they should be replaced if they are
damaged, or cleaned if they are soiled.
If this does not produce the desired results, the setting angle of the wind-
screen wiper arms might be incorrect. They should be checked by a qualified
workshop and corrected if necessary.
WARNING
Do not drive unless you have good visibility through all windows!
•Clean the windscreen wiper blades and all windows regularly.
•The wiper blades should be changed once or twice a year.
Caution
•Damaged or dirty windscreen wipers could scratch the windscreen.
•Never use fuel, nail varnish remover, paint thinner or similar products to
clean the windows. This could damage the windscreen wiper blades.
•Never move the windscreen wiper or windscreen wiper arm manually - this
could cause damage!
Note
•The wiper arms can be moved to the service position only when the
bonnet is properly closed.
Brake fluid
Checking the brake fluid level
The brake fluid is checked at the intervals given in the service
schedule.
– Read off the fluid level at the transparent brake fluid reservoir. It
should always be between the “MIN” and “MAX” marks.
A2
A2
Fig. 149 In the engine
compartment: Brake fluid
reservoir cover

If and when 254
Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving tips
Towing requires some experience, especially when using a tow-rope. Both
drivers should be familiar with the technique required for towing. Inexperi-
enced drivers should not attempt to tow-start or tow away another vehicle.
Do not pull too hard with the towing vehicle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
If the vehicle is towed, with the hazard warning lights on and the ignition
switched on, the turn signal may be used to indicate that you are going to
change direction. Move the turn signal lever accordingly. Meanwhile, the
hazard warning lights will go off. When the turn signal lever is returned to the
rest position, the hazard warning lights will automatically reconnect.
The brake servo works only when the engine is running. In this case the pedal
has to be pressed harder.
As the power assisted steering does not work if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•Move the selector lever to N.
•Do not drive faster than 50 km/h when towing a vehicle.
•Do not tow further than 50 km.
•If a breakdown truck is used, the vehicle must be towed with the front
wheels raised.
WARNING
The braking behaviour and capacity of a vehicle changes when being towed
or when you are trying to start the vehicle by pulling. Please observe the
following notes in order to prevent injury and accident:
•Inexperienced drivers should refrain from trying in order to avoid acci-
dent.
•Notes for the driver of the towed vehicle
−The brake must be depressed must harder as the brake servo does
not operate. Take care not to bump into the towing vehicle.
−More strength is required at the steering wheel as the power
steering does not operate when the engine is switched off.
•Notes for the driver of the towing vehicle
−Accelerate smoothly and avoid any sudden movement.
−Brake more in advance than usual and brake gently.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it
Ÿpage 251
Note
•Observe legal requirements when towing or tow-starting.
•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.

Index295
Vehicle tools
storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . . 133
Ventilation slits . . . . . . . . . . . . . . . . . . . . . 15, 143
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
W
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
diesel particle filter . . . . . . . . . . . . . . . . . . . . 74
warning lamp
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
exhaust gas indicator . . . . . . . . . . . . . . . . . . 74
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Warning messages . . . . . . . . . . . . . . . . . . . . . . . 67
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 142
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . . 194
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 194
Washing with high pressure cleaners . . . . . . . 195
Water in the windscreen washer tank . . . . . . . 218
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 227
Wheel bolt caps . . . . . . . . . . . . . . . . . . . . . . . . . 237
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . 238, 261
Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 225, 260
Why assume the correct sitting position? . . . . . 32
Why should head restraints be correctly adjusted?
12Why wear seat belts? . . . . . . . . . . . . . . . . . . . 17, 19
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 32
Window aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Opening and closing electrically . . . . . . . . 100
Windscreen heating . . . . . . . . . . . . . . . . . . . . . 115
Windscreen washer fluid
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Windscreen wiper . . . . . . . . . . . . . . . . . . . . . . . 116
Windscreen wiper blades
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Windscreen wipers
Changing the front blades . . . . . . . . . . . . . 219
Changing the rear blade . . . . . . . . . . . . . . . 220
Winter driving
Diesel engine . . . . . . . . . . . . . . . . . . . . . . . . 208
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Four-wheel drive . . . . . . . . . . . . . . . . . . . . . 184
Working in the engine compartment . . . . . . . . 209
