Page 215 of 291
Checking and refilling levels213
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Oil properties
Viscosity
The viscosity class of the oil is selected according to the diagram.
When the ambient temperature falls outside the limits of the scale for a short
period, an oil change is not required.
Mono-grade oil
Single grade oils are generally not suitable for all year round use, due to
ranges of viscosity
43). These oils are only useful in a climate that is constantly very cold or very
warm.
Engine oil additives
No type of additive should be mixed with the engine oil. The deterioration
caused by these additives is not covered by the warranty.
Fig. 141 Types of oil
according to temperature
Engine type
Specification
Petrol VW 501 01/ VW 502 00/ VW 504 00
Diesel VW 505 00/ VW 505 01/ VW 507 00/ VW 506 01
Diesel Injector Pump
a)
a)Only use recommended oils, otherwise you may damage the engine.
VW 505 01/ VW 507 00/ VW 506 01
Diesel Injector Pump Motor 118 kW
a)
VW 506 01/ VW 507 00
Diesel Engines with Particulate filter (DPF)
a)
VW 507 00
43)Viscosity: Ability to flow
alhambra ingles.book Seite 213 Donnerstag, 19. April 2007 4:04 16

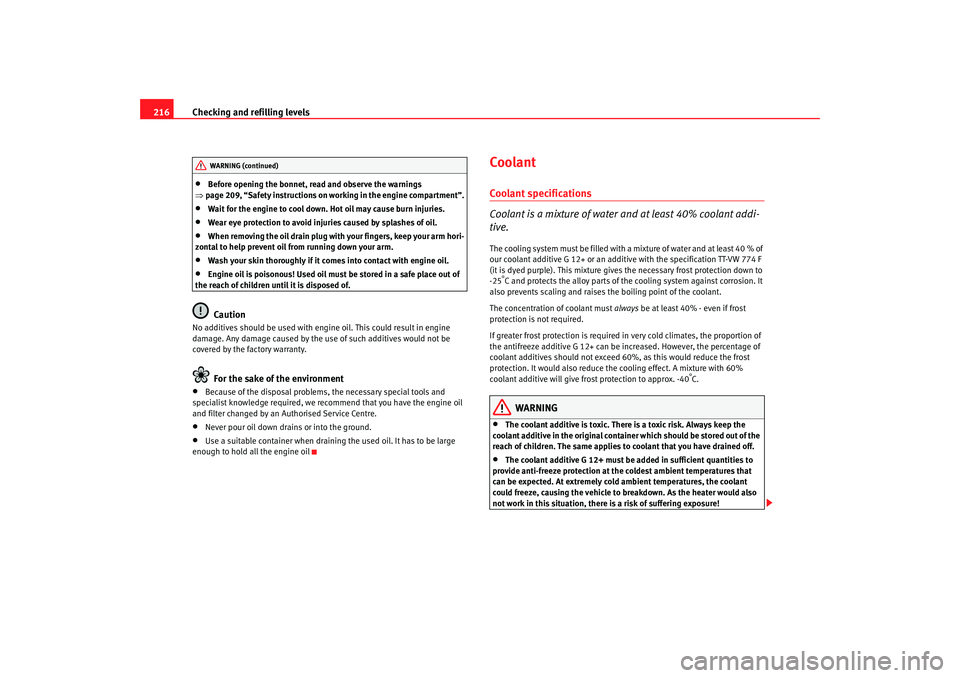

Page 218 of 291
Checking and refilling levels
216•
Before opening the bonnet, read and observe the warnings
⇒ page 209, “Safety instructions on wo rking in the engine compartment”.
•
Wait for the engine to cool down. Hot oil may cause burn injuries.
•
Wear eye protection to avoid injuries caused by splashes of oil.
•
When removing the oil drain plug with your fingers, keep your arm hori-
zontal to help prevent oil from running down your arm.
•
Wash your skin thoroughly if it comes into contact with engine oil.
•
Engine oil is poisonous! Used oil must be stored in a safe place out of
the reach of children until it is disposed of.Caution
No additives should be used with engine oil. This could result in engine
damage. Any damage caused by the use of such additives would not be
covered by the factory warranty.
For the sake of the environment
•
Because of the disposal problems, the necessary special tools and
specialist knowledge required, we recommend that you have the engine oil
and filter changed by an Authorised Service Centre.
•
Never pour oil down drains or into the ground.
•
Use a suitable container when draining the used oil. It has to be large
enough to hold all the engine oil
CoolantCoolant specifications
Coolant is a mixture of water and at least 40% coolant addi-
tive.The cooling system must be filled with a mixture of water and at least 40 % of
our coolant additive G 12+ or an additi ve with the specification TT-VW 774 F
(it is dyed purple). This mixture gives the necessary frost protection down to
-25
°C and protects the alloy parts of the cooling system against corrosion. It
also prevents scaling and raises the boiling point of the coolant.
The concentration of coolant must always be at least 40% - even if frost
protection is not required.
If greater frost protection is required in very cold climates, the proportion of
the antifreeze additive G 12+ can be increased. However, the percentage of
coolant additives should not exceed 60%, as this would reduce the frost
protection. It would also reduce the cooling effect. A mixture with 60%
coolant additive will give frost protection to approx. -40
°C.
WARNING
•
The coolant additive is toxic. Ther e is a toxic risk. Always keep the
coolant additive in the original container which should be stored out of the
reach of children. The same applies to coolant that you have drained off.
•
The coolant additive G 12+ must be added in sufficient quantities to
provide anti-freeze protection at the coldest ambient temperatures that
can be expected. At extremely cold ambient temperatures, the coolant
could freeze, causing the vehicle to breakdown. As the heater would also
not work in this situation, there is a risk of suffering exposure!
WARNING (continued)
alhambra ingles.book Seite 216 Donnerstag, 19. April 2007 4:04 16
Page 266 of 291
Technical Data
264Engine oil capacityPetrol engine 2.0 litre 85 kW (115 hp). AutomaticGeneral engine data
Performance figures Approximate engine oil capacity with oil filter change
4.0 litres
Power output in kW (bhp) rpm 85 (115)/ 5200
Maximum torque in Nm at rpm 170/ 2600-4200
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 173
Acceleration from 0-49.71 mi/h in sec. 11,3
Acceleration from 0-100 km/h in sec. 17,2
alhambra ingles.book Seite 264 Donnerstag, 19. April 2007 4:04 16
Page 267 of 291
Technical Data265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 1.8l 110 kW (150 bhp) 6 gearGeneral engine data
Gross vehicle weight
in kg 2450
Weight in working order (with driver) in kg 1673/1993
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1800
Approximate engine oil capacity with oil filter change 4.0 litres
Power output in kW (bhp) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 210/ 1800-4300
No. of cylinders, capacity in cm
3
4/ 1781
Compression 9,5 ± 0,5
Fuel 95 super RON
a)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.
alhambra ingles.book Seite 265 Donnerstag, 19. April 2007 4:04 16
Page 268 of 291
Technical Data
266Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 199
Acceleration from 0-49.71 mi/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 10,9
Gross vehicle weight in kg 2450
Weight in working order (with driver) in kg 1674/1994
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1900
Approximate engine oil capacity with oil filter change 4.3 litres
alhambra ingles.book Seite 266 Donnerstag, 19. April 2007 4:04 16
Page 270 of 291
Technical Data
268Engine oil capacityPetrol engine 2.8l VR61 50 kW (204 bhp) 6 gearGeneral engine data
Performance figuresApproximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.b)With a slight power lossMaximum speed in km/h 217
Acceleration from 0-49.71 mi/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 9,9
alhambra ingles.book Seite 268 Donnerstag, 19. April 2007 4:04 16
Page 271 of 291
Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 2.8l VR6 150 kW (204 bhp) AutomaticGeneral engine data
Gross vehicle weight
in kg 2470
Weight in working order (with driver) in kg 1694/2014
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 5.5 litres
Power output in kW (bhp) rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.b)With a slight power loss
alhambra ingles.book Seite 269 Donnerstag, 19. April 2007 4:04 16

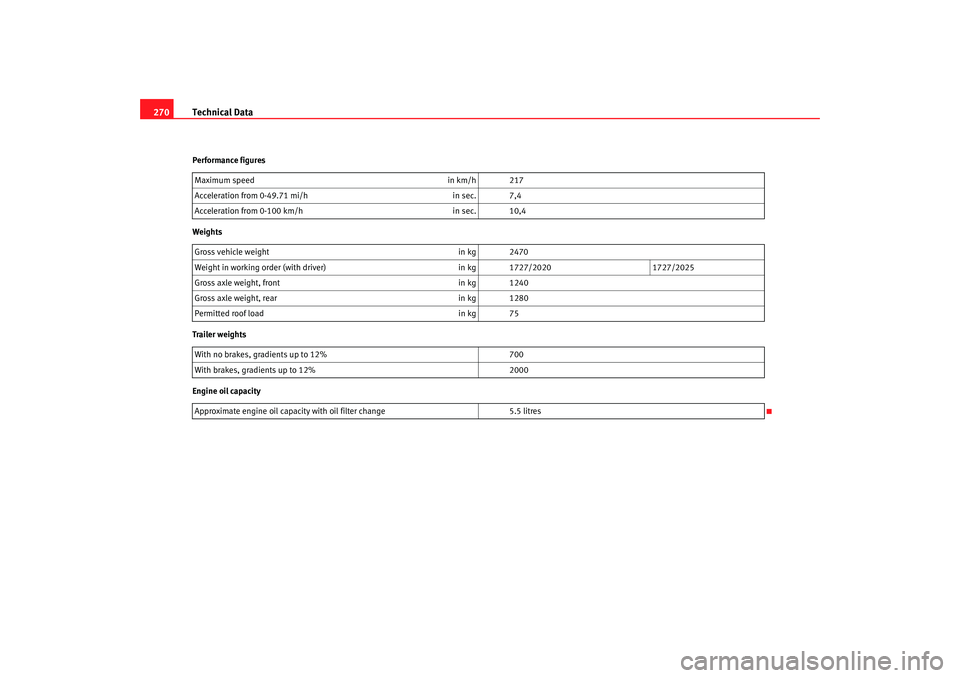

Page 272 of 291
Technical Data
270Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 217
Acceleration from 0-49.71 mi/h in sec. 7,4
Acceleration from 0-100 km/h in sec. 10,4
Gross vehicle weight in kg 2470
Weight in working order (with driver) in kg 1727/20201727/2025
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 5.5 litres
alhambra ingles.book Seite 270 Donnerstag, 19. April 2007 4:04 16
Page 274 of 291
Technical Data
272Engine oil capacityDiesel engine 1.9l TDI 85 kW (1 15 bhp) 6 gears four-wheel driveGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Approximate engine oil capacity with oil filter change
5.5 litres
Power output in kW (bhp) rpm 85 (115)/ 4000
Maximum torque in Nm at rpm 310/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18
Fuel Petrol min. 51 CN
a) or Biodiesel 5 % as in EN 14214
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 178
Acceleration from 0-49.71 mi/h in sec. 9,3
Acceleration from 0-100 km/h in sec. 14,7
Urban cycle 9,7/2629,1/246 9,3/251 9,5/257
Extra urban cycle 6,5/1765,9/159 6,1/165 6,3/170
Combined 7,7/2087,1/192 7,3/197 7,5/203
alhambra ingles.book Seite 272 Donnerstag, 19. April 2007 4:04 16

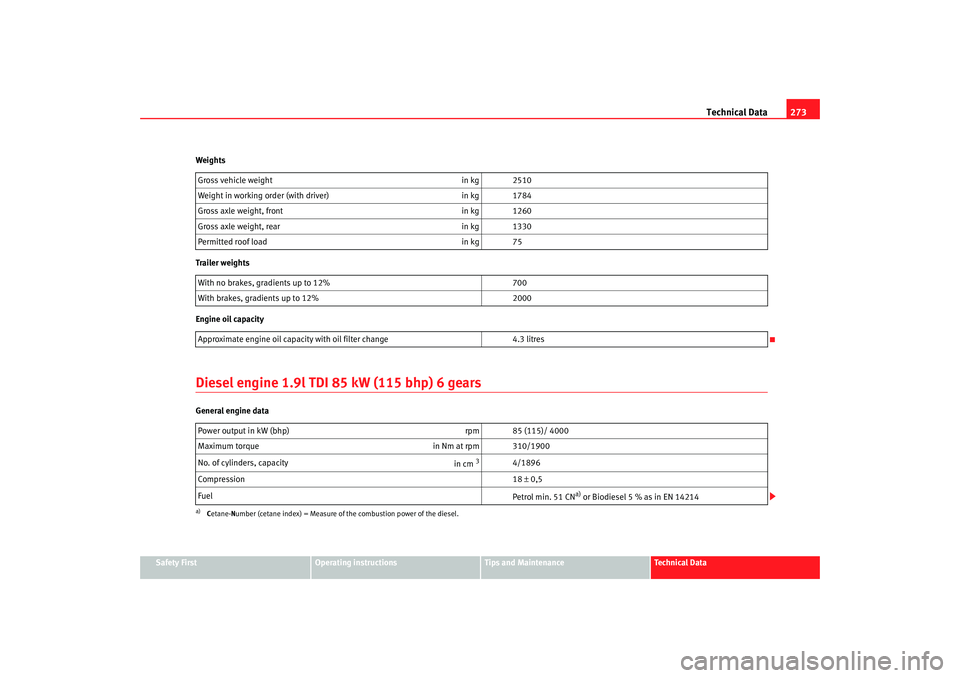

Page 275 of 291
Technical Data273
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gearsGeneral engine data
Gross vehicle weight
in kg 2510
Weight in working order (with driver) in kg 1784
Gross axle weight, front in kg 1260
Gross axle weight, rear in kg 1330
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 85 (115)/ 4000
Maximum torque in Nm at rpm 310/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18 ± 0,5
Fuel Petrol min. 51 CN
a) or Biodiesel 5 % as in EN 14214
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.
alhambra ingles.book Seite 273 Donnerstag, 19. April 2007 4:04 16
