compression ratio Seat Alhambra 2008 Owner's Manual

Technical Data263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 2.0l 85 kW (115 bhp) 6 gearGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 85 (115)/ 5200
Maximum torque in Nm at rpm 170/ 2600-4200
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,5 ± 0,5
Fuel Super 95 RON
a) /Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 177
Acceleration from 0-80 km/h in sec. 10,6
Acceleration from 0-100 km/h in sec. 15,2
Urban cycle 12,8/302
Extra urban cycle 7,4/172
Combined 9,4/223
alhambra_ingles_0708 Seite 263 Mittwoch, 10. September 2008 10:55 10

Technical Data

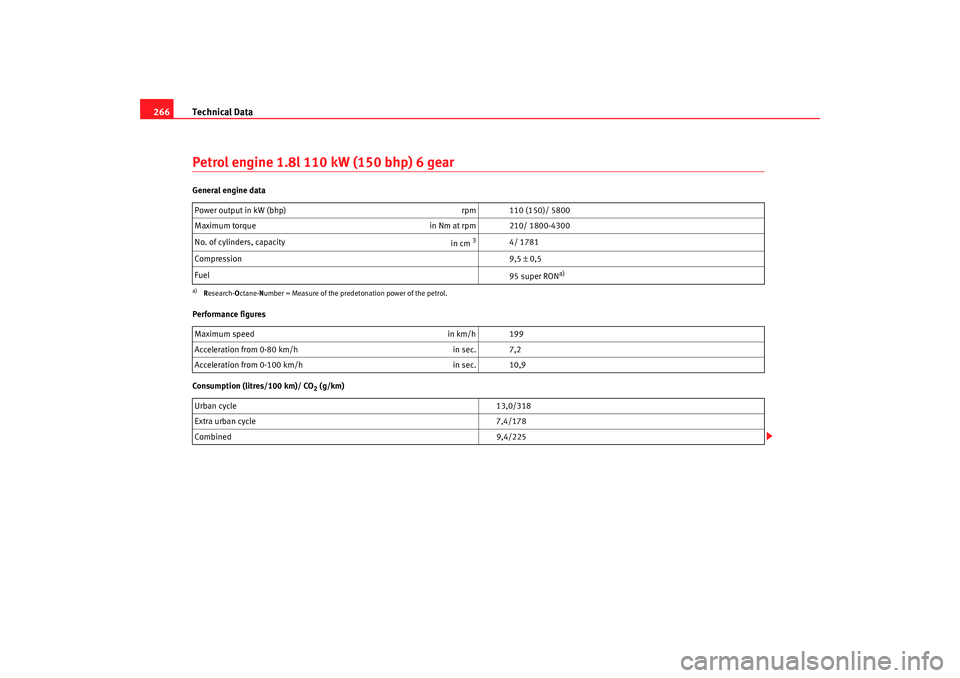

266Petrol engine 1.8l 110 kW (150 bhp) 6 gearGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 210/ 1800-4300
No. of cylinders, capacity in cm
3
4/ 1781
Compression 9,5 ± 0,5
Fuel 95 super RON
a)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.Maximum speed in km/h 199
Acceleration from 0-80 km/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 10,9
Urban cycle 13,0/318
Extra urban cycle 7,4/178
Combined 9,4/225
alhambra_ingles_0708 Seite 266 Mittwoch, 10. September 2008 10:55 10

Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

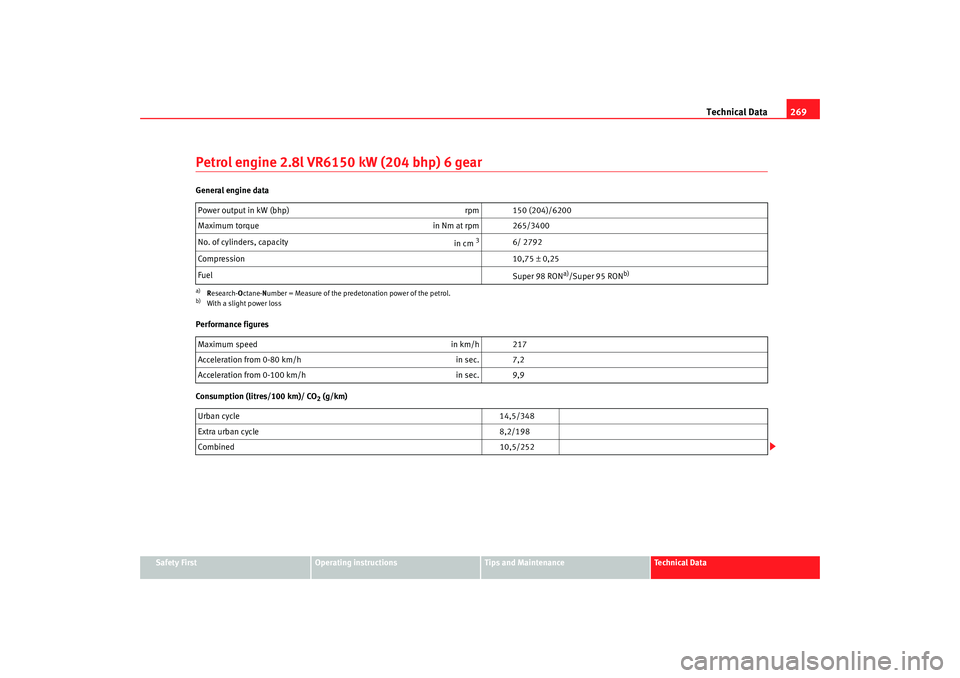

Petrol engine 2.8l VR6150 kW (204 bhp) 6 gearGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 217
Acceleration from 0-80 km/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 9,9
Urban cycle 14,5/348
Extra urban cycle 8,2/198
Combined 10,5/252
alhambra_ingles_0708 Seite 269 Mittwoch, 10. September 2008 10:55 10

Technical Data

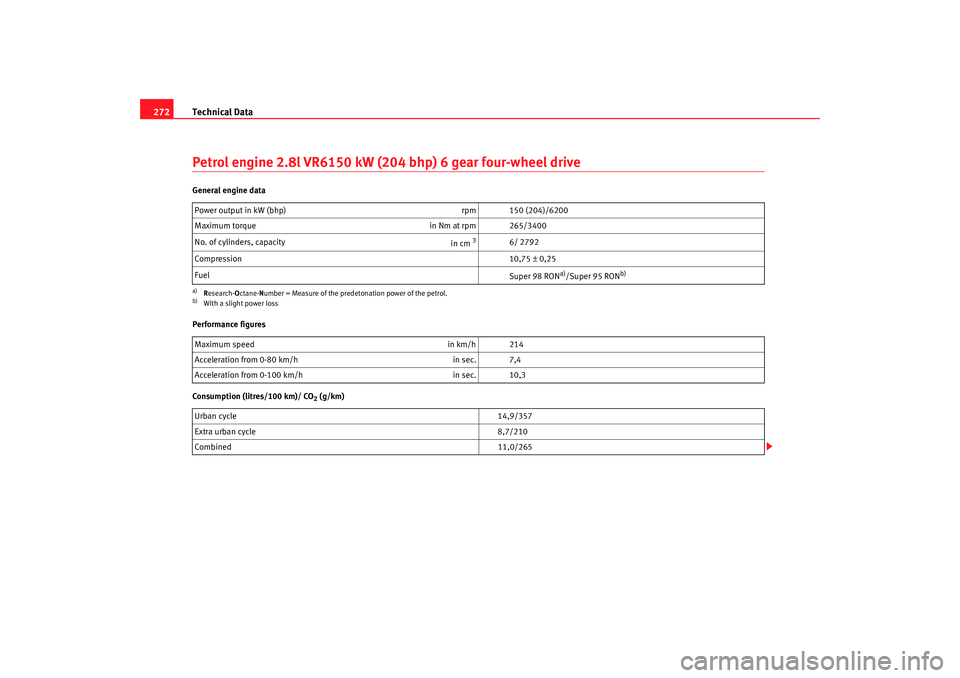

272Petrol engine 2.8l VR6150 kW (204 bhp) 6 gear four-wheel driveGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 214
Acceleration from 0-80 km/h in sec. 7,4
Acceleration from 0-100 km/h in sec. 10,3
Urban cycle 14,9/357
Extra urban cycle 8,7/210
Combined 11,0/265
alhambra_ingles_0708 Seite 272 Mittwoch, 10. September 2008 10:55 10

Technical Data275
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

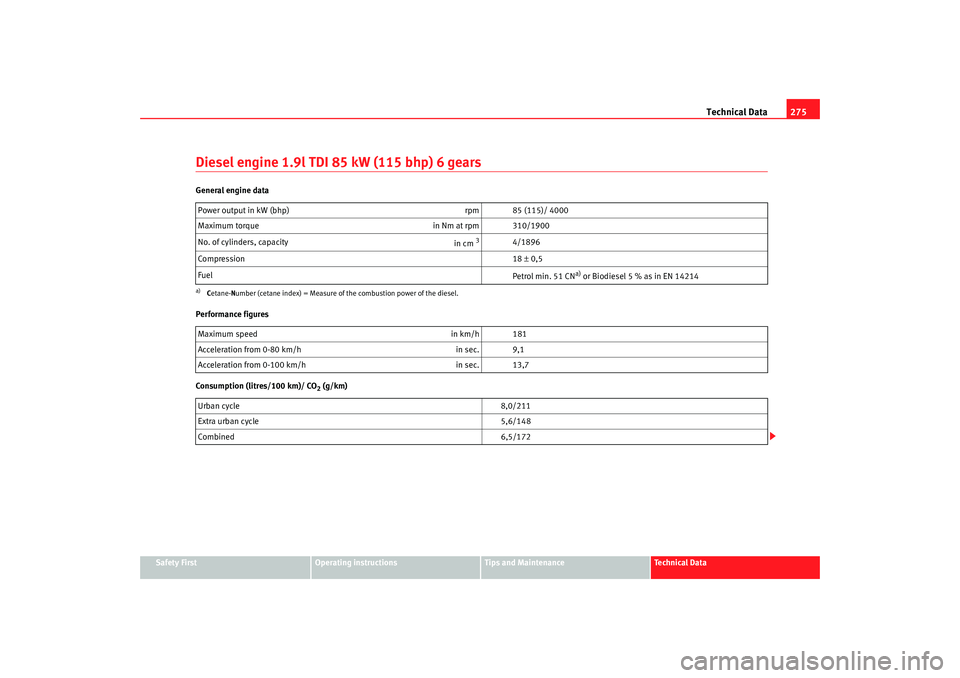

Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gearsGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 85 (115)/ 4000
Maximum torque in Nm at rpm 310/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18 ± 0,5
Fuel Petrol min. 51 CN
a) or Biodiesel 5 % as in EN 14214
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 181
Acceleration from 0-80 km/h in sec. 9,1
Acceleration from 0-100 km/h in sec. 13,7
Urban cycle 8,0/211
Extra urban cycle 5,6/148
Combined 6,5/172
alhambra_ingles_0708 Seite 275 Mittwoch, 10. September 2008 10:55 10

Technical Data
278Diesel engine 2.0l TDI 103 kW (140 bhp) 6 gearsGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km) without DPF
46)
Power output in kW (bhp) rpm 103(140)/ 4000
Maximum torque in Nm at rpm 310/1900-2500
No. of cylinders, capacity in cm
3
4/1968
Compression 18,5 ± 0,5
Fuel Petrol min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 8,5
Acceleration from 0-100 km/h in sec. 12,246)Diesel particulate filtersUrban cycle 8,3/2198,5/225
Extra urban cycle 5,7/1515,7/151
Combined 6,6/1756,7/177
alhambra_ingles_0708 Seite 278 Mittwoch, 10. September 2008 10:55 10
