technical data Seat Alhambra 2009 User Guide

Technical Data263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

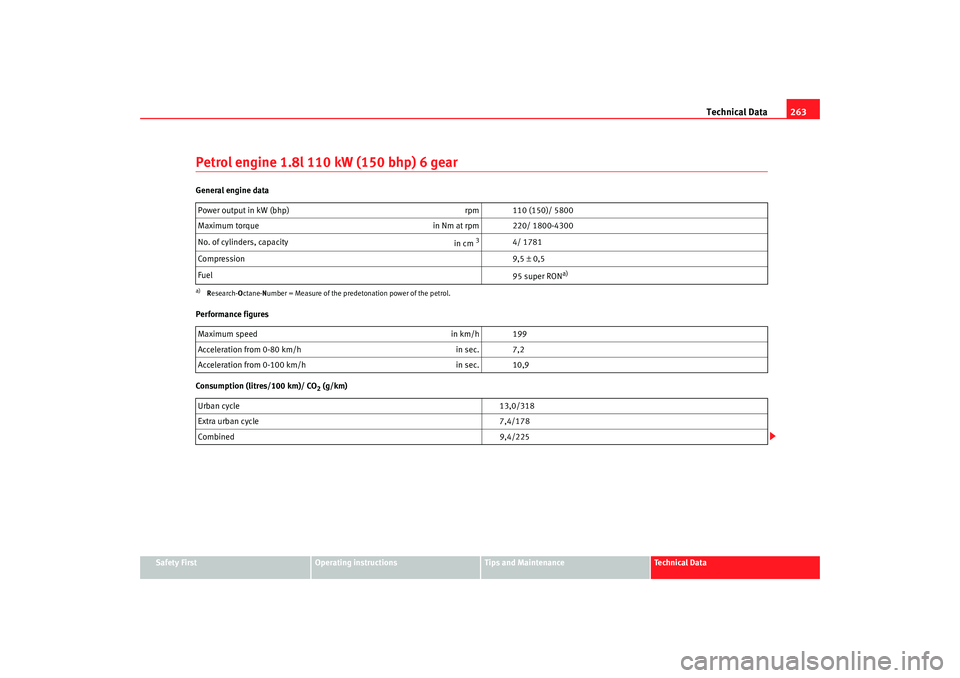

Petrol engine 1.8l 110 kW (150 bhp) 6 gearGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 220/ 1800-4300
No. of cylinders, capacity in cm
3
4/ 1781
Compression 9,5 ± 0,5
Fuel 95 super RON
a)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.Maximum speed in km/h 199
Acceleration from 0-80 km/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 10,9
Urban cycle 13,0/318
Extra urban cycle 7,4/178
Combined 9,4/225
alhambra_aleman.book Seite 263 Montag, 23. M‰rz 2009 1:12 13

Technical Data

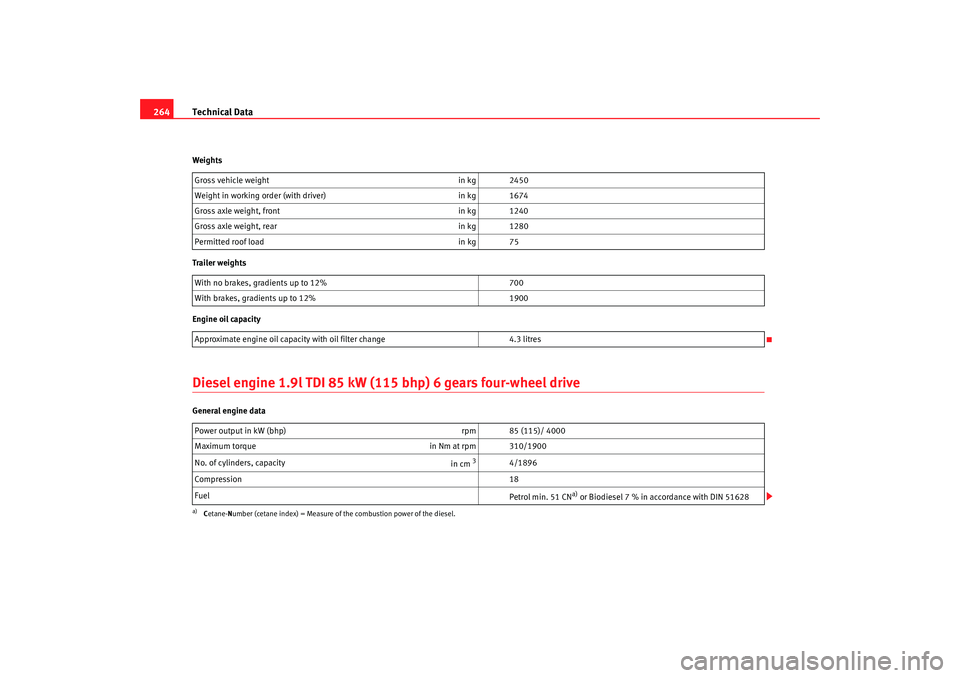

264Weights
Trailer weigh ts
Engine oil capacityDiesel engine 1.9l TDI 85 kW (115 bhp) 6 gears four-wheel driveGeneral engine data Gross vehicle weight
in kg 2450
Weight in working order (with driver) in kg 1674
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1900
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 85 (115)/ 4000
Maximum torque in Nm at rpm 310/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18
Fuel Petrol min. 51 CN
a) or Biodiesel 7 % in accordance with DIN 51628
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.
alhambra_aleman.book Seite 264 Montag, 23. M‰ rz 2009 1:12 13

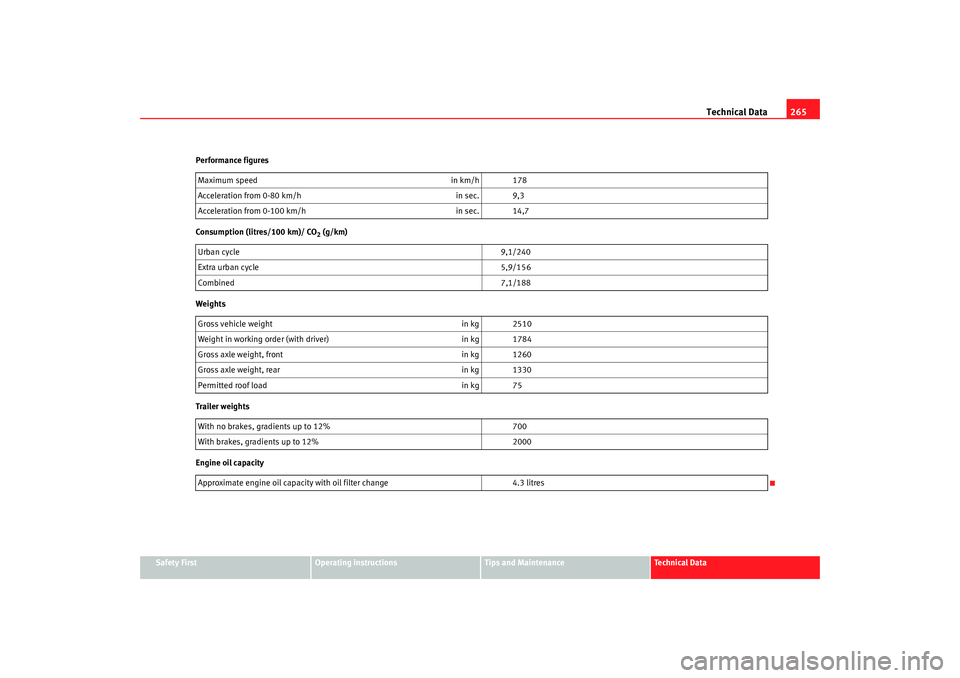

Technical Data265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 178
Acceleration from 0-80 km/h in sec. 9,3
Acceleration from 0-100 km/h in sec. 14,7
Urban cycle 9,1/240
Extra urban cycle 5,9/156
Combined 7,1/188
Gross vehicle weight in kg 2510
Weight in working order (with driver) in kg 1784
Gross axle weight, front in kg 1260
Gross axle weight, rear in kg 1330
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 4.3 litres
alhambra_aleman.book Seite 265 Montag, 23. M‰rz 2009 1:12 13

Technical Data

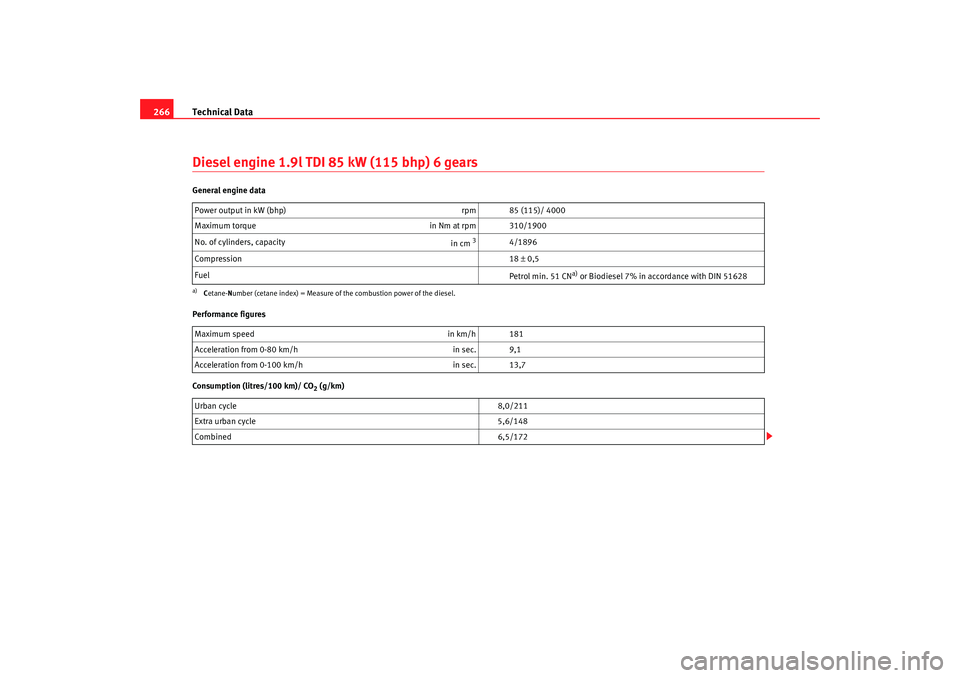

266Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gearsGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 85 (115)/ 4000
Maximum torque in Nm at rpm 310/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18 ± 0,5
Fuel Petrol min. 51 CN
a) or Biodiesel 7% in accordance with DIN 51628
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 181
Acceleration from 0-80 km/h in sec. 9,1
Acceleration from 0-100 km/h in sec. 13,7
Urban cycle 8,0/211
Extra urban cycle 5,6/148
Combined 6,5/172
alhambra_aleman.book Seite 266 Montag, 23. M‰rz 2009 1:12 13

Technical Data267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

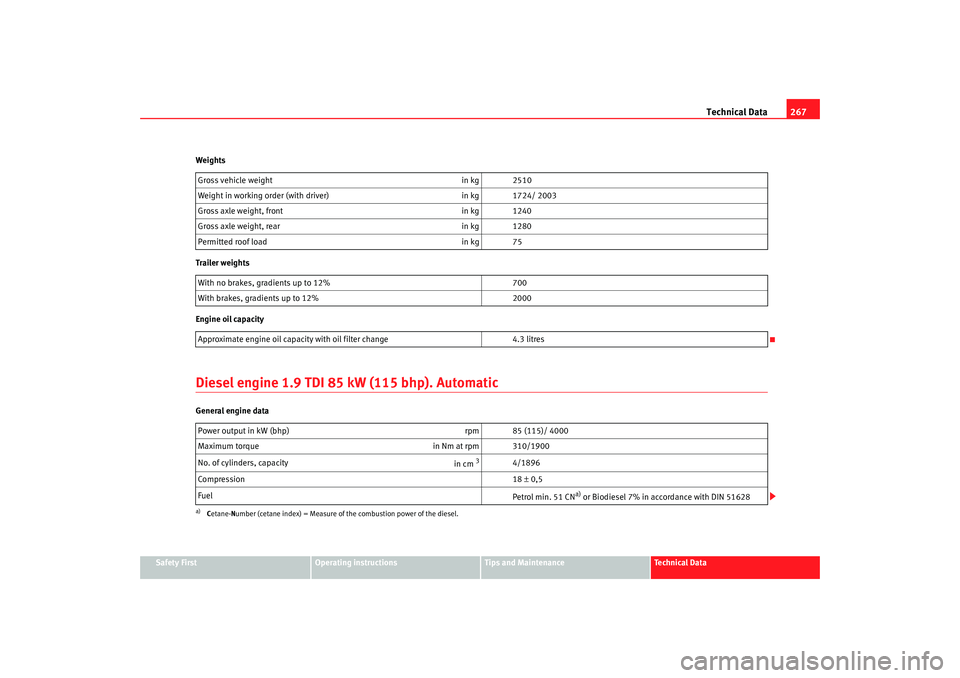

Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9 TDI 85 kW (115 bhp). AutomaticGeneral engine data
Gross vehicle weight
in kg 2510
Weight in working order (with driver) in kg 1724/ 2003
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 85 (115)/ 4000
Maximum torque in Nm at rpm 310/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18 ± 0,5
Fuel Petrol min. 51 CN
a) or Biodiesel 7% in accordance with DIN 51628
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.
alhambra_aleman.book Seite 267 Montag, 23. M‰ rz 2009 1:12 13

Technical Data

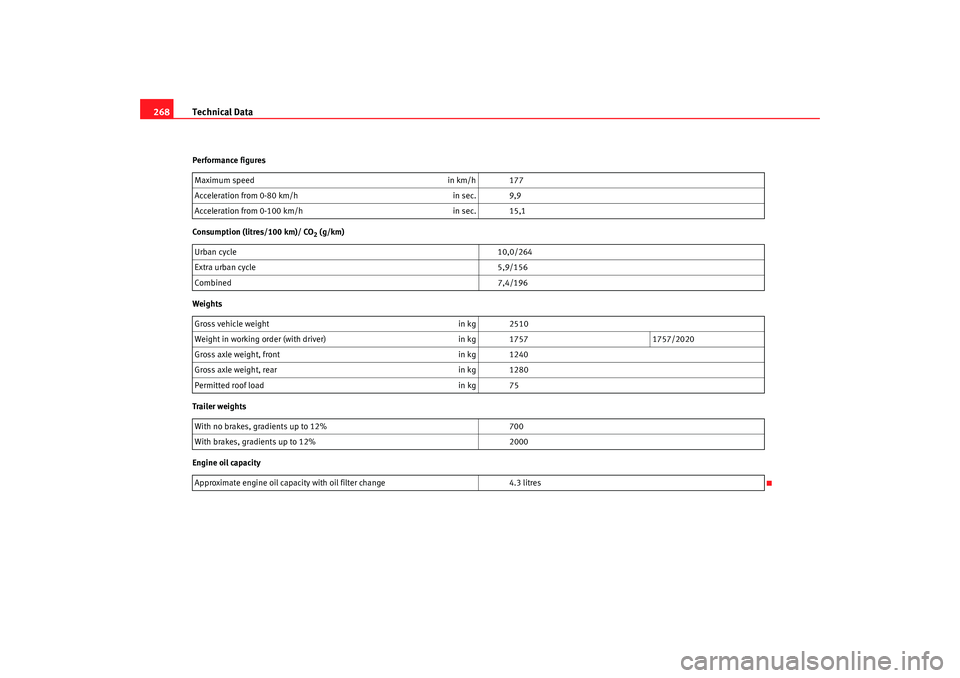

268Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weigh ts
Engine oil capacity Maximum speed
in km/h 177
Acceleration from 0-80 km/h in sec. 9,9
Acceleration from 0-100 km/h in sec. 15,1
Urban cycle 10,0/264
Extra urban cycle 5,9/156
Combined 7,4/196
Gross vehicle weight in kg 2510
Weight in working order (with driver) in kg 17571757/2020
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 4.3 litres
alhambra_aleman.book Seite 268 Montag, 23. M‰rz 2009 1:12 13

Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

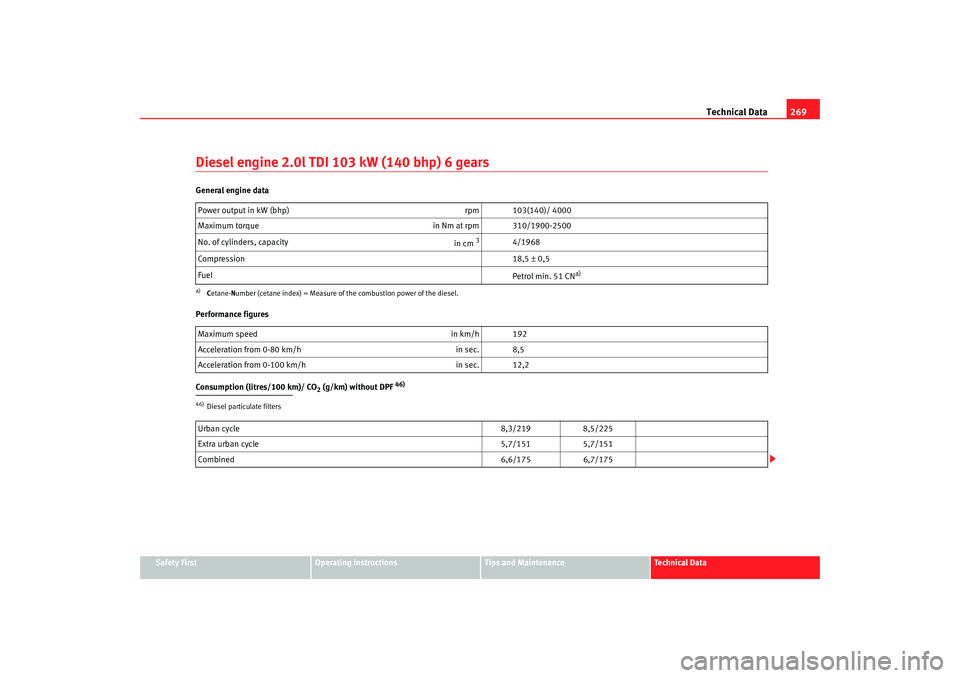

Diesel engine 2.0l TDI 103 kW (140 bhp) 6 gearsGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km) without DPF
46)
Power output in kW (bhp) rpm 103(140)/ 4000
Maximum torque in Nm at rpm 310/1900-2500
No. of cylinders, capacity in cm
3
4/1968
Compression 18,5 ± 0,5
Fuel Petrol min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 8,5
Acceleration from 0-100 km/h in sec. 12,246)Diesel particulate filtersUrban cycle 8,3/2198,5/225
Extra urban cycle 5,7/1515,7/151
Combined 6,6/1756,7/175
alhambra_aleman.book Seite 269 Montag, 23. M‰ rz 2009 1:12 13

Technical Data

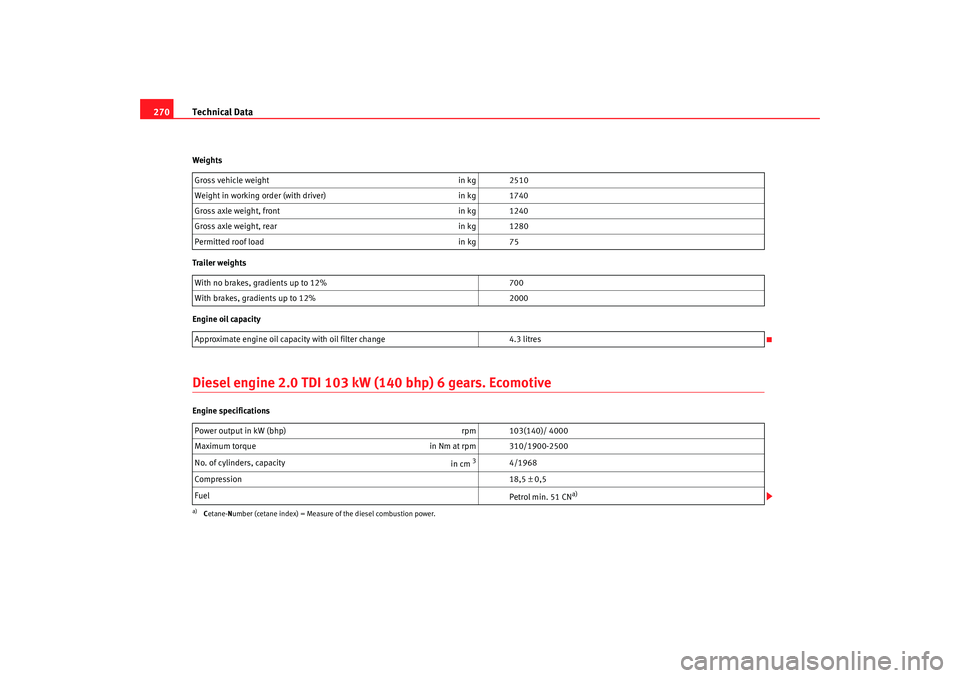

270Weights
Trailer weigh ts
Engine oil capacityDiesel engine 2.0 TDI 103 kW (140 bhp) 6 gears. EcomotiveEngine specifications Gross vehicle weight
in kg 2510
Weight in working order (with driver) in kg 1740
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 103(140)/ 4000
Maximum torque in Nm at rpm 310/1900-2500
No. of cylinders, capacity in cm
3
4/1968
Compression 18,5 ± 0,5
Fuel Petrol min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
alhambra_aleman.book Seite 270 Montag, 23. M‰ rz 2009 1:12 13

Technical Data271
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

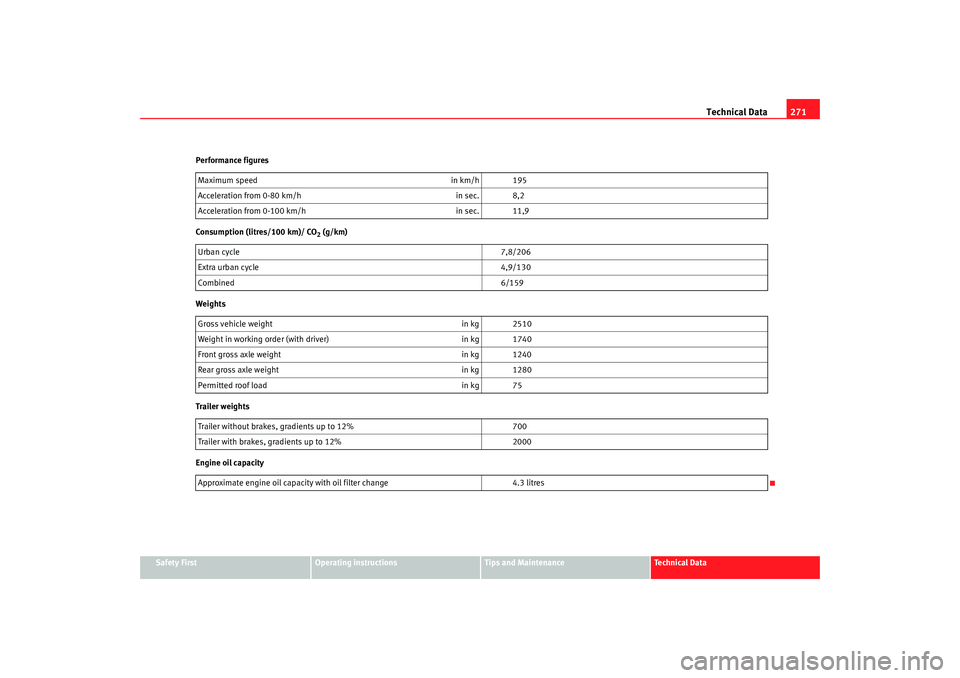

Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 195
Acceleration from 0-80 km/h in sec. 8,2
Acceleration from 0-100 km/h in sec. 11,9
Urban cycle 7,8/206
Extra urban cycle 4,9/130
Combined 6/159
Gross vehicle weight in kg 2510
Weight in working order (with driver) in kg 1740
Front gross axle weight in kg 1240
Rear gross axle weight in kg 1280
Permitted roof load in kg 75
Trailer without brakes, gradients up to 12% 700
Trailer with brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 4.3 litres
alhambra_aleman.book Seite 271 Montag, 23. M‰rz 2009 1:12 13

Technical Data
272Dimensions and capacities
Dimensions
Length, width 4,634 mm/ 4,739 mm1,810 mm/ 1,816 mm
Height at kerb weight 1,707 mm/ 1,820 mm
Front and rear projection 892 mm/ 907 mm
Wheelbase 2,835 mm
Turning circle 11.93 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,532 mm 1,518 mm
1,520 mm 1,506 mm
Capacities
Fuel tank 70 l. Reserve 8 l.
Windscreen washer fluid container with headlight washer 3.5 l/ 6 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
