Overview

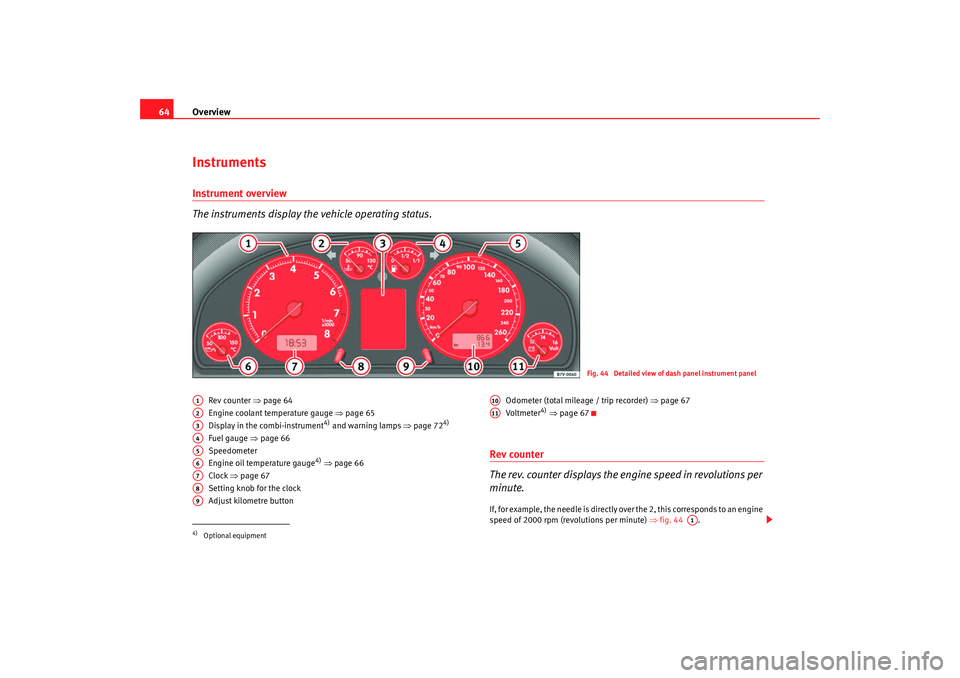

64InstrumentsInstrument overview
The instruments display the vehicle operating status.
Rev counter ⇒page 64
Engine coolant temperature gauge ⇒ page 65
Display in the combi-instrument
4) and warning lamps ⇒page 72
4)
Fuel gauge ⇒ page 66
Speedometer
Engine oil temperature gauge
4) ⇒ page 66
Clock ⇒page 67
Setting knob for the clock
Adjust kilometre button Odometer (total mileage / trip recorder)
⇒page 67
Vo ltm e te r
4) ⇒ page 67
Rev counter
The rev. counter displays the engine speed in revolutions per
minute.If, for example, the needle is directly over the 2, this corresponds to an engine
speed of 2000 rpm (revolutions per minute) ⇒fig. 44 .
Fig. 44 Detailed view of dash panel instrument panel
4)Optional equipmentA1A2A3A4A5A6A7A8A9
A10A11
A1
alhambra_aleman.book Seite 64 Montag, 23. M‰ rz 2009 1:12 13

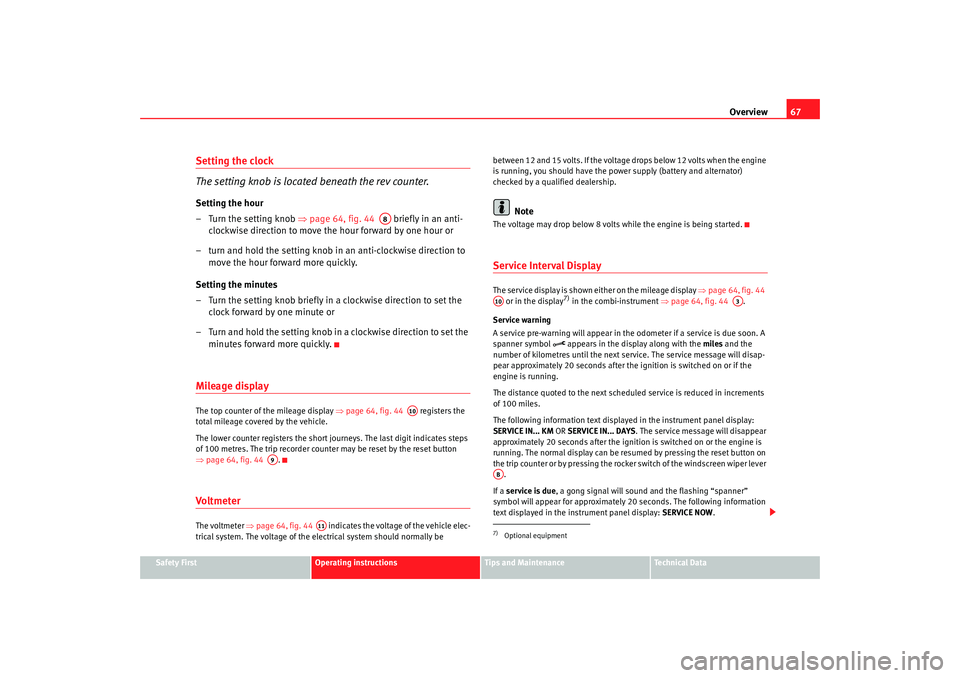

Overview67
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Setting the clock
The setting knob is located beneath the rev counter.Setting the hour
– Turn the setting knob ⇒page 64, fig. 44 briefly in an anti-
clockwise direction to move the hour forward by one hour or
– turn and hold the setting knob in an anti-clockwise direction to move the hour forward more quickly.
Setting the minutes
– Turn the setting knob briefly in a clockwise direction to set the clock forward by one minute or
– Turn and hold the setting knob in a clockwise direction to set the minutes forward more quickly.Mileage displayThe top counter of the mileage display ⇒page 64, fig. 44 registers the
total mileage covered by the vehicle.
The lower counter registers the short journeys. The last digit indicates steps
of 100 metres. The trip recorder counter may be reset by the reset button
⇒ page 64, fig. 44 .Voltmeter The voltmeter ⇒page 64, fig. 44 indicates the voltage of the vehicle elec-
trical system. The voltage of the electrical system should normally be between 12 and 15 volts. If the voltage drops below 12 volts when the engine
is running, you should have the power supply (battery and alternator)
checked by a qualified dealership.
Note
The voltage may drop below 8 volts while the engine is being started.Service Interval Display The service display is shown either on the mileage display
⇒page 64, fig. 44
or in the display
7) in the combi-instrument ⇒page 64, fig. 44 .
Service warning
A service pre-warning will appear in the odometer if a service is due soon. A
spanner symbol

appears in the display along with the miles and the
number of kilometres until the next service. The service message will disap-
pear approximately 20 seconds after the ignition is switched on or if the
engine is running.
The distance quoted to the next scheduled service is reduced in increments
of 100 miles.
The following information text displayed in the instrument panel display:
SERVICE IN... KM OR SERVICE IN... DAYS . The service message will disappear
approximately 20 seconds after the ignition is switched on or the engine is
running. The normal display can be resumed by pressing the reset button on
the trip counter or by pressing the rocker switch of the windscreen wiper lever .
If a service is due , a gong signal will sound and the flashing “spanner”
symbol will appear for approximately 20 seconds. The following information
text displayed in the instrument panel display: SERVICE NOW.
A8
A10
A9
A11
7)Optional equipmentA10
A3
AB
alhambra_aleman.book Seite 67 Montag, 23. M‰ rz 2009 1:12 13

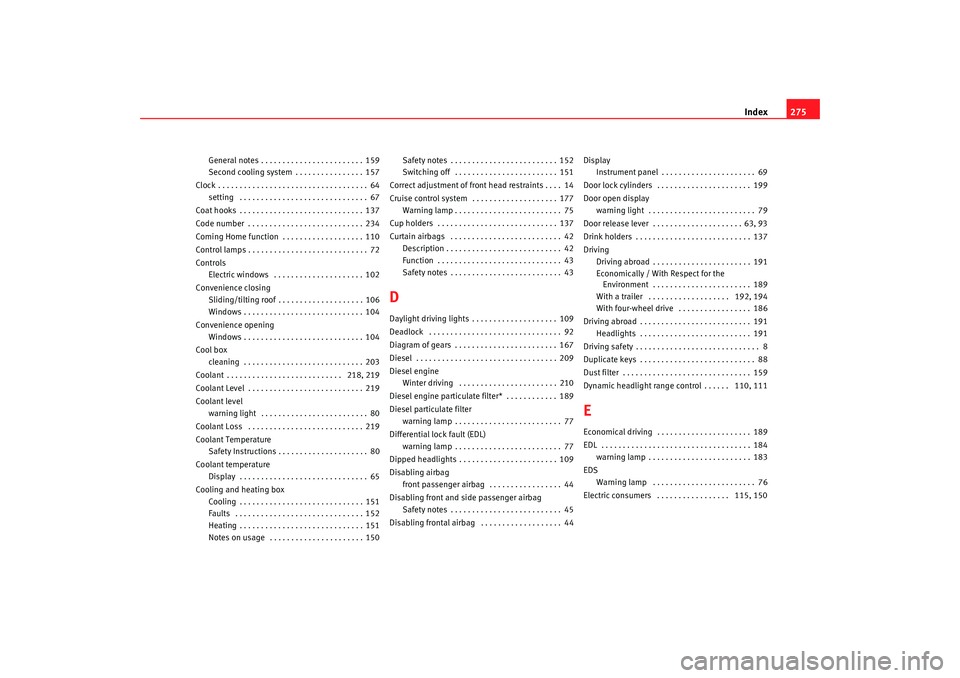

Index275
General notes . . . . . . . . . . . . . . . . . . . . . . . . 159
Second cooling system . . . . . . . . . . . . . . . . 157
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Coming Home function . . . . . . . . . . . . . . . . . . . 110
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . 102
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 106
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Cool box cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 218, 219
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 80
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Coolant Temperature Safety Instructions . . . . . . . . . . . . . . . . . . . . . 80
Coolant temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Cooling and heating box Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Notes on usage . . . . . . . . . . . . . . . . . . . . . . 150 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 152
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 151
Correct adjustment of front head restraints . . . . 14
Cruise control system . . . . . . . . . . . . . . . . . . . . 177 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 43
DDaylight driving lights . . . . . . . . . . . . . . . . . . . . 109
Deadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Diagram of gears . . . . . . . . . . . . . . . . . . . . . . . . 167
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Diesel engineWinter driving . . . . . . . . . . . . . . . . . . . . . . . 210
Diesel engine particulate filter* . . . . . . . . . . . . 189
Diesel particulate filter warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 109
Disabling airbag front passenger airbag . . . . . . . . . . . . . . . . . 44
Disabling front and side passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Disabling frontal airbag . . . . . . . . . . . . . . . . . . . 44 Display
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 69
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 199
Door open display warning light . . . . . . . . . . . . . . . . . . . . . . . . . 79
Door release lever . . . . . . . . . . . . . . . . . . . . . 63, 93
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 191
Economically / With Respect for the Environment . . . . . . . . . . . . . . . . . . . . . . . 189
With a trailer . . . . . . . . . . . . . . . . . . . 192, 194
With four-wheel drive . . . . . . . . . . . . . . . . . 186
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Dynamic headlight range control . . . . . . 110, 111
EEconomical driving . . . . . . . . . . . . . . . . . . . . . . 189
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 183
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Electric consumers . . . . . . . . . . . . . . . . . 115, 150
