wheelbase Seat Alhambra 2009 Owner's Manual

Technical Data

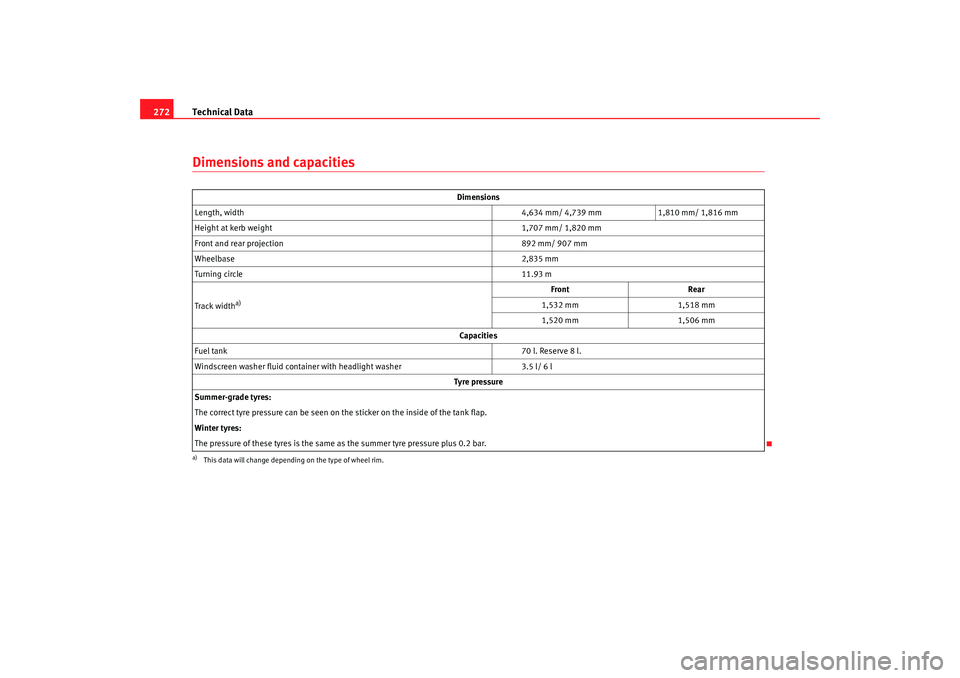

272Dimensions and capacities
Dimensions
Length, width 4,634 mm/ 4,739 mm1,810 mm/ 1,816 mm
Height at kerb weight 1,707 mm/ 1,820 mm
Front and rear projection 892 mm/ 907 mm
Wheelbase 2,835 mm
Turning circle 11.93 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,532 mm 1,518 mm
1,520 mm 1,506 mm
Capacities
Fuel tank 70 l. Reserve 8 l.
Windscreen washer fluid container with headlight washer 3.5 l/ 6 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
alhambra_aleman.book Seite 272 Montag, 23. M‰ rz 2009 1:12 13
