Seat Alhambra 2010 Repair Manual

Cockpit 60
Radio or navigation system (fitted at factory) ŸBooklet
“Radio” or ŸBooklet “Navigation system”
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning lights switch  . . . . . . . . . . . . . . . . . . . . . . .
Switches for:
Climatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Right seat heating controls A . . . . . . . . . . . . . . . . . . . . . . . . .
Button for:
Anti-slip regulation (ASR) « /&&. . . . . . . . . . . . . . . . . . . . . .
Start/stop operation › . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking distance warning system (Park Pilot) '. . . . . . . .
Parking aid system (Park Assist) i . . . . . . . . . . . . . . . . . .
Tyre pressure monitor ~ 3%4 . . . . . . . . . . . . . . . . . . . . . . . .
Running gear dynamic control (DCC) #/-&/24 – Q – 30/24 . .
Opening the tailgate ˜. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening and closing of electric sliding doors ¼ . . . . . . .
Locking lever to open glove compartment . . . . . . . . . . . . . . .
Position of passenger front airbag on the instrument panel .
Key-operated switch in glove box for deactivating front
passenger's airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passenger front airbag off warning lamp . . . . . . . . . . . . . . . .
Lever for:
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 Volt socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Hold Switch !54/-(/,$. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electronic parking brake switch G . . . . . . . . . . . . . . . . . . . . .
Starter button (with KESSY starter and close system) . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering column adjustment lever . . . . . . . . . . . . . . . . . . . . .
Fuse box cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lever for:
Cruise control system (GRA) /&& – #!.#%, – /. – 2%35-% /
-30%%$- / -3%4- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Open bonnet lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls for:
Electric windows
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Childproof locks r. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note
xSome of the items of equipment listed here are fitted only on certain
models/model years or are optional extras.
xIn versions with the steering wheel on the right, the layout of the control
elements is somewhat different. But the symbols assigned to the controls
correspond to the symbols used in the versions with the steering wheel on
the left
A13
A14162
A15345
A16
179
179
A17137
A18
210
221
225
229
245
243
97
92
A19162
A2033
A2133
A2233
A23
201
201
A24175
A25221
A26210
A27195
A28195
A29201A3010
A31356
A32
239
A33304
A34
102
92

Cockpit61
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Instrument panel
Control and warning lamps
The control and warning lamps are indicators of warnings, Ÿ, faults Ÿ
or certain functions. Some control and warning lamps come on when the igni-
tion is switched on, and go out when the engine starts running, or while
driving.
Depending on the model, additional text messages may be viewed on the
instrument panel display. These may be purely informative or they may be
advising of the need for action Ÿpage 64, “Instruments”.
Depending upon the equipment fitted in the vehicle, instead of a warning
lamp, sometimes a symbol may be displayed on the instrument panel.
When certain control and warning lamps are lit, an audible warning is also
heard.
Red symbols
Yellow symbols
SymbolMeaning ŸSee
H
› Do not continue driving!
The electronic parking brake is on, the brake
fluid level is too low or the brake system is
faulty.
Ÿpage 210
v› Do not continue driving!
Fault in the engine cooling system.Ÿpage 313
E› Do not continue driving!
Engine oil pressure too low.Ÿpage 309
o
› Do not continue driving!
At least one of the vehicles doors is open, or is
not correctly closed.Ÿpage 92
˜› Do not continue driving!
The tailgate is open or is incorrectly closed.Ÿpage 97
D› Do not continue driving!
Fault in the steering.Ÿpage 192
bEngine cannot be started again!
"AdBlue" level too low.Ÿpage 300
hDriver or passenger has not fastened seat belt.Ÿpage 22
KUse the foot brake!
Change
Ÿpage 201
Brake
Ÿpage 210
FFaulty generator.Ÿpage 318
IFront brake pads worn.
Ÿpage 210«lights: ESP faulty or off
flashes: ESP functioning.
lTCS manually deactivated.
JABS faulty or does not work.
Electronic parking brake faulty.Ÿpage 210

Rear fog light switched on.Ÿpage 113
SymbolMeaning ŸSee

Cockpit 62
Green symbols
Blue symbols
Colourless symbols
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
lights: Driving light totally or partially faulty.Ÿpage 360
flashes: Fault in the adaptive light system.Ÿpage 113
BFault in catalytic converter.
Ÿpage 255Dlights: pre-ignition of diesel engine.
flashes: Fault in engine management.
%0#Fault in engine management.
¬Diesel particulate filter blocked
DFault in the steering system.Ÿpage 192
~Tyre pressure too low.Ÿpage 323
Fault in the tyre pressure gauge.Ÿpage 245
YLevel of windscreen washer fluid too low.Ÿpage 124
Fuel tank almost empty.Ÿpage 293
Eflashes: Engine oil sensor faulty.Ÿpage 309lights: Insufficient engine oil.
TFault in airbag system and seat belt tensioners.Ÿpage 33
/&&

Passenger front airbag is off (PASSENGER
AIRBAG
/&& ).Ÿpage 33
bTop up "AdBlue", or there is a fault in the "AdB-
lue" system.Ÿpage 300
§Fuel tank not closed correctly.Ÿpage 293
SymbolMeaning ŸSee

Left or right turn signal.Ÿpage 113
Hazard warning lights on.Ÿpage 345
KUse the foot brake!
Change
Ÿpage 201
Brake
Ÿpage 210
%Cruise control operating.Ÿpage 239
SymbolMeaning ŸSee
Headlight on or flasher on.
Ÿpage 113
+Headlight adjustment (Light Assist) on.
SymbolMeaning ŸSee
3!&%Electronic immobiliser active.Ÿpage 195
>Service interval displayŸpage 68

Cockpit63
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

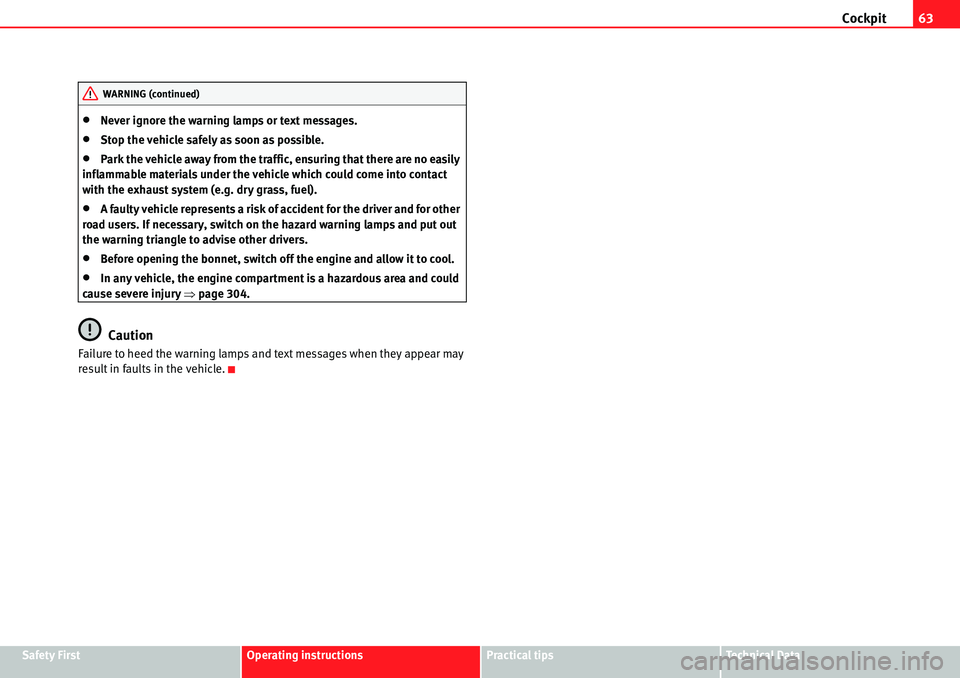

xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
xPark the vehicle away from the traffic, ensuring that there are no easily
inflammable materials under the vehicle which could come into contact
with the exhaust system (e.g. dry grass, fuel).
xA faulty vehicle represents a risk of accident for the driver and for other
road users. If necessary, switch on the hazard warning lamps and put out
the warning triangle to advise other drivers.
xBefore opening the bonnet, switch off the engine and allow it to cool.
xIn any vehicle, the engine compartment is a hazardous area and could
cause severe injury Ÿpage 304.
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.
WARNING (continued)

Cockpit 64
Instruments
Introduction
Additional information and warnings:
xIndicator lamps Ÿpage 61
xGear engaged display (automatic gearbox) Ÿpage 201.
xInstructions for inspection intervals ŸBooklet “Maintenance
Programme”
WARNING
Any distraction may lead to an accident, with the risk of injury.
xDo not handle the instrument panel controls when driving.
View of instrument panel
Details of the instruments Ÿfig. 36:
Clock set button1).
Press button to select the hour or minute display.To continue setting the time, press button Ÿfig. 36 .
Hold button down to scroll through the numbers quickly.
Press button again to end the clock setting.
Rev counter (with the engine running, in thousands of revolutions per
minute).
Fig. 36 Instrument panel, on dash panel.
1)Depending on the vehicle equipment, it is also possible to set the time using the
settings menu on the instrument panel display Ÿpage 75.
A1
¡
0.0 / SETA7
¡
A2

Cockpit65
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a The beginning of the red zone of the rev counter indicates the maximum
speed in any gear after running-in and with the engine hot. However, it is
advisable to change up a gear or move the selector lever to D (or lift your
foot off the accelerator) before the needle reaches the red zone Ÿ.
Engine coolant temperature display
v Ÿpage 313.
Displays on the screen Ÿpage 65.
Fuel reserve display Ÿpage 293.
Speedometer.
Reset knob for trip recorder (trip).
Press button to reset to zero.
Caution
To prevent damage to the engine, the rev counter needle should only remain
in the red zone for a short period of time.
For the sake of the environment
Changing up a gear in time reduces fuel consumption and noise.
Displays on screen
A variety of information can be viewed on the instrument panel display
Ÿpage 64, fig. 36 , depending on the vehicle equipment:
xWarning and information texts
xMileage
xTime
xAmbient temperature
xCompass
xSelector lever positions Ÿpage 201
xRecommended gear (manual gearbox) Ÿpage 201
xMultifunction display (MFI) and menus for different setting options
Ÿpage 70
xService interval display. Ÿpage 68
xSecond speed display (menu Configuration) Ÿpage 70
xStart/Stop operation indicator Ÿpage 67
Warning and information texts
The system runs a check on certain components and functions when the igni-
tion is switched on and while the vehicle is moving. Faults in the operation
are displayed on the screen using red and yellow symbols and messages on
the instrument panel display (Ÿpage 61) and, in some cases, with audible
warnings. The display may vary according to the type of instrument panel
fitted.
A3
A4
A5
A6
A7
0.0 / SET
A4

Cockpit 66
Mileage
The odometer registers the total distance travelled by the car.
The trip recorder (trip) shows the distance travelled since the last trip recorder
reset. The last digit of the trip recorder indicates distances of 100 metres or
tenths of a mile.
Outside temperature display
When the outside temperature is below +4 °C (+39 °F), the symbol “ice
crystal” (warning of risk of freezing) is also displayed next to the temperature.
At first this symbol flashes and then it remains lit until the outside tempera-
ture rises above +6 °C (+43 °F) Ÿ.
When the vehicle is at a standstill, with the parking heating on (Ÿpage 187),
or when travelling at very low speeds, the temperature displayed may be higher than the true outside temperature, as a result of the heat produced by
the engine.
The temperatures measured range from -40 °C to +50 °C (-40 °F to +122 °F).
Compass
With the ignition on and the navigation system on, the cardinal point corre-
sponding to the vehicle's direction of travel is displayed on the instrument
panel Ÿpage 67.
Selector lever positions
The range of engaged gears of the selector lever is shown on the side of the
lever, and on the instrument panel display. In positions D and S, and with the
Tiptronic, the corresponding gear is also displayed.
Recommended gear (manual gearbox)
The recommended gear to save fuel is displayed on the instrument panel
while you are driving Ÿpage 201.
Second speed display (mph or km/h)
In addition to the speedometer, the speed can also be displayed in a different
unit of measurement (in miles or in km per hour). To change the units, in the
Settings menu, select the option Second speed Ÿpage 70.
Vehicles without menu display on the instrument panel
xSwitch on the engine.
xPress button three times. The odometer display flashes on the instru-
ment panel display.
xPress button once. “mph” or “km/h” is displayed briefly instead
of the odometer.
xThis activates the second speed display. To switch it off, repeat the proce-
dure.
This option cannot be disconnected in models destined for countries in which
the second speed must always be visible.
Type of mes-
sageSymbol
colourMeanings
Priority 1
warning.Red
Symbol flashing or lit; partly combined with
audible warnings.
› Stop the vehicle! It is dangerous Ÿ!
Check the function which is faulty and repair.
If necessary, request assistance from special-
ised personnel.
Priority 2
warning.Yellow
Symbol flashing or lit; partly combined with
audible warnings.
A faulty function, or fluids which are below the
correct levels may cause damage to the vehi-
cle! Ÿ
Check the faulty function as soon as possible.
If necessary, request assistance from special-
ised personnel.
Informative
text.–Information relating to different vehicle proc-
esses.
¡
0.0 / SET

Cockpit67
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Start/Stop operating display
Updated information relating to the status is displayed on the instrument
panel Ÿpage 221.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
xA faulty vehicle represents a risk of accident for the driver and for other
road users. If necessary, switch on the hazard warning lamps and put out
the warning triangle to advise other drivers.
xPark the vehicle away from the traffic, ensuring that there are no easily
inflammable materials under the vehicle which could come into contact
with the exhaust system (e.g. dry grass, fuel).
WARNING
Although the outside temperature is above freezing, some roads and
bridges may be frozen.
xAt an outside temperature of above +4 °C (+39 °F), even when the “ice
crystal” is not visible, there may still be ice on the road.
xNever rely totally on the outside temperature display!
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.
Note
Different versions of the instrument panel are available and therefore the
versions and instructions on the display may vary. In the case of displays
without warning or information texts, faults are indicated exclusively by the
warning lamps.
Note
When several warnings are active at the same time, the symbols are shown
successively for a few seconds. The symbols will stay on until the fault is
rectified.
Compass*
Fig. 37 Magnetic zones.

Cockpit 68
The compass does not require calibration in vehicles for which the navigation
system was mounted at the factory. The option compass disappears.
The compass in vehicles in which the navigation system was not mounted at
the factory, is permanently and automatically calibrated. If electronic or metal
accessories (mobile phone, television) are subsequently mounted in the
vehicle, the compass should be recalibrated manually.
Adjusting the magnetic zone
xSwitch the ignition on.
xSelect the Settings menu followed by the option Compass and Zone.
xSelect the magnetic zone corresponding to the position of the vehicle
Ÿpage 67, fig. 37.
xAdjust and confirm the magnetic zone (1-15).
Calibrating compass
To calibrate the compass you must be in one of the valid magnetic zones with
sufficient space to be able to trace a circumference with the vehicle.
xSwitch the ignition on.
xSelect the Settings menu followed by the option Compass and Calibrate.
xConfirm the message Describe a complete circumference to calibrate the
compass with and then trace a complete circumference driving at approx-
imately 10 km/h (6 mph).
When the corresponding cardinal point is displayed, the calibration is
complete.
Service interval display
The inspection display appears on the instrument panel Ÿpage 64, fig. 36
.SEAT makes a difference between services with engine oil change (Mainte-
nance Service) and services without engine oil change (Inspection Service).
The service interval display only gives information for service dates which
involve an engine oil change. The dates of the remaining services (for
example, the next Inspection Service or change of brake fluid) are listed on
the label attached to the door strut, or even in the Maintenance Programme.
In vehicles with Services established by time or mileage, the service intervals
are already pre-defined.
In vehicles with LongLife Service, the intervals are determined individually.
Technical progress has made it possible to considerably reduce servicing
requirements. The technology used by SEAT ensures that your vehicle only
has an maintenance service when it is necessary. To establish when the Main-
tenance Service is due (max. 2 years), the vehicle's conditions of use and
individual driving styles are considered. The service pre-warning first appears
20 days before the date established for the corresponding service. The kilo-
metres remaining until the next service are always rounded up to the nearest
100 km and the remaining time is given in complete days. The current service
message cannot be viewed until 500 km after the last service. Prior to this
only lines are visible on the display.
Inspection reminder
When the Service date is approaching, when the ignition is switched on a
Service reminder is displayed.
In vehicles without text messages, a spanner is displayed on the instrument
panel
> with a figure given in km. The number of kilometres shown is the
maximum number that may be driven until the next service. After a few
seconds,the display mode changes. A clock symbol appears and the number
of days until the next service appointment is due.
In vehicles with text messages, Service in --- km or --- days is displayed on the
instrument panel .
OK
A4

Cockpit69
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Service due
After the service date, an audible warning is given when the ignition is
switched on and the spanner displayed on the screen flashes for a few
seconds
>. In vehicles with text messages, Service in --- km or --- days is
displayed on the instrument panel.
Reading a service notification
With the ignition switched on, the engine off and the vehicle at a standstill,
the current service notification can be read:
xPress the button on the instrument panel several times until the
spanner symbol is displayed >.
xALTERNATIVELY: select the Settings menu.
xFrom the Service submenu, select the option Info.
When the service date has past, a minus sign is displayed in front of the
number of kilometres or days. In vehicles with text messages the following is
displayed: Service --- km or --- days ago.
The service interval display is reset
If the service was not carried out by a qualified workshop, the display can be
reset as follows:Do not reset the indicator to zero between two intervals, otherwise the
display will be incorrect.
If, while the LongLife service is valid, the service interval display is reset to
zero, the “service will be activated by time or mileage”. The service interval is
no longer calculated individually ŸBooklet “Maintenance Programme”.
Note
The service message disappears after a few seconds, when the engine is
started or when is pressed.
Note
In vehicles with the LongLife system in which the battery has been discon-
nected for a long period of time, it is not possible to calculate the date of the
next service. Therefore the service interval display may not be correct. In this
case, please check the maximum permitted service intervals ŸBooklet
“Maintenance Programme”.In vehicles with text messages:
Select the Settings menu.
In the submenu Service, select the option Reset.
Confirm with when requested to do so by the system.
¡
OK
In vehicles without text messages:
Switch the ignition off.
Press and hold the button.
Switch the ignition back on.
Release the button and, press for the next 20 seconds.
0.0 / SET
0.0 / SET¡
OK
