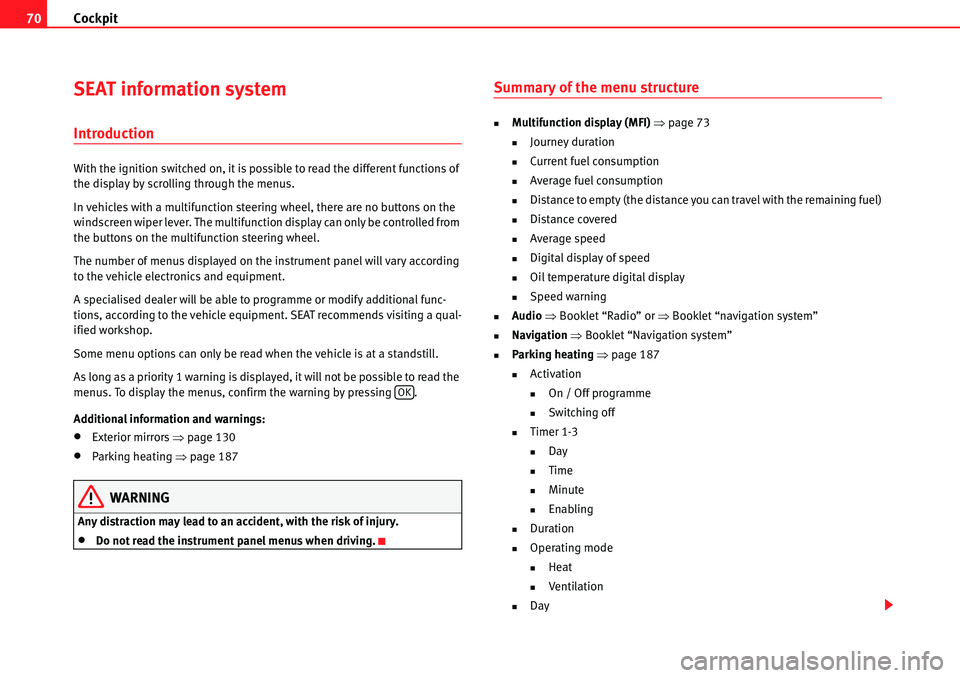

Cockpit 70
SEAT information system
Introduction
With the ignition switched on, it is possible to read the different functions of
the display by scrolling through the menus.
In vehicles with a multifunction steering wheel, there are no buttons on the
windscreen wiper lever. The multifunction display can only be controlled from
the buttons on the multifunction steering wheel.
The number of menus displayed on the instrument panel will vary according
to the vehicle electronics and equipment.
A specialised dealer will be able to programme or modify additional func-
tions, according to the vehicle equipment. SEAT recommends visiting a qual-
ified workshop.
Some menu options can only be read when the vehicle is at a standstill.
As long as a priority 1 warning is displayed, it will not be possible to read the
menus. To display the menus, confirm the warning by pressing .
Additional information and warnings:
xExterior mirrors Ÿpage 130
xParking heating Ÿpage 187
WARNING
Any distraction may lead to an accident, with the risk of injury.
xDo not read the instrument panel menus when driving.
Summary of the menu structure
„Multifunction display (MFI) Ÿpage 73
„Journey duration
„Current fuel consumption
„Average fuel consumption
„Distance to empty (the distance you can travel with the remaining fuel)
„Distance covered
„Average speed
„Digital display of speed
„Oil temperature digital display
„Speed warning
„Audio ŸBooklet “Radio” or ŸBooklet “navigation system”
„Navigation ŸBooklet “Navigation system”
„Parking heating Ÿpage 187
„Activation
„On / Off programme
„Switching off
„Timer 1-3
„Day
„Time
„Minute
„Enabling
„Duration
„Operating mode
„Heat
„Ventilation
„Day
OK

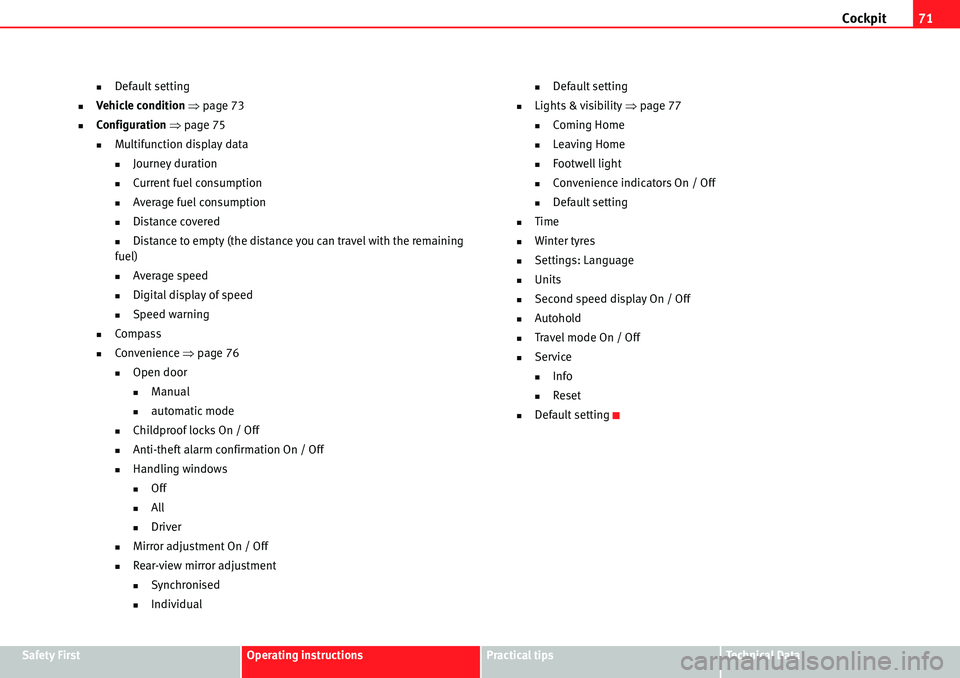

Cockpit71
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
„Default setting
„Vehicle condition Ÿpage 73
„Configuration Ÿpage 75
„Multifunction display data
„Journey duration
„Current fuel consumption
„Average fuel consumption
„Distance covered
„Distance to empty (the distance you can travel with the remaining
fuel)
„Average speed
„Digital display of speed
„Speed warning
„Compass
„Convenience Ÿpage 76
„Open door
„Manual
„automatic mode
„Childproof locks On / Off
„Anti-theft alarm confirmation On / Off
„Handling windows
„Off
„All
„Driver
„Mirror adjustment On / Off
„Rear-view mirror adjustment
„Synchronised
„Individual
„Default setting
„Lights & visibility Ÿpage 77
„Coming Home
„Leaving Home
„Footwell light
„Convenience indicators On / Off
„Default setting
„Time
„Winter tyres
„Settings: Language
„Units
„Second speed display On / Off
„Autohold
„Travel mode On / Off
„Service
„Info
„Reset
„Default setting

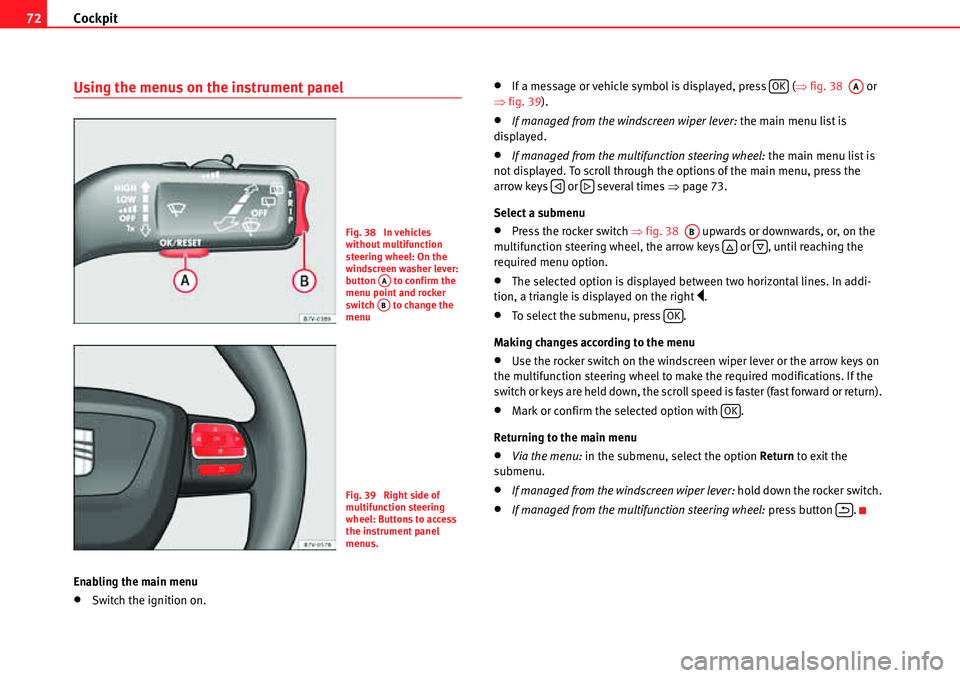

Cockpit 72
Using the menus on the instrument panel
Enabling the main menu
xSwitch the ignition on.
xIf a message or vehicle symbol is displayed, press (Ÿfig. 38 or
Ÿfig. 39).
xIf managed from the windscreen wiper lever: the main menu list is
displayed.
xIf managed from the multifunction steering wheel: the main menu list is
not displayed. To scroll through the options of the main menu, press the
arrow keys or several times Ÿpage 73.
Select a submenu
xPress the rocker switch Ÿfig. 38 upwards or downwards, or, on the
multifunction steering wheel, the arrow keys or , until reaching the
required menu option.
xThe selected option is displayed between two horizontal lines. In addi-
tion, a triangle is displayed on the right y.
xTo select the submenu, press .
Making changes according to the menu
xUse the rocker switch on the windscreen wiper lever or the arrow keys on
the multifunction steering wheel to make the required modifications. If the
switch or keys are held down, the scroll speed is faster (fast forward or return).
xMark or confirm the selected option with .
Returning to the main menu
xVia the menu: in the submenu, select the option Return to exit the
submenu.
xIf managed from the windscreen wiper lever: hold down the rocker switch.
xIf managed from the multifunction steering wheel: press button .
Fig. 38 In vehicles
without multifunction
steering wheel: On the
windscreen washer lever:
button to confirm the
menu point and rocker
switch to change the
menu
AA
AB
Fig. 39 Right side of
multifunction steering
wheel: Buttons to access
the instrument panel
menus.
OKAA
ƒ„
AB*+
OK
OK
E

Cockpit73
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Main menuMFI display menu
The multifunction display (MFI) has two automatic memories: 1 - Partial
memory and 2 - Total memory. The selected memory will be shown in the
upper right-hand corner of the display.MenuFunctionSee
MFIInformation and possible configurations of the
multifunction display (MFI).Ÿpage 73
Audio
If the radio is on, the station is displayed.
In CD mode, the current CD is played.
ŸBooklet
“Radio” or
ŸBooklet
“navigation
system”
NavigationNavigation system information:
when the navigation to destination is on,
change of direction arrows and a proximity bar
are displayed. These symbols are similar to
those used in the navigation system.
If navigation to destination is not on, the direc-
tion of travel (compass) and the name of the
street on which you are driving are displayed.ŸBooklet
“Navigation
system”
Parking
heatingInformation and configurations of the parking
heating:
switching the parking heating on or off. Select
the operating mode and duration.Ÿpage 187
Vehicle
conditionCurrent warning or information texts.
This option only appears when one of the fol-
lowing texts is available. The number of availa-
ble messages is displayed. Example 1/1 or
2/2.Ÿpage 64
SettingsDifferent setting options, for example, the Con-
venience, Lighting & or Visibility menus, and
the time, speed warning with winter tyres, lan-
guage, units of measurement, or “Display off”.Ÿpage 75
With the ignition switched on, and memory 1 or 2 displayed, briefly press
to change from one memory to another.
1
Trip mem-
ory (for a
single jour-
ney).
The memory stores the values for the journey and the con-
sumption from the moment the ignition is switched on until
it is switched off again.
If the journey is broken for more than two hours, the mem-
ory is automatically erased. If the journey is continued in
less than two hours after the ignition is switched off, the
new data is added to the data already stored in the mem-
ory.
2Total mem-
ory (for all
journeys).
The memory records the values for a specific number of
partial trips, up to a total of 19 hours and 59 minutes or 99
hours and 59 minutes, or 1999.9 km (or miles) for 9999 km
(or miles), depending on the model of instrument panel.
On reaching either of these limits, the memory is automati-
cally erased and starts to count from 0 again.
OK

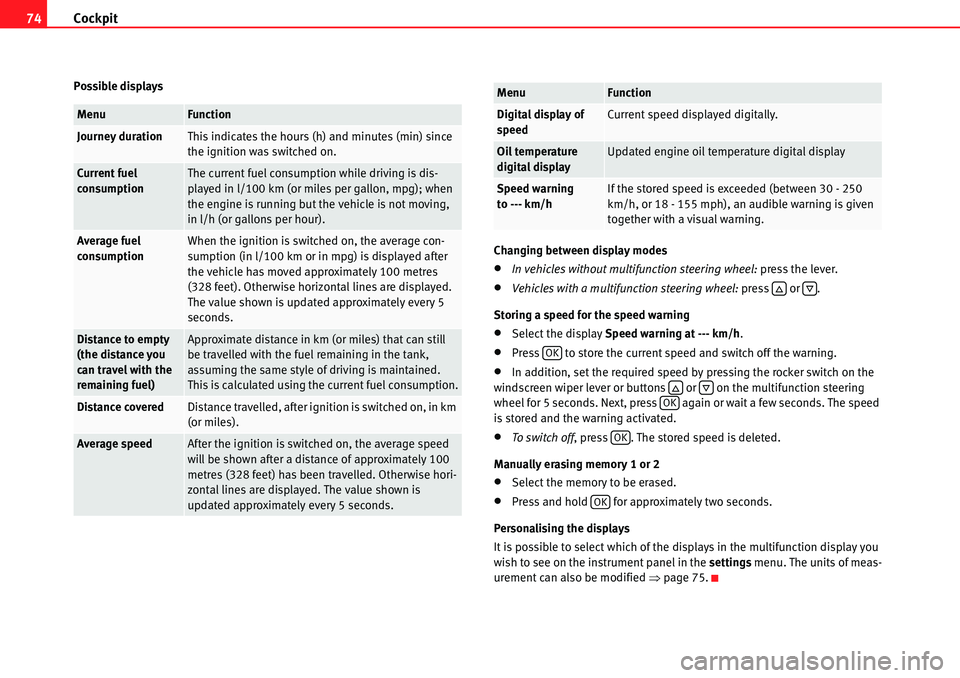

Cockpit 74
Possible displays
Changing between display modes
xIn vehicles without multifunction steering wheel: press the lever.
xVehicles with a multifunction steering wheel: press or .
Storing a speed for the speed warning
xSelect the display Speed warning at --- km/h.
xPress to store the current speed and switch off the warning.
xIn addition, set the required speed by pressing the rocker switch on the
windscreen wiper lever or buttons or on the multifunction steering
wheel for 5 seconds. Next, press again or wait a few seconds. The speed
is stored and the warning activated.
xTo switch off, press . The stored speed is deleted.
Manually erasing memory 1 or 2
xSelect the memory to be erased.
xPress and hold for approximately two seconds.
Personalising the displays
It is possible to select which of the displays in the multifunction display you
wish to see on the instrument panel in the settings menu. The units of meas-
urement can also be modified Ÿpage 75.
MenuFunction
Journey durationThis indicates the hours (h) and minutes (min) since
the ignition was switched on.
Current fuel
consumptionThe current fuel consumption while driving is dis-
played in l/100 km (or miles per gallon, mpg); when
the engine is running but the vehicle is not moving,
in l/h (or gallons per hour).
Average fuel
consumptionWhen the ignition is switched on, the average con-
sumption (in l/100 km or in mpg) is displayed after
the vehicle has moved approximately 100 metres
(328 feet). Otherwise horizontal lines are displayed.
The value shown is updated approximately every 5
seconds.
Distance to empty
(the distance you
can travel with the
remaining fuel)Approximate distance in km (or miles) that can still
be travelled with the fuel remaining in the tank,
assuming the same style of driving is maintained.
This is calculated using the current fuel consumption.
Distance coveredDistance travelled, after ignition is switched on, in km
(or miles).
Average speedAfter the ignition is switched on, the average speed
will be shown after a distance of approximately 100
metres (328 feet) has been travelled. Otherwise hori-
zontal lines are displayed. The value shown is
updated approximately every 5 seconds.
Digital display of
speedCurrent speed displayed digitally.
Oil temperature
digital displayUpdated engine oil temperature digital display
Speed warning
to --- km/hIf the stored speed is exceeded (between 30 - 250
km/h, or 18 - 155 mph), an audible warning is given
together with a visual warning.
MenuFunction
*+
OK
*+OK
OK
OK

Cockpit75
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Configuration Menu
Configuration
MenuFunction
Multifunction
display dataConfiguration of the multifunction display data which you
wish to see on the instrument panel display Ÿpage 73.
CompassChanging the magnetic region and calibration of the com-
pass. To calibrate the compass, please follow the instruc-
tions given on the instrument panel display.
ConvenienceChanging vehicle convenience functions Ÿpage 76.
Lights &
visibilityConfiguration of vehicle lighting Ÿpage 77.
TimeChanging the hours and minutes of the clock and the nav-
igation system. The time can be set here and the choice
can be made between the 24 hour and 12 hour display.
The S in the upper part of the display indicates that the
clock is set to summer time.
Winter tyresChanging the visual and audible speed warnings. This
function should only be used when the vehicle is fitted
with winter tyres, which are not designed for travel at
high speeds.
Settings:
LanguageChanging the language of the display texts and the navi-
gation system.
UnitsChanging the units of measurement for the temperature,
consumption and distance.
Second speedSwitching second speed display on and off
AutoholdSelecting whether the Auto-Hold function should remain
on permanently.
Travel modeChanging the headlamps for countries in which vehicles
are driven on the other side of the road. When the “mark”
is activated, the headlamps of a left-hand drive vehicle
are adjusted for driving on the left. The travel mode can
only be used for short periods of time.
ServiceCheck the service notifications or reset the service inter-
vals to zero
Manufacturer's
settings Some functions of the Configuration menu will be reset
to the factory value.
BackThe main menu is displayed again.
Configuration
MenuFunction

Cockpit 76
Submenu Convenience
Convenience menuFunction
Open door
Ÿpage 83
Manual
When the vehicle is unlocked with the key, the following doors (depending upon the configuration)
are unlocked:
„ all doors: All of the doors will be unlocked.
„ one door: see above Method 1.
„ Side of vehicle: The doors on the driver's side are unlocked.
In vehicles with KESSY Ÿpage 83 the doors on the driver's side are unlocked together with any
doors on the side where the vehicle key is, using the door handle.
„ Individually: Only the driver's door is unlocked. In vehicles with KESSY, if a door handle is used,
the door (or tailgate) will unlock, together with the driver's door Ÿpage 83.
automatic mode
Automatic locking function (Auto Lock) All doors are automatically locked at speeds above approxi-
mately 15 km/h. To unlock when the vehicle is stopped, push the central locking button or remove
the key from the ignition lock.
Automatic unlock: When the key is removed from the ignition lock, all doors and the tailgate are
unlocked.
Electronic childproof locksSwitching the childproof locks on or off Ÿpage 92.
Confirm anti-theft alarmSwitching on or off the audible confirmation that the anti-theft alarm is activated Ÿpage 83.
Handling windowsAdjusting the electric windows: This permits the windows to be opened or closed when the vehicle is unlocked or locked
respectively. The open function can only be activated from the driver's door Ÿpage 102.
Rear-view mirror adjustmentTilts passenger mirror downwards when reverse gear is engaged. This enables the driver to see the edge of the pavement, for
example Ÿpage 130.
Exterior mirror adjust.If synchronised adjustment is selected, when the driver side exterior mirror is adjusted, the passenger exterior mirror is also
moved.
Manufacturer's settingsSome functions of the Convenience submenu will be reset to the factory value.
BackThe Configuration menu is displayed again.

Cockpit77
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Lights & visibility submenu.
Personal convenience settings
When two people use a vehicle, SEAT recommends that each person always
uses “their” own remote control key. When the ignition is switched off, or the
vehicle is locked, the personal convenience settings are stored and automat-
ically allocated to the vehicle key Ÿpage 70.The values of the personalised convenience settings of the following menu
options are allocated to the vehicle key:
„Parking heating menu
„Configuration Menu
„Time
„Settings: Language
„Units
„Convenience settings menu
„Door unlock (individual opening, Auto Lock)
„Convenience handling of windows
„Rear-view mirror adjustment
„Lights & visibility adjustment menu.
„Coming home and leaving home
„Footwell light
„Convenience indicators
The stored settings are automatically activated, at the latest when the igni-
tion is switched on. Please refer to the information and tips relating to the
seat memory Ÿpage 137.
Lights &
visibility menu.Function
Coming HomeThis permits the adjustment of the time the headlamps
stay on after locking or unlocking the vehicle, the function
can also be connected or disconnected hereŸpage 119.
Leaving Home
Footwell lightThis permits the adjustment of the brightness of the foot-
well lighting when the doors are open, the function can
also be connected or disconnected here
Convenience
indicatorsSwitching convenience indicators on and off When the
convenience indicators are connected, when the indicator
is switched on, these flash at least three times
Ÿpage 113.
Manufacturer's
settingsAll the configurations in the submenu Lights & visibil. are
reset to the predefined factory values.
BackThe Configuration menu is displayed again.

Unlocking and locking 78
Unlocking and locking
Vehicle key set
Introduction
Additional information and warnings:
xAdjustments to the SEAT information system Ÿpage 70
xCentral locking and locking system Ÿpage 83
xStart and stop the engine Ÿpage 195
xNotes for the user Ÿpage 283
xEmergency locking and unlocking Ÿpage 348
WARNING
Careless or incorrect use of vehicle keys may result in severe injury and
accident.
xAlways take all the keys with you whenever you leave the vehicle. Chil-
dren and unauthorised individuals could lock the doors or the tailgate,
start the engine or turn the ignition on activating electrical systems, for
example: the electric windows.
xNever leave children or disabled people alone in the car. They could be
trapped in the car in an emergency and will not be able to get themselves
to safety. For example, depending on the time of the year, temperatures
inside a locked and closed vehicle can be extremely high or extremely low
resulting in serious injuries and illness or even death, particularly for
young children.
xNever remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.

Unlocking and locking79
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Vehicle key
Vehicle keys
With the vehicle key Ÿfig. 40 or Ÿfig. 41 the vehicle may be locked or
unlocked remotely.The vehicle key includes an emitter and batteries. The receiver is in the inte-
rior of the vehicle. The range of the vehicle key with remote control and new
batteries is several metres around the vehicle.
If it is not possible to open or close the vehicle using the remote control key,
this should be re-synchronised Ÿpage 82 or the battery changed
Ÿpage 81.
Different keys belonging to the vehicle may be used.
Folding the key shaft in and out
When the button is pressed, the key shaft is released and unfolds.
To fold it press the button and fold the key shaft in until it locks in place.
Duplicate keys
To obtain a spare key and other vehicle keys, the vehicle chassis number is
required.
Each new key must contain a microchip and be coded with the data from the
electronic vehicle immobiliser. In vehicle key will not work if it does not
contain microchip or the microchip has not been encoded. This is also true for
keys cut for the vehicle.
The vehicle keys or new spare keys can be obtained from an authorised tech-
nical service, a specialist workshop or approved key service qualified to
create this kind of key.
New keys or spare keys must be synchronised before use Ÿpage 82.
Caution
All of the vehicle keys contain electronic components. Protect the vehicle
keys from damage, impacts and humidity.
Fig. 40 Vehicle keys.
Fig. 41 Vehicle key for
vehicles with electric
sliding doors.
