If and when373
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a The vehicles should not touch. Otherwise, current may be allowed to flow
when the positive poles are connected.
Connect the clamps so they have good metal-to-metal contact with the termi-
nals.
If the engine fails to start straight-away, switch off the starter after about 10
seconds and try again after about a minute.
Complete operations only in the sequence given.
Jump lead terminal connections
xSwitch off the ignition of both vehicles Ÿpage 195.
xLikewise, open the battery cover in the engine compartment Ÿpage 318,
or remove the positive pole cap from one side 3), in the direction of the arrow
Ÿpage 372, fig. 225.
xConnect one end of the red jump lead to the positive terminal
Ÿpage 372, fig. 226 or Ÿpage 372, fig. 225 of the vehicle with the
flat battery Ÿ.
xConnect the other end of the red jump lead to the positive terminal in
the vehicle providing assistance .
xFor vehicles without Start-Stop system: Connect one end of the black
jump lead to the negative terminal in the vehicle providing assistance
Ÿpage 372, fig. 226.
xFor vehicles with Start-Stop system: Connect one end of the black
jump lead to a suitable ground connection, a solid piece of metal in the
engine block, or to the engine block Ÿpage 372, fig. 227.
xConnect the other end of the black jump lead to a solid metal compo-
nent connected to the engine block, or onto the engine block itself of the
vehicle with the flat battery however, connect it as far away as possible from
the battery Ÿ.
xPlace the leads so that they cannot be caught by any moving parts in the
engine compartment.Switching on
xStart the engine of the vehicle supplying current and let it run at idling
speed.
xStart the engine of the car with the flat battery and wait two or three
minutes until the engine is “running smoothly”.
Removing the jump leads
xBefore you remove the jump leads, switch off the headlights (if they are
switched on).
xTurn on the heating and rear window heater in the vehicle with the flat
battery. This helps minimise voltage peaks which are generated when the
leads are disconnected.
xWith the engines running, disconnect the leads in reverse order to
connection.
xClose the battery cover, or replace the positive pole cap 3).
WARNING
Incorrectly jump starting could cause the battery to explode resulting in
serious injury. Please observe the following rules to minimise the risk of a
battery explosion:
xAll work involving the vehicle battery and electrical system can cause
corrosion, fire and serious electric shocks. Always read and take into
account the safety warnings and standards before beginning work on the
battery Ÿpage 318, “Vehicle battery”.
xAlways protect your eyes with suitable working goggles and never lean
over the vehicle battery.
xThe jump leads must be connected in the correct order: first the positive
cable, then the negative cable.
xDo not attach the negative cable to parts of the fuel system or to the
brake hose/pipe.
3)Vehicles whose battery is not located in the engine compartment Ÿpage 372.
A+A+AA
A+AB
A-AB
AX
AX
AA

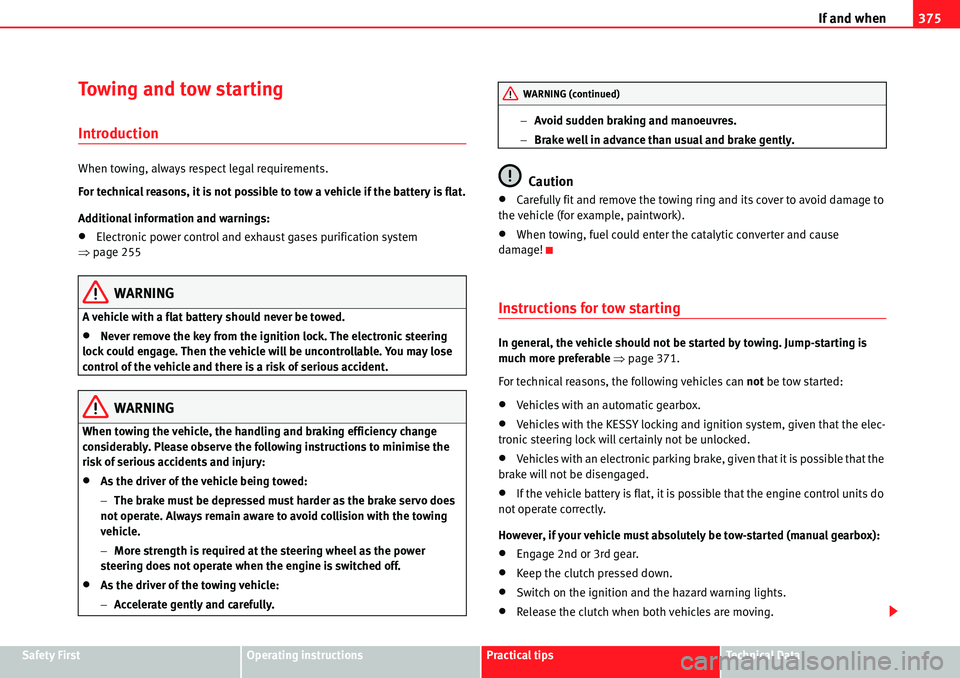

If and when375
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Towing and tow starting
Introduction
When towing, always respect legal requirements.
For technical reasons, it is not possible to tow a vehicle if the battery is flat.
Additional information and warnings:
xElectronic power control and exhaust gases purification system
Ÿpage 255
WARNING
A vehicle with a flat battery should never be towed.
xNever remove the key from the ignition lock. The electronic steering
lock could engage. Then the vehicle will be uncontrollable. You may lose
control of the vehicle and there is a risk of serious accident.
WARNING
When towing the vehicle, the handling and braking efficiency change
considerably. Please observe the following instructions to minimise the
risk of serious accidents and injury:
xAs the driver of the vehicle being towed:
The brake must be depressed must harder as the brake servo does
not operate. Always remain aware to avoid collision with the towing
vehicle.
More strength is required at the steering wheel as the power
steering does not operate when the engine is switched off.
xAs the driver of the towing vehicle:
Accelerate gently and carefully.Avoid sudden braking and manoeuvres.
Brake well in advance than usual and brake gently.
Caution
xCarefully fit and remove the towing ring and its cover to avoid damage to
the vehicle (for example, paintwork).
xWhen towing, fuel could enter the catalytic converter and cause
damage!
Instructions for tow starting
In general, the vehicle should not be started by towing. Jump-starting is
much more preferable Ÿpage 371.
For technical reasons, the following vehicles can not be tow started:
xVehicles with an automatic gearbox.
xVehicles with the KESSY locking and ignition system, given that the elec-
tronic steering lock will certainly not be unlocked.
xVehicles with an electronic parking brake, given that it is possible that the
brake will not be disengaged.
xIf the vehicle battery is flat, it is possible that the engine control units do
not operate correctly.
However, if your vehicle must absolutely be tow-started (manual gearbox):
xEngage 2nd or 3rd gear.
xKeep the clutch pressed down.
xSwitch on the ignition and the hazard warning lights.
xRelease the clutch when both vehicles are moving.
WARNING (continued)

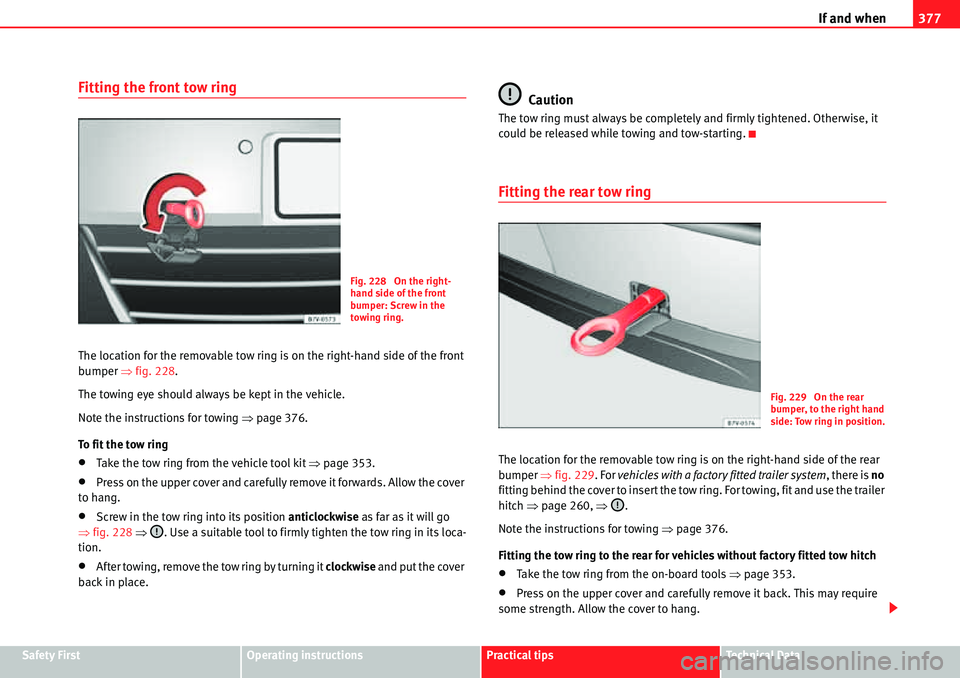

If and when377
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Fitting the front tow ring
The location for the removable tow ring is on the right-hand side of the front
bumper Ÿfig. 228.
The towing eye should always be kept in the vehicle.
Note the instructions for towing Ÿpage 376.
To fit the tow ring
xTake the tow ring from the vehicle tool kit Ÿpage 353.
xPress on the upper cover and carefully remove it forwards. Allow the cover
to hang.
xScrew in the tow ring into its position anticlockwise as far as it will go
Ÿfig. 228 Ÿ. Use a suitable tool to firmly tighten the tow ring in its loca-
tion.
xAfter towing, remove the tow ring by turning it clockwise and put the cover
back in place.
Caution
The tow ring must always be completely and firmly tightened. Otherwise, it
could be released while towing and tow-starting.
Fitting the rear tow ring
The location for the removable tow ring is on the right-hand side of the rear
bumper Ÿfig. 229. For vehicles with a factory fitted trailer system, there is no
fitting behind the cover to insert the tow ring. For towing, fit and use the trailer
hitch Ÿpage 260, Ÿ.
Note the instructions for towing Ÿpage 376.
Fitting the tow ring to the rear for vehicles without factory fitted tow hitch
xTake the tow ring from the on-board tools Ÿpage 353.
xPress on the upper cover and carefully remove it back. This may require
some strength. Allow the cover to hang.
Fig. 228 On the right-
hand side of the front
bumper: Screw in the
towing ring.
Fig. 229 On the rear
bumper, to the right hand
side: Tow ring in position.

General notes on the technical data381
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Data on fuel consumption
Fuel consumption
The consumption and emission details shown on the vehicle
data sticker differ from one vehicle to another.
The fuel consumption, CO2 emissions and actual kerb weight of the vehicle
are noted on the vehicle data sticker.
The fuel consumption and emissions figures given are based on the vehicle
weight category, which is determined according to the engine/gearbox
combination and the equipment fitted.
The consumption and emission figures are calculated in accordance with the
EC test requirements 1999/100/EC. These test requirements specify a real-
istic test method based on normal everyday driving.
The following test conditions are applied:
Note
xActual consumption may vary from quoted test values, depending on
personal driving style, road and traffic conditions, the weather and the
vehicle condition.
Weights
Kerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase Ÿ.
WARNING
xPlease note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle's handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
and requirements.
xNever exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
Urban cycleThe urban cycle starts with an engine cold start. City driving
is then simulated.
Extra urban
cycleIn the extra urban cycle simulation the vehicle frequently
accelerates and brakes in all gears, as in normal everyday
driving. The road speed ranges from 0 to 120 km/h.
Total con-
sumptionThe average total consumption is calculated with a weighting
of around 37% for the urban cycle and 63% for the extra
urban cycle.
CO2 emis-
sionsThe exhaust gases are collected during both driving cycles to
calculate carbon dioxide emissions. The gas composition is
then analysed to evaluate the CO
2 content and other emis-
sions.

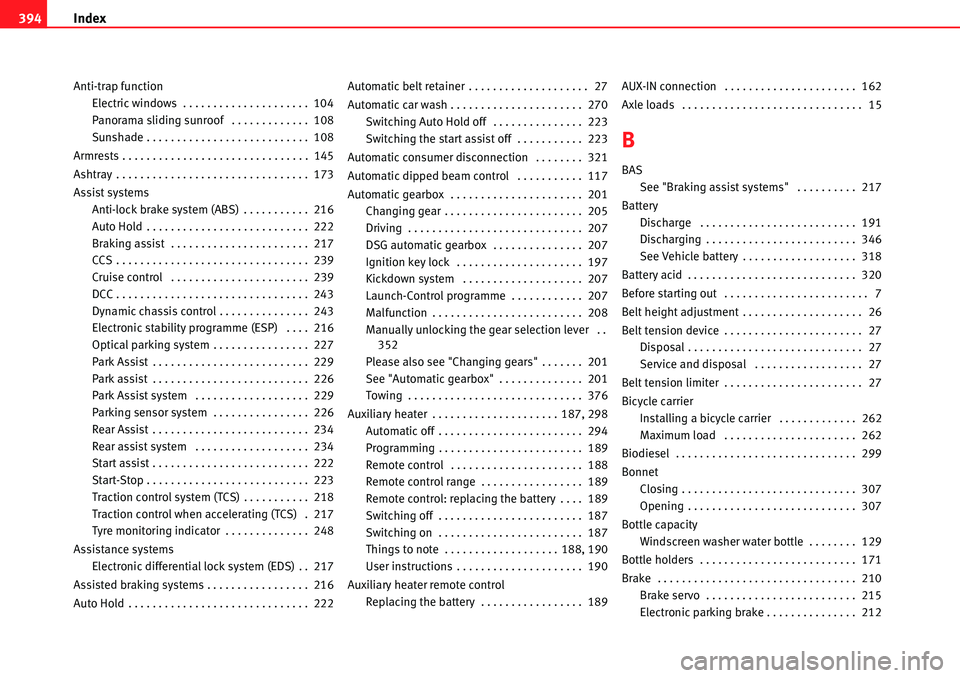

Index 394
Anti-trap function
Electric windows . . . . . . . . . . . . . . . . . . . . . 104
Panorama sliding sunroof . . . . . . . . . . . . . 108
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Armrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Assist systems
Anti-lock brake system (ABS) . . . . . . . . . . . 216
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Braking assist . . . . . . . . . . . . . . . . . . . . . . . 217
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 239
DCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Dynamic chassis control . . . . . . . . . . . . . . . 243
Electronic stability programme (ESP) . . . . 216
Optical parking system . . . . . . . . . . . . . . . . 227
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Park assist . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Park Assist system . . . . . . . . . . . . . . . . . . . 229
Parking sensor system . . . . . . . . . . . . . . . . 226
Rear Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Rear assist system . . . . . . . . . . . . . . . . . . . 234
Start assist . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Traction control system (TCS) . . . . . . . . . . . 218
Traction control when accelerating (TCS) . 217
Tyre monitoring indicator . . . . . . . . . . . . . . 248
Assistance systems
Electronic differential lock system (EDS) . . 217
Assisted braking systems . . . . . . . . . . . . . . . . . 216
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222Automatic belt retainer . . . . . . . . . . . . . . . . . . . . 27
Automatic car wash . . . . . . . . . . . . . . . . . . . . . . 270
Switching Auto Hold off . . . . . . . . . . . . . . . 223
Switching the start assist off . . . . . . . . . . . 223
Automatic consumer disconnection . . . . . . . . 321
Automatic dipped beam control . . . . . . . . . . . 117
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 201
Changing gear . . . . . . . . . . . . . . . . . . . . . . . 205
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
DSG automatic gearbox . . . . . . . . . . . . . . . 207
Ignition key lock . . . . . . . . . . . . . . . . . . . . . 197
Kickdown system . . . . . . . . . . . . . . . . . . . . 207
Launch-Control programme . . . . . . . . . . . . 207
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 208
Manually unlocking the gear selection lever . .
352
Please also see "Changing gears" . . . . . . . 201
See "Automatic gearbox" . . . . . . . . . . . . . . 201
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . 187, 298
Automatic off . . . . . . . . . . . . . . . . . . . . . . . . 294
Programming . . . . . . . . . . . . . . . . . . . . . . . . 189
Remote control . . . . . . . . . . . . . . . . . . . . . . 188
Remote control range . . . . . . . . . . . . . . . . . 189
Remote control: replacing the battery . . . . 189
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 187
Switching on . . . . . . . . . . . . . . . . . . . . . . . . 187
Things to note . . . . . . . . . . . . . . . . . . . 188, 190
User instructions . . . . . . . . . . . . . . . . . . . . . 190
Auxiliary heater remote control
Replacing the battery . . . . . . . . . . . . . . . . . 189AUX-IN connection . . . . . . . . . . . . . . . . . . . . . . 162
Axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
B
BAS
See "Braking assist systems" . . . . . . . . . . 217
Battery
Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Discharging . . . . . . . . . . . . . . . . . . . . . . . . . 346
See Vehicle battery . . . . . . . . . . . . . . . . . . . 318
Battery acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Before starting out . . . . . . . . . . . . . . . . . . . . . . . . 7
Belt height adjustment . . . . . . . . . . . . . . . . . . . . 26
Belt tension device . . . . . . . . . . . . . . . . . . . . . . . 27
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Service and disposal . . . . . . . . . . . . . . . . . . 27
Belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . 27
Bicycle carrier
Installing a bicycle carrier . . . . . . . . . . . . . 262
Maximum load . . . . . . . . . . . . . . . . . . . . . . 262
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Bonnet
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Bottle capacity
Windscreen washer water bottle . . . . . . . . 129
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 215
Electronic parking brake . . . . . . . . . . . . . . . 212

Index399
Panoramic sliding roof . . . . . . . . . . . . . . . . 351
Passenger side door . . . . . . . . . . . . . . . . . . 349
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . 349
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Engine
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Engine and ignition . . . . . . . . . . . . . . . . . . . . . . 195
12 Volt sockets . . . . . . . . . . . . . . . . . . . . . . 175
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 196
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 200
Pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Starting engine with KESSY . . . . . . . . . . . . 197
Starting the engine . . . . . . . . . . . . . . . . . . . 198
Stopping the engine with KESSY . . . . . . . . 199
Unauthorised vehicle key . . . . . . . . . . . . . . 196
Engine compartment . . . . . . . . . . . . . . . . . . . . . 304
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . 313
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . 306
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . 318
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Checking the level . . . . . . . . . . . . . . . . . . . . 315
Filler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . 314
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Specifications . . . . . . . . . . . . . . . . . . . . . . . 314
Engine fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Engine management . . . . . . . . . . . . . . . . . . . . . 255
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 255Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Checking the oil level . . . . . . . . . . . . . . . . . 310
Consumption . . . . . . . . . . . . . . . . . . . . . . . . 312
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Filler opening . . . . . . . . . . . . . . . . . . . . . . . . 310
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Specifications . . . . . . . . . . . . . . . . . . . . . . . 310
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 310
ESP
See "Braking assist systems" . . . . . . . . . . . 216
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . 289
Exhaust gas purification system . . . . . . . . . . . 255
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 255
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 132
Automatically folding exterior mirrors . . . . 132
Controlling function . . . . . . . . . . . . . . . . . . . 133
Synchronised mirror adjustment . . . . . . . . 132
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . 272
Extinguisher
Driving with a trailer . . . . . . . . . . . . . . . . . . 261
F
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 153
Fault
Dynamic chassis control . . . . . . . . . . 243, 244
Electric windows . . . . . . . . . . . . . . . . . . . . . 104
Park assist system . . . . . . . . . . . . . . . . . . . . 230
Parking sensor system . . . . . . . . . . . . . . . . 226
Rear assist . . . . . . . . . . . . . . . . . . . . . . . . . . 236Fault memory
Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Faults
Climate control . . . . . . . . . . . . . . . . . . . . . . 184
Panorama sliding sunroof . . . . . . . . . . . . . . 106
Filling capacity
AdBlue tank . . . . . . . . . . . . . . . . . . . . . . . . . 301
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 294
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Refilling precautions . . . . . . . . . . . . . . . . . . 296
Filter pre-heater . . . . . . . . . . . . . . . . . . . . . . . . . 298
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 347
Fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . 347
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
First-aid kit
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Fitting
Tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Foldable wedges
See on-board tools . . . . . . . . . . . . . . . . . . . 354
Folding down rear seats
Load space . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Folding in exterior mirrors . . . . . . . . . . . . . . . . . 132
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

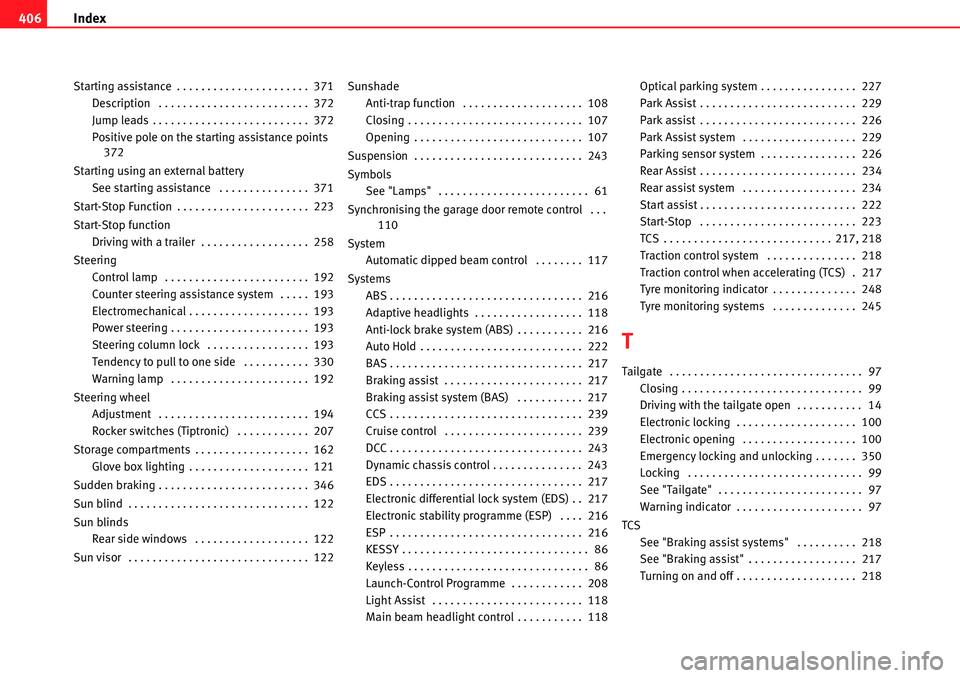

Index 406
Starting assistance . . . . . . . . . . . . . . . . . . . . . . 371
Description . . . . . . . . . . . . . . . . . . . . . . . . . 372
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Positive pole on the starting assistance points
372
Starting using an external battery
See starting assistance . . . . . . . . . . . . . . . 371
Start-Stop Function . . . . . . . . . . . . . . . . . . . . . . 223
Start-Stop function
Driving with a trailer . . . . . . . . . . . . . . . . . . 258
Steering
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 192
Counter steering assistance system . . . . . 193
Electromechanical . . . . . . . . . . . . . . . . . . . . 193
Power steering . . . . . . . . . . . . . . . . . . . . . . . 193
Steering column lock . . . . . . . . . . . . . . . . . 193
Tendency to pull to one side . . . . . . . . . . . 330
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 192
Steering wheel
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 194
Rocker switches (Tiptronic) . . . . . . . . . . . . 207
Storage compartments . . . . . . . . . . . . . . . . . . . 162
Glove box lighting . . . . . . . . . . . . . . . . . . . . 121
Sudden braking . . . . . . . . . . . . . . . . . . . . . . . . . 346
Sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Sun blinds
Rear side windows . . . . . . . . . . . . . . . . . . . 122
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122Sunshade
Anti-trap function . . . . . . . . . . . . . . . . . . . . 108
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Symbols
See "Lamps" . . . . . . . . . . . . . . . . . . . . . . . . . 61
Synchronising the garage door remote control . . .
110
System
Automatic dipped beam control . . . . . . . . 117
Systems
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Adaptive headlights . . . . . . . . . . . . . . . . . . 118
Anti-lock brake system (ABS) . . . . . . . . . . . 216
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Braking assist . . . . . . . . . . . . . . . . . . . . . . . 217
Braking assist system (BAS) . . . . . . . . . . . 217
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 239
DCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Dynamic chassis control . . . . . . . . . . . . . . . 243
EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Electronic differential lock system (EDS) . . 217
Electronic stability programme (ESP) . . . . 216
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
KESSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Keyless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Launch-Control Programme . . . . . . . . . . . . 208
Light Assist . . . . . . . . . . . . . . . . . . . . . . . . . 118
Main beam headlight control . . . . . . . . . . . 118Optical parking system . . . . . . . . . . . . . . . . 227
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Park assist . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Park Assist system . . . . . . . . . . . . . . . . . . . 229
Parking sensor system . . . . . . . . . . . . . . . . 226
Rear Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Rear assist system . . . . . . . . . . . . . . . . . . . 234
Start assist . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . 223
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217, 218
Traction control system . . . . . . . . . . . . . . . 218
Traction control when accelerating (TCS) . 217
Tyre monitoring indicator . . . . . . . . . . . . . . 248
Tyre monitoring systems . . . . . . . . . . . . . . 245
T
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Driving with the tailgate open . . . . . . . . . . . 14
Electronic locking . . . . . . . . . . . . . . . . . . . . 100
Electronic opening . . . . . . . . . . . . . . . . . . . 100
Emergency locking and unlocking . . . . . . . 350
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
See "Tailgate" . . . . . . . . . . . . . . . . . . . . . . . . 97
Warning indicator . . . . . . . . . . . . . . . . . . . . . 97
TCS
See "Braking assist systems" . . . . . . . . . . 218
See "Braking assist" . . . . . . . . . . . . . . . . . . 217
Turning on and off . . . . . . . . . . . . . . . . . . . . 218
