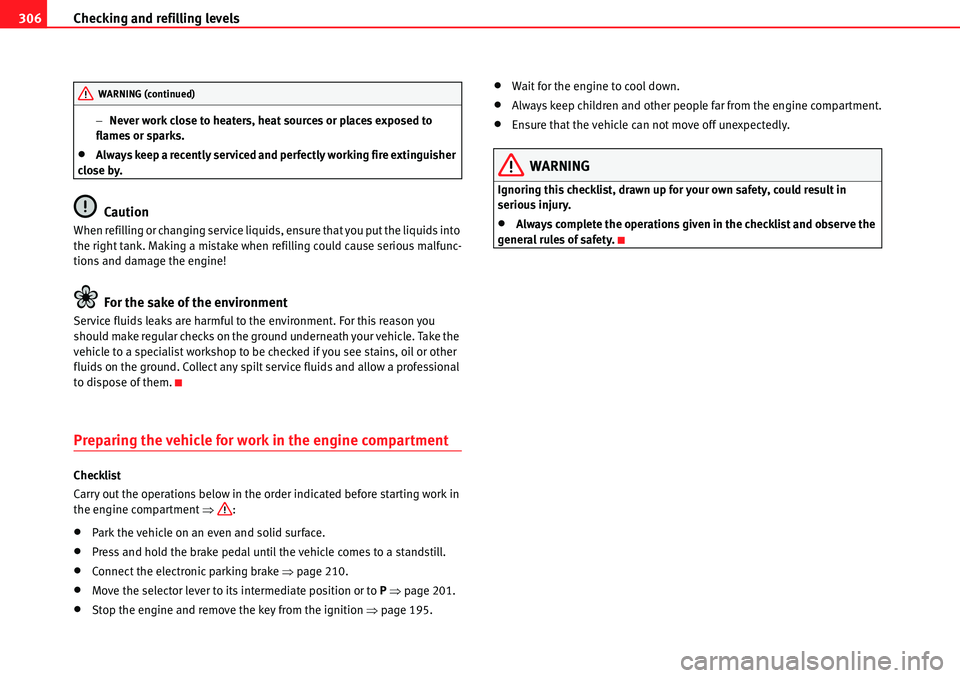

Checking and refilling levels 306
Never work close to heaters, heat sources or places exposed to
flames or sparks.
xAlways keep a recently serviced and perfectly working fire extinguisher
close by.
Caution
When refilling or changing service liquids, ensure that you put the liquids into
the right tank. Making a mistake when refilling could cause serious malfunc-
tions and damage the engine!
For the sake of the environment
Service fluids leaks are harmful to the environment. For this reason you
should make regular checks on the ground underneath your vehicle. Take the
vehicle to a specialist workshop to be checked if you see stains, oil or other
fluids on the ground. Collect any spilt service fluids and allow a professional
to dispose of them.
Preparing the vehicle for work in the engine compartment
Checklist
Carry out the operations below in the order indicated before starting work in
the engine compartment Ÿ:
xPark the vehicle on an even and solid surface.
xPress and hold the brake pedal until the vehicle comes to a standstill.
xConnect the electronic parking brake Ÿpage 210.
xMove the selector lever to its intermediate position or to P Ÿpage 201.
xStop the engine and remove the key from the ignition Ÿpage 195.
xWait for the engine to cool down.
xAlways keep children and other people far from the engine compartment.
xEnsure that the vehicle can not move off unexpectedly.
WARNING
Ignoring this checklist, drawn up for your own safety, could result in
serious injury.
xAlways complete the operations given in the checklist and observe the
general rules of safety.
WARNING (continued)

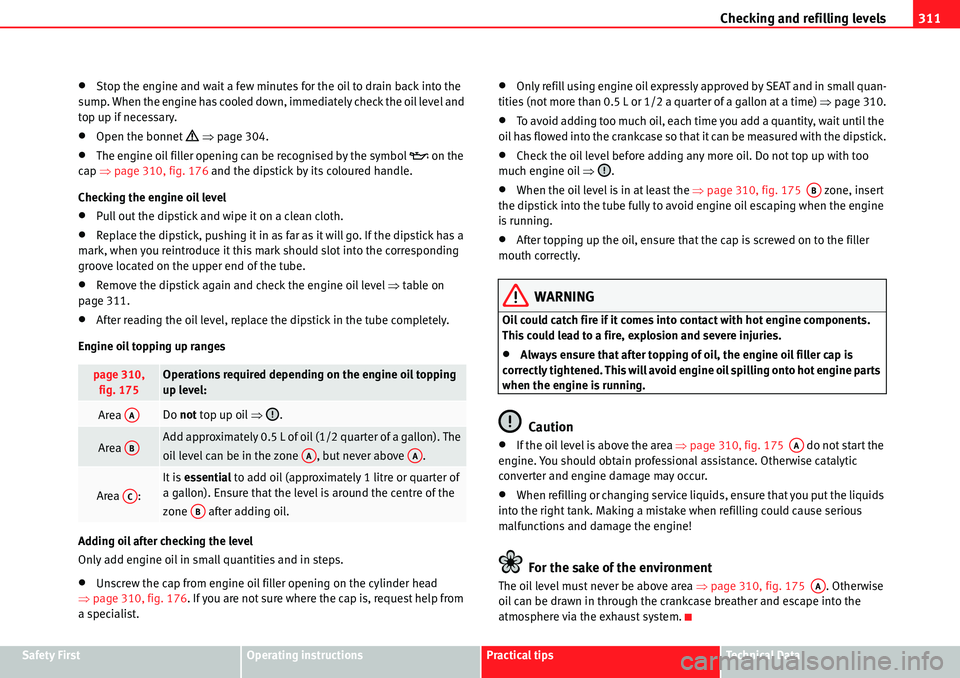

Checking and refilling levels311
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xStop the engine and wait a few minutes for the oil to drain back into the
sump. When the engine has cooled down, immediately check the oil level and
top up if necessary.
xOpen the bonnet ’ Ÿpage 304.
xThe engine oil filler opening can be recognised by the symbol E on the
cap Ÿpage 310, fig. 176 and the dipstick by its coloured handle.
Checking the engine oil level
xPull out the dipstick and wipe it on a clean cloth.
xReplace the dipstick, pushing it in as far as it will go. If the dipstick has a
mark, when you reintroduce it this mark should slot into the corresponding
groove located on the upper end of the tube.
xRemove the dipstick again and check the engine oil level Ÿtable on
page 311.
xAfter reading the oil level, replace the dipstick in the tube completely.
Engine oil topping up ranges
Adding oil after checking the level
Only add engine oil in small quantities and in steps.
xUnscrew the cap from engine oil filler opening on the cylinder head
Ÿpage 310, fig. 176. If you are not sure where the cap is, request help from
a specialist.
xOnly refill using engine oil expressly approved by SEAT and in small quan-
tities (not more than 0.5 L or 1/2 a quarter of a gallon at a time) Ÿpage 310.
xTo avoid adding too much oil, each time you add a quantity, wait until the
oil has flowed into the crankcase so that it can be measured with the dipstick.
xCheck the oil level before adding any more oil. Do not top up with too
much engine oil Ÿ.
xWhen the oil level is in at least the Ÿpage 310, fig. 175 zone, insert
the dipstick into the tube fully to avoid engine oil escaping when the engine
is running.
xAfter topping up the oil, ensure that the cap is screwed on to the filler
mouth correctly.
WARNING
Oil could catch fire if it comes into contact with hot engine components.
This could lead to a fire, explosion and severe injuries.
xAlways ensure that after topping of oil, the engine oil filler cap is
correctly tightened. This will avoid engine oil spilling onto hot engine parts
when the engine is running.
Caution
xIf the oil level is above the area Ÿpage 310, fig. 175 do not start the
engine. You should obtain professional assistance. Otherwise catalytic
converter and engine damage may occur.
xWhen refilling or changing service liquids, ensure that you put the liquids
into the right tank. Making a mistake when refilling could cause serious
malfunctions and damage the engine!
For the sake of the environment
The oil level must never be above area Ÿpage 310, fig. 175 . Otherwise
oil can be drawn in through the crankcase breather and escape into the
atmosphere via the exhaust system.
page 310,
fig. 175Operations required depending on the engine oil topping
up level:
Area Do not top up oil Ÿ.
Area Add approximately 0.5 L of oil (1/2 quarter of a gallon). The
oil level can be in the zone , but never above .
Area :
It is essential to add oil (approximately 1 litre or quarter of
a gallon). Ensure that the level is around the centre of the
zone after adding oil.
AA
ABAAAA
ACAB
AB
AA
AA

Checking and refilling levels 318
Vehicle batter y
Introduction
The battery is a component of the vehicle's electrical system.
Never work on the electrical system without fully understanding the opera-
tions required, the applicable safety standards and without the correct tools
Ÿ! Have the work carried out by a qualified workshop if you are uncertain.
SEAT recommends visiting a qualified workshop. Negligent work can cause
serious injury.
Location and number of batteries in the vehicle
The battery is located in the engine compartment.
Explanation of the warning indications on the vehicle's battery
Additional information and warnings:
xŸBooklet “Maintenance Programme”
xStarter assist systems (Start-Stop function) Ÿpage 221
xWorking in the engine compartment Ÿpage 304
xAccessories, parts replacement, repairs and modifications Ÿpage 285
WARNING
Working on the vehicle battery and the electrical system can cause corro-
sion, fire and electric shocks. Always read and take into account the
following warnings and safety standards before carrying out any work:
xBefore working on the battery, switch off the engine, the ignition and
all electrical devices then disconnect the negative connection on the
battery.
xKeep children away from acid and the battery itself!
xWear eye protection.
xBattery acid is very corrosive and caustic. It can burn skin and cause
blindness. When handling the battery, protect yourself from splashes of
acids, above all your hands, arms and face.
xDo not smoke and never work close to places exposed to flames or
sparks.
xAvoid sparks and electrostatic discharges when working with cables
and electrical devices.
xNever short the battery terminals.
xNever use a damaged battery. It can explode. Replace a damaged
battery immediately.
xReplaced damaged or frozen batteries as soon as possible. A flat
battery can freeze at temperatures around 0°C (+32 °F).
xVehicles with the battery in the luggage compartment: Ensure that the
battery ventilation hose is correctly secured.
Caution
xNever disconnect the battery if the ignition is switched on or if the engine
is running. This could damage the electrical system or electronic compo-
nents.
SymbolMeaning
Wear eye protection!
Battery acid is very corrosive and caustic. Always wear
protective gloves and eye protection!
ŽFires, sparks, naked lights and smoking are prohibited.
ŸA highly explosive mixture of gases is released when the
battery is under charge.
Keep children away from acid and batteries!

Checking and refilling levels 320
Start-Stop systems Ÿpage 223 are equipped with a special battery labelled
“AGM”. For technical reasons, it is not possible to check the electrolyte level
of these batteries
Preparations
xPrepare the vehicle for work in the engine compartment Ÿpage 304
xOpen the bonnet ’ Ÿpage 304.
Opening the battery cover
The battery covers are different depending on the engine size of the vehicle:
xIn the case of a cover: press the tab Ÿpage 319, fig. 180 in the direc-
tion of the arrow and pull the cover upwards.
xIn the case of a hose: fold the cover to one side to remove Ÿpage 319,
fig. 181.
Checking the battery electrolyte level
xMake sure there is sufficient lighting to clearly recognise the colours.
Never use open flames or sparklers as a light source.
xDepending on the level of acid, the Magic eye on the top of the battery will
change colour.
WARNING
Working with the vehicle battery involves a risk of corrosion, explosions
and electric shock.
xAlways wear protective gloves and eye protection.
xBattery acid is very corrosive and caustic. It can burn skin and cause
blindness. When handling the battery, protect yourself from splashes of
acids, above all your hands, arms and face.
xNever tilt the vehicle battery. Battery acid could spill out of the open-
ings to release gases and cause corrosion damage.
xNever open the vehicle battery.
xIf battery acid splashes on you, immediately rinse your eyes and skin
abundantly with water for several minutes. Then seek medical care imme-
diately.
xIf acid is swallowed by mistake, consult a doctor immediately.
Charging, replacing and connecting or disconnecting the
battery
Charging the battery
The vehicle battery should be charged by a specialist workshop only, as
batteries using special technology have been installed and they must be
charged in a controlled environment Ÿ. SEAT recommends visiting a qual-
ified workshop.
Replacing a vehicle battery
The battery has been developed to suit the conditions of its location and has
special safety features. If the battery must be replaced, consult a qualified
SEAT workshop for information on electromagnetic compatibility, the size
and maintenance, performance and safety requirements of the new battery in
your vehicle before you purchase one. SEAT recommends you have the
battery replaced by a qualified SEAT workshop.
Use only maintenance-free genuine batteries conforming to TL 825 06 and
VW 7 50 73 Standards. These standards must be dated April 2008 or later.
Colour indicatorNecessary operations
light yellow or col-
ourlessThe electrolyte level of the vehicle's battery is too low.
Have the battery checked and, where applicable,
replaced by a specialist workshop.
Black indicationThe electrolyte level of the vehicle's battery is correct.
AA
WARNING (continued)

Checking and refilling levels321
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Start-Stop systems Ÿpage 223 are equipped with a special battery. There-
fore, it must only be replaced with a battery of the same specifications.
Disconnecting the vehicle's battery
If you must disconnect the battery from the electrical system, please note the
following:
xSwitch off the ignition and all electrical equipment.
xThe vehicle must be unlocked before disconnecting the battery, otherwise
the alarm will be triggered.
xFirst disconnect the negative cable and then the positive Ÿ.
Connecting the vehicle's battery
xBefore reconnecting the battery, switch off the engine, the ignition and
electric devices.
xFirst reconnect the positive cable and then the negative Ÿ.
Different control lamps may light up after connecting the battery and
switching the ignition on. They will be turned off after a short trip at a speed
of between 15 - 20 km/h (10 - 12 mph). If the warning indicators remain lit,
please visit a specialised workshop to have the vehicle checked.
If the battery has been disconnected for a long time, it is possible that the
next service date is not displayed or calculated correctly Ÿpage 64. Respect
the maximum service intervals permitted ŸBooklet “Maintenance
Programme”.
Vehicles with the KESSY system (Ÿpage 86): If, after connecting the battery,
the ignition cannot be switched on, lock and unlock the vehicle from outside.
Then try to switch the ignition back on. If the ignition can still not be switched
on, request the assistance of a specialist workshop.
Automatic consumer disconnection
The intelligent vehicle electrical system automatically implements a range of
measures to prevent the battery from discharging when high demands are
made on it:
xthe idling speed is increased so that the alternator provides more elec-
tricity.
xwhere necessary, the power of the most powerful consumers is reduced
or even completely disconnected.
xOn starting the engine, the power supply from the 12-volt sockets and the
cigarette lighter may be interrupted for a short time.
The on-board management program cannot always prevent the battery from
running flat. For example, if the ignition is left on for a long period with the
engine off or if the side lights or parking lights are left on while the vehicle is
stationary.
Why does the battery run flat?
xWhen stationary for a long time without starting the engine, particularly if
the ignition is switched on.
xUse of electrical consumers with the engine switched off.
xIf the auxiliary heater is running Ÿpage 187.
WARNING
Incorrectly securing the battery or using the wrong battery can cause
short-circuits, fire and serious injuries.
xAlways use only maintenance free batteries that do not run flat alone
and whose properties, specifications and size correspond to the standard
battery. The specifications are indicated on the battery case.
WARNING
A highly explosive mixture of gases is released when the battery is under
charge.
xThe batteries should be charged in a well-ventilated room only.
xNever charge a frozen or recently thawed battery. A flat battery can
freeze at temperatures around 0°C (+32 °F).

Wheels and tyres323
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

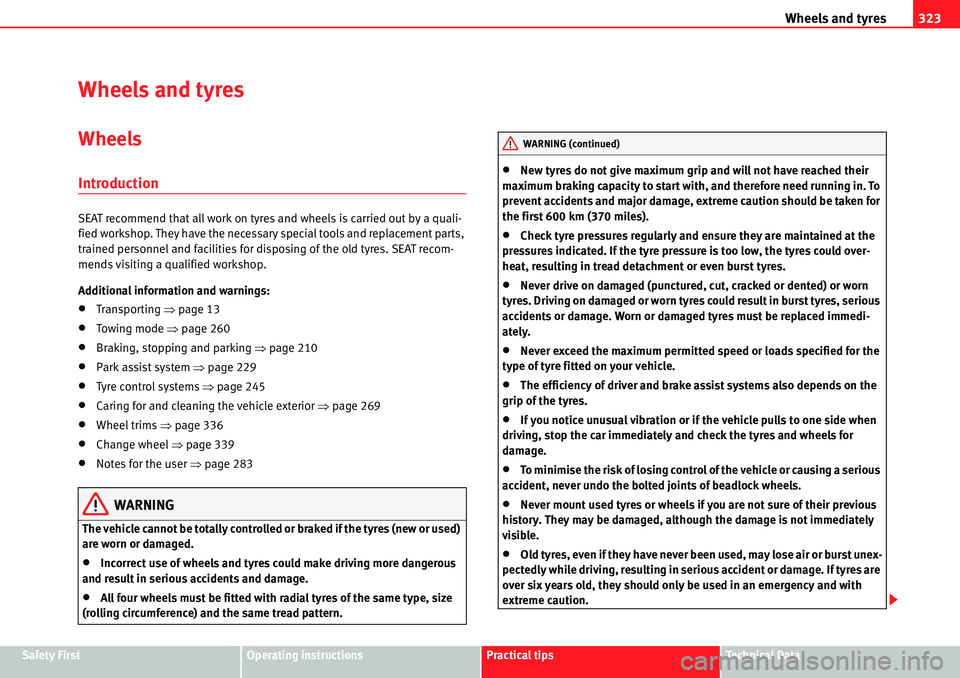

Wheels and tyres
Wheels
Introduction
SEAT recommend that all work on tyres and wheels is carried out by a quali-
fied workshop. They have the necessary special tools and replacement parts,
trained personnel and facilities for disposing of the old tyres. SEAT recom-
mends visiting a qualified workshop.
Additional information and warnings:
xTransporting Ÿpage 13
xTo wi ng m o d e Ÿpage 260
xBraking, stopping and parking Ÿpage 210
xPark assist system Ÿpage 229
xTyre control systems Ÿpage 245
xCaring for and cleaning the vehicle exterior Ÿpage 269
xWheel trims Ÿpage 336
xChange wheel Ÿpage 339
xNotes for the user Ÿpage 283
WARNING
The vehicle cannot be totally controlled or braked if the tyres (new or used)
are worn or damaged.
xIncorrect use of wheels and tyres could make driving more dangerous
and result in serious accidents and damage.
xAll four wheels must be fitted with radial tyres of the same type, size
(rolling circumference) and the same tread pattern.
xNew tyres do not give maximum grip and will not have reached their
maximum braking capacity to start with, and therefore need running in. To
prevent accidents and major damage, extreme caution should be taken for
the first 600 km (370 miles).
xCheck tyre pressures regularly and ensure they are maintained at the
pressures indicated. If the tyre pressure is too low, the tyres could over-
heat, resulting in tread detachment or even burst tyres.
xNever drive on damaged (punctured, cut, cracked or dented) or worn
tyres. Driving on damaged or worn tyres could result in burst tyres, serious
accidents or damage. Worn or damaged tyres must be replaced immedi-
ately.
xNever exceed the maximum permitted speed or loads specified for the
type of tyre fitted on your vehicle.
xThe efficiency of driver and brake assist systems also depends on the
grip of the tyres.
xIf you notice unusual vibration or if the vehicle pulls to one side when
driving, stop the car immediately and check the tyres and wheels for
damage.
xTo minimise the risk of losing control of the vehicle or causing a serious
accident, never undo the bolted joints of beadlock wheels.
xNever mount used tyres or wheels if you are not sure of their previous
history. They may be damaged, although the damage is not immediately
visible.
xOld tyres, even if they have never been used, may lose air or burst unex-
pectedly while driving, resulting in serious accident or damage. If tyres are
over six years old, they should only be used in an emergency and with
extreme caution.
WARNING (continued)

Wheels and tyres327
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

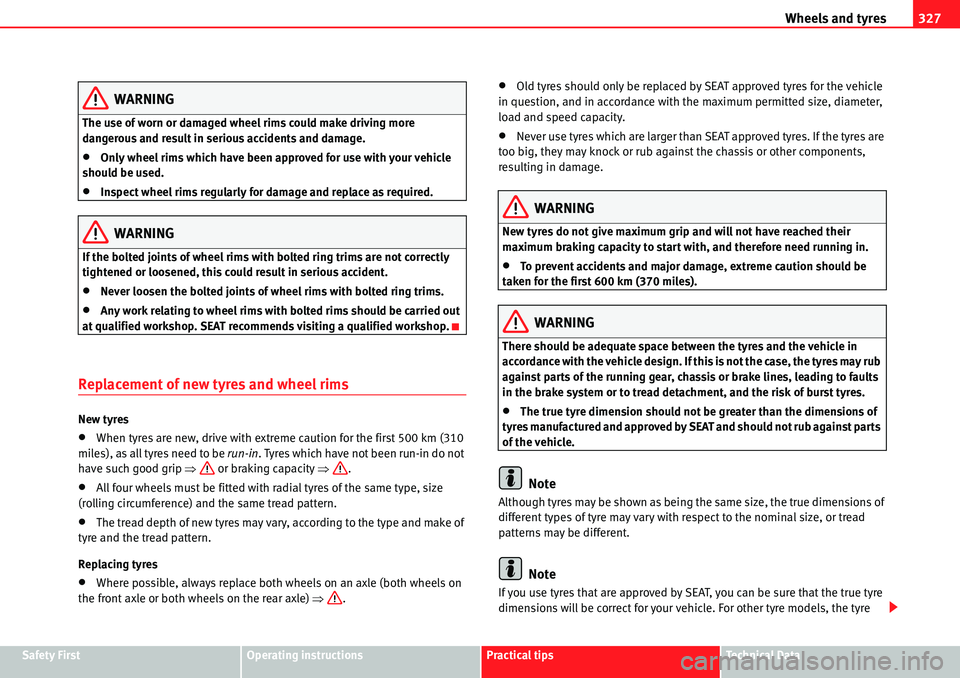

WARNING
The use of worn or damaged wheel rims could make driving more
dangerous and result in serious accidents and damage.
xOnly wheel rims which have been approved for use with your vehicle
should be used.
xInspect wheel rims regularly for damage and replace as required.
WARNING
If the bolted joints of wheel rims with bolted ring trims are not correctly
tightened or loosened, this could result in serious accident.
xNever loosen the bolted joints of wheel rims with bolted ring trims.
xAny work relating to wheel rims with bolted rims should be carried out
at qualified workshop. SEAT recommends visiting a qualified workshop.
Replacement of new tyres and wheel rims
New tyres
xWhen tyres are new, drive with extreme caution for the first 500 km (310
miles), as all tyres need to be run-in. Tyres which have not been run-in do not
have such good grip Ÿ or braking capacity Ÿ.
xAll four wheels must be fitted with radial tyres of the same type, size
(rolling circumference) and the same tread pattern.
xThe tread depth of new tyres may vary, according to the type and make of
tyre and the tread pattern.
Replacing tyres
xWhere possible, always replace both wheels on an axle (both wheels on
the front axle or both wheels on the rear axle) Ÿ.
xOld tyres should only be replaced by SEAT approved tyres for the vehicle
in question, and in accordance with the maximum permitted size, diameter,
load and speed capacity.
xNever use tyres which are larger than SEAT approved tyres. If the tyres are
too big, they may knock or rub against the chassis or other components,
resulting in damage.
WARNING
New tyres do not give maximum grip and will not have reached their
maximum braking capacity to start with, and therefore need running in.
xTo prevent accidents and major damage, extreme caution should be
taken for the first 600 km (370 miles).
WARNING
There should be adequate space between the tyres and the vehicle in
accordance with the vehicle design. If this is not the case, the tyres may rub
against parts of the running gear, chassis or brake lines, leading to faults
in the brake system or to tread detachment, and the risk of burst tyres.
xThe true tyre dimension should not be greater than the dimensions of
tyres manufactured and approved by SEAT and should not rub against parts
of the vehicle.
Note
Although tyres may be shown as being the same size, the true dimensions of
different types of tyre may vary with respect to the nominal size, or tread
patterns may be different.
Note
If you use tyres that are approved by SEAT, you can be sure that the true tyre
dimensions will be correct for your vehicle. For other tyre models, the tyre

Wheels and tyres343
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Raise the vehicle using only the designated jacking points.
Check list
For your own safety and that of other passengers, the following points should
be observed in the order given Ÿ:
1. Select a suitable flat and firm surface for raising the vehicle.
2. Switch off the engine, engage a gear (manual gearbox) or place the
selector lever in position P Ÿpage 201 and turn on the electronic
parking brake Ÿpage 210.
3. When towing a trailer: unhook the trailer from the towing vehicle and
park it correctly.
4. Loosen the wheel bolts on the wheel to be changed Ÿpage 340.
5. Look below the vehicle for the jacking point Ÿpage 342, fig. 192
closest to the tyre which has to be changed.
6. Raise the jack with the handle until it can be inserted below the jacking
point.
7. Ensure that the foot of the jack is firmly on the ground and that it is
placed immediately below the lifting point on the vehicle Ÿpage 342,
fig. 193.
8. Straighten the jack and continue raising it using the handle until the claw
holds the vertical reinforcement beneath the vehicle Ÿpage 342,
fig. 193.
9. Raise the vehicle until the wheel is clear of the ground.
WARNING
If the vehicle is not correctly raised, it could fall off the jack causing serious
injury. Please observe the following rules to minimise the risk of injury:
xYou should only use a jack approved by SEAT for your vehicle. Other
jacks, even those approved for other SEAT models, might slip out of place.
xThe ground should be firm and flat. If the ground is sloped or soft then
the vehicle could slip and fall off the jack. If necessary, support the jack on
a wide solid base.
xIf the ground is slippery (for example, on tiles), place a non-slip surface
(for example a floor mat) beneath the jack to avoid slipping.
xOnly fit the jack at the prescribed jacking points. The claw of the jack
should grip the reinforcement nerve on the underbody Ÿpage 342,
fig. 193.
xYou should never have any limbs beneath a raised vehicle which is only
supported by a jack.
xIf you have to work underneath the vehicle, you must use suitable
stands additionally to support the vehicle, there is a risk of accident!.
xNever raise the vehicle if it is tilting to one side or the engine is running.
xNever start the engine when the vehicle is raised. The vehicle may come
loose from the jack due to the engine vibrations.
WARNING
Failure to follow the checklist prepared for your own safety could lead to
accidents and severe injuries.
xAlways complete the operations given in the checklist and observe the
general rules of safety.
WARNING (continued)

If and when371
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Starting assistance
Introduction
If the engine fails to start because of a discharged battery, the battery of
another vehicle can be used to start the engine. Before starting, check the
magic eye on the battery Ÿpage 318.
For starting assistance, jump lead cables conforming to the standard DIN
72553 are required (see the cable manufacturer instructions). The jump lead
cable must be at least 25 mm
2 in section (0.038 inches2) for petrol engines,
and 35 mm2 (0.054 inches2) for diesel engines.
For vehicles whose battery is not in the engine compartment, the jump leads
should only be connected to the starting assistance connection points in the
engine compartment.
Additional information and warnings:
xStarter assist systems (Start-Stop function) Ÿpage 221
xWorking in the engine compartment Ÿpage 304
xSelective Catalytic Reduction (AdBlue) Ÿpage 300
xVehicle battery Ÿpage 318
WARNING
Incorrect use of jump leads and incorrectly jump starting could cause the
battery to explode resulting in serious injury. Please observe the following
rules to minimise the risk of a battery explosion:
xAll work involving the vehicle battery and electrical system can cause
corrosion, fire and serious electric shocks. Always read and take into
account the safety warnings and standards before beginning work on the
battery Ÿpage 318, “Vehicle battery”.
xThe battery providing current must have the same voltage (12V) and
approximately the same capacity (see markings on battery) as the flat
battery.
xNever charge a frozen or recently thawed battery. A flat battery can
freeze at temperatures around 0°C (+32 °F).
xIf a battery is frozen and/or has been frozen then it must be replaced.
xA highly explosive mixture of gases is released when the battery is
being charged. Always keep lit cigarettes, open flames, sparks and fire far
from the battery. Never use a mobile telephone when connecting and
removing the jump leads.
xCharge the battery only in well ventilated areas given that when the
battery is charged by outside assistance, it creates a mix of highly explo-
sive gases.
xJump leads should never enter into contact with moving parts in the
engine compartment.
xNever switch the positive and negative poles or connect the jump leads
incorrectly.
xNote the instructions provided by the manufacturer of the jump leads.
Caution
To avoid considerable damage to the vehicle electrical system, note the
following carefully:
xIf the jump leads are incorrectly connected, this could result in a short
circuit.
xThe vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
WARNING (continued)

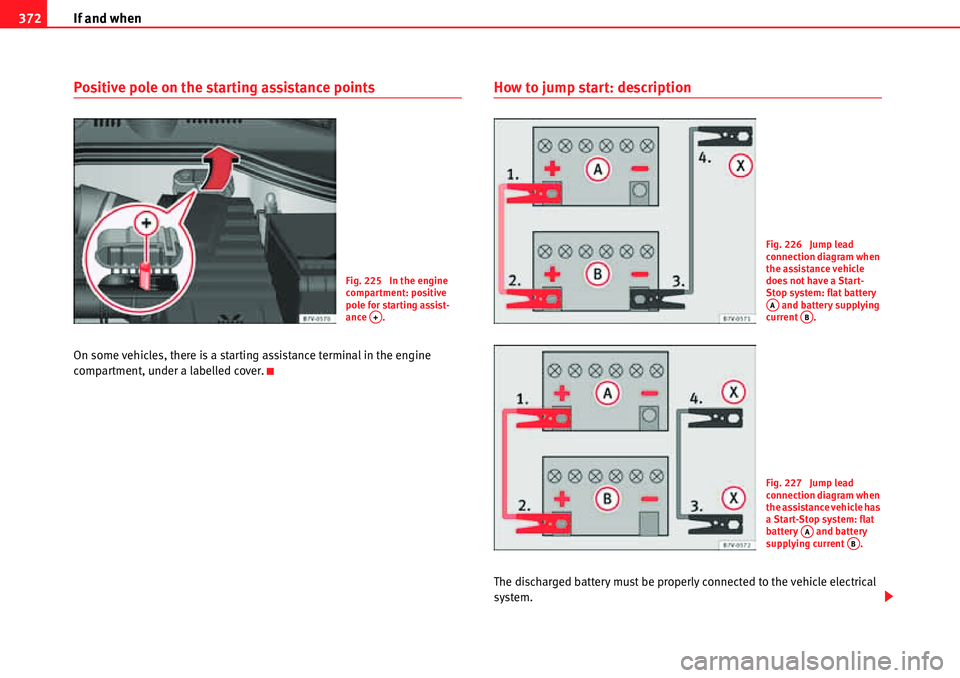

If and when 372
Positive pole on the starting assistance points
On some vehicles, there is a starting assistance terminal in the engine
compartment, under a labelled cover.
How to jump start: description
The discharged battery must be properly connected to the vehicle electrical
system.
Fig. 225 In the engine
compartment: positive
pole for starting assist-
ance .
A+
Fig. 226 Jump lead
connection diagram when
the assistance vehicle
does not have a Start-
Stop system: flat battery
and battery supplying
current .
AAAB
Fig. 227 Jump lead
connection diagram when
the assistance vehicle has
a Start-Stop system: flat
battery and battery
supplying current .
AAAB
