Safe driving 10
Adjusting the seat position
Introduction
Number of seats
Depending on the equipment, your vehicle has a total of five or seven seats.
Each seat is equipped with a seat belt.
Additional information and warnings:
xSeat functions Ÿpage 137
xSeat belts Ÿpage 22
xAirbag system Ÿpage 33
xChild seats (accessories) Ÿpage 42
WARNING
An incorrect sitting position in the vehicle can lead to severe injuries or
death in the event of sudden braking or manoeuvres, collision or accidents
or if the airbag deploys.
xBefore the vehicle moves, assume the proper sitting position and main-
tain it throughout the trip. This also includes fastening the seat belt.
xNever transport more people than there are seats with a seat belt avail-
able in the vehicle.
xChildren must always be protected with an approved child restraint
system suited to their height and weight Ÿpage 42, Ÿpage 33.
xAlways keep your feet in the footwell while the vehicle is in motion.
Never, for example, put your feet on the surface of a seat or on the dash
panel and never put them out of a window. Otherwise the airbag and seat
belt offer insufficient protection and the risk of injury in the event of an
accident is increased.
WARNING
Before every trip, adjust the seat, the seat belt and the head restraints and
instruct your passengers to fasten their seat belts properly.
xMove the front passenger seat back as far as possible.
xAdjust the driver's seat so that there is a distance of at least 25 cm (10
inches) between the centre of your chest and the hub of the steering wheel.
Adjust the driver's seat so that you are able to press the accelerator, brake
and clutch pedals to the floor with your knees slightly angled and that the
distance between your knees and the dash panel is at least 10 cm (4
inches). If you physical constitution prevents you from meeting these
requirements, contact a qualified workshop to make any modifications
required.
xNever drive with the backrest tilted far back. The further the backrests
are tilted to the rear, the greater the risk of injury due to incorrect posi-
tioning of the belt web or to the incorrect sitting position.
xNever drive with the backrest tilted forwards. Should a front airbag
deploy, it could throw the backrest backwards and injure the passengers of
the rear seats.
xSit as far away as possible from the steering wheel and the dash panel.
xKeep your back straight and resting completely against the backrest
and the front seats correctly adjusted. Never place any part of your body in
the area of the airbag or very close to it.
EquipmentSeats in the
frontSeats in the
second rowSeats in the
third row
5 seats23–
6 seats222
7 seats232
WARNING (continued)

Safe driving 12
Correct sitting position
The correct sitting positions for the driver and passengers are shown below.If you physical constitution prevents you from maintaining the correct sitting
position, contact a qualified workshop for help with any special devices. The
seat belt and airbag can only provide optimum protection if a correct sitting
position is adopted. SEAT recommends visiting a qualified workshop.
For your own safety and to reduce the risk of injury in the event of an accident
or sudden braking or manoeuvre, SEAT recommend the following positions:
Valid for all vehicle occupants:
xAdjust the head restraint so that its upper edge is at the same level as the
top of your head, or as close as possible to the same level as the top of your
head and under no circumstances below eye level. Keep the back of your neck
as close as possible to the head restraint Ÿfig. 1 and Ÿfig. 2.
xShort people must lower the head restraint completely, even if your head
is below its upper edge.
xTall people must raise the head restraint completely.
xAdjust the backrest to an upright position so that your back rests
completely against it.
xAlways keep your feet in the footwell while the vehicle is in motion.
xAdjust and fasten your seat belt correctly Ÿpage 22.
Also valid for the driver:
xAdjust the steering wheel so that there is a distance of at least 25 cm (10
inches) between it and your chest Ÿfig. 1 and so that you can hold the
steering wheel with both hands on the outside of the ring at the 9 o'clock and
3 o'clock positions with your arms slightly bent.
xThe adjusted steering wheel must face your chest and not your face.
xAdjust the driver's seat forwards or backwards so that you are able to
press the accelerator, brake and clutch pedals to the floor with your knees
slightly angled and the distance between your knees and the dash panel is at
least 10 cm (4 inches) Ÿfig. 1.
xAdjust the height of the driver's seat so that you can easily reach the top
of the steering wheel.
Fig. 1 The correct
distance between the
driver and the steering
wheel must be at least 25
cm (10 inches).
Fig. 2 Correct belt web
and head restraint posi-
tions.

Safe driving 14
xBrake early.
Transporting a load
Secure all objects in the vehicle
xDistribute the load throughout the vehicle, on the roof and in a trailer as
uniformly as possible.
xTransport heavy objects as far forward as possible in the luggage
compartment and lock the seat backs in the vertical position.
xSecure luggage in the luggage compartment with suitable straps on the
fastening rings Ÿpage 146.
xCheck the headlight adjustment Ÿpage 113.
xUse the suitable tyre pressure according to the load being transported.
Read the tire inflation information label Ÿpage 323.
xFor vehicles with a tire pressure indicator, change the vehicle load status
Ÿpage 245.
Caution
Objects on the shelf could chafe against the wires of the heating element in
the rear window and cause damage.
Note
Please note the information about loading a trailer Ÿpage 260 and the roof
carrier system Ÿpage 159.
Driving with the tailgate open
Driving with the tailgate open creates an additional risk. Secure all objects
and secure the tailgate correctly and take all measures possible to reduce
toxic gases from entering the vehicle.
WARNING
Driving with the tailgate unlocked or open could cause serious injuries.
xAlways drive with the tailgate closed.
xSecure all objects in the vehicle. Loose items could fall out of the
vehicle and injure other road users or damage other vehicles.
xDrive particularly carefully and think ahead.
xAvoid sudden manoeuvres and braking given that this could cause an
uncontrolled movement of the open tailgate.
xWhen transporting objects that protrude out of the luggage compart-
ment, indicate them suitably. Observe legal requirements.
xIf objects must project out of the luggage compartment, the tailgate
must never be used to “secure” or “attach” objects.
xIf a baggage rack is fitted on the tailgate, it should be removed before
travelling with the tailgate open.
WARNING
Toxic gases may enter the vehicle interior when the tailgate is open. This
could cause loss of consciousness, carbon monoxide poisoning, serious
injury and accidents.
xTo avoid toxic gases entering the vehicle always drive with the tailgate
closed.
xIn exceptional circumstances, if you must drive with the tailgate open,
observe the following to reduce the entry of toxic gases inside the vehicle:
Close all windows and the sliding roof.
WARNING (continued)

Cockpit 60
Radio or navigation system (fitted at factory) ŸBooklet
“Radio” or ŸBooklet “Navigation system”
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning lights switch  . . . . . . . . . . . . . . . . . . . . . . .
Switches for:
Climatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Right seat heating controls A . . . . . . . . . . . . . . . . . . . . . . . . .
Button for:
Anti-slip regulation (ASR) « /&&. . . . . . . . . . . . . . . . . . . . . .
Start/stop operation › . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking distance warning system (Park Pilot) '. . . . . . . .
Parking aid system (Park Assist) i . . . . . . . . . . . . . . . . . .
Tyre pressure monitor ~ 3%4 . . . . . . . . . . . . . . . . . . . . . . . .
Running gear dynamic control (DCC) #/-&/24 – Q – 30/24 . .
Opening the tailgate ˜. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening and closing of electric sliding doors ¼ . . . . . . .
Locking lever to open glove compartment . . . . . . . . . . . . . . .
Position of passenger front airbag on the instrument panel .
Key-operated switch in glove box for deactivating front
passenger's airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passenger front airbag off warning lamp . . . . . . . . . . . . . . . .
Lever for:
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 Volt socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Hold Switch !54/-(/,$. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electronic parking brake switch G . . . . . . . . . . . . . . . . . . . . .
Starter button (with KESSY starter and close system) . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering column adjustment lever . . . . . . . . . . . . . . . . . . . . .
Fuse box cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lever for:
Cruise control system (GRA) /&& – #!.#%, – /. – 2%35-% /
-30%%$- / -3%4- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Open bonnet lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls for:
Electric windows
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Childproof locks r. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note
xSome of the items of equipment listed here are fitted only on certain
models/model years or are optional extras.
xIn versions with the steering wheel on the right, the layout of the control
elements is somewhat different. But the symbols assigned to the controls
correspond to the symbols used in the versions with the steering wheel on
the left
A13
A14162
A15345
A16
179
179
A17137
A18
210
221
225
229
245
243
97
92
A19162
A2033
A2133
A2233
A23
201
201
A24175
A25221
A26210
A27195
A28195
A29201A3010
A31356
A32
239
A33304
A34
102
92

Cockpit61
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Instrument panel
Control and warning lamps

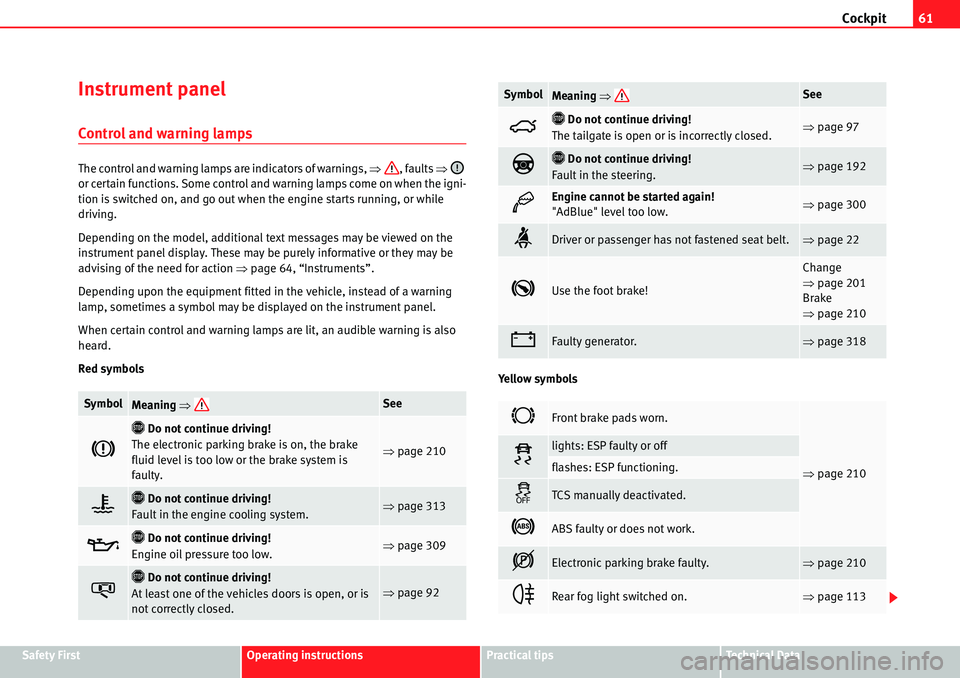

The control and warning lamps are indicators of warnings, Ÿ, faults Ÿ
or certain functions. Some control and warning lamps come on when the igni-
tion is switched on, and go out when the engine starts running, or while
driving.
Depending on the model, additional text messages may be viewed on the
instrument panel display. These may be purely informative or they may be
advising of the need for action Ÿpage 64, “Instruments”.
Depending upon the equipment fitted in the vehicle, instead of a warning
lamp, sometimes a symbol may be displayed on the instrument panel.
When certain control and warning lamps are lit, an audible warning is also
heard.
Red symbols
Yellow symbols
SymbolMeaning ŸSee
H
› Do not continue driving!
The electronic parking brake is on, the brake
fluid level is too low or the brake system is
faulty.
Ÿpage 210
v› Do not continue driving!
Fault in the engine cooling system.Ÿpage 313
E› Do not continue driving!
Engine oil pressure too low.Ÿpage 309
o
› Do not continue driving!
At least one of the vehicles doors is open, or is
not correctly closed.Ÿpage 92
˜› Do not continue driving!
The tailgate is open or is incorrectly closed.Ÿpage 97
D› Do not continue driving!
Fault in the steering.Ÿpage 192
bEngine cannot be started again!
"AdBlue" level too low.Ÿpage 300
hDriver or passenger has not fastened seat belt.Ÿpage 22
KUse the foot brake!
Change
Ÿpage 201
Brake
Ÿpage 210
FFaulty generator.Ÿpage 318
IFront brake pads worn.
Ÿpage 210«lights: ESP faulty or off
flashes: ESP functioning.
lTCS manually deactivated.
JABS faulty or does not work.
Electronic parking brake faulty.Ÿpage 210

Rear fog light switched on.Ÿpage 113
SymbolMeaning ŸSee

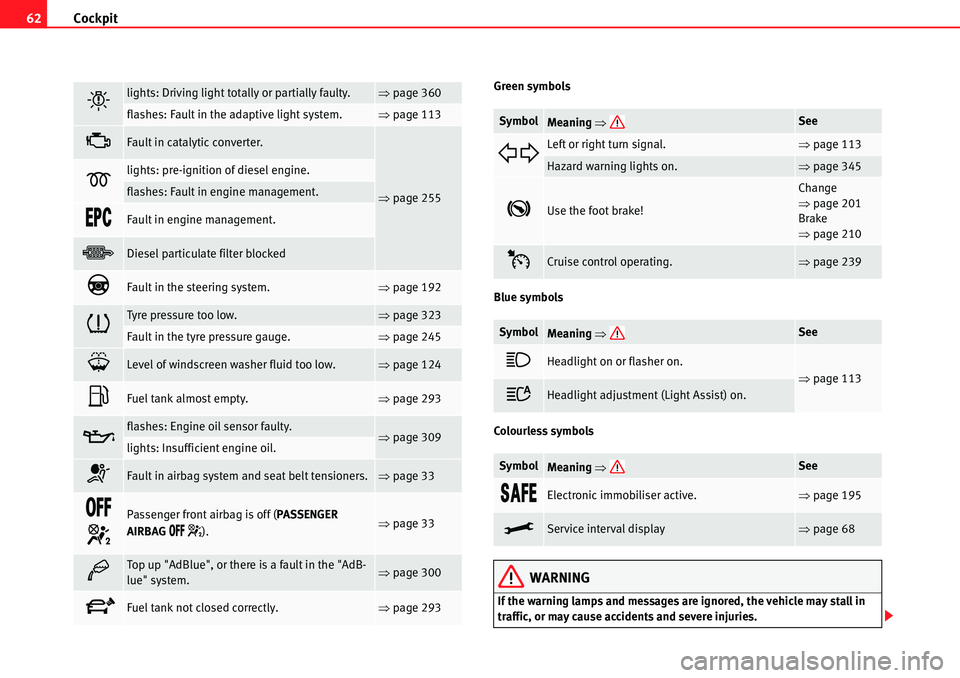

Cockpit 62
Green symbols
Blue symbols
Colourless symbols
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
lights: Driving light totally or partially faulty.Ÿpage 360
flashes: Fault in the adaptive light system.Ÿpage 113
BFault in catalytic converter.
Ÿpage 255Dlights: pre-ignition of diesel engine.
flashes: Fault in engine management.
%0#Fault in engine management.
¬Diesel particulate filter blocked
DFault in the steering system.Ÿpage 192
~Tyre pressure too low.Ÿpage 323
Fault in the tyre pressure gauge.Ÿpage 245
YLevel of windscreen washer fluid too low.Ÿpage 124
Fuel tank almost empty.Ÿpage 293
Eflashes: Engine oil sensor faulty.Ÿpage 309lights: Insufficient engine oil.
TFault in airbag system and seat belt tensioners.Ÿpage 33
/&&

Passenger front airbag is off (PASSENGER
AIRBAG
/&& ).Ÿpage 33
bTop up "AdBlue", or there is a fault in the "AdB-
lue" system.Ÿpage 300
§Fuel tank not closed correctly.Ÿpage 293
SymbolMeaning ŸSee

Left or right turn signal.Ÿpage 113
Hazard warning lights on.Ÿpage 345
KUse the foot brake!
Change
Ÿpage 201
Brake
Ÿpage 210
%Cruise control operating.Ÿpage 239
SymbolMeaning ŸSee
Headlight on or flasher on.
Ÿpage 113
+Headlight adjustment (Light Assist) on.
SymbolMeaning ŸSee
3!&%Electronic immobiliser active.Ÿpage 195
>Service interval displayŸpage 68

Lights and visibility 132

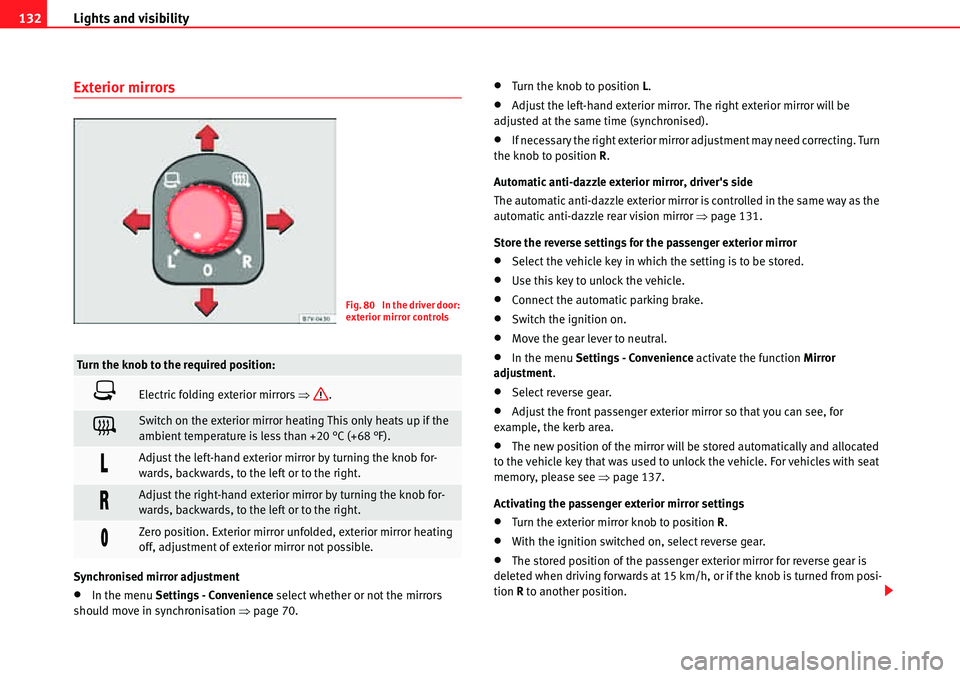

Exterior mirrors
Synchronised mirror adjustment
xIn the menu Settings - Convenience select whether or not the mirrors
should move in synchronisation Ÿpage 70.
xTurn the knob to position L.
xAdjust the left-hand exterior mirror. The right exterior mirror will be
adjusted at the same time (synchronised).
xIf necessary the right exterior mirror adjustment may need correcting. Turn
the knob to position R.
Automatic anti-dazzle exterior mirror, driver's side
The automatic anti-dazzle exterior mirror is controlled in the same way as the
automatic anti-dazzle rear vision mirror Ÿpage 131.
Store the reverse settings for the passenger exterior mirror
xSelect the vehicle key in which the setting is to be stored.
xUse this key to unlock the vehicle.
xConnect the automatic parking brake.
xSwitch the ignition on.
xMove the gear lever to neutral.
xIn the menu Settings - Convenience activate the function Mirror
adjustment.
xSelect reverse gear.
xAdjust the front passenger exterior mirror so that you can see, for
example, the kerb area.
xThe new position of the mirror will be stored automatically and allocated
to the vehicle key that was used to unlock the vehicle. For vehicles with seat
memory, please see Ÿpage 137.
Activating the passenger exterior mirror settings
xTurn the exterior mirror knob to position R.
xWith the ignition switched on, select reverse gear.
xThe stored position of the passenger exterior mirror for reverse gear is
deleted when driving forwards at 15 km/h, or if the knob is turned from posi-
tion R to another position.
Turn the knob to the required position:
#Electric folding exterior mirrors Ÿ.
?Switch on the exterior mirror heating This only heats up if the
ambient temperature is less than +20 °C (+68 °F).
,Adjust the left-hand exterior mirror by turning the knob for-
wards, backwards, to the left or to the right.
2Adjust the right-hand exterior mirror by turning the knob for-
wards, backwards, to the left or to the right.
Zero position. Exterior mirror unfolded, exterior mirror heating
off, adjustment of exterior mirror not possible.
Fig. 80 In the driver door:
exterior mirror controls

Driving 198
WARNING
Careless or incorrect use of vehicle keys may result in severe injury and
accident.
xAlways take all the keys with you whenever you leave the vehicle. Chil-
dren and other unauthorised persons could lock the vehicle, start the engine or switch on the ignition and any electrical components such as the
electric windows.
Note
In vehicles with a diesel engine and KESSY, the starting of the engine may be
delayed due to pre-heating of the engine.

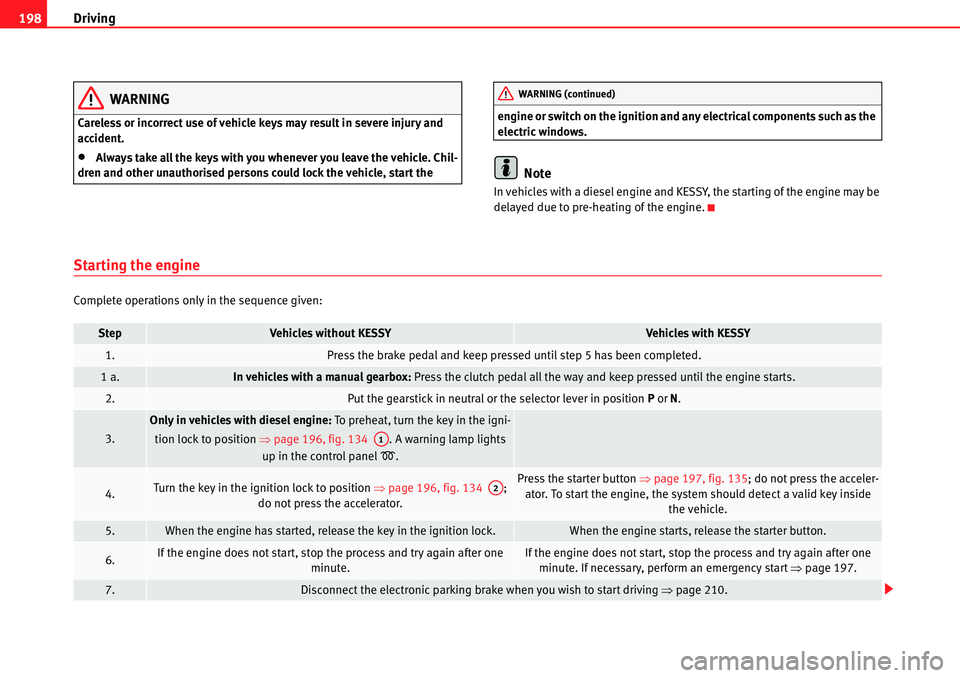

Starting the engine
Complete operations only in the sequence given:
WARNING (continued)
StepVehicles without KESSYVehicles wi th KESSY
1.Press the brake pedal and keep pressed until step 5 has been completed.
1 a.In vehicles with a manual gearbox: Press the clutch pedal all the way and keep pressed until the engine starts.
2.Put the gearstick in neutral or the selector lever in position P or N.
3.
Only in vehicles with diesel engine: To preheat, turn the key in the igni-
tion lock to position Ÿpage 196, fig. 134 . A warning lamp lights
up in the control panel
D.
4.Turn the key in the ignition lock to position Ÿpage 196, fig. 134 ;
do not press the accelerator.Press the starter button Ÿpage 197, fig. 135; do not press the acceler-
ator. To start the engine, the system should detect a valid key inside
the vehicle.
5.When the engine has started, release the key in the ignition lock.When the engine starts, release the starter button.
6.If the engine does not start, stop the process and try again after one
minute.If the engine does not start, stop the process and try again after one
minute. If necessary, perform an emergency start Ÿpage 197.
7.Disconnect the electronic parking brake when you wish to start driving Ÿpage 210.
A1
A2

Driving201
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

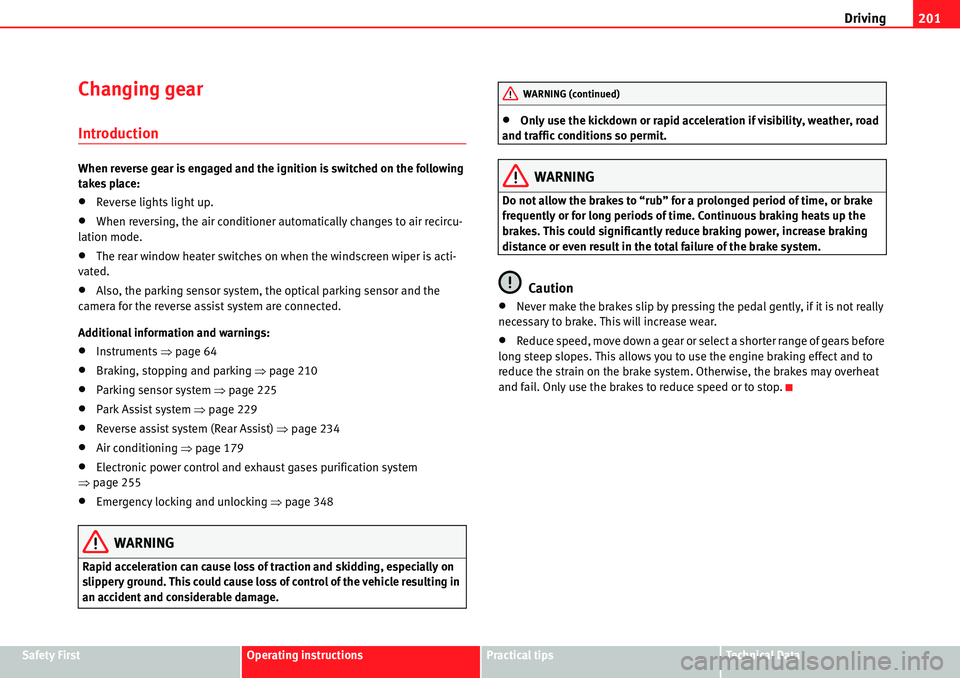

Changing gear
Introduction
When reverse gear is engaged and the ignition is switched on the following
takes place:
xReverse lights light up.
xWhen reversing, the air conditioner automatically changes to air recircu-
lation mode.
xThe rear window heater switches on when the windscreen wiper is acti-
vated.
xAlso, the parking sensor system, the optical parking sensor and the
camera for the reverse assist system are connected.
Additional information and warnings:
xInstruments Ÿpage 64
xBraking, stopping and parking Ÿpage 210
xParking sensor system Ÿpage 225
xPark Assist system Ÿpage 229
xReverse assist system (Rear Assist) Ÿpage 234
xAir conditioning Ÿpage 179
xElectronic power control and exhaust gases purification system
Ÿpage 255
xEmergency locking and unlocking Ÿpage 348
WARNING
Rapid acceleration can cause loss of traction and skidding, especially on
slippery ground. This could cause loss of control of the vehicle resulting in
an accident and considerable damage.
xOnly use the kickdown or rapid acceleration if visibility, weather, road
and traffic conditions so permit.
WARNING
Do not allow the brakes to “rub” for a prolonged period of time, or brake
frequently or for long periods of time. Continuous braking heats up the
brakes. This could significantly reduce braking power, increase braking
distance or even result in the total failure of the brake system.
Caution
xNever make the brakes slip by pressing the pedal gently, if it is not really
necessary to brake. This will increase wear.
xReduce speed, move down a gear or select a shorter range of gears before
long steep slopes. This allows you to use the engine braking effect and to
reduce the strain on the brake system. Otherwise, the brakes may overheat
and fail. Only use the brakes to reduce speed or to stop.
WARNING (continued)

Driving 202

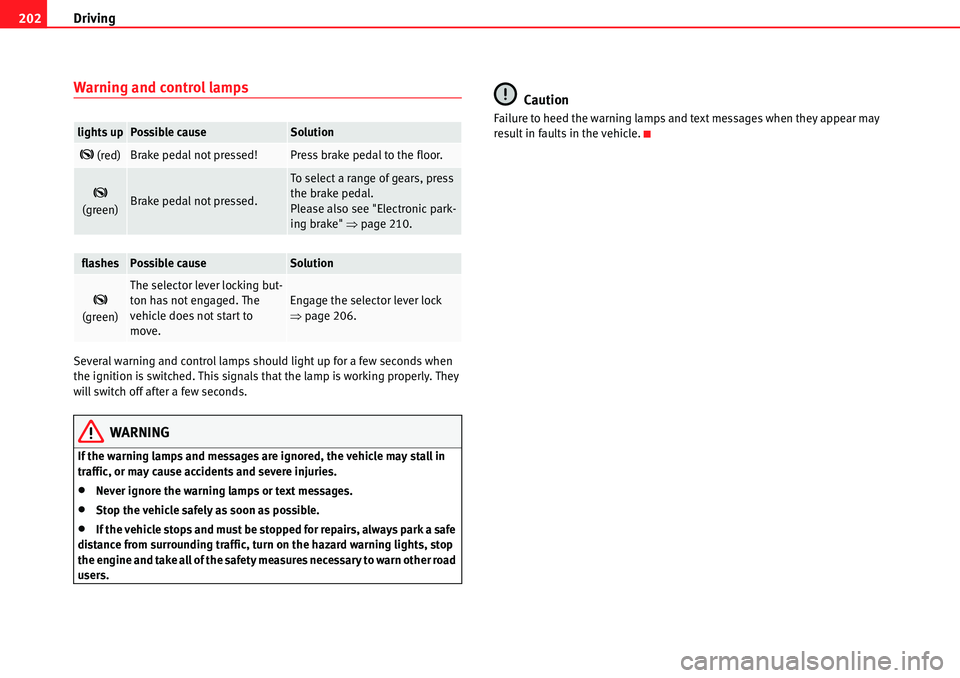

Warning and control lamps
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
xIf the vehicle stops and must be stopped for repairs, always park a safe
distance from surrounding traffic, turn on the hazard warning lights, stop
the engine and take all of the safety measures necessary to warn other road
users.
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.lights upPossible causeSolution
K (red)Brake pedal not pressed!Press brake pedal to the floor.
K
(green)Brake pedal not pressed.
To select a range of gears, press
the brake pedal.
Please also see "Electronic park-
ing brake" Ÿpage 210.
flashesPossible causeSolution
K
(green)The selector lever locking but-
ton has not engaged. The
vehicle does not start to
move.Engage the selector lever lock
Ÿpage 206.
