Cockpit 66
Mileage
The odometer registers the total distance travelled by the car.
The trip recorder (trip) shows the distance travelled since the last trip recorder
reset. The last digit of the trip recorder indicates distances of 100 metres or
tenths of a mile.
Outside temperature display
When the outside temperature is below +4 °C (+39 °F), the symbol “ice
crystal” (warning of risk of freezing) is also displayed next to the temperature.
At first this symbol flashes and then it remains lit until the outside tempera-
ture rises above +6 °C (+43 °F) Ÿ.
When the vehicle is at a standstill, with the parking heating on (Ÿpage 187),
or when travelling at very low speeds, the temperature displayed may be higher than the true outside temperature, as a result of the heat produced by
the engine.
The temperatures measured range from -40 °C to +50 °C (-40 °F to +122 °F).
Compass
With the ignition on and the navigation system on, the cardinal point corre-
sponding to the vehicle's direction of travel is displayed on the instrument
panel Ÿpage 67.
Selector lever positions
The range of engaged gears of the selector lever is shown on the side of the
lever, and on the instrument panel display. In positions D and S, and with the
Tiptronic, the corresponding gear is also displayed.
Recommended gear (manual gearbox)
The recommended gear to save fuel is displayed on the instrument panel
while you are driving Ÿpage 201.
Second speed display (mph or km/h)
In addition to the speedometer, the speed can also be displayed in a different
unit of measurement (in miles or in km per hour). To change the units, in the
Settings menu, select the option Second speed Ÿpage 70.
Vehicles without menu display on the instrument panel
xSwitch on the engine.
xPress button three times. The odometer display flashes on the instru-
ment panel display.
xPress button once. “mph” or “km/h” is displayed briefly instead
of the odometer.
xThis activates the second speed display. To switch it off, repeat the proce-
dure.
This option cannot be disconnected in models destined for countries in which
the second speed must always be visible.
Type of mes-
sageSymbol
colourMeanings
Priority 1
warning.Red
Symbol flashing or lit; partly combined with
audible warnings.
› Stop the vehicle! It is dangerous Ÿ!
Check the function which is faulty and repair.
If necessary, request assistance from special-
ised personnel.
Priority 2
warning.Yellow
Symbol flashing or lit; partly combined with
audible warnings.
A faulty function, or fluids which are below the
correct levels may cause damage to the vehi-
cle! Ÿ
Check the faulty function as soon as possible.
If necessary, request assistance from special-
ised personnel.
Informative
text.–Information relating to different vehicle proc-
esses.
¡
0.0 / SET

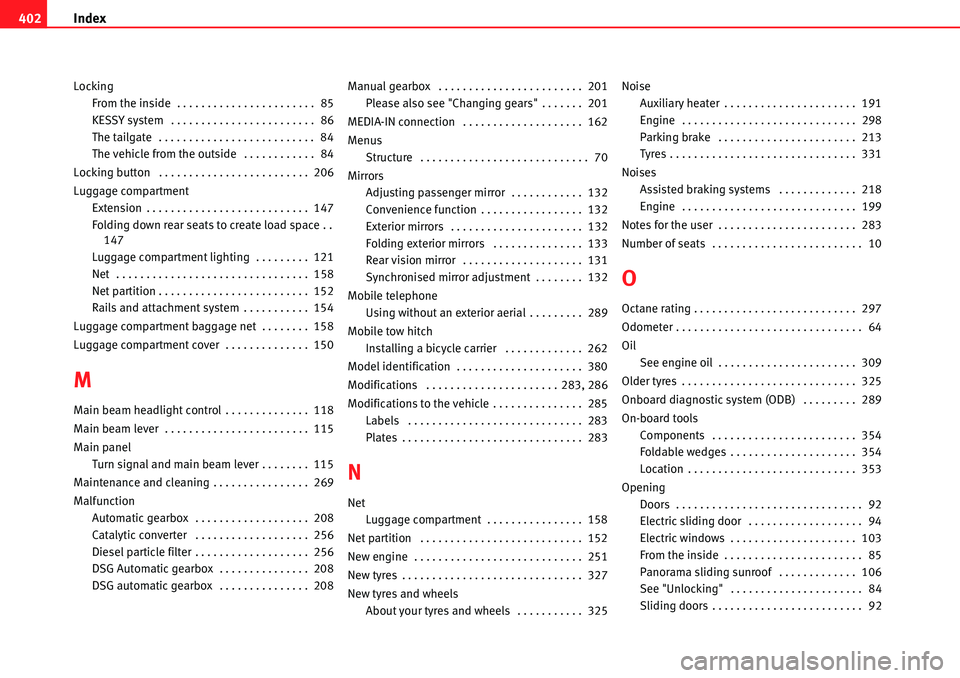

Index 402
Locking
From the inside . . . . . . . . . . . . . . . . . . . . . . . 85
KESSY system . . . . . . . . . . . . . . . . . . . . . . . . 86
The tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 84
The vehicle from the outside . . . . . . . . . . . . 84
Locking button . . . . . . . . . . . . . . . . . . . . . . . . . 206
Luggage compartment
Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Folding down rear seats to create load space . .
147
Luggage compartment lighting . . . . . . . . . 121
Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Net partition . . . . . . . . . . . . . . . . . . . . . . . . . 152
Rails and attachment system . . . . . . . . . . . 154
Luggage compartment baggage net . . . . . . . . 158
Luggage compartment cover . . . . . . . . . . . . . . 150
M
Main beam headlight control . . . . . . . . . . . . . . 118
Main beam lever . . . . . . . . . . . . . . . . . . . . . . . . 115
Main panel
Turn signal and main beam lever . . . . . . . . 115
Maintenance and cleaning . . . . . . . . . . . . . . . . 269
Malfunction
Automatic gearbox . . . . . . . . . . . . . . . . . . . 208
Catalytic converter . . . . . . . . . . . . . . . . . . . 256
Diesel particle filter . . . . . . . . . . . . . . . . . . . 256
DSG Automatic gearbox . . . . . . . . . . . . . . . 208
DSG automatic gearbox . . . . . . . . . . . . . . . 208Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 201
Please also see "Changing gears" . . . . . . . 201
MEDIA-IN connection . . . . . . . . . . . . . . . . . . . . 162
Menus
Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Mirrors
Adjusting passenger mirror . . . . . . . . . . . . 132
Convenience function . . . . . . . . . . . . . . . . . 132
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 132
Folding exterior mirrors . . . . . . . . . . . . . . . 133
Rear vision mirror . . . . . . . . . . . . . . . . . . . . 131
Synchronised mirror adjustment . . . . . . . . 132
Mobile telephone
Using without an exterior aerial . . . . . . . . . 289
Mobile tow hitch
Installing a bicycle carrier . . . . . . . . . . . . . 262
Model identification . . . . . . . . . . . . . . . . . . . . . 380
Modifications . . . . . . . . . . . . . . . . . . . . . . 283, 286
Modifications to the vehicle . . . . . . . . . . . . . . . 285
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
N
Net
Luggage compartment . . . . . . . . . . . . . . . . 158
Net partition . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
New engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
New tyres and wheels
About your tyres and wheels . . . . . . . . . . . 325Noise
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . . 191
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Parking brake . . . . . . . . . . . . . . . . . . . . . . . 213
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Noises
Assisted braking systems . . . . . . . . . . . . . 218
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Notes for the user . . . . . . . . . . . . . . . . . . . . . . . 283
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 10
O
Octane rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Oil
See engine oil . . . . . . . . . . . . . . . . . . . . . . . 309
Older tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Onboard diagnostic system (ODB) . . . . . . . . . 289
On-board tools
Components . . . . . . . . . . . . . . . . . . . . . . . . 354
Foldable wedges . . . . . . . . . . . . . . . . . . . . . 354
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Opening
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Electric sliding door . . . . . . . . . . . . . . . . . . . 94
Electric windows . . . . . . . . . . . . . . . . . . . . . 103
From the inside . . . . . . . . . . . . . . . . . . . . . . . 85
Panorama sliding sunroof . . . . . . . . . . . . . 106
See "Unlocking" . . . . . . . . . . . . . . . . . . . . . . 84
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . . 92
