fuse box Seat Alhambra 2011 Owner's Manual

54

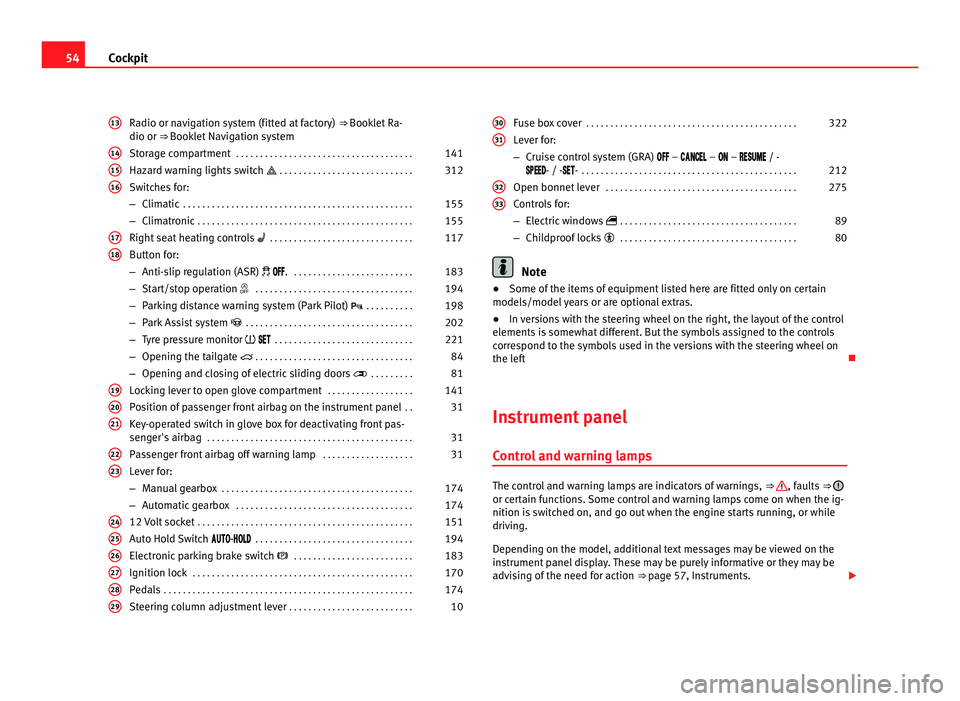

Cockpit
Radio or navigation system (fitted at factory) ⇒ Booklet Ra-
dio or ⇒ Booklet Navigation system
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Hazard warning lights switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Switches for:
– Climatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
– C

limatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Right se
at heating controls  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Button for:
– Anti-slip r

egulation (ASR)  . . . . . . . . . . . . . . . . . . . . . . . . . . 183
– Start/stop operation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
– Parking distance warning system (Park Pilot)  . . . . . . . . . . 198
– Park Assist system  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
– Tyre pressure monitor  
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
– Opening the tailgate  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
– Opening and closing of electric sliding doors  . . . . . . . . . 81
Loc
king lever to open glove compartment . . . . . . . . . . . . . . . . . .141
Position of passenger front airbag on the instrument panel . .31
Key-operated switch in glove box for deactivating front pas-
senger's
airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Passenger front airbag off warning lamp . . . . . . . . . . . . . . . . . . .31
Lever for:
– Manual g

earbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
– Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
12 V
olt socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Auto Hold Switch - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Electr
onic parking brake switch  . . . . . . . . . . . . . . . . . . . . . . . . . 183
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Steering column adjustment lever . . . . . . . . . . . . . . . . . . . . . . . . . . 10
13 14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29 Fuse box cover
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Lever for:
– Crui se c

ontrol system (GRA)  –  –  –  / -
- / -- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Open bonnet lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Controls for:
– Electric w

indows  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
– Childproof locks  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Note
● Some of the items of equipment listed here are fitted only on certain
model s/model

years or are optional extras.
● In versions with the steering wheel on the right, the layout of the control
elements i
s somewhat different. But the symbols assigned to the controls
correspond to the symbols used in the versions with the steering wheel on
the left 
Instrument panel Contro
l and warning lamps The control and warning lamps are indicators of warnings,
⇒  , faults
⇒  or certain functions. Some control and warning lamps come on when the ig-
nition is
sw

itched on, and go out when the engine starts running, or while
driving.
Depending on the model, additional text messages may be viewed on the
instrument panel display. These may be purely informative or they may be
advising of the need for action ⇒ page 57, Instruments. 
30 31
32
33

322
If and when

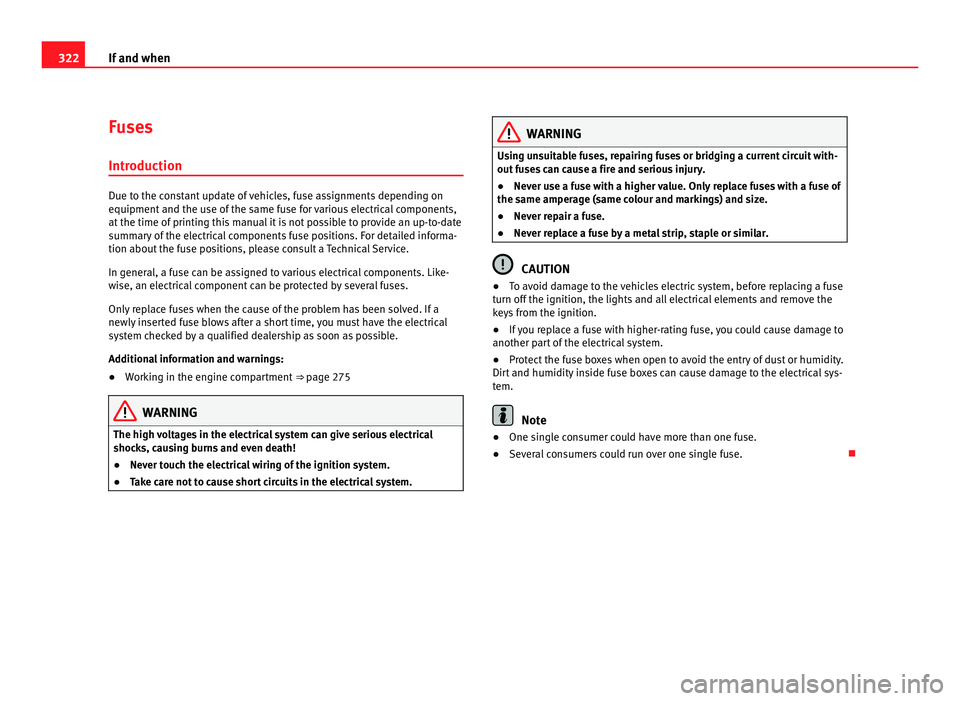

Fuses
Introduction Due to the constant update of vehicles, fuse assignments depending on
equipment and the u
se of
the same fuse for various electrical components,
at the time of printing this manual it is not possible to provide an up-to-date
summary of the electrical components fuse positions. For detailed informa-
tion about the fuse positions, please consult a Technical Service.
In general, a fuse can be assigned to various electrical components. Like-
wise, an electrical component can be protected by several fuses.
Only replace fuses when the cause of the problem has been solved. If a
newly inserted fuse blows after a short time, you must have the electrical
system checked by a qualified dealership as soon as possible.
Additional information and warnings:
● Working in the engine compartment ⇒ page 275WARNING
The high voltages in the electrical system can give serious electrical
shock s, c

ausing burns and even death!
● Never touch the electrical wiring of the ignition system.
● Take care not to cause short circuits in the electrical system. WARNING
Using unsuitable fuses, repairing fuses or bridging a current circuit with-
out f u

ses can cause a fire and serious injury.
● Never use a fuse with a higher value. Only replace fuses with a fuse of
the same amperag
e (same colour and markings) and size.
● Never repair a fuse.
● Never replace a fuse by a metal strip, staple or similar. CAUTION
● To avoid damage to the vehicles electric system, before replacing a fuse
t urn off

the ignition, the lights and all electrical elements and remove the
keys from the ignition.
● If you replace a fuse with higher-rating fuse, you could cause damage to
another part
of the electrical system.
● Protect the fuse boxes when open to avoid the entry of dust or humidity.
Dirt and humidity
inside fuse boxes can cause damage to the electrical sys-
tem. Note
● One single consumer could have more than one fuse.
● Sev er

al consumers could run over one single fuse. 

323
If and when

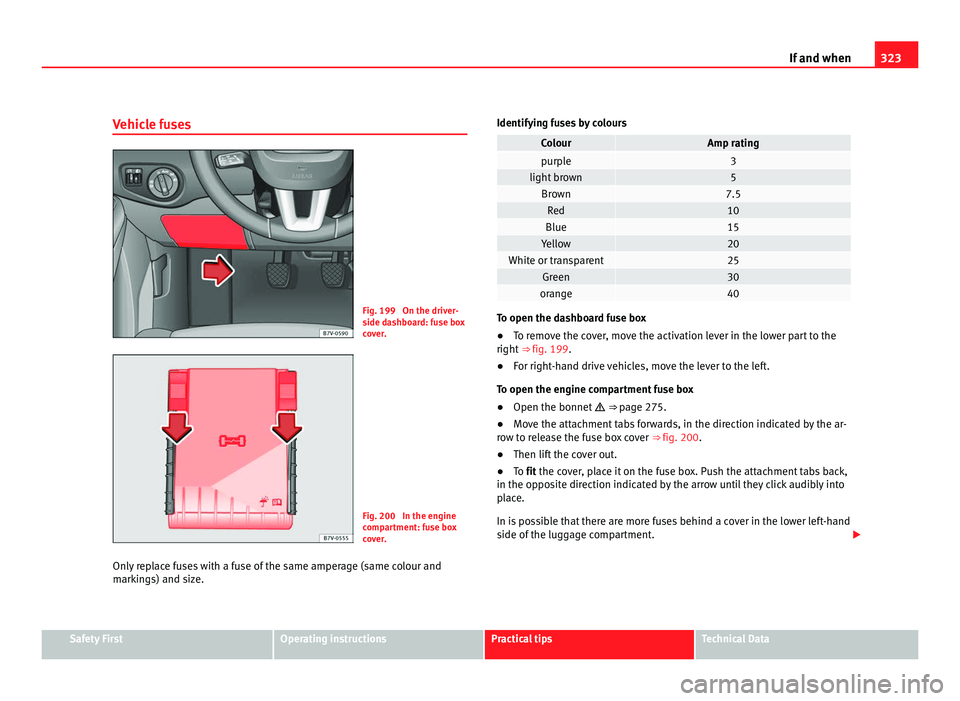

Vehicle fuses Fig. 199 On the driver-
side d
a
shboard: fuse box
cover. Fig. 200 In the engine
comp
ar

tment: fuse box
cover.
Only replace fuses with a fuse of the same amperage (same colour and
markin
gs) and size. Identifying fuses by colours Colour Amp rating
purple 3
light brown 5
Brown 7.5
Red 10
Blue 15
Yellow 20
White or transparent 25
Green 30
orange 40
To open the dashboard fuse box
●
To remove the cover, move the activation lever in the lower part to the
right ⇒ fig. 199 .
● F

or right-hand drive vehicles, move the lever to the left.
To open the engine c
ompartment fuse box
● Open the bonnet  ⇒ pag
e 275.
● Move the attachment tabs forwards, in the direction indicated by the ar-
row t
o release the fuse box cover ⇒ fig. 200.
● Then lift the cover out.
● To fit the cover, place it on the fuse box. Push the attachment tabs back,
in the oppo
site direction indicated by the arrow until they click audibly into
place.
In is possible that there are more fuses behind a cover in the lower left-hand
side of the luggage compartment. Safety First Operating instructions Practical tips Technical Data

324
If and when CAUTION
● Always carefully remove the fuse box covers and refit them correctly to
av oid pr
oblems with your vehicle.
● Protect the fuse boxes when open to avoid the entry of dust or humidity.
Dirt and humidity
inside fuse boxes can cause damage to the electrical sys-
tem. Note
In the vehicle, there are more fuses than those indicated in this chapter.
These shoul
d only be changed by a specialist workshop. 

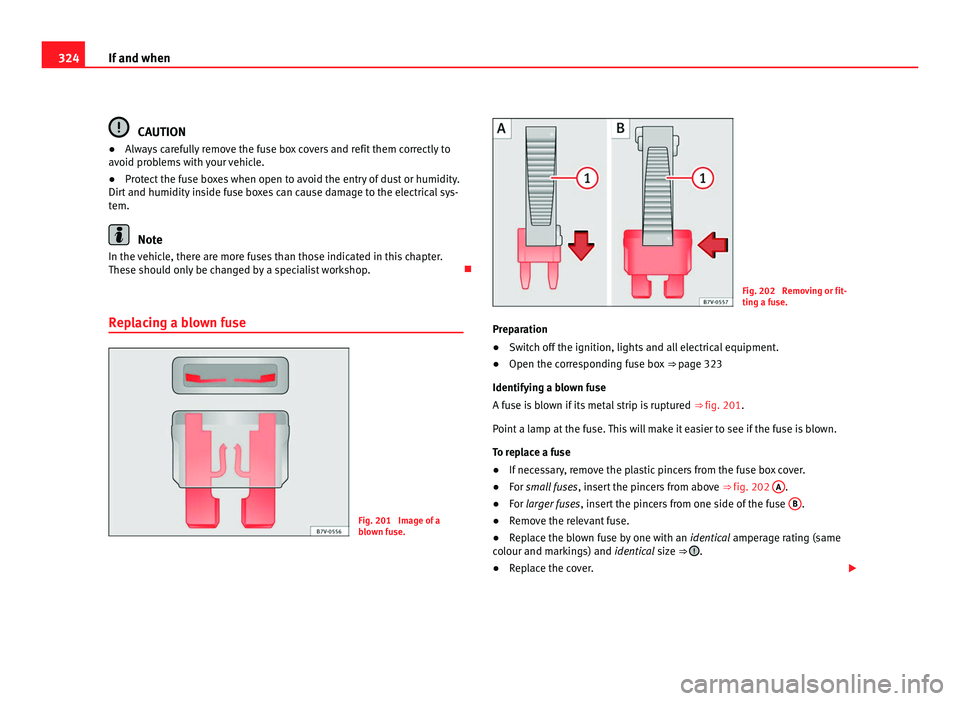

Replacing a blown fuse Fig. 201 Image of a
blo
wn f

use. Fig. 202 Removing or fit-
ting a f
u

se.
Preparation
● Switch off the ignition, lights and all electrical equipment.
● Open the corresponding fuse box ⇒ page 323
Identif
ying a blown fuse
A fuse is blown if its metal strip is ruptured ⇒ fig. 201.
Point a lamp at the fuse. This will make it easier to see if the fuse is blown.
To replace a fuse
● If necessary, remove the plastic pincers from the fuse box cover.
● For small fuses, insert the pincers from above ⇒ fig. 202 A .
● For larger fuses , inser
t the pincers from one side of the fuse B .
● Remove the relevant fuse.
● Replace the blown fuse by one with an identica
l amperage rating (same
colour and markings) and identical size ⇒  .
● Replace the cover. 

327
If and when

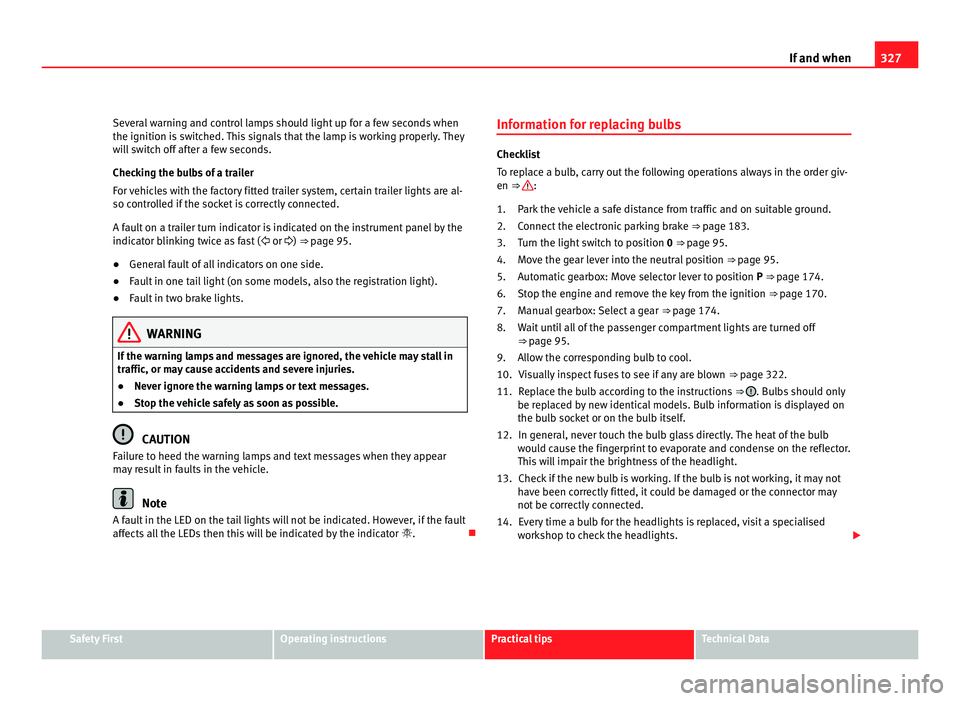

Several warning and control lamps should light up for a few seconds when
the ignition is sw
itched. This signals that the lamp is working properly. They
will switch off after a few seconds.
Checking the bulbs of a trailer
For vehicles with the factory fitted trailer system, certain trailer lights are al-
so controlled if the socket is correctly connected.
A fault on a trailer turn indicator is indicated on the instrument panel by the
indicator blinking twice as fast (  or ) ⇒ page 95.
● General fault of all indicators on one side.
● Fault in one tail light (on some models, also the registration light).
● Fault in two brake lights. WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or m a

y cause accidents and severe injuries.
● Never ignore the warning lamps or text messages.
● Stop the vehicle safely as soon as possible. CAUTION
Failure to heed the warning lamps and text messages when they appear
ma y

result in faults in the vehicle. Note
A fault in the LED on the tail lights will not be indicated. However, if the fault
affects al

l the LEDs then this will be indicated by the indicator . Information for replacing bulbs Checklist
To r
ep

lace a bulb, carry out the following operations always in the order giv-
en ⇒  :
Park the

vehicle a safe distance from traffic and on suitable ground.
Connect the electronic parking brake ⇒ page 183.
Turn the light switch to position 0 ⇒ page 95.
Move the gear lever into the neutral position ⇒ page 95.
Automatic gearbox: Move selector lever to position P ⇒ page 174.
Stop the engine and remove the key from the ignition ⇒ page 170.
Manual gearbox: Select a gear ⇒ page 174.
Wait until all of the passenger compartment lights are turned off
⇒ page 95.
Allow the corresponding bulb to cool. Visually inspect fuses to see if any are blown ⇒ page 322.
Replace the bulb according to the instructions ⇒  . Bulbs should only
be rep l

aced by new identical models. Bulb information is displayed on
the bulb socket or on the bulb itself.
In general, never touch the bulb glass directly. The heat of the bulb
would cause the fingerprint to evaporate and condense on the reflector.
This will impair the brightness of the headlight.
Check if the new bulb is working. If the bulb is not working, it may not
have been correctly fitted, it could be damaged or the connector may
not be correctly connected.
Every time a bulb for the headlights is replaced, visit a specialised
workshop to check the headlights. 
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Safety First Operating instructions Practical tips Technical Data

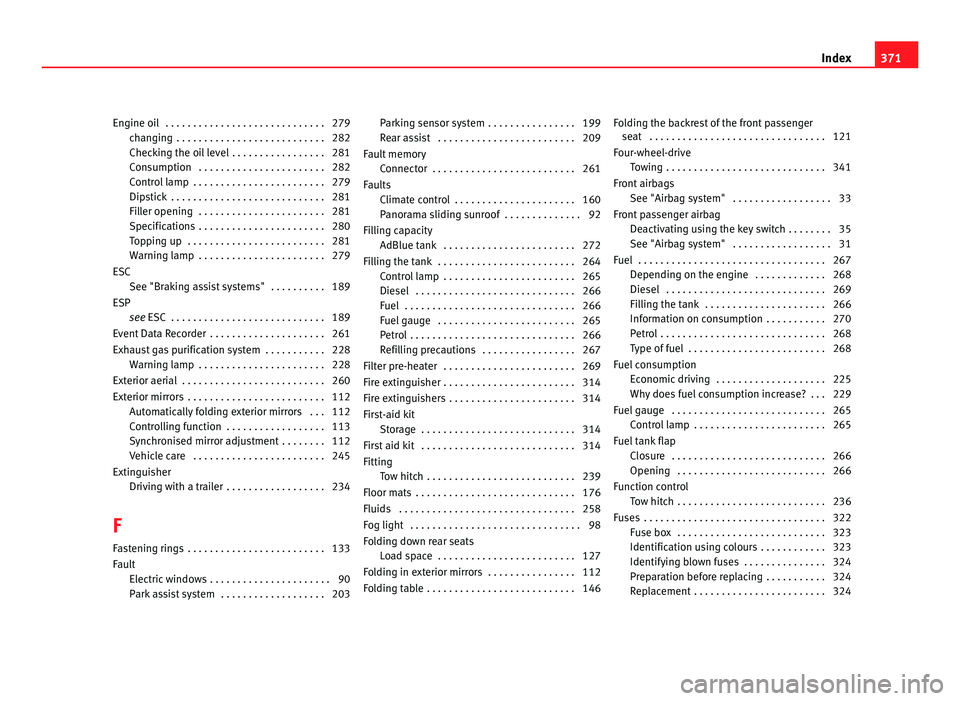

Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
chan
ging . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Checking the oil level . . . . . . . . . . . . . . . . . 281
Consumption . . . . . . . . . . . . . . . . . . . . . . . 282
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 279
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Filler opening . . . . . . . . . . . . . . . . . . . . . . . 281
Specifications . . . . . . . . . . . . . . . . . . . . . . . 280
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 281
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 279
ESC See "Braking assist systems" . . . . . . . . . . 189
ESP see ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . 261
Exhaust gas purification system . . . . . . . . . . . 228 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 228
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 112 Automatically folding exterior mirrors . . . 112
Controlling function . . . . . . . . . . . . . . . . . . 113
Synchronised mirror adjustment . . . . . . . . 112
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . 245
Extinguisher Driving with a trailer . . . . . . . . . . . . . . . . . . 234
F
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 133
Fault Electric windows . . . . . . . . . . . . . . . . . . . . . . 90
Park assist system . . . . . . . . . . . . . . . . . . . 203 Parking sensor system . . . . . . . . . . . . . . . . 199
Rear a
ssist . . . . . . . . . . . . . . . . . . . . . . . . . 209
Fault memory Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Faults Climate control . . . . . . . . . . . . . . . . . . . . . . 160
Panorama sliding sunroof . . . . . . . . . . . . . . 92
Filling capacity AdBlue tank . . . . . . . . . . . . . . . . . . . . . . . . 272
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . 264 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 265
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 265
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Refilling precautions . . . . . . . . . . . . . . . . . 267
Filter pre-heater . . . . . . . . . . . . . . . . . . . . . . . . 269
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 314
Fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . 314
First-aid kit Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Fitting Tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Folding down rear seats Load space . . . . . . . . . . . . . . . . . . . . . . . . . 127
Folding in exterior mirrors . . . . . . . . . . . . . . . . 112
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 Folding the backrest of the front passenger
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
F
our-wheel-drive Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Front airbags See "Airbag system" . . . . . . . . . . . . . . . . . . 33
Front passenger airbag Deactivating using the key switch . . . . . . . . 35
See "Airbag system" . . . . . . . . . . . . . . . . . . 31
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 Depending on the engine . . . . . . . . . . . . . 268
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 266
Information on consumption . . . . . . . . . . . 270
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . 268
Fuel consumption Economic driving . . . . . . . . . . . . . . . . . . . . 225
Why does fuel consumption increase? . . . 229
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 265
Fuel tank flap Closure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Function control Tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Identification using colours . . . . . . . . . . . . 323
Identifying blown fuses . . . . . . . . . . . . . . . 324
Preparation before replacing . . . . . . . . . . . 324
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 324 371
Index
