Page 159 of 388
157
Air conditioning
Air conditioning Climate Control
Introduction
Viewing Climatronic information
The factory-fitted radio or navigation system screen briefly displays informa-
tion relating to Climatronic.
The units of temperature measurement is displayed on the factory-installed
radio or navigation system and, depending on the vehicle equipment, can
be set using the Configuration menu on the instrument panel.
Additional information and warnings:
● SEAT information system ⇒ page 62
● Windscreen wash system ⇒ page 105
● Auxiliary heating ⇒ page 165
● Caring for and cleaning the vehicle exterior ⇒ page 246
WARNING
Reduced visibility through the windows increases the risk of serious acci-
dents.
● Ensure that all windows are free of ice and snow and that they are not
fogged up preventing a clear view of everything outside.
● The maximum heat output required to defrost windows quickly is only
available when the engine has reached its normal running temperature.
Only drive when you have good visibility.
WARNING (Continued)
● Always ensure that you use the climate control and heated rear win-
dow to maintain good visibility.
● Never leave the air recirculation on for a long period of time. If the
cooling mode is switched off and air recirculation mode switched on, the
windows can mist over very quickly, considerably limiting visibility.
● Switch air recirculation mode off when it is not required.
WARNING
Stuffy or used air will increase fatigue and reduce driver concentration
possibly resulting in a serious accident.
● Never leave the fresh air fan turned off or use the air recirculation for
long periods of time; the air inside the passenger compartment will not
be refreshed.
CAUTION
● Switch the climate control system off if you think it may be broken. This
will avoid additional damage. Have the air conditioner checked by a special-
ised workshop.
● Repairs to the air conditioner require specialist knowledge and special
tools. SEAT recommends visiting a Technical Service.
● Do not smoke when air recirculation is switched on in vehicles with a cli-
mate control system. The smoke taken in could lie on the cooling system va-
poriser and on the activated charcoal cartridge of the dust and pollen filter,
leading to a permanently unpleasant smell.
Safety FirstOperating instructionsPractical tipsTechnical Specifications

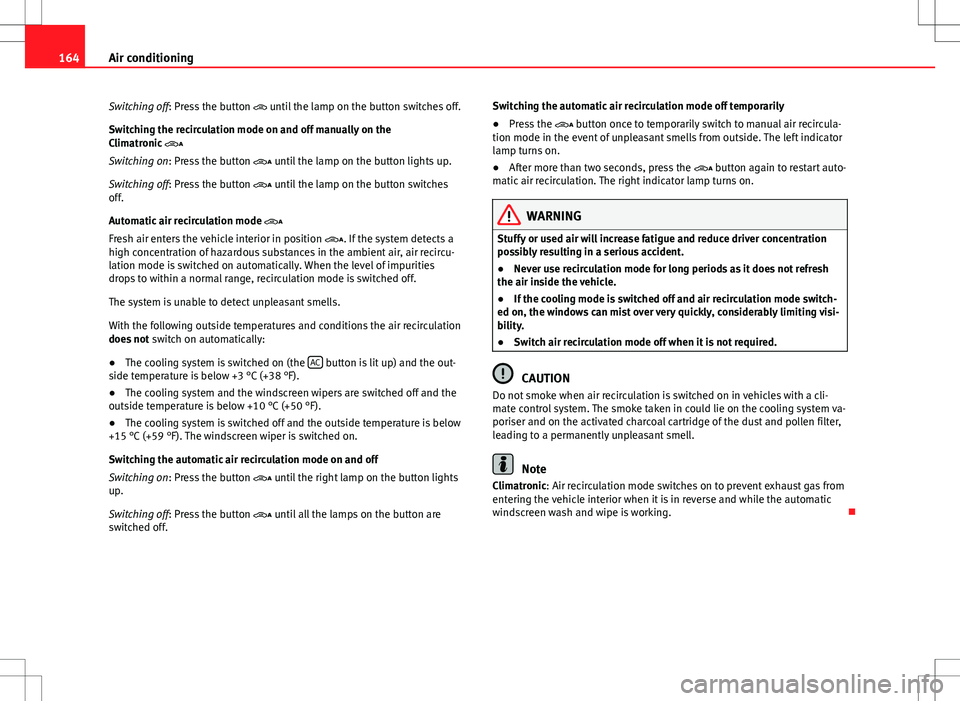

Page 166 of 388
164Air conditioning
Switching off: Press the button until the lamp on the button switches off.
Switching the recirculation mode on and off manually on the
Climatronic
Switching on: Press the button until the lamp on the button lights up.
Switching off: Press the button until the lamp on the button switches
off.
Automatic air recirculation mode
Fresh air enters the vehicle interior in position . If the system detects a
high concentration of hazardous substances in the ambient air, air recircu-
lation mode is switched on automatically. When the level of impurities
drops to within a normal range, recirculation mode is switched off.
The system is unable to detect unpleasant smells.
With the following outside temperatures and conditions the air recirculation
does not switch on automatically:
● The cooling system is switched on (the AC
button is lit up) and the out-
side temperature is below +3 °C (+38 °F).
● The cooling system and the windscreen wipers are switched off and the
outside temperature is below +10 °C (+50 °F).
● The cooling system is switched off and the outside temperature is below
+15 °C (+59 °F). The windscreen wiper is switched on.
Switching the automatic air recirculation mode on and off
Switching on: Press the button until the right lamp on the button lights
up.
Switching off: Press the button until all the lamps on the button are
switched off. Switching the automatic air recirculation mode off temporarily
●
Press the button once to temporarily switch to manual air recircula-
tion mode in the event of unpleasant smells from outside. The left indicator
lamp turns on.
● After more than two seconds, press the button again to restart auto-
matic air recirculation. The right indicator lamp turns on.
WARNING
Stuffy or used air will increase fatigue and reduce driver concentration
possibly resulting in a serious accident.
● Never use recirculation mode for long periods as it does not refresh
the air inside the vehicle.
● If the cooling mode is switched off and air recirculation mode switch-
ed on, the windows can mist over very quickly, considerably limiting visi-
bility.
● Switch air recirculation mode off when it is not required.
CAUTION
Do not smoke when air recirculation is switched on in vehicles with a cli-
mate control system. The smoke taken in could lie on the cooling system va-
poriser and on the activated charcoal cartridge of the dust and pollen filter,
leading to a permanently unpleasant smell.
Note
Climatronic: Air recirculation mode switches on to prevent exhaust gas from
entering the vehicle interior when it is in reverse and while the automatic
windscreen wash and wipe is working.

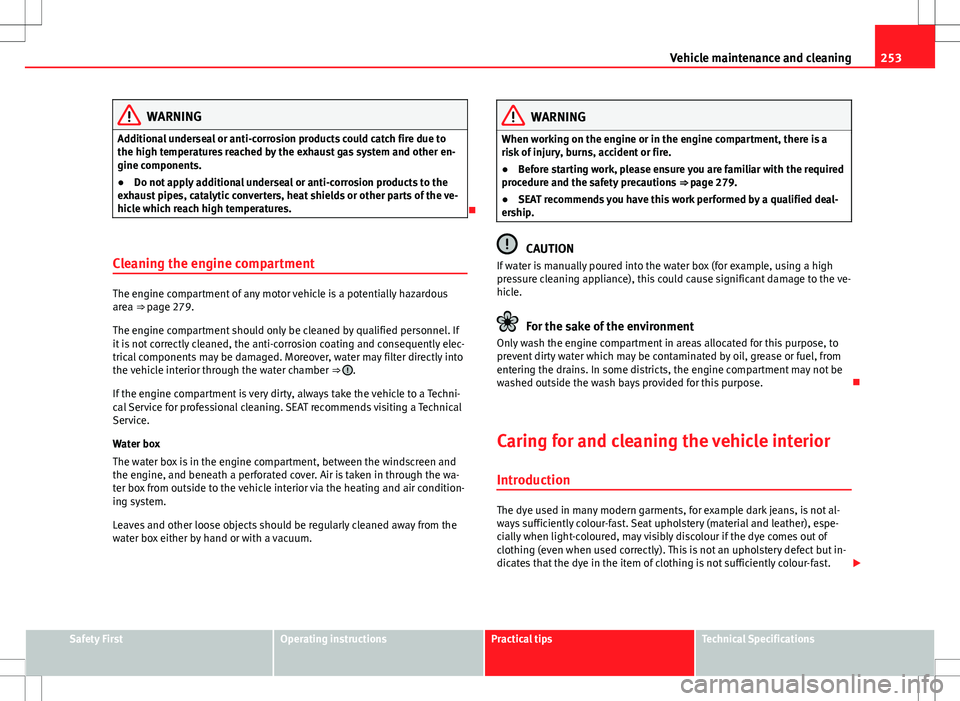

Page 255 of 388
253
Vehicle maintenance and cleaning
WARNING
Additional underseal or anti-corrosion products could catch fire due to
the high temperatures reached by the exhaust gas system and other en-
gine components.
● Do not apply additional underseal or anti-corrosion products to the
exhaust pipes, catalytic converters, heat shields or other parts of the ve-
hicle which reach high temperatures.
Cleaning the engine compartment
The engine compartment of any motor vehicle is a potentially hazardous
area ⇒ page 279. The engine compartment should only be cleaned by qualified personnel. If
it is not correctly cleaned, the anti-corrosion coating and consequently elec-
trical components may be damaged. Moreover, water may filter directly into
the vehicle interior through the water chamber ⇒
.
If the engine compartment is very dirty, always take the vehicle to a Techni-
cal Service for professional cleaning. SEAT recommends visiting a Technical
Service.
Water box
The water box is in the engine compartment, between the windscreen and
the engine, and beneath a perforated cover. Air is taken in through the wa-
ter box from outside to the vehicle interior via the heating and air condition-
ing system.
Leaves and other loose objects should be regularly cleaned away from the
water box either by hand or with a vacuum.
WARNING
When working on the engine or in the engine compartment, there is a
risk of injury, burns, accident or fire.
● Before starting work, please ensure you are familiar with the required
procedure and the safety precautions ⇒ page 279.
● SEAT recommends you have this work performed by a qualified deal-
ership.
CAUTION
If water is manually poured into the water box (for example, using a high
pressure cleaning appliance), this could cause significant damage to the ve-
hicle.
For the sake of the environment
Only wash the engine compartment in areas allocated for this purpose, to
prevent dirty water which may be contaminated by oil, grease or fuel, from
entering the drains. In some districts, the engine compartment may not be
washed outside the wash bays provided for this purpose.
Caring for and cleaning the vehicle interior Introduction
The dye used in many modern garments, for example dark jeans, is not al-
ways sufficiently colour-fast. Seat upholstery (material and leather), espe-
cially when light-coloured, may visibly discolour if the dye comes out of
clothing (even when used correctly). This is not an upholstery defect but in-
dicates that the dye in the item of clothing is not sufficiently colour-fast.
Safety FirstOperating instructionsPractical tipsTechnical Specifications

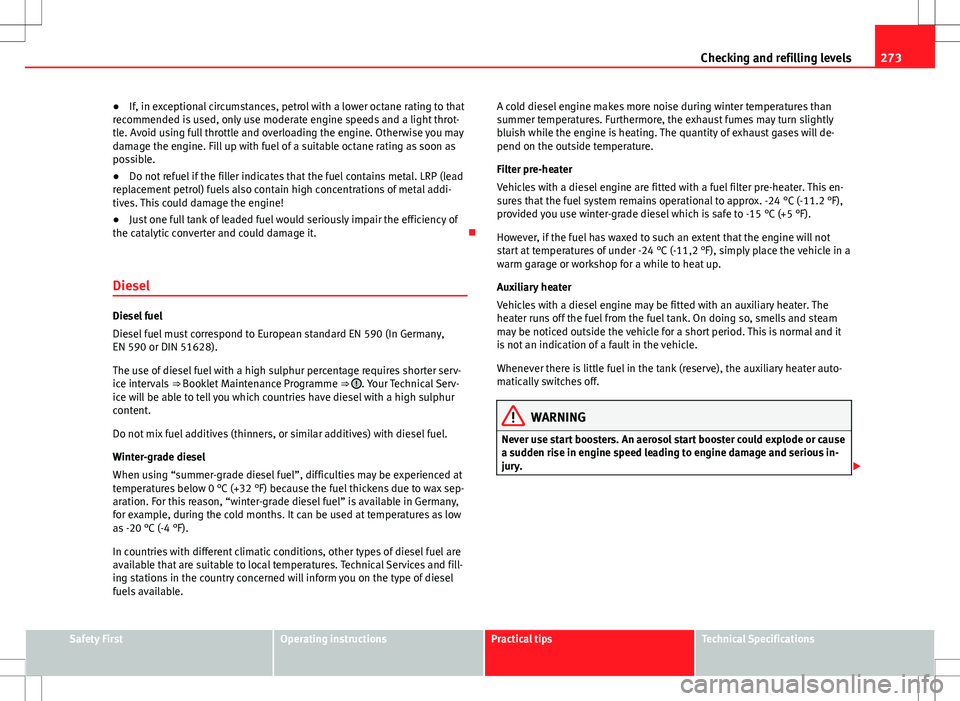

Page 275 of 388
273
Checking and refilling levels
● If, in exceptional circumstances, petrol with a lower octane rating to that
recommended is used, only use moderate engine speeds and a light throt-
tle. Avoid using full throttle and overloading the engine. Otherwise you may
damage the engine. Fill up with fuel of a suitable octane rating as soon as
possible.
● Do not refuel if the filler indicates that the fuel contains metal. LRP (lead
replacement petrol) fuels also contain high concentrations of metal addi-
tives. This could damage the engine!
● Just one full tank of leaded fuel would seriously impair the efficiency of
the catalytic converter and could damage it.
Diesel
Diesel fuel
Diesel fuel must correspond to European standard EN 590 (In Germany,
EN 590 or DIN 51628).
The use of diesel fuel with a high sulphur percentage requires shorter serv-
ice intervals ⇒ Booklet Maintenance Programme ⇒
. Your Technical Serv-
ice will be able to tell you which countries have diesel with a high sulphur
content.
Do not mix fuel additives (thinners, or similar additives) with diesel fuel.
Winter-grade diesel
When using “summer-grade diesel fuel”, difficulties may be experienced at
temperatures below 0 °C (+32 °F) because the fuel thickens due to wax sep-
aration. For this reason, “winter-grade diesel fuel” is available in Germany,
for example, during the cold months. It can be used at temperatures as low
as -20 °C (-4 °F).
In countries with different climatic conditions, other types of diesel fuel are
available that are suitable to local temperatures. Technical Services and fill-
ing stations in the country concerned will inform you on the type of diesel
fuels available. A cold diesel engine makes more noise during winter temperatures than
summer temperatures. Furthermore, the exhaust fumes may turn slightly
bluish while the engine is heating. The quantity of exhaust gases will de-
pend on the outside temperature.
Filter pre-heater
Vehicles with a diesel engine are fitted with a fuel filter pre-heater. This en-
sures that the fuel system remains operational to approx. -24 °C (-11.2 °F),
provided you use winter-grade diesel which is safe to -15 °C (+5 °F).
However, if the fuel has waxed to such an extent that the engine will not
start at temperatures of under -24 °C (-11,2 °F), simply place the vehicle in a
warm garage or workshop for a while to heat up.
Auxiliary heater
Vehicles with a diesel engine may be fitted with an auxiliary heater. The
heater runs off the fuel from the fuel tank. On doing so, smells and steam
may be noticed outside the vehicle for a short period. This is normal and it
is not an indication of a fault in the vehicle.
Whenever there is little fuel in the tank (reserve), the auxiliary heater auto-
matically switches off.
WARNING
Never use start boosters. An aerosol start booster could explode or cause
a sudden rise in engine speed leading to engine damage and serious in-
jury.
Safety FirstOperating instructionsPractical tipsTechnical Specifications
Page 375 of 388
Tyre monitoring systems . . . . . . . . . . . . . . 226
Windscreen wiper fluid level . . . . . . . . . . . 105
Controlling function Electric exterior mirrors . . . . . . . . . . . . . . . 113
Control of function Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 108
Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . 264 Reprogramming . . . . . . . . . . . . . . . . . . . . . 265
Convenience closing Electric windows . . . . . . . . . . . . . . . . . . . . . . 90
Panorama sliding sunroof . . . . . . . . . . . . . . 94
Convenience functions Reprogramming . . . . . . . . . . . . . . . . . . . . . 265
Convenience opening Electric windows . . . . . . . . . . . . . . . . . . . . . . 90
Panorama sliding sunroof . . . . . . . . . . . . . . 94
Convenient entry function for the third row of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Coolant Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 288
See engine coolant . . . . . . . . . . . . . . . . . . 287
Temperature gauge . . . . . . . . . . . . . . . . . . 288
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 288
Counter steering assistance system . . . . . . . . 170
Crossing a river Salt water . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 214 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 214
Operations . . . . . . . . . . . . . . . . . . . . . . . . . 215
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 214
Cruise control system . . . . . . . . . . . . . . . . . . . . 214
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 Cup holders . . . . . . . . . . . . . . . . . . . . . . . 150, 151
Curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Curtain airbags
See "Airbag system" . . . . . . . . . . . . . . . . . . 37
D Damaged tyres . . . . . . . . . . . . . . . . . . . . . . . . . 303
Dangers of not using the seat belt . . . . . . . . . . 20
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 31
Data link connector (DLC) . . . . . . . . . . . . . . . . 265
Data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349 Model identification . . . . . . . . . . . . . . . . . . 349
Technical specifications . . . . . . . . . . . . . . . 349
Vehicle chassis number . . . . . . . . . . . . . . . 349
Data registry . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Data storage during the journey . . . . . . . . . . . 264
Data stored by the control units . . . . . . . . . . . 264
Daytime driving light . . . . . . . . . . . . . . . . . . . . . 98
De-icing the door lock cylinder . . . . . . . . . . . . 252
De-icing the locks . . . . . . . . . . . . . . . . . . . . . . . 252
Details Driving with a trailer . . . . . . . . . . . . . . . . . . 241
Diagnostics connection . . . . . . . . . . . . . . . . . . 265
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 Auxiliary heater . . . . . . . . . . . . . . . . . . . . . 273
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 270
Filter pre-heater . . . . . . . . . . . . . . . . . . . . . 273
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 269
Winter-grade diesel . . . . . . . . . . . . . . . . . . 273 Diesel particle filter
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 233
Diesel particulate filter . . . . . . . . . . . . . . . . . . 233 Recommended gear . . . . . . . . . . . . . . . . . . 184
Things to note . . . . . . . . . . . . . . . . . . . . . . . 274
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 232
Differential lock See "Brake assist systems" . . . . . . . . . . . . 192
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Dipped beam headlight . . . . . . . . . . . . . . . . . . . 97
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57, 58
Disposal Airbag system . . . . . . . . . . . . . . . . . . . . . . . 260
Belt tension device . . . . . . . . . . . . . . . . . . . . 27
End-of-life vehicle . . . . . . . . . . . . . . . . . . . 260
Door release lever . . . . . . . . . . . . . . . . . . . . . . . 53
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Child safety lock . . . . . . . . . . . . . . . . . . . . . . 83
Emergency locking and unlocking . . . . . . 319
Warning indicator . . . . . . . . . . . . . . . . . . . . . 80
Drawbar load . . . . . . . . . . . . . . . . . . . . . . . . . . 235 Loading the trailer . . . . . . . . . . . . . . . . . . . 240
Drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Driving Automatic gearbox . . . . . . . . . . . . . . . . . . . 182
Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cross country . . . . . . . . . . . . . . . . . . . . . . . . . 7
Data storage . . . . . . . . . . . . . . . . . . . . . . . . 264
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving through water . . . . . . . . . . . . . . . . . . 9
Ecological . . . . . . . . . . . . . . . . . . . . . . . . . . 229
373
Index
Page 377 of 388
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 289
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Specifications . . . . . . . . . . . . . . . . . . . . . . . 289
Engine fault . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine management . . . . . . . . . . . . . . . . . . . . 232 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 232
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Checking the oil level . . . . . . . . . . . . . . . . . 285
Consumption . . . . . . . . . . . . . . . . . . . . . . . 286
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Filler opening . . . . . . . . . . . . . . . . . . . . . . . 285
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Specifications . . . . . . . . . . . . . . . . . . . . . . . 284
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 285
ESC See "Assisted braking systems" . . . . . . . . 191
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . 265
Exhaust gas purification system . . . . . . . . . . . 232 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 232
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 112 Automatically folding exterior mirrors . . . 112
Controlling function . . . . . . . . . . . . . . . . . . 113
Synchronised mirror adjustment . . . . . . . . 112
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . 249
Extinguisher Driving with a trailer . . . . . . . . . . . . . . . . . . 238
F
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 134 Fault
Electric windows . . . . . . . . . . . . . . . . . . . . . . 90
Park assist system . . . . . . . . . . . . . . . . . . . 205
Parking sensor system . . . . . . . . . . . . . . . . 201
Rear assist . . . . . . . . . . . . . . . . . . . . . . . . . 211
Fault memory Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Faults Air conditioner . . . . . . . . . . . . . . . . . . . . . . 162
Panorama sliding sunroof . . . . . . . . . . . . . . 92
Filling capacity AdBlue tank . . . . . . . . . . . . . . . . . . . . . . . . 276
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . 268 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 269
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 269
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Refilling precautions . . . . . . . . . . . . . . . . . 271
Filter pre-heater . . . . . . . . . . . . . . . . . . . . . . . . 273
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 318
Fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . 318
First-aid kit Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Fitting Tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Folding down rear seats Load space . . . . . . . . . . . . . . . . . . . . . . . . . 128 Folding in exterior mirrors . . . . . . . . . . . . . . . . 112
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Folding the backrest of the front passenger
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Four-wheel-drive Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Front airbags See "Airbag system" . . . . . . . . . . . . . . . . . . 33
Front passenger airbag Deactivating using the key switch . . . . . . . . 35
See "Airbag system" . . . . . . . . . . . . . . . . . . 31
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271 Depending on the engine . . . . . . . . . . . . . 272
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 270
Information on consumption . . . . . . . . . . . 274
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . 272
Fuel consumption Economic driving . . . . . . . . . . . . . . . . . . . . 229
Why does fuel consumption increase? . . . 233
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 269
Fuel tank flap Closure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Function control Tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
Identification using colours . . . . . . . . . . . . 327
Identifying blown fuses . . . . . . . . . . . . . . . 328
375
Index
Page 379 of 388

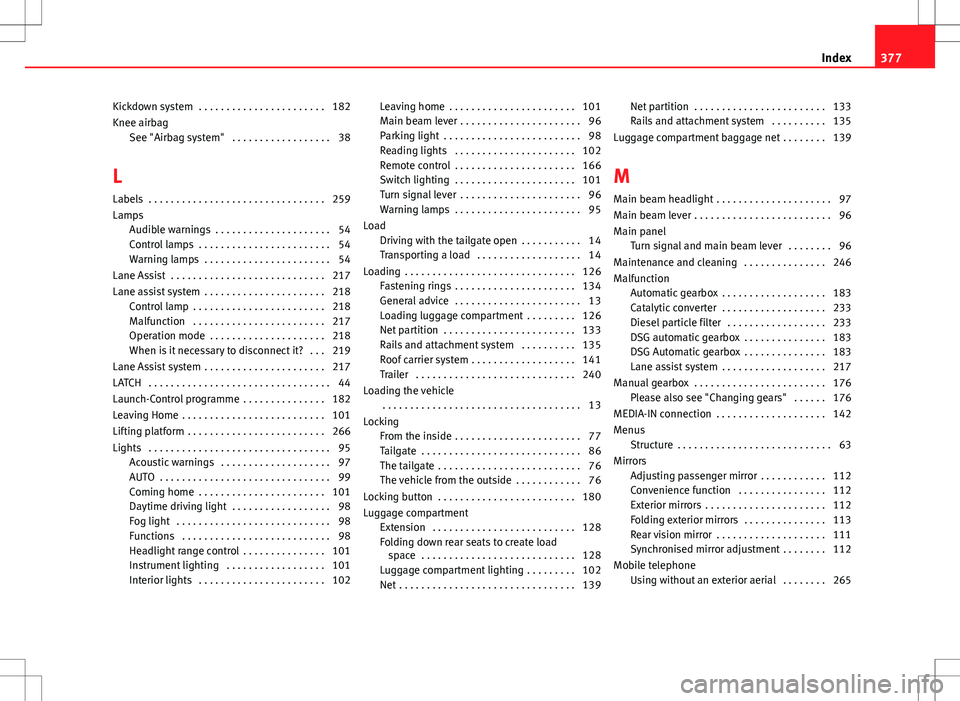

Kickdown system . . . . . . . . . . . . . . . . . . . . . . . 182
Knee airbagSee "Airbag system" . . . . . . . . . . . . . . . . . . 38
L
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Lamps Audible warnings . . . . . . . . . . . . . . . . . . . . . 54
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 54
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 54
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Lane assist system . . . . . . . . . . . . . . . . . . . . . . 218 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 218
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 217
Operation mode . . . . . . . . . . . . . . . . . . . . . 218
When is it necessary to disconnect it? . . . 219
Lane Assist system . . . . . . . . . . . . . . . . . . . . . . 217
LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Launch-Control programme . . . . . . . . . . . . . . . 182
Leaving Home . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Lifting platform . . . . . . . . . . . . . . . . . . . . . . . . . 266
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Acoustic warnings . . . . . . . . . . . . . . . . . . . . 97
AUTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Coming home . . . . . . . . . . . . . . . . . . . . . . . 101
Daytime driving light . . . . . . . . . . . . . . . . . . 98
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Headlight range control . . . . . . . . . . . . . . . 101
Instrument lighting . . . . . . . . . . . . . . . . . . 101
Interior lights . . . . . . . . . . . . . . . . . . . . . . . 102 Leaving home . . . . . . . . . . . . . . . . . . . . . . . 101
Main beam lever . . . . . . . . . . . . . . . . . . . . . . 96
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . 98
Reading lights . . . . . . . . . . . . . . . . . . . . . . 102
Remote control . . . . . . . . . . . . . . . . . . . . . . 166
Switch lighting . . . . . . . . . . . . . . . . . . . . . . 101
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . 96
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 95
Load Driving with the tailgate open . . . . . . . . . . . 14
Transporting a load . . . . . . . . . . . . . . . . . . . 14
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126 Fastening rings . . . . . . . . . . . . . . . . . . . . . . 134
General advice . . . . . . . . . . . . . . . . . . . . . . . 13
Loading luggage compartment . . . . . . . . . 126
Net partition . . . . . . . . . . . . . . . . . . . . . . . . 133
Rails and attachment system . . . . . . . . . . 135
Roof carrier system . . . . . . . . . . . . . . . . . . . 141
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Loading the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Locking From the inside . . . . . . . . . . . . . . . . . . . . . . . 77
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
The tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 76
The vehicle from the outside . . . . . . . . . . . . 76
Locking button . . . . . . . . . . . . . . . . . . . . . . . . . 180
Luggage compartment Extension . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Folding down rear seats to create loadspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Luggage compartment lighting . . . . . . . . . 102
Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Net partition . . . . . . . . . . . . . . . . . . . . . . . . 133
Rails and attachment system . . . . . . . . . . 135
Luggage compartment baggage net . . . . . . . . 139
M
Main beam headlight . . . . . . . . . . . . . . . . . . . . . 97
Main beam lever . . . . . . . . . . . . . . . . . . . . . . . . . 96
Main panel Turn signal and main beam lever . . . . . . . . 96
Maintenance and cleaning . . . . . . . . . . . . . . . 246
Malfunction Automatic gearbox . . . . . . . . . . . . . . . . . . . 183
Catalytic converter . . . . . . . . . . . . . . . . . . . 233
Diesel particle filter . . . . . . . . . . . . . . . . . . 233
DSG automatic gearbox . . . . . . . . . . . . . . . 183
DSG Automatic gearbox . . . . . . . . . . . . . . . 183
Lane assist system . . . . . . . . . . . . . . . . . . . 217
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 176 Please also see "Changing gears" . . . . . . 176
MEDIA-IN connection . . . . . . . . . . . . . . . . . . . . 142
Menus Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Mirrors Adjusting passenger mirror . . . . . . . . . . . . 112
Convenience function . . . . . . . . . . . . . . . . 112
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 112
Folding exterior mirrors . . . . . . . . . . . . . . . 113
Rear vision mirror . . . . . . . . . . . . . . . . . . . . 111
Synchronised mirror adjustment . . . . . . . . 112
Mobile telephone Using without an exterior aerial . . . . . . . . 265
377
Index
Page 381 of 388
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Parking sensor system . . . . . . . . . . . . . . . 200, 201Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Optical parking system . . . . . . . . . . . . . . . 202
With towing bracket . . . . . . . . . . . . . . . . . . 201
Particulate filter . . . . . . . . . . . . . . . . . . . . . . . . 233
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 178
Petrol Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 270
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 269
Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Portable waste bin . . . . . . . . . . . . . . . . . . . . . . 148
Pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Preparation Checking the engine coolant level . . . . . . 290
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . 294
Work in the engine compartment . . . . . . . 281
Preparations Changing a wheel . . . . . . . . . . . . . . . . . . . 310
Checking the engine oil level . . . . . . . . . . 285
Topping up the engine oil level . . . . . . . . . 285
Preparing for the journey . . . . . . . . . . . . . . . . . . . 7
Principles of physics regarding a frontal colli- sion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Protection of vehicle undercarriage . . . . . . . . 252
Pushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 R
Radio reception Aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Operating faults . . . . . . . . . . . . . . . . . . . . . 260
Rails and attachment element system Baggage net . . . . . . . . . . . . . . . . . . . . . . . . 136
Rails and attachment system . . . . . . . . . . . . . 135
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Control of function . . . . . . . . . . . . . . . . . . . 108
Raising the vehicle Check list . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Raising vehicle Lifting platform . . . . . . . . . . . . . . . . . . . . . . 266
With a lifting platform . . . . . . . . . . . . . . . . 266
Reading the Fault memory . . . . . . . . . . . . . . . . . . . . . . . 265
Rear assist Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Mode 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Mode 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Things to note . . . . . . . . . . . . . . . . . . . . . . . 211
User instructions . . . . . . . . . . . . . . . . . . . . 210
Rear Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Rear assist systems . . . . . . . . . . . . . . . . . . . . . 209
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Rear shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Rear vision mirror . . . . . . . . . . . . . . . . . . . 110, 111
Rear vision mirrors . . . . . . . . . . . . . . . . . . . . . . 111
Recommended gear . . . . . . . . . . . . . . . . . . . . . 184 Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Refilling precautions . . . . . . . . . . . . . . . . . . . . 271
Reflective vest . . . . . . . . . . . . . . . . . . . . . . . . . 318
Reflective vests . . . . . . . . . . . . . . . . . . . . . . . . . 318
Refuelling
Mistakes . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Remote control Auxiliary heater . . . . . . . . . . . . . . . . . . . . . 166
See "Keys" . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Removing ice . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Removing snow . . . . . . . . . . . . . . . . . . . . . . . . 249
Removing wax deposits . . . . . . . . . . . . . . . . . . 249
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . 261, 262 Airbag system . . . . . . . . . . . . . . . . . . . . . . . 263
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Lifting platform . . . . . . . . . . . . . . . . . . . . . . 266
Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Replacement of parts . . . . . . . . . . . . . . . . . . . . 261
Reprogramming control units . . . . . . . . . . . . . 265
Retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . 138
Retro-fitting Two-way radios . . . . . . . . . . . . . . . . . . . . . . 264
Vehicle telephone . . . . . . . . . . . . . . . . . . . 264
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Reversing camera . . . . . . . . . . . . . . . . . . . . . . . 209
Rocker switches Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Rollback anti-trap function Electric sliding doors . . . . . . . . . . . . . . . . . . 82
Roof carrier system . . . . . . . . . . . . . . . . . . . . . . 139
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
379
Index
Page 386 of 388
Changing windscreen wiper blades . . . . . 250
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . 251
Cleaning compartments . . . . . . . . . . . . . . . 257
Cleaning seat belts . . . . . . . . . . . . . . . . . . 258
Cleaning wheels . . . . . . . . . . . . . . . . . . . . . 252
Cleaning windscreen wiper blades . . . . . . 250
De-icing the door lock cylinder . . . . . . . . . 252
Engine compartment . . . . . . . . . . . . . . . . . 253
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 249
High pressure cleaning equipment . . . . . . 248
Instrument panel . . . . . . . . . . . . . . . . . . . . 257
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . 257
Protection of vehicle undercarriage . . . . . 252
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . 252
Service position . . . . . . . . . . . . . . . . . . . . . 107
Special features . . . . . . . . . . . . . . . . . 247, 248
synthetic leather . . . . . . . . . . . . . . . . . . . . 257
Treating your upholstery . . . . . . . . . . . . . . 254
Vehicle paintwork . . . . . . . . . . . . . . . . . . . . 251
Washing by hand . . . . . . . . . . . . . . . . . . . . 247
Washing the vehicle . . . . . . . . . . . . . . . . . . 247
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Wooden trim . . . . . . . . . . . . . . . . . . . . . . . . 257
Vehicle chassis number . . . . . . . . . . . . . . . . . . 349
Vehicle code . . . . . . . . . . . . . . . . . . . . . . . . . . . 349 Vehicle data label . . . . . . . . . . . . . . . . . . . . 349
Vehicle key Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 74
Vehicle key set See "Keys" . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Vehicle maintenance electrically adjustable seats . . . . . . . . . . . 255
heated seats . . . . . . . . . . . . . . . . . . . . . . . . 255 natural leather . . . . . . . . . . . . . . . . . . . . . . 256
non-electrically adjustable seats . . . . . . . 255
seats with airbag components . . . . . . . . . 255
seats without airbag components . . . . . . 255
trim fabrics . . . . . . . . . . . . . . . . . . . . . . . . . 255
unheated seats . . . . . . . . . . . . . . . . . . . . . . 255
Vehicle specifications . . . . . . . . . . . . . . . . . . . 349
Vehicle telephone . . . . . . . . . . . . . . . . . . . . . . 264
Vehicle's battery Automatic consumer disconnection . . . . . 295
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Connecting . . . . . . . . . . . . . . . . . . . . . . . . . 295
Disconnecting . . . . . . . . . . . . . . . . . . . . . . . 295
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Running flat . . . . . . . . . . . . . . . . . . . . . . . . 296
Vibrations Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
W Warning indicator Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Warning lamp AdBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 30
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Brake system . . . . . . . . . . . . . . . . . . . . . . . 186
Catalytic converter . . . . . . . . . . . . . . . . . . . 232
Changing gear . . . . . . . . . . . . . . . . . . . . . . 177
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 214
Diesel particulate filter . . . . . . . . . . . . . . . 232 Engine management . . . . . . . . . . . . . . . . . 232
Exhaust gas purification system . . . . . . . . 232
Pressing the brake . . . . . . . . . . . . . . . . . . . 186
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . 293
Warning lamps Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 318
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 by hand . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 247 Sensors . . . . . . . . . . . . . . . . . . . . . . . . 200, 205
Special features . . . . . . . . . . . . . . . . . . . . . 247
with high pressure cleaning equipment . . 248
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . 303
Wear of tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wheel bolts . . . . . . . . . . . . . . . . . . . 309, 311, 351 Caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Tightening torque . . . . . . . . . . . . . . . . . . . . 311
Wheel load capacity . . . . . . . . . . . . . . . . . . . . . 306
Wheel rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 Beadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Bolted trims . . . . . . . . . . . . . . . . . . . . . . . . 300
See "Wheels and tyres" . . . . . . . . . . . . . . . 297
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . 297 Avoiding damage . . . . . . . . . . . . . . . . . . . . 298
Changing a wheel . . . . . . . . . . . . . . . . . . . 309
Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Damaged tyres . . . . . . . . . . . . . . . . . . . . . . 303
384 Index
