Seat Alhambra 2018 User Guide

The essentials

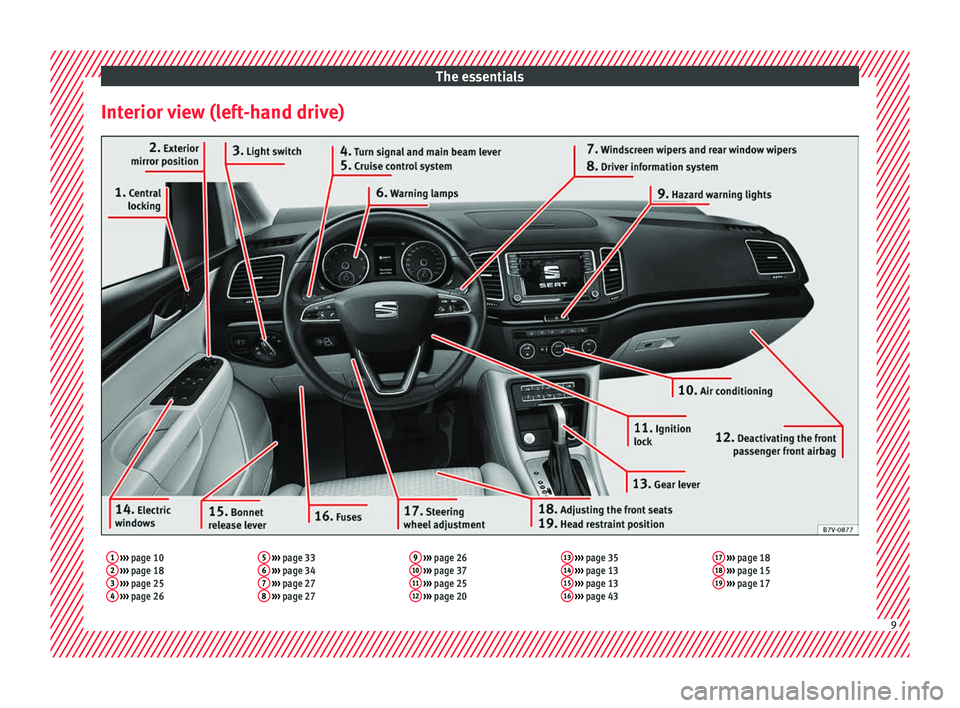

Interior view (left-hand drive)1 ››› page 10
2 ››› page 18
3 ››› page 25
4 ››› page 26 5

››› page 33
6 ››› page 34
7 ››› page 27
8 ››› page 27 9

››› page 26
10 ››› page 37
11 ››› page 25
12 ››› page 20 13

››› page 35
14 ››› page 13
15 ››› page 13
16 ››› page 43 17

››› page 18
18 ››› page 15
19 ››› page 17 9

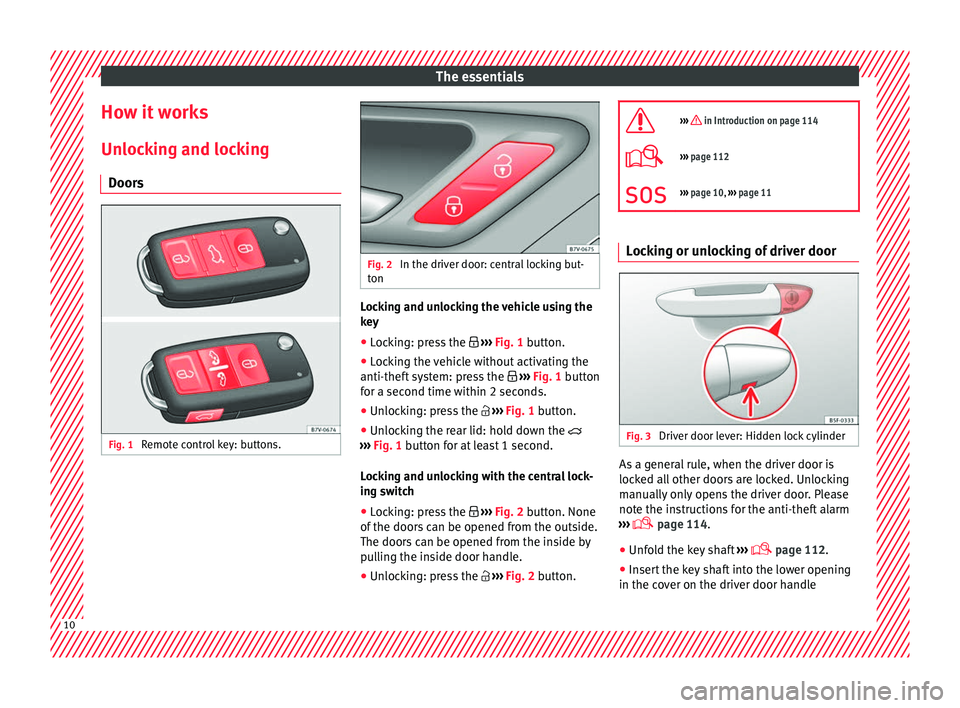

The essentials
How it works
Un loc
k
ing and locking
Doors Fig. 1
Remote control key: buttons. Fig. 2
In the driver door: central locking but-
ton Locking and unlocking the vehicle using the
k
ey
● Loc

king: press the  ›››
Fig. 1 button.
● Locking the vehicle without activating the
anti-theft sy
stem: press the  ››› Fig. 1 button
for a second time within 2 seconds.
● Unlocking: press the  ›››
Fig. 1 button.
● Unlocking the rear lid: hold down the 
›››
Fig. 1 button for at least 1 second.
Locking and unlocking with the central lock-
ing switch
● Locking: press the  ›››
Fig. 2 button. None
of the doors can be opened from the outside.
The doors can be opened from the inside by
pulling the inside door handle.
● Unlocking: press the  ›››
Fig. 2 button. 
››› in Introduction on page 114
›››
page 112
››› page 10, ››› page 11 Locking or unlocking of driver door
Fig. 3
Driver door lever: Hidden lock cylinder As a general rule, when the driver door is
loc
k
ed al

l other doors are locked. Unlocking
manually only opens the driver door. Please
note the instructions for the anti-theft alarm
›››  page 114.
● Unfold the key shaft ›››

 page 112.
● Insert the key shaft into the lower opening
in the co v

er on the driver door handle10

The essentials
››› Fig. 3 (arr o
w) then r emove the cover up-
wards.
● Insert the key blade into the lock cylinder
to un
lock or lock the vehicle.
Special Characteristics
● The anti-theft alarm will remain active when
vehicl
es are unlocked. However, it is not trig-
gered ›››
 page 114.
● If the driver door is opened, the alarm will
be trigger
ed.
● Switch the ignition on. The electronic im-
mobi
lizer recognises a valid vehicle key and
deactivates the anti-theft alarm system.

››› in Introduction on page 91 Note
The anti-theft alarm is not activated when the
vehic l

e is locked manually using the key
shaft ›››

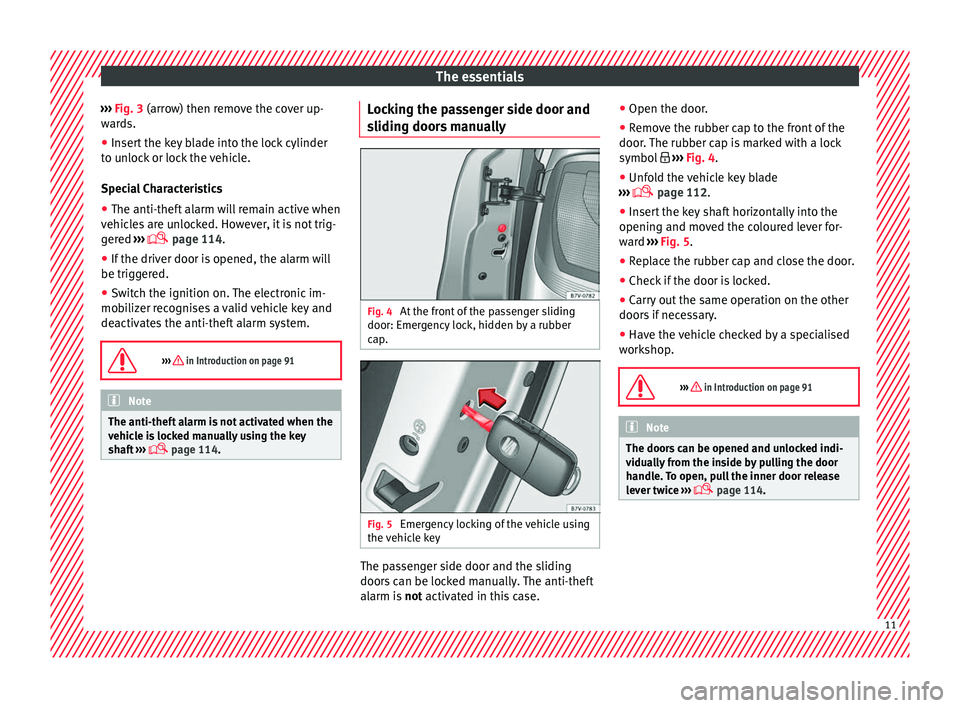

 page 114. Locking the passenger side door and
s
lidin
g door

s manually Fig. 4
At the front of the passenger sliding
door: Emer g
ency

lock, hidden by a rubber
cap. Fig. 5
Emergency locking of the vehicle using
the v
ehic

le key The passenger side door and the sliding
door
s
c

an be locked manually. The anti-theft
alarm is not activated in this case. ●
Open the door.
● Remo

ve the rubber cap to the front of the
door. The rubber c
ap is marked with a lock
symbol  ››› Fig. 4.
● Unfold the vehicle key blade
›››
 page 112.
● Insert the key shaft horizontally into the
opening and mov
ed the coloured lever for-
ward ››› Fig. 5.
● Replace the rubber cap and close the door.
● Check if the door is locked.
● Carry out the same operation on the other
doors if
necessary.
● Have the vehicle checked by a specialised
workshop
.

››› in Introduction on page 91 Note
The doors can be opened and unlocked indi-
vidua l

ly from the inside by pulling the door
handle. To open, pull the inner door release
lever twice ›››
 page 114. 11

The essentials

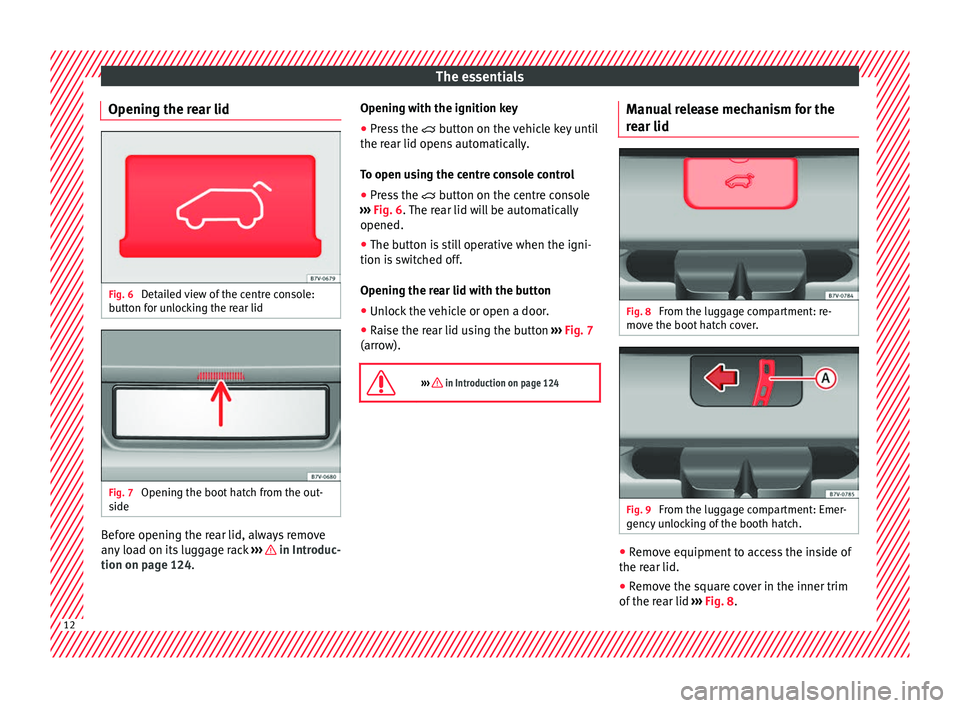

Opening the rear lid Fig. 6
Detailed view of the centre console:
b utt
on f
or unlocking the rear lid Fig. 7
Opening the boot hatch from the out-
s ide Before opening the rear lid, always remove
an
y
lo

ad on its luggage rack ››› in Introduc-
tion on p ag
e 124
. Opening with the ignition key
●
Press the  button on the
vehicle key until
the rear lid opens automatically.
To open using the centre console control
● Press the  button on the c
entre console
››› Fig. 6. The rear lid will be automatically
opened.
● The button is still operative when the igni-
tion is sw
itched off.
Opening the rear lid with the button
● Unlock the vehicle or open a door.
● Raise the rear lid using the button ›››
Fig. 7
(arrow).

››› in Introduction on page 124 Manual release mechanism for the
r
e
ar lid Fig. 8
From the luggage compartment: re-
mo v
e the boot

hatch cover. Fig. 9
From the luggage compartment: Emer-
g ency
u

nlocking of the booth hatch. ●
Remove equipment to access the inside of
the r e
ar lid.
● R

emove the square cover in the inner trim
of the re
ar lid ››› Fig. 8.12

The essentials
● Pu
sh the r
elease lever ››› Fig. 9 A in the di-
r ection of
the arr
ow to unlock the boot.
● Manually open the rear lid.


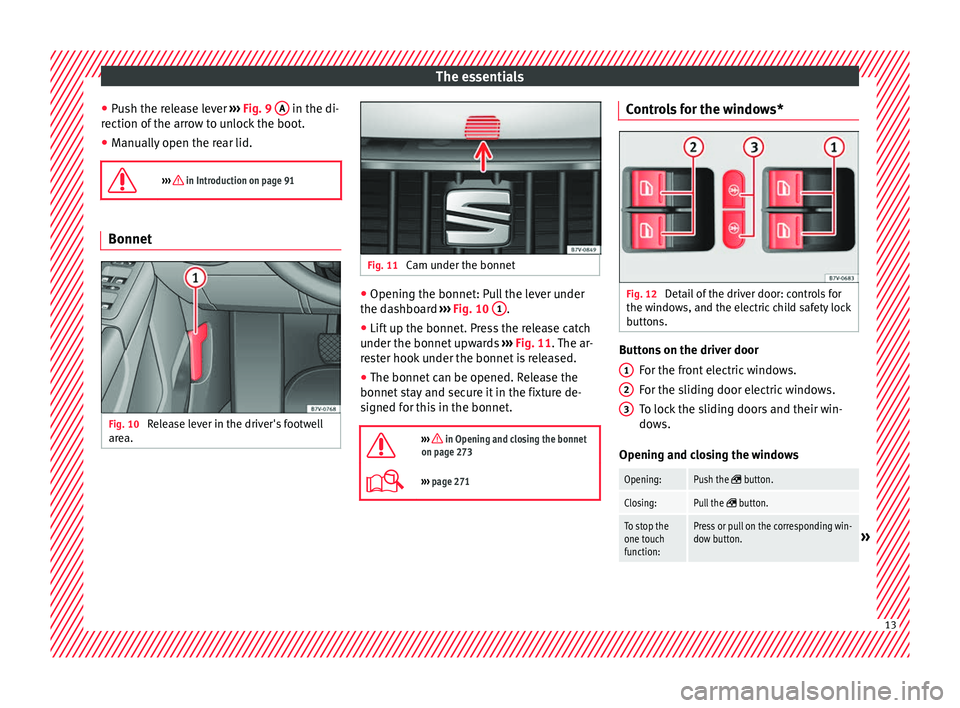

››› in Introduction on page 91 Bonnet
Fig. 10
Release lever in the driver's footwell
ar e
a. Fig. 11
Cam under the bonnet ●
Opening the bonnet: Pull the lever under
the d a
shbo

ard ››› Fig. 10 1 .
● Lift up the bonnet. Press the release catch
u nder the bonnet
up

wards ››› Fig. 11. The ar-
rester hook under the bonnet is released.
● The bonnet can be opened. Release the
bonnet st
ay and secure it in the fixture de-
signed for this in the bonnet.

››› in Opening and closing the bonnet
on page 273
››› page 271 Controls for the windows*
Fig. 12
Detail of the driver door: controls for
the w indo
w

s, and the electric child safety lock
buttons. Buttons on the driver door
For the fr
ont

electric windows.
For the sliding door electric windows.
To lock the sliding doors and their win-
dows.
Opening and closing the windows
Opening:Push the  button.
Closing:Pull the  button.
To stop the
one touch
function:Press or pull on the corresponding win-
dow button.» 1
2
3
13

The essentials
Press the  button for the electronic
child safety lock to deactivate the con-
trols for the electric windows on the
sliding doors and to lock these doors
››› page 122. The indicator on the but-
ton will light up. 
››› in Controls for the windows: func-
tions on page 128

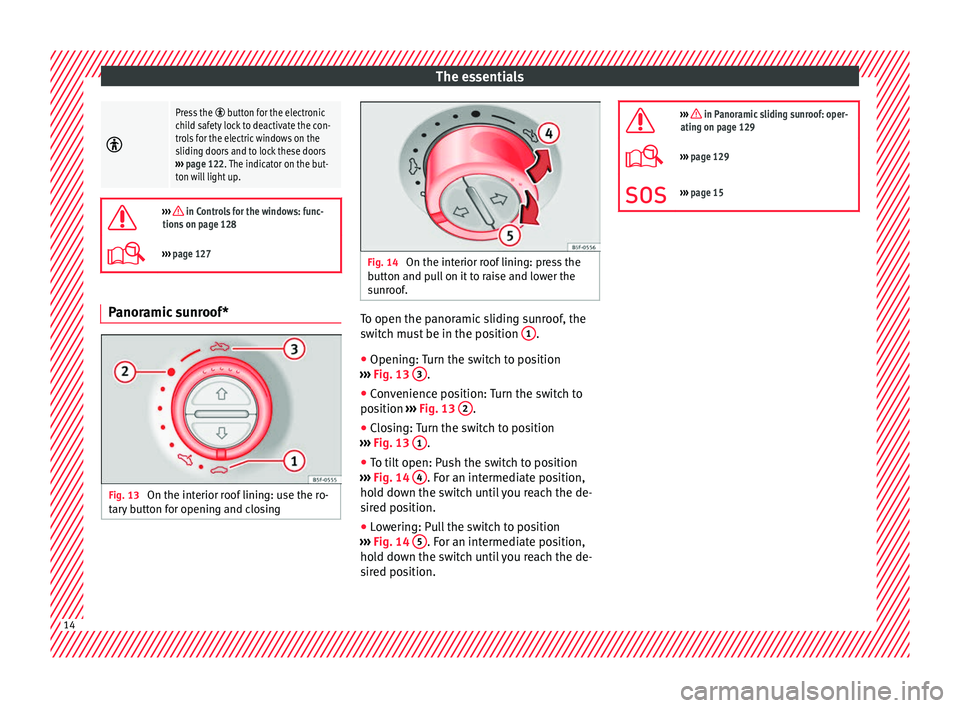

››› page 127 Panoramic sunroof*
Fig. 13
On the interior roof lining: use the ro-
t ar
y

button for opening and closing Fig. 14
On the interior roof lining: press the
b utt
on and p

ull on it to raise and lower the
sunroof. To open the panoramic sliding sunroof, the
sw
it
c

h must be in the position 1 .
● Opening: Turn the switch to position
› ›
›

Fig. 13 3 .
● Convenience position: Turn the switch to
po s
ition ›

›› Fig. 13 2 .
● Closing: Turn the switch to position
› ›
›

Fig. 13 1 .
● To tilt open: Push the switch to position
› ›
›

Fig. 14 4 . For an intermediate position,
ho l
d do
wn the switch until you reach the de-
sired position.
● Lowering: Pull the switch to position
›››
Fig. 14 5 . For an intermediate position,
ho l
d do
wn the switch until you reach the de-
sired position. 
››› in Panoramic sliding sunroof: oper-
ating on page 129
››› page 129
››› page 15 14

The essentials

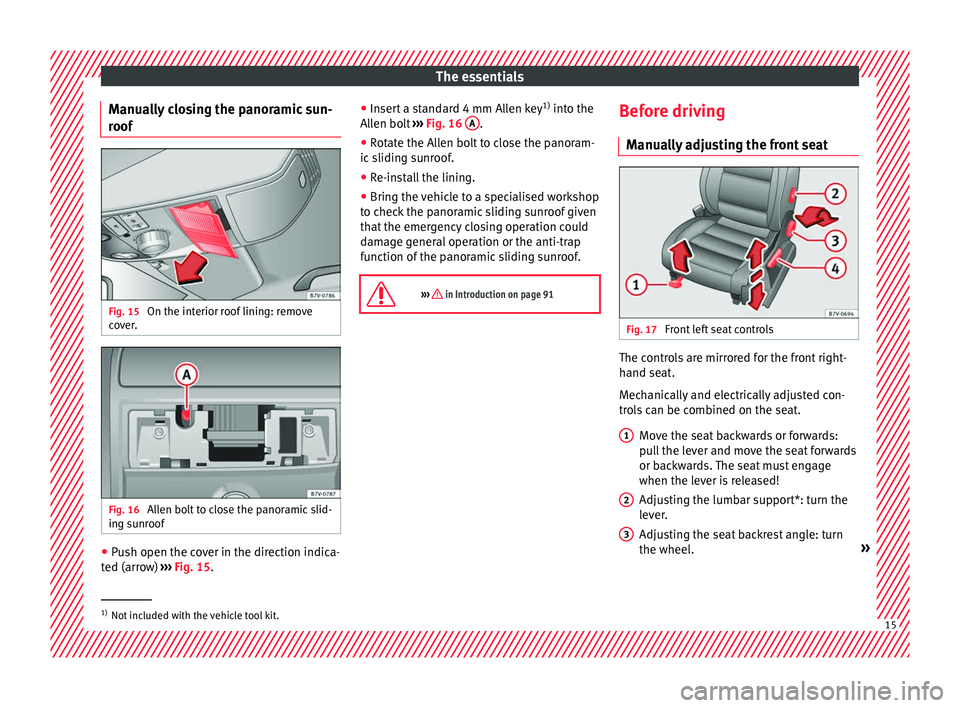

Manually closing the panoramic sun-
r oof Fig. 15
On the interior roof lining: remove
c o
v
er. Fig. 16
Allen bolt to close the panoramic slid-
in g s
u

nroof ●
Push open the cover in the direction indica-
t ed (arr
o

w) ››› Fig. 15. ●
Insert
a standard 4 mm Allen key 1)
into the
Allen bolt ››› Fig. 16 A .
● Rotate the Allen bolt to close the panoram-
ic s
lidin

g sunroof.
● Re-install the lining.
● Bring the vehicle to a specialised workshop
to chec
k the panoramic sliding sunroof given
that the emergency closing operation could
damage general operation or the anti-trap
function of the panoramic sliding sunroof.

››› in Introduction on page 91 Before driving
M anua
l

ly adjusting the front seat Fig. 17
Front left seat controls The controls are mirrored for the front right-
h
and se
at

.
Mechanically and electrically adjusted con-
trols can be combined on the seat.
Move the seat backwards or forwards:
pull the lever and move the seat forwards
or backwards. The seat must engage
when the lever is released!
Adjusting the lumbar support*: turn the
lever.
Adjusting the seat backrest angle: turn
the wheel. »
1 2
3
1)
Not included with the vehicle tool kit. 15

The essentials
Adjusting the seat height: pull the lever
up or p u
sh do
wn (several times if neces-
sary) from its home position.

››› in Manual adjustment of the seats

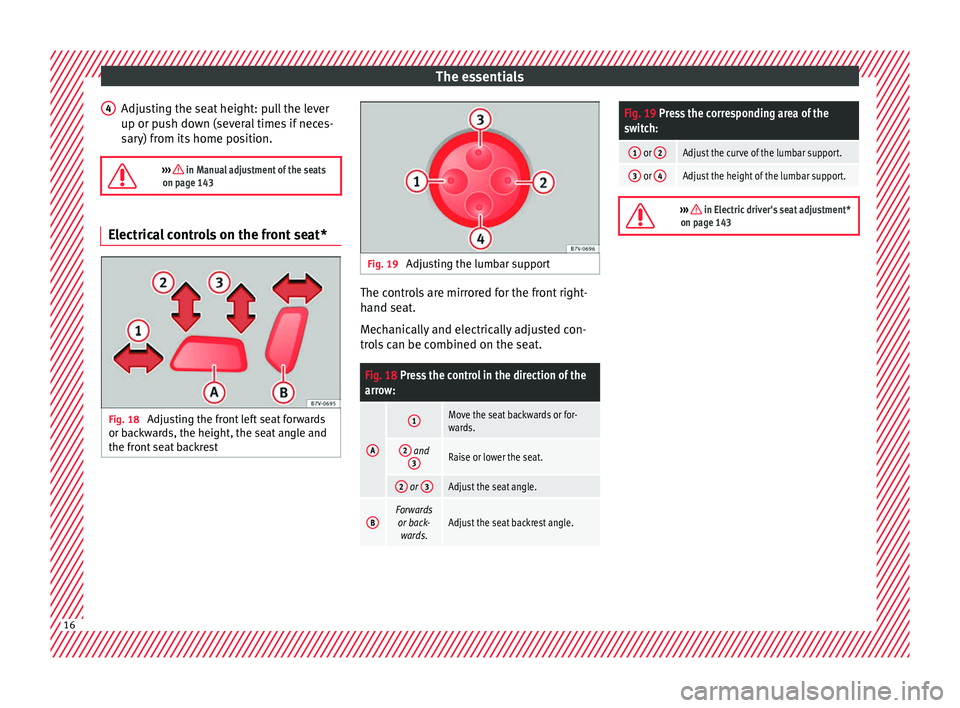

on page 143 Electrical controls on the front seat*
Fig. 18
Adjusting the front left seat forwards
or b ac
k

wards, the height, the seat angle and
the front seat backrest 4
Fig. 19
Adjusting the lumbar support The controls are mirrored for the front right-
h
and se
at

.
Mechanically and electrically adjusted con-
trols can be combined on the seat.
Fig. 18 Press the control in the direction of the
arrow:
A
1Move the seat backwards or for-
wards.
2 and 3Raise or lower the seat.
2 or 3Adjust the seat angle.
BForwards
or back- wards.Adjust the seat backrest angle.
Fig. 19 Press the corresponding area of the
switch:
1 or 2Adjust the curve of the lumbar support.
3 or 4Adjust the height of the lumbar support. 
››› in Electric driver's seat adjustment*
on page 143 16

The essentials

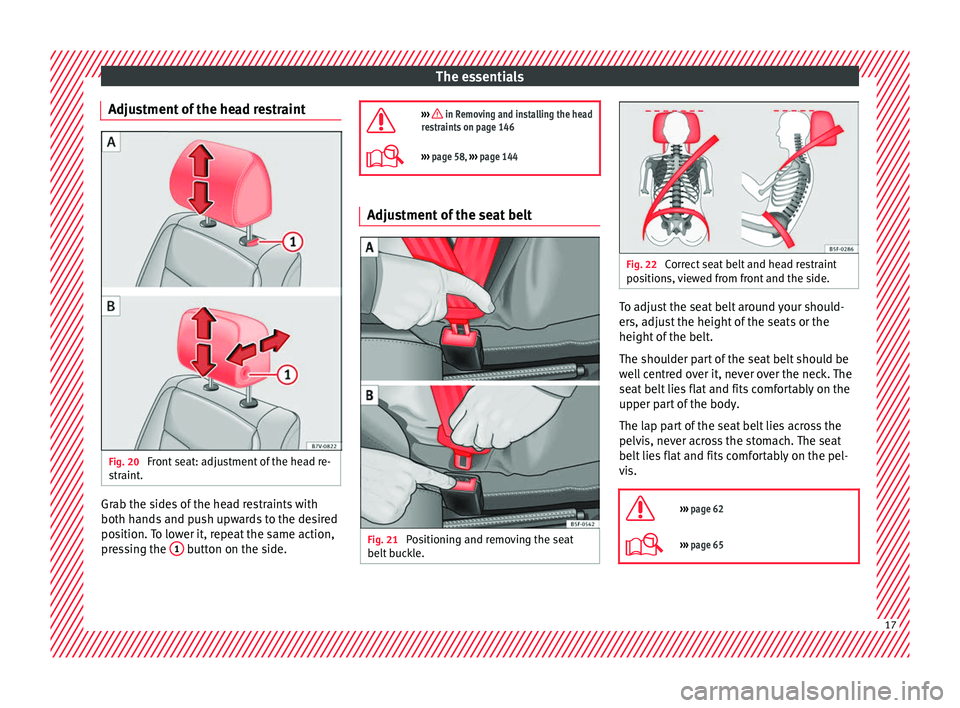

Adjustment of the head restraint Fig. 20
Front seat: adjustment of the head re-
s tr
aint
. Grab the sides of the head restraints with
both h
and
s

and push upwards to the desired
position. To lower it, repeat the same action,
pressing the 1 button on the side. 
››› in Removing and installing the head
restraints on page 146
››› page 58, ››› page 144 Adjustment of the seat belt
Fig. 21
Positioning and removing the seat
belt b
uc

kle. Fig. 22
Correct seat belt and head restraint
pos ition

s, viewed from front and the side. To adjust the seat belt around your should-
er
s, a
dju

st the height of the seats or the
height of the belt.
The shoulder part of the seat belt should be
well centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.

››› page 62
››› page 65 17

The essentials

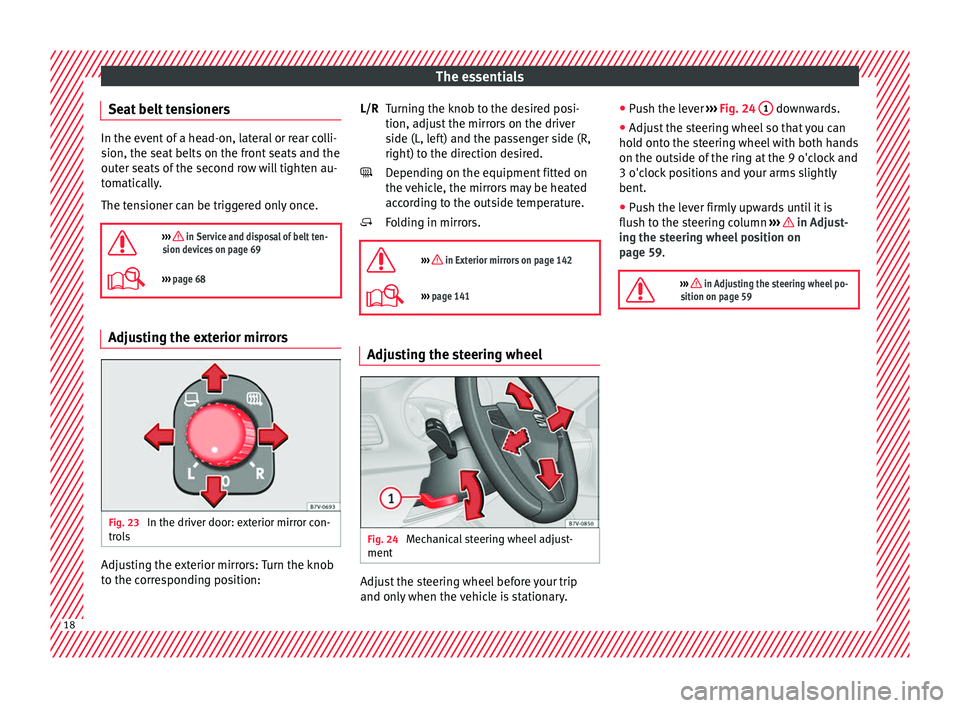

Seat belt tensioners In the event of a head-on, lateral or rear colli-
sion, the se
at
belts on the front seats and the
outer seats of the second row will tighten au-
tomatically.
The tensioner can be triggered only once.

››› in Service and disposal of belt ten-
sion devices on page 69
››› page 68 Adjusting the exterior mirrors
Fig. 23
In the driver door: exterior mirror con-
tr o
l

s Adjusting the exterior mirrors: Turn the knob
t
o the c
orr

esponding position: Turning the knob to the desired posi-
tion, adjus

t the mirrors on the driver
side (L, left) and the passenger side (R,
right) to the direction desired.
Depending on the equipment fitted on
the vehicle, the mirrors may be heated
according to the outside temperature.
Folding in mirrors.

››› in Exterior mirrors on page 142
››› page 141 Adjusting the steering wheel
Fig. 24
Mechanical steering wheel adjust-
ment Adjust the steering wheel before your trip
and on
ly
when the

vehicle is stationary.
L/R


●
Push the l
ever ››› Fig. 24 1 downwards.
● Adjust the steering wheel so that you can
ho l
d ont

o the steering wheel with both hands
on the outside of the ring at the 9 o'clock and
3 o'clock positions and your arms slightly
bent.
● Push the lever firmly upwards until it is
flush to the s
teering column ››› in Adjust-
in g the s
t
eering wheel position on
page 59.

››› in Adjusting the steering wheel po-
sition on page 59 18
