SEAT S.A. is permanently concerned about continuous development of its types and models. For this reason we ask you to understand,
that at any given time, changes regarding shape, equipment and technique may take place on the car delivered. For this reason no
right at all may derive based on the data, drawings and descriptions in this current handbook.
All texts, illustrations and standards in this handbook are based on the status of information at the time of printing. Except for error or
omission, the information included in the current handbook is valid as of the date of closing print.
Re-printing, copying or translating, whether total or partial is not allowed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.07.19

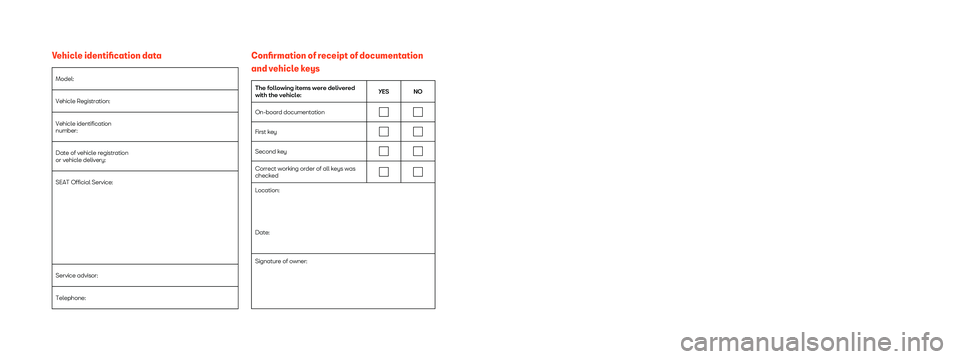

Vehicle identification data
Model:
Vehicle Registration:
Vehicle identification
number:
Date of vehicle registration
or vehicle delivery:
SEAT Official Service:
Service advisor:
Telephone:
Confirmation of receipt of documentation
and vehicle keys
The following items were delivered
with the vehicle: YES
NO
On-board documentation
First key
Second key
Correct working order of all keys was
checked
Location:
Date:
Signature of owner:
Page 7 of 380
Table of Contents
Table of Contents Gener al vie
ws of the v ehicl
e
. . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview (left hand drive) . . . . . . . . . . . . . . . . 8
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
10
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Advice about driving . . . . . . . . . . . . . . . . . . . . . . . . 10
Correct sitting position of vehicle occu-
pants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 11
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
The whys and wherefores of seat belts . . . . . 14
How to properly adjust your seat belt . . . . . . 17
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . 20
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Operation of the airbags . . . . . . . . . . . . . . . . . . . 23
Transporting children safely . . . . . . . . . . . . . . 29
Safety for children . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Integrated child seat . . . . . . . . . . . . . . . . . . . . . . . 35
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Emergency equipment . . . . . . . . . . . . . . . . . . . . . 39
Tyre repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
41
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Changing the windscreen wiper blades . . . . 49
Jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Tow start and towing . . . . . . . . . . . . . . . . . . . . . . . 52
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 56
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Controls and displays . . . . . . . . . . . . . . . . . . . . 67
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Instruments and warning/control
lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 68
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Using the instrument panel . . . . . . . . . . . . . . . . .
83
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Multifunction steering wheel* . . . . . . . . . . . . . . 87
Three button unit in the roof . . . . . . . . . . . . . . . . 89
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 91
Set of vehicle keys . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . 99
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 101
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 103
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 105
Window controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Sunroof* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 112
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 115
Vehicle lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 122
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Windscreen wiper and rear window wiper
systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 123
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 126
Sun pr
otection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Seats and headrests . . . . . . . . . . . . . . . . . . . . . . 129
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 129
Headrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 131
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 133
Transport and practical equipment . . . . . . 138
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 139
Net partition* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 147 Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 148
Storage compartment . . . . . . . . . . . . . . . . . . . . . 150
Drink holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Power sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Heating, ventilation and cooling . . . . . . . . . . . . 159
Auxiliary heating (additional heating)* . . . . . 166
Infotainment System . . . . . . . . . . . . . . . . . . 170
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Overview of the unit . . . . . . . . . . . . . . . . . . . . . . . . 172
General instructions for use . . . . . . . . . . . . . . . . 175
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Full Link* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 184
Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . 192
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 192
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 201
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 213
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 224
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 237
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239Start and driving . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Starting and stopping the engine . . . . . . . . . . . 239
Start-Stop system* . . . . . . . . . . . . . . . . . . . . . . . . . 243
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Automatic gearbox/DSG automatic gear-
box* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 246
Gear-change r
ecommendation . . . . . . . . . . . . 252
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 252
Dynamic chassis control (DCC)* . . . . . . . . . . . 253
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 254
5
Page 25 of 380

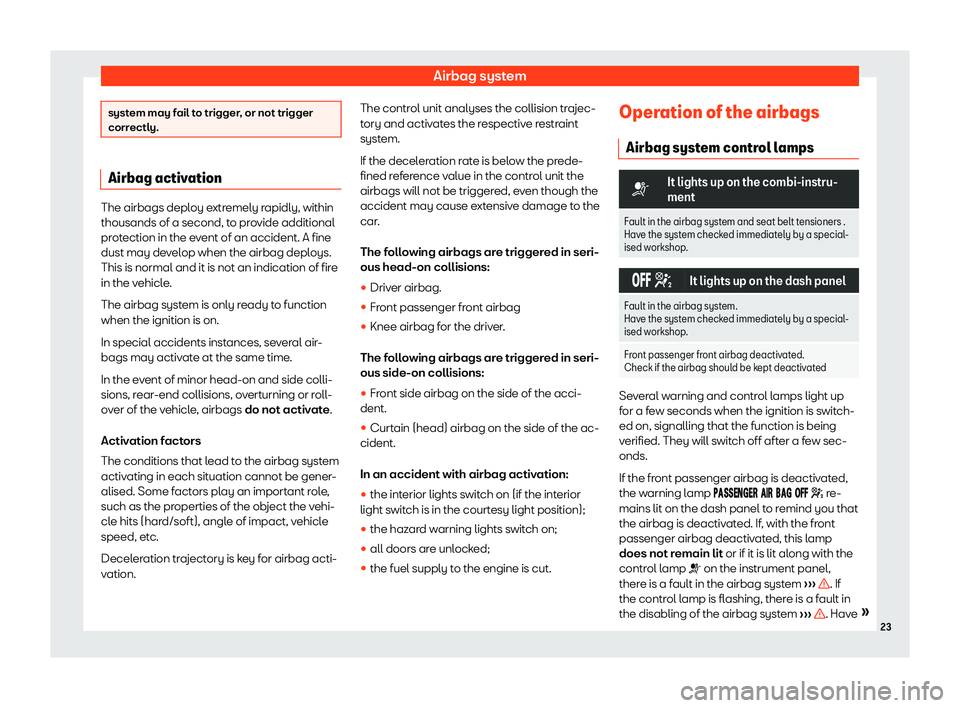

Airbag system
system may fail to trigger, or not trigger
correctly.
Airbag activation
The airbags deploy extremely rapidly, within
thousands of a second, to provide additional
pr ot
ection in the event of an accident. A fine
dust may develop when the airbag deploys.
This is normal and it is not an indication of fire
in the vehicle.
The airbag system is only ready to function
when the ignition is on.
In special accidents instances, several air-
bags may activate at the same time.
In the event of minor head-on and side colli-
sions, rear-end collisions, overturning or roll-
over of the vehicle, airbags do not activate.
Activation factors
The conditions that lead to the airbag system
activating in each situation cannot be gener-
alised. Some factors play an important role,
such as the properties of the object the vehi-
cle hits (hard/soft), angle of impact, vehicle
speed, etc.
Deceleration trajectory is key for airbag acti-
vation. The control unit analyses the collision trajec-
tory and activates the r
espectiv
e restraint
system.
If the deceleration rate is below the prede-
fined reference value in the control unit the
airbags will not be triggered, even though the
accident may cause extensive damage to the
car.
The following airbags are triggered in seri-
ous head-on collisions:
Page 55 of 380

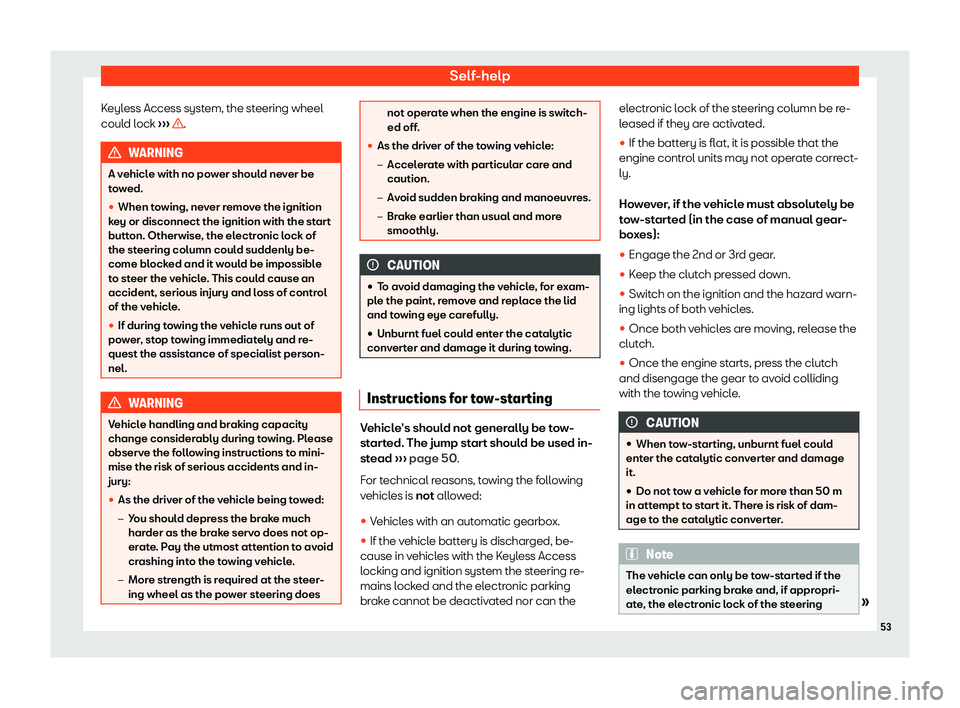

Self-help
Keyless Access system, the steering wheel
coul d l
ock
Page 93 of 380
Opening and closing

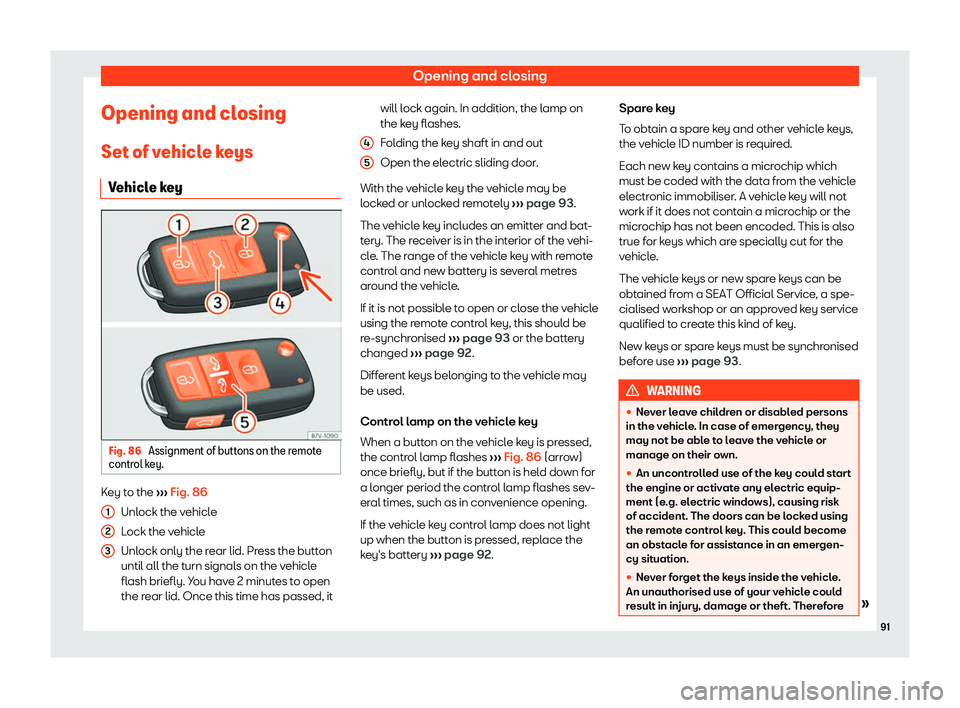

Opening and closing Set of v ehicl
e keys
V ehicl
e key Fig. 86
Assignment of buttons on the remote
contr ol k
ey. Key to the
Page 94 of 380

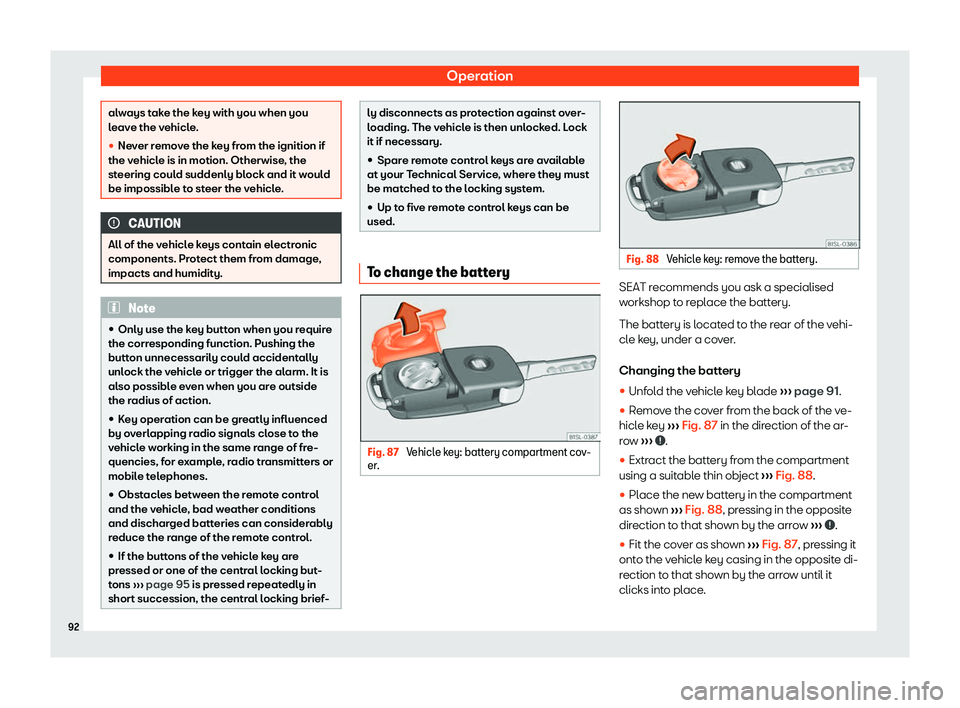

Operation
always take the key with you when you
leave the vehicl
e
.
Page 97 of 380
Opening and closing
Unlock and lock from the outside Fig. 89
Remote control key: buttons.
Page 99 of 380
Opening and closing
one of the sensor surfaces on the door han-
dl es is t
ouched or the push butt on on the
boot hat ch is oper
ated.
The following features are then available
without having to use the vehicle key actively:
Page 100 of 380
Operation

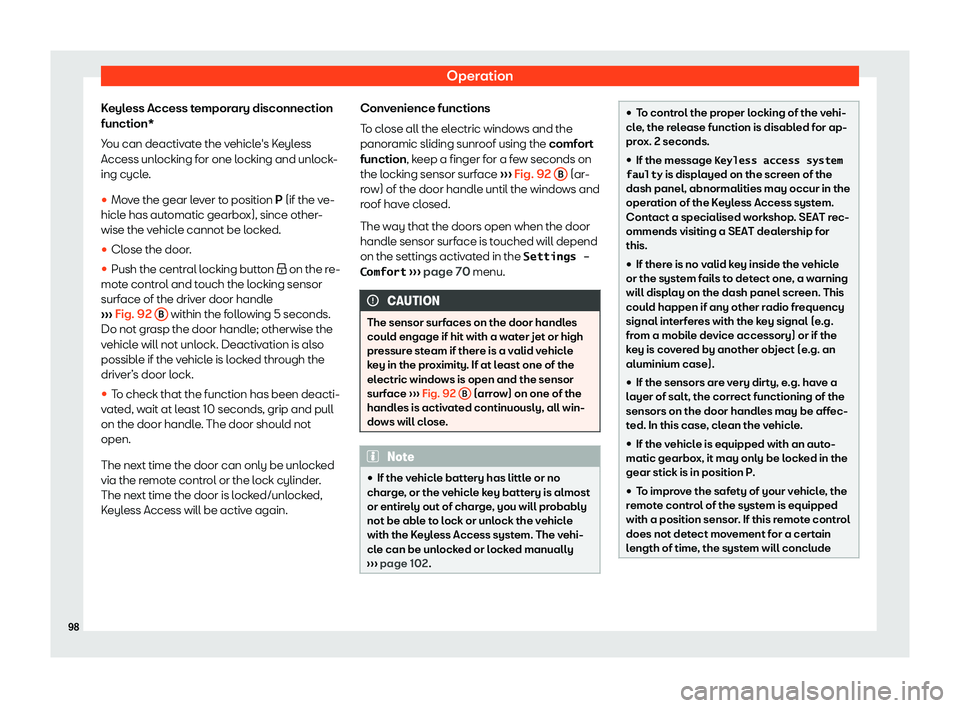

Keyless Access temporary disconnection
function*
Y ou can deactiv
ate the v
ehicl
e
Page 112 of 380
Operation
To notify that the rear lid has been opened
with the Easy Open function, the t urn lights
blink twice .
The r ear lid can be cl
osed with another f
oot
movement similar to the opening one (provi-
ded a valid vehicle key is in the proximity of
the rear lid).
When closed, the rear lid automatically locks
if the vehicle has been locked beforehand
and there is no valid key inside.
Switching the Easy Open function on or off
The Easy Open function can be activated
and deactivated in the V e h i c l e s e t t i n g s
menu of the infotainment system
