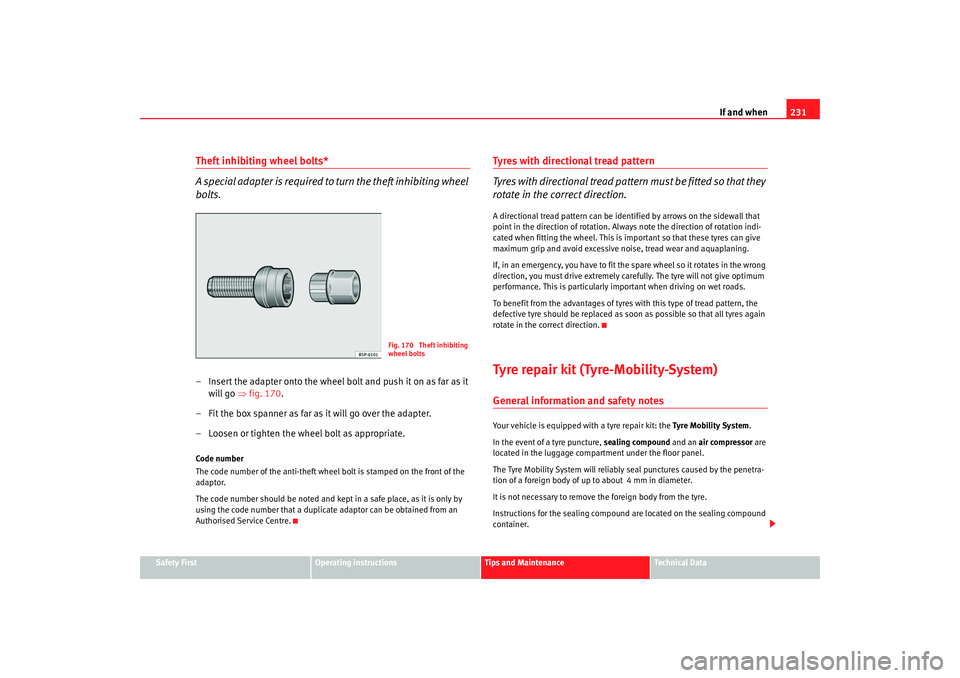

If and when231
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Theft inhibiting wheel bolts*
A special adapter is required to turn the theft inhibiting wheel
bolts.– Insert the adapter onto the wheel bolt and push it on as far as it
will go ⇒fig. 170 .
– Fit the box spanner as far as it will go over the adapter.
– Loosen or tighten the wheel bolt as appropriate.Code number
The code number of the anti-theft wheel bolt is stamped on the front of the
adaptor.
The code number should be noted and kept in a safe place, as it is only by
using the code number that a duplicat e adaptor can be obtained from an
Authorised Service Centre.
Tyres with directional tread pattern
Tyres with directional tread pattern must be fitted so that they
rotate in the correct direction.A directional tread pattern can be ident ified by arrows on the sidewall that
point in the direction of rotation. Always note the direction of rotation indi-
cated when fitting the wheel. This is important so that these tyres can give
maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to fit the spare wheel so it rotates in the wrong
direction, you must drive extremely care fully. The tyre will not give optimum
performance. This is particularly important when driving on wet roads.
To benefit from the advantages of tyres with this type of tread pattern, the
defective tyre should be replaced as soon as possible so that all tyres again
rotate in the correct direction.Tyre repair kit (Tyre-Mobility-System)General information and safety notesYour vehicle is equipped with a tyre repair kit: the Tyre Mobility System.
In the event of a tyre puncture, sealing compound and an air compressor are
located in the luggage compartment under the floor panel.
The Tyre Mobility System will reliably seal punctures caused by the penetra-
tion of a foreign body of up to about 4 mm in diameter.
It is not necessary to remove the foreign body from the tyre.
Instructions for the sealing compound are located on the sealing compound
container.
Fig. 170 Theft inhibiting
wheel bolts
altea_ingles Seite 231 Donnerstag, 19. Mai 2005 3:02 15

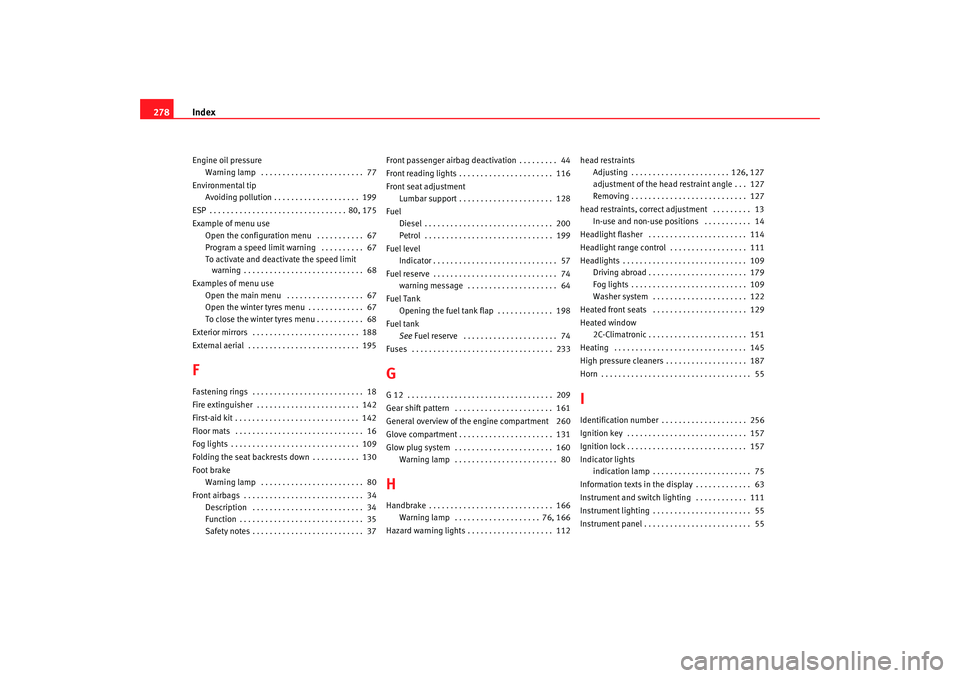

Index
278Engine oil pressure
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 199
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 175
Example of menu use Open the configuration menu . . . . . . . . . . . 67
Program a speed limit warning . . . . . . . . . . 67
To activate and deactivate the speed limit warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Examples of menu use Open the main menu . . . . . . . . . . . . . . . . . . 67
Open the winter tyres menu . . . . . . . . . . . . . 67
To close the winter tyres menu . . . . . . . . . . . 68
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 188
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 195FFastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 142
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Folding the seat backrests down . . . . . . . . . . . 130
Foot brake Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Front passenger airbag deactivation . . . . . . . . . 44
Front reading lights . . . . . . . . . . . . . . . . . . . . . . 116
Front seat adjustment
Lumbar support . . . . . . . . . . . . . . . . . . . . . . 128
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 warning message . . . . . . . . . . . . . . . . . . . . . 64
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 198
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 74
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 161
General overview of the engine compartment 260
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 131
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 160 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166Warning lamp . . . . . . . . . . . . . . . . . . . . 76, 166
Hazard warning lights . . . . . . . . . . . . . . . . . . . . 112 head restraints
Adjusting . . . . . . . . . . . . . . . . . . . . . . . 126, 127
adjustment of the head restraint angle . . . 127
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
head restraints, correct adjustment . . . . . . . . . 13 In-use and non-use positions . . . . . . . . . . . 14
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . 114
Headlight range control . . . . . . . . . . . . . . . . . . 111
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 179
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Washer system . . . . . . . . . . . . . . . . . . . . . . 122
Heated front seats . . . . . . . . . . . . . . . . . . . . . . 129
Heated window 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 151
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
High pressure cleaners . . . . . . . . . . . . . . . . . . . 187
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
IIdentification number . . . . . . . . . . . . . . . . . . . . 256
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Indicator lights indication lamp . . . . . . . . . . . . . . . . . . . . . . . 75
Information texts in the display . . . . . . . . . . . . . 63
Instrument and switch lighting . . . . . . . . . . . . 111
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 55
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 55
