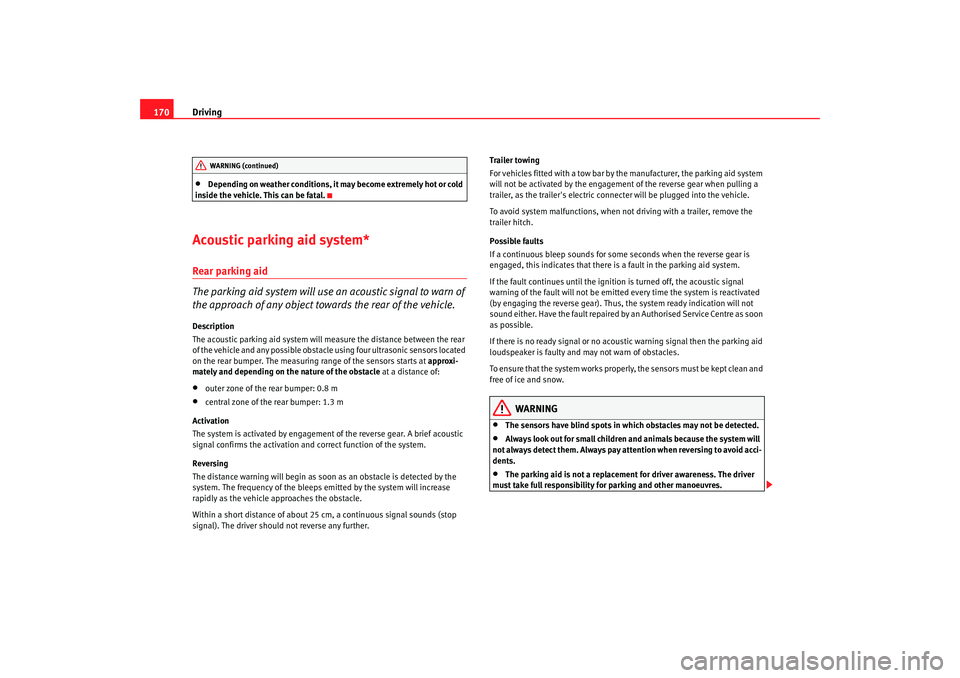

Driving
170•
Depending on weather conditions, it may become extremely hot or cold
inside the vehicle. This can be fatal.
Acoustic parking aid system*Rear parking aid
The parking aid system will use an acoustic signal to warn of
the approach of any object towards the rear of the vehicle.Description
The acoustic parking aid system will measure the distance between the rear
of the vehicle and any possible obstacle using four ultrasonic sensors located
on the rear bumper. The measuring range of the sensors starts at approxi-
mately and depending on the nature of the obstacle at a distance of:•
outer zone of the rear bumper: 0.8 m
•
central zone of the rear bumper: 1.3 m
Activation
The system is activated by engagement of the reverse gear. A brief acoustic
signal confirms the activation and correct function of the system.
Reversing
The distance warning will begin as soon as an obstacle is detected by the
system. The frequency of the bleeps emitted by the system will increase
rapidly as the vehicle approaches the obstacle.
Within a short distance of about 25 cm, a continuous signal sounds (stop
signal). The driver should not reverse any further. Trailer towing
For vehicles fitted with a tow bar by the manufacturer, the parking aid system
will not be activated by the engagement of the reverse gear when pulling a
trailer, as the trailer's electric conne
cter will be plugged into the vehicle.
To avoid system malfunctions, when not driving with a trailer, remove the
trailer hitch.
Possible faults
If a continuous bleep sounds for some seconds when the reverse gear is
engaged, this indicates that there is a fault in the parking aid system.
If the fault continues until the ignition is turned off, the acoustic signal
warning of the fault will not be emitted every time the system is reactivated
(by engaging the reverse gear). Thus, the system ready indication will not
sound either. Have the fault repaired by an Authorised Service Centre as soon
as possible.
If there is no ready signal or no acous tic warning signal then the parking aid
loudspeaker is faulty and may not warn of obstacles.
To ensure that the system works properly, the sensors must be kept clean and
free of ice and snow.
WARNING
•
The sensors have blind spots in which obstacles may not be detected.
•
Always look out for small children and animals because the system will
not always detect them. Always pay at tention when reversing to avoid acci-
dents.
•
The parking aid is not a replacement for driver awareness. The driver
must take full responsibility for parking and other manoeuvres.
WARNING (continued)
altea_ingles Seite 170 Dienstag, 4. Oktober 2005 6:57 18

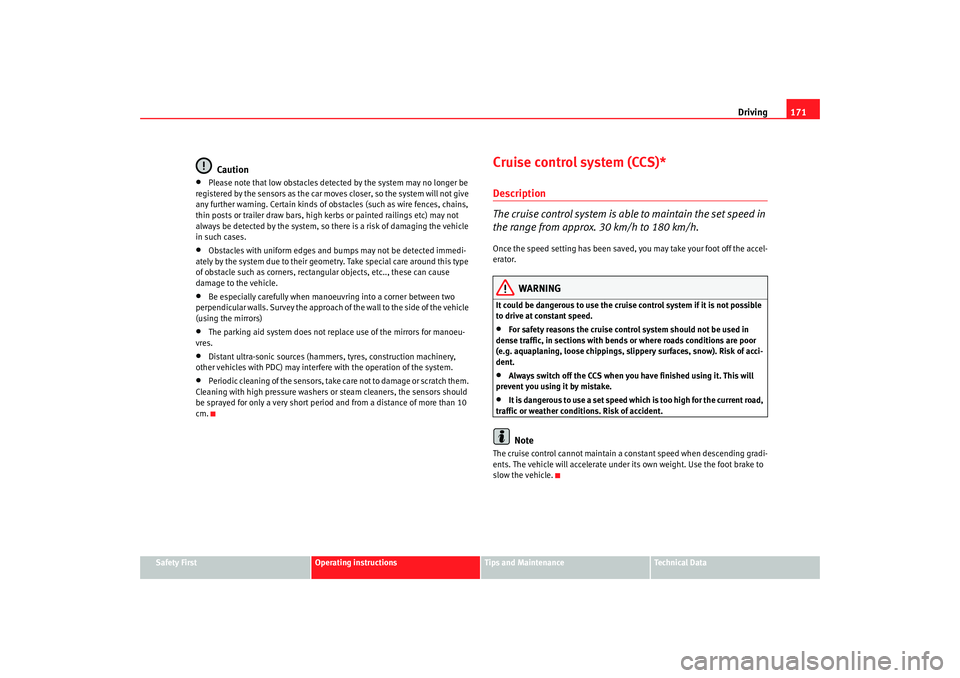

Driving171
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Caution
•
Please note that low obstacles detected by the system may no longer be
registered by the sensors as the car moves closer, so the system will not give
any further warning. Certain kinds of ob stacles (such as wire fences, chains,
thin posts or trailer draw bars, high kerbs or painted railings etc) may not
always be detected by the system, so there is a risk of damaging the vehicle
in such cases.
•
Obstacles with uniform edges and bumps may not be detected immedi-
ately by the system due to their geometry. Take special care around this type
of obstacle such as corners, rectangular objects, etc.., these can cause
damage to the vehicle.
•
Be especially carefully when manoeuvring into a corner between two
perpendicular walls. Survey the approach of the wall to the side of the vehicle
(using the mirrors)
•
The parking aid system does not replace use of the mirrors for manoeu-
vres.
•
Distant ultra-sonic sources (hammers, tyres, construction machinery,
other vehicles with PDC) may interfere with the operation of the system.
•
Periodic cleaning of the sensors, take care not to damage or scratch them.
Cleaning with high pressure washers or steam cleaners, the sensors should
be sprayed for only a very short period and from a distance of more than 10
cm.
Cruise control system (CCS)*Description
The cruise control system is able to maintain the set speed in
the range from approx. 30 km/h to 180 km/h.Once the speed setting has been saved, you may take your foot off the accel-
erator.
WARNING
It could be dangerous to use the cruise control system if it is not possible
to drive at constant speed.•
For safety reasons the cruise control system should not be used in
dense traffic, in sections with bends or where roads conditions are poor
(e.g. aquaplaning, loose chippings, slippery surfaces, snow). Risk of acci-
dent.
•
Always switch off the CCS when you have finished using it. This will
prevent you using it by mistake.
•
It is dangerous to use a set speed which is too high for the current road,
traffic or weather conditions. Risk of accident.Note
The cruise control cannot maintain a constant speed when descending gradi-
ents. The vehicle will accelerate under its own weight. Use the foot brake to
slow the vehicle.
altea_ingles Seite 171 Dienstag, 4. Oktober 2005 6:57 18

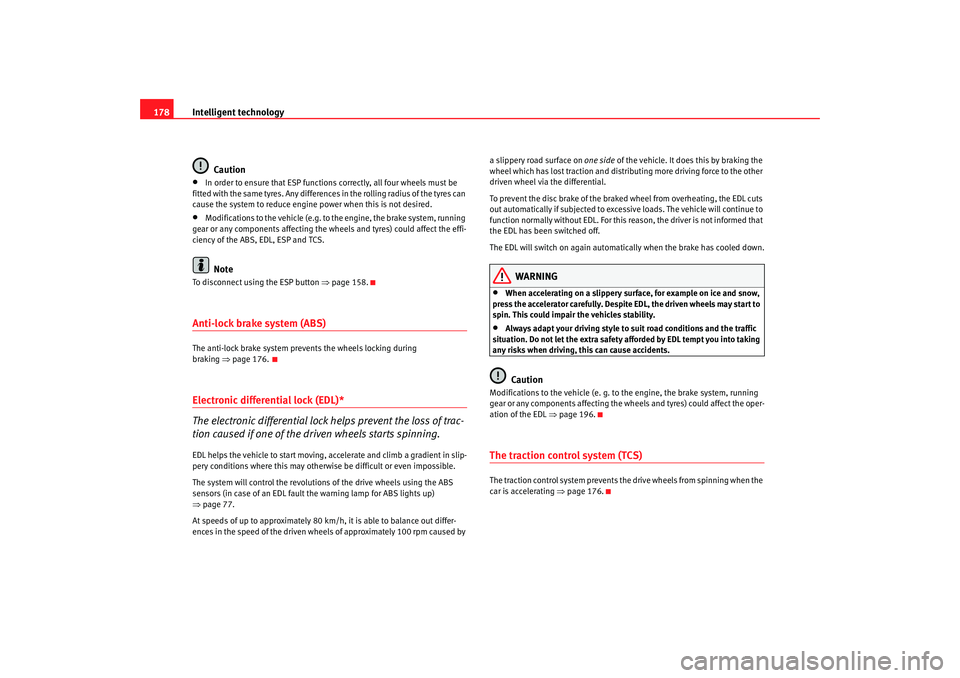

Intelligent technology
178
Caution•
In order to ensure that ESP functions correctly, all four wheels must be
fitted with the same tyres. Any differences in the rolling radius of the tyres can
cause the system to reduce engine power when this is not desired.
•
Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the effi-
ciency of the ABS, EDL, ESP and TCS.Note
To disconnect using the ESP button ⇒ page 15
8.
Anti-lock brake system (ABS)The anti-lock brake system prevents the wheels locking during
braking ⇒ page 176.Electronic differential lock (EDL)*
The electronic differential lock helps prevent the loss of trac-
tion caused if one of the driven wheels starts spinning.EDL helps the vehicle to start moving, accelerate and climb a gradient in slip-
pery conditions where this may otherwise be difficult or even impossible.
The system will control the revolutions of the drive wheels using the ABS
sensors (in case of an EDL fault the warning lamp for ABS lights up)
⇒page 77.
At speeds of up to approximately 80 km/h, it is able to balance out differ-
ences in the speed of the driven wheel s of approximately 100 rpm caused by a slippery road surface on
one side of the vehicle. It does this by braking the
wheel which has lost traction and distributing more driving force to the other
driven wheel via the differential.
To prevent the disc brake of the braked wheel from overheating, the EDL cuts
out automatically if subjected to excessive loads. The vehicle will continue to
function normally without EDL. For this reason, the driver is not informed that
the EDL has been switched off.
The EDL will switch on again automatically when the brake has cooled down.
WARNING
•
When accelerating on a slippery surface, for example on ice and snow,
press the accelerator carefully. Despite EDL, the driven wheels may start to
spin. This could impair the vehicles stability.
•
Always adapt your driving style to su it road conditions and the traffic
situation. Do not let the extra safety afforded by EDL tempt you into taking
any risks when driving, this can cause accidents.Caution
Modifications to the vehicle (e. g. to the engine, the brake system, running
gear or any components affecting the wh eels and tyres) could affect the oper-
ation of the EDL ⇒ page 196.The traction control system (TCS)The traction control system prevents the drive wheels from spinning when the
car is accelera ting ⇒
page 176.
altea_ingles Seite 178 Dienstag, 4. Oktober 2005 6:57 18

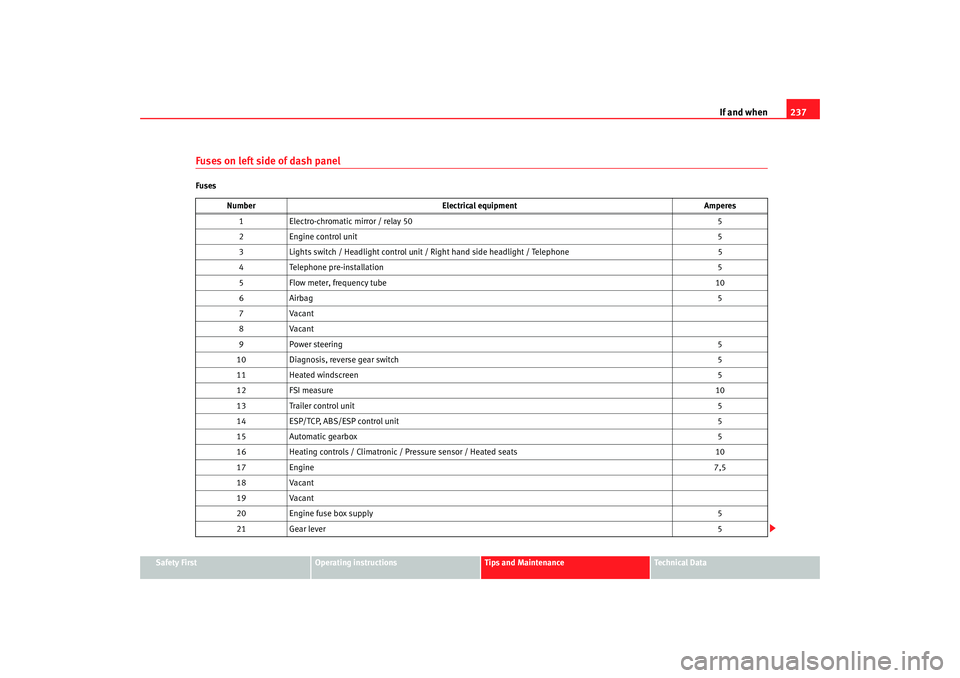

If and when237
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Fuses on left side of dash panelFuses
Number Electrical equipment Amperes
1 Electro-chromatic mirror / relay 50 5
2 Engine control unit 5
3 Lights switch / Headlight control unit / Right hand side headlight / Telephone 5
4 Telephone pre-installation 5
5 Flow meter, frequency tube 10
6A ir b ag 5
7 Vacant
8 Vacant
9 Power steering 5
10 Diagnosis, reverse gear switch 5
11 Heated windscreen 5
12 FSI measure 10
13 Trailer control unit 5
14 ESP/TCP, ABS/ESP control unit 5
15 Automatic gearbox 5
16 Heating controls / Climatronic / Pressure sensor / Heated seats 10
17 Engine 7,5
18 Vacant
19 Vacant
20 Engine fuse box supply 5
21 Gear lever 5
altea_ingles Seite 237 Dienstag, 4. Oktober 2005 6:57 18

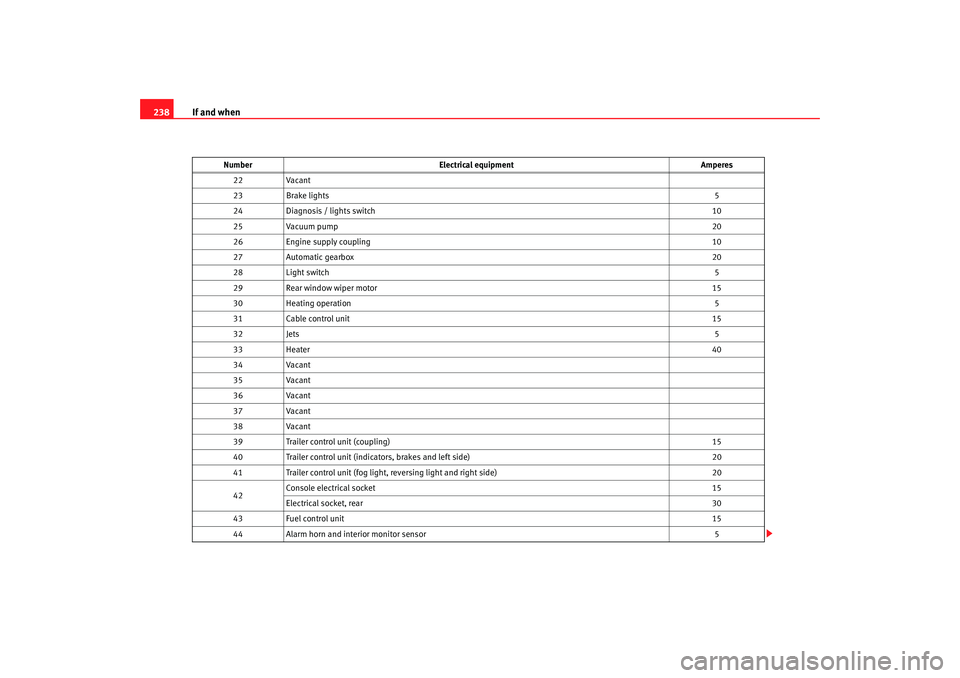

If and when
238
22 Vacant
23 Brake lights 5
24 Diagnosis / lights switch 10
25 Vacuum pump 20
26 Engine supply coupling 10
27 Automatic gearbox 20
28 Light switch 5
29 Rear window wiper motor 15
30 Heating operation 5
31 Cable control unit 15
32 Jets 5
33 Heater 40
34 Vacant
35 Vacant
36 Vacant
37 Vacant
38 Vacant
39 Trailer control unit (coupling) 15
40 Trailer control unit (indicators, brakes and left side) 20
41 Trailer control unit (fog light, reversing light and right side) 20
42 Console electrical socket
15
Electrical socket, rear 30
43 Fuel control unit 15
44 Alarm horn and interior monitor sensor 5
Number
Electrical equipment Amperes
altea_ingles Seite 238 Dienstag, 4. Oktober 2005 6:57 18

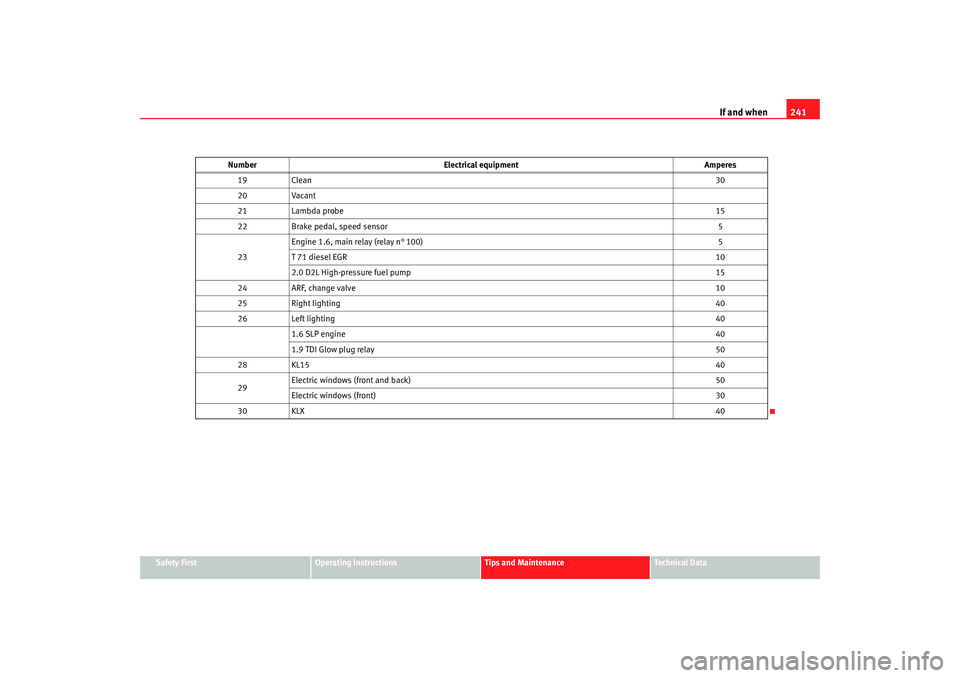

If and when241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
19
Clean 30
20 Vacant
21 Lambda probe 15
22 Brake pedal, speed sensor 5
23 Engine 1.6, main relay (relay n° 100)
5
T 71 diesel EGR 10
2.0 D2L High-pressure fuel pump 15
24 ARF, change valve 10
25 Right lighting 40
26 Left lighting 40
1.6 SLP engine 40
1.9 TDI Glow plug relay 50
28 KL15 40
29 Electric windows (front and back)
50
Electric windows (front) 30
30 KLX 40
Number
Electrical equipment Amperes
altea_ingles Seite 241 Dienstag, 4. Oktober 2005 6:57 18

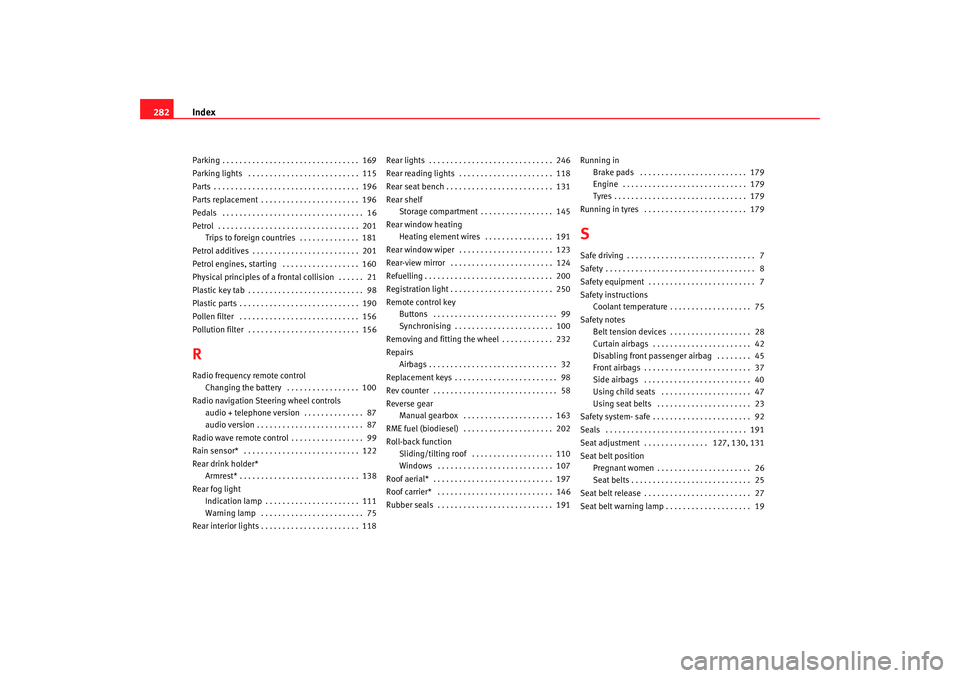

Index
282Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 196
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Trips to foreign countries . . . . . . . . . . . . . . 181
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 201
Petrol engines, starting . . . . . . . . . . . . . . . . . . 160
Physical principles of a frontal collision . . . . . . 21
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 156RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . 100
Radio navigation St eering wheel controls
audio + telephone version . . . . . . . . . . . . . . 87
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 87
Radio wave remote control . . . . . . . . . . . . . . . . . 99
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Rear drink holder* Armrest* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Rear fog light Indication lamp . . . . . . . . . . . . . . . . . . . . . . 111
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 75
Rear interior lights . . . . . . . . . . . . . . . . . . . . . . . 118 Rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Rear reading lights . . . . . . . . . . . . . . . . . . . . . . 118
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 131
Rear shelf
Storage compartment . . . . . . . . . . . . . . . . . 145
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 191
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 123
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 124
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Registration light . . . . . . . . . . . . . . . . . . . . . . . . 250
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Synchronising . . . . . . . . . . . . . . . . . . . . . . . 100
Removing and fitting the wheel . . . . . . . . . . . . 232
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 98
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 163
RME fuel (biodiesel) . . . . . . . . . . . . . . . . . . . . . 202
Roll-back function Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 110
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Running in
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 179
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Running in tyres . . . . . . . . . . . . . . . . . . . . . . . . 179
SSafe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . . 75
Safety notes Belt tension devices . . . . . . . . . . . . . . . . . . . 28
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Disabling front passenger airbag . . . . . . . . 45
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 37
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using child seats . . . . . . . . . . . . . . . . . . . . . 47
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 23
Safety system- safe . . . . . . . . . . . . . . . . . . . . . . . 92
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Seat adjustment . . . . . . . . . . . . . . . 127, 130, 131
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . . 26
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 27
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 19
altea_ingles Seite 282 Dienstag, 4. Oktober 2005 6:57 18

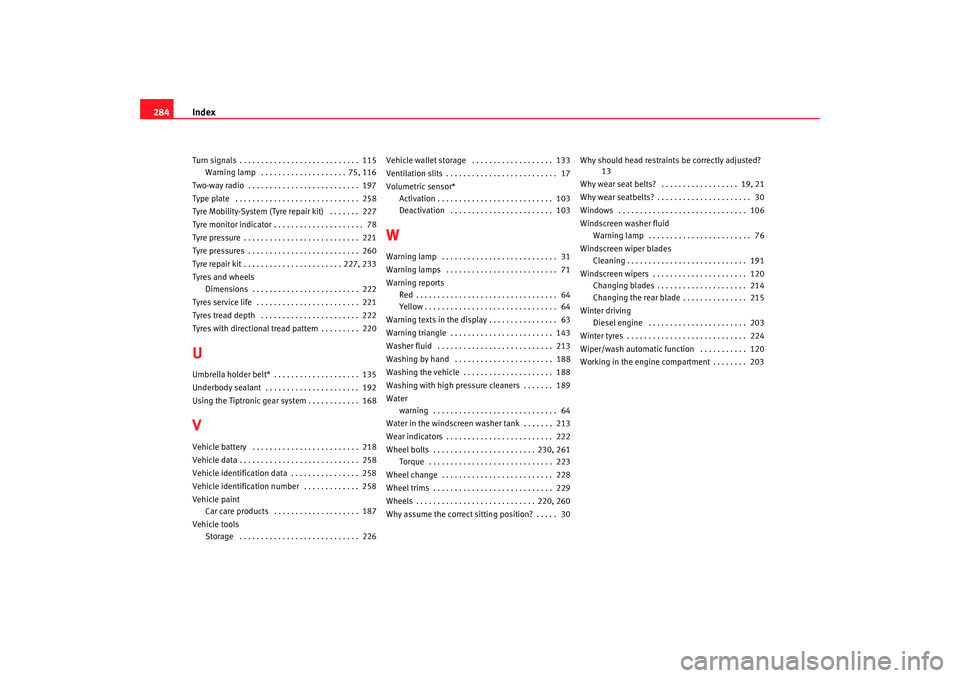

Index
284Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Warning lamp . . . . . . . . . . . . . . . . . . . . 75, 116
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Tyre Mobility-System (Tyre repair kit) . . . . . . . 227
Tyre monitor indicator . . . . . . . . . . . . . . . . . . . . . 78
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . 227, 233
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 222
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 221
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 222
Tyres with directional tread pattern . . . . . . . . . 220UUmbrella holder belt* . . . . . . . . . . . . . . . . . . . . 135
Underbody sealant . . . . . . . . . . . . . . . . . . . . . . 192
Using the Tiptronic gear system . . . . . . . . . . . . 168VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 218
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Vehicle identification data . . . . . . . . . . . . . . . . 258
Vehicle identification number . . . . . . . . . . . . . 258
Vehicle paint Car care products . . . . . . . . . . . . . . . . . . . . 187
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Vehicle wallet storage . . . . . . . . . . . . . . . . . . . 133
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Volumetric sensor*
Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Deactivati

on . . . . . . . . . . . . . . . . . . . . . . . . 103
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Warning reports Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Warning texts in the display . . . . . . . . . . . . . . . . 63
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 143
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 188
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 188
Washing with high pressure cleaners . . . . . . . 189
Water warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Water in the windscreen washer tank . . . . . . . 213
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 222
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . 230, 261 Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220, 260
Why assume the correct sitting position? . . . . . 30 Why should head restraints be correctly adjusted?
13
Why wear seat belts? . . . . . . . . . . . . . . . . . . 19, 21
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 30
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Windscreen washer fluid Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 120 Changing blades . . . . . . . . . . . . . . . . . . . . . 214
Changing the rear blade . . . . . . . . . . . . . . . 215
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . 203
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Wiper/wash automatic function . . . . . . . . . . . 120
Working in the engine compartment . . . . . . . . 203
altea_ingles Seite 284 Dienstag, 4. Oktober 2005 6:57 18
