technical data Seat Altea 2006 User Guide

Technical Data263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.6l 75 kW (102 bhp)General engine data
Performance figures
ConsumptionPower output in kW (bhp)
rpm 75 (102)/ 5600
Maximum torque in Nm at rpm 148/ 3800
No. of cylinders, capacity in cm
3
4/ 1595
Compression 10,5 ± 0,5
Fuel 95 super RON
a)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.Maximum speed in km/h 181
Acceleration from 0-80 km/h in sec. 8,6
Acceleration from 0-100 km/h in sec. 12,8
Urban cycle 10,5/ 25210,6/ 254
Extra urban cycle 6,1/ 1466,2/ 149
Combined 7,7/ 1857,8/ 187
altea_ingles Seite 263 Dienstag, 4. Oktober 2005 6:57 18

Technical Data
264Weights
Trailer weights
Engine oil capacityPetrol engine 2.0l 110 kW (150 bhp)General engine data Gross vehicle weight
in kg 1920
Weight in working order (with driver) in kg 1395/ 1480
Gross axle weight, front in kg 967
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 690
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.8 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 11,5 - 0,5
Fuel 98 super RON
a)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.
altea_ingles Seite 264 Dienstag, 4. Oktober 2005 6:57 18

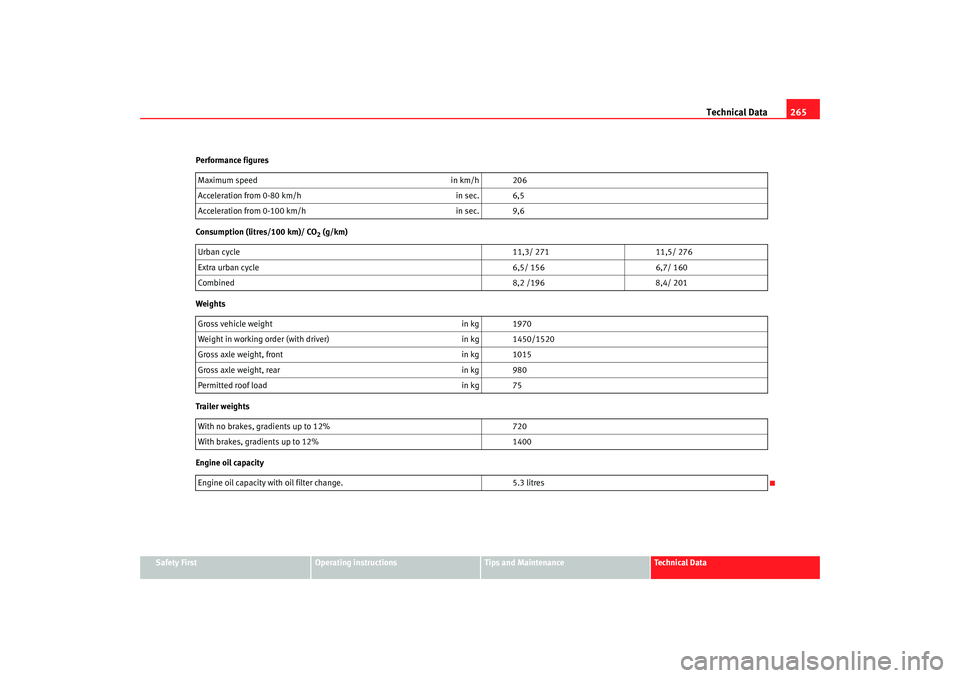

Technical Data265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 206
Acceleration from 0-80 km/h in sec. 6,5
Acceleration from 0-100 km/h in sec. 9,6
Urban cycle 11,3/ 27111,5/ 276
Extra urban cycle 6,5/ 1566,7/ 160
Combined 8,2 /1968,4/ 201
Gross vehicle weight in kg 1970
Weight in working order (with driver) in kg 1450/1520
Gross axle weight, front in kg 1015
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 720
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 5.3 litres
altea_ingles Seite 265 Dienstag, 4. Oktober 2005 6:57 18

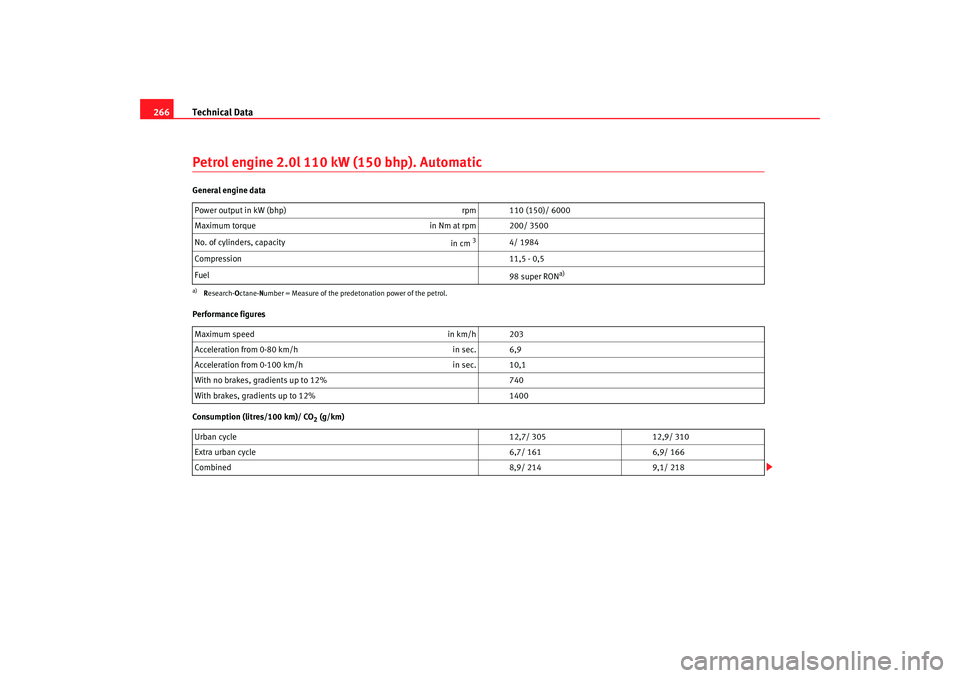

Technical Data
266Petrol engine 2.0l 110 kW (150 bhp). AutomaticGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 11,5 - 0,5
Fuel 98 super RON
a)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.Maximum speed in km/h 203
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 10,1
With no brakes, gradients up to 12% 740
With brakes, gradients up to 12% 1400
Urban cycle 12,7/ 30512,9/ 310
Extra urban cycle 6,7/ 1616,9/ 166
Combined 8,9/ 2149,1/ 218
altea_ingles Seite 266 Dienstag, 4. Oktober 2005 6:57 18

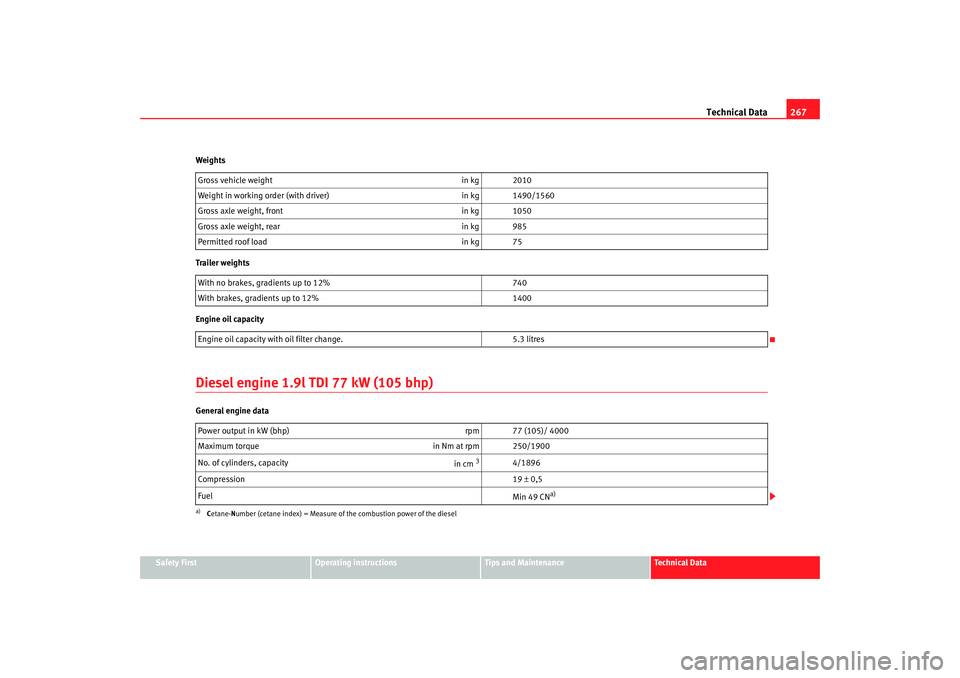

Technical Data267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 77 kW (105 bhp)General engine data
Gross vehicle weight
in kg 2010
Weight in working order (with driver) in kg 1490/1560
Gross axle weight, front in kg 1050
Gross axle weight, rear in kg 985
Permitted roof load in kg 75
With no brakes, gradients up to 12% 740
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 5.3 litres
Power output in kW (bhp) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 19 ± 0,5
Fuel Min 49 CN
a)
a)Cetane- Number (cetane inde x) = Measure of the combus tion power of the diesel
altea_ingles Seite 267 Dienstag, 4. Oktober 2005 6:57 18

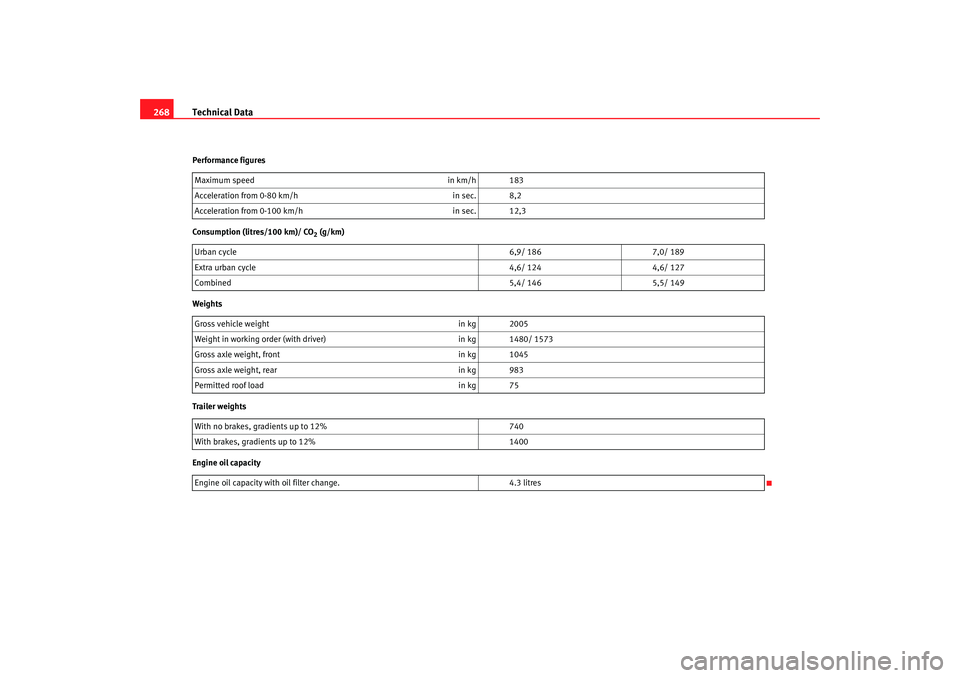

Technical Data
268Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 183
Acceleration from 0-80 km/h in sec. 8,2
Acceleration from 0-100 km/h in sec. 12,3
Urban cycle 6,9/ 1867,0/ 189
Extra urban cycle 4,6/ 1244,6/ 127
Combined 5,4/ 1465,5/ 149
Gross vehicle weight in kg 2005
Weight in working order (with driver) in kg 1480/ 1573
Gross axle weight, front in kg 1045
Gross axle weight, rear in kg 983
Permitted roof load in kg 75
With no brakes, gradients up to 12% 740
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
altea_ingles Seite 268 Dienstag, 4. Oktober 2005 6:57 18

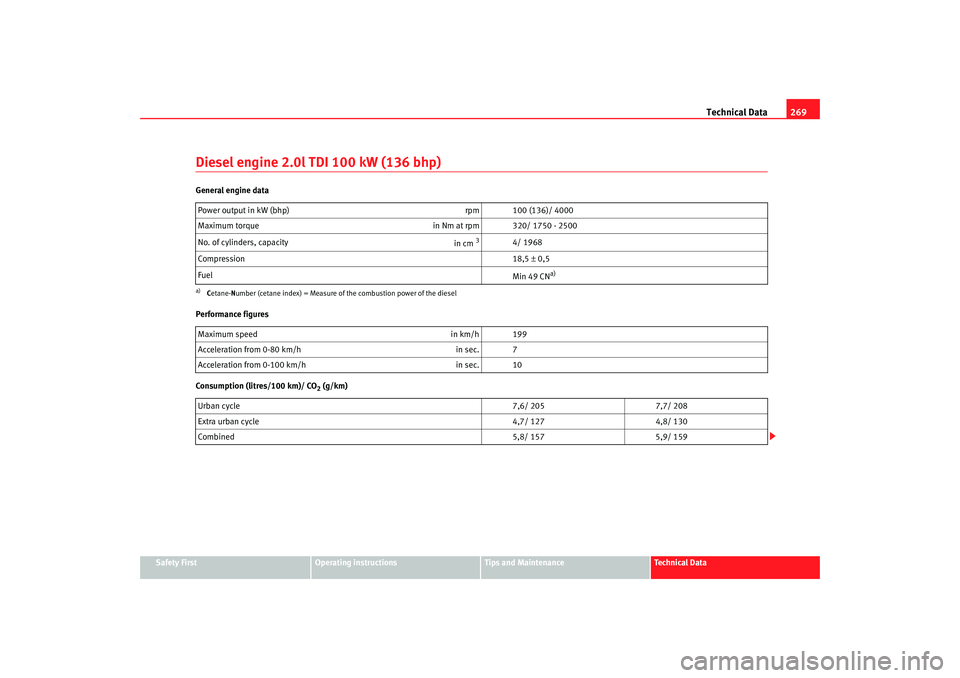

Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 2.0l TDI 100 kW (136 bhp)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the dieselMaximum speed in km/h 199
Acceleration from 0-80 km/h in sec. 7
Acceleration from 0-100 km/h in sec. 10
Urban cycle 7,6/ 2057,7/ 208
Extra urban cycle 4,7/ 1274,8/ 130
Combined 5,8/ 1575,9/ 159
altea_ingles Seite 269 Dienstag, 4. Oktober 2005 6:57 18

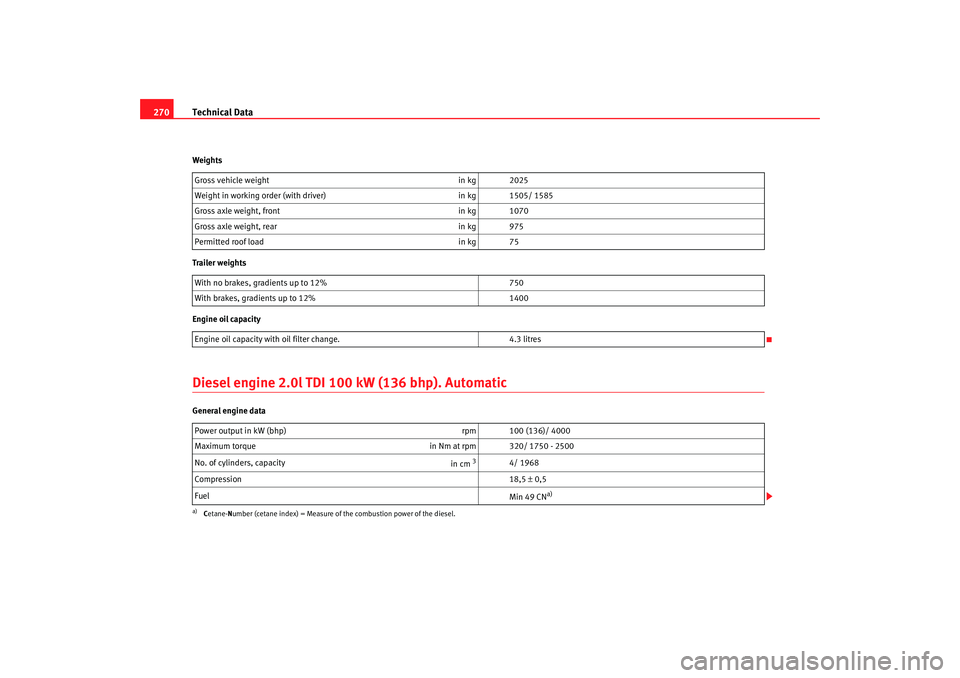

Technical Data
270Weights
Trailer weights
Engine oil capacityDiesel engine 2.0l TDI 100 kW (136 bhp). AutomaticGeneral engine data Gross vehicle weight
in kg 2025
Weight in working order (with driver) in kg 1505/ 1585
Gross axle weight, front in kg 1070
Gross axle weight, rear in kg 975
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the diesel.
altea_ingles Seite 270 Dienstag, 4. Oktober 2005 6:57 18

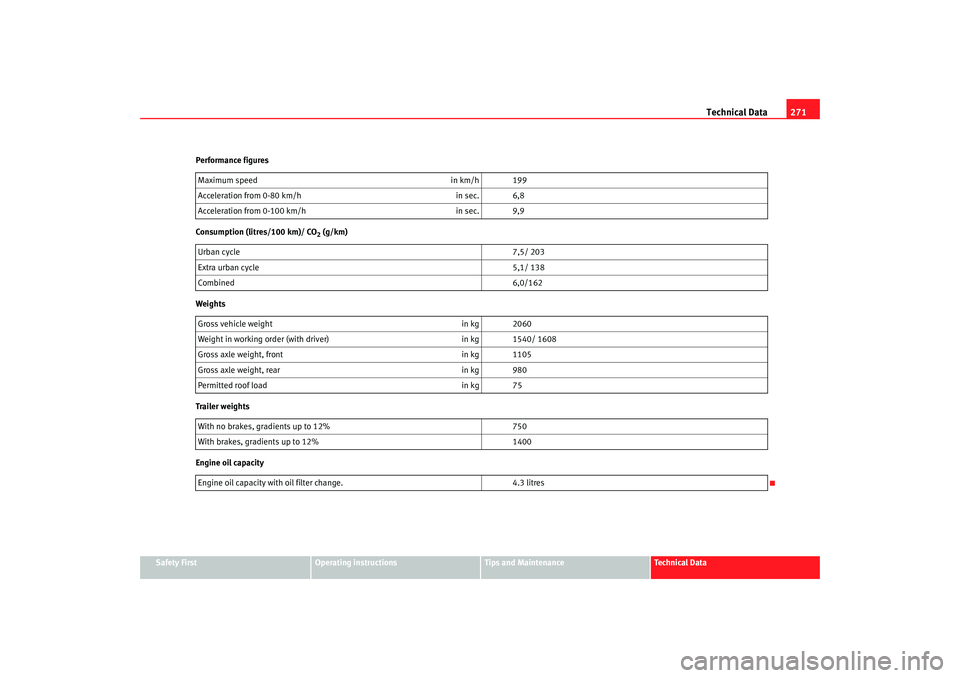

Technical Data271
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 199
Acceleration from 0-80 km/h in sec. 6,8
Acceleration from 0-100 km/h in sec. 9,9
Urban cycle 7,5/ 203
Extra urban cycle 5,1/ 138
Combined 6,0/162
Gross vehicle weight in kg 2060
Weight in working order (with driver) in kg 1540/ 1608
Gross axle weight, front in kg 1105
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
altea_ingles Seite 271 Dienstag, 4. Oktober 2005 6:57 18

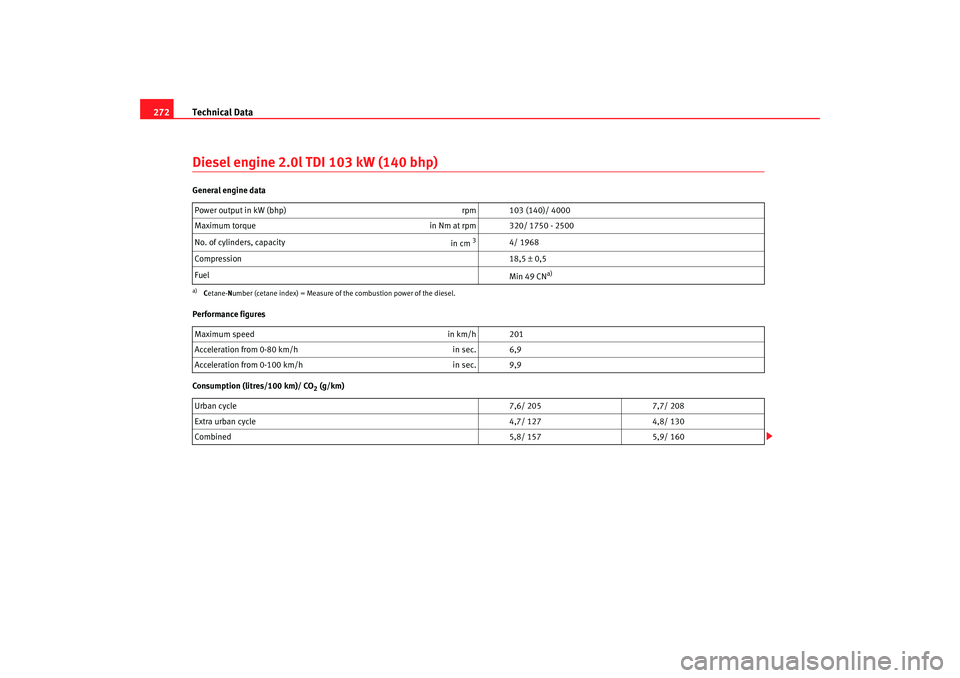

Technical Data
272Diesel engine 2.0l TDI 103 kW (140 bhp)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the diesel.Maximum speed in km/h 201
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 9,9
Urban cycle 7,6/ 2057,7/ 208
Extra urban cycle 4,7/ 1274,8/ 130
Combined 5,8/ 1575,9/ 160
altea_ingles Seite 272 Dienstag, 4. Oktober 2005 6:57 18
