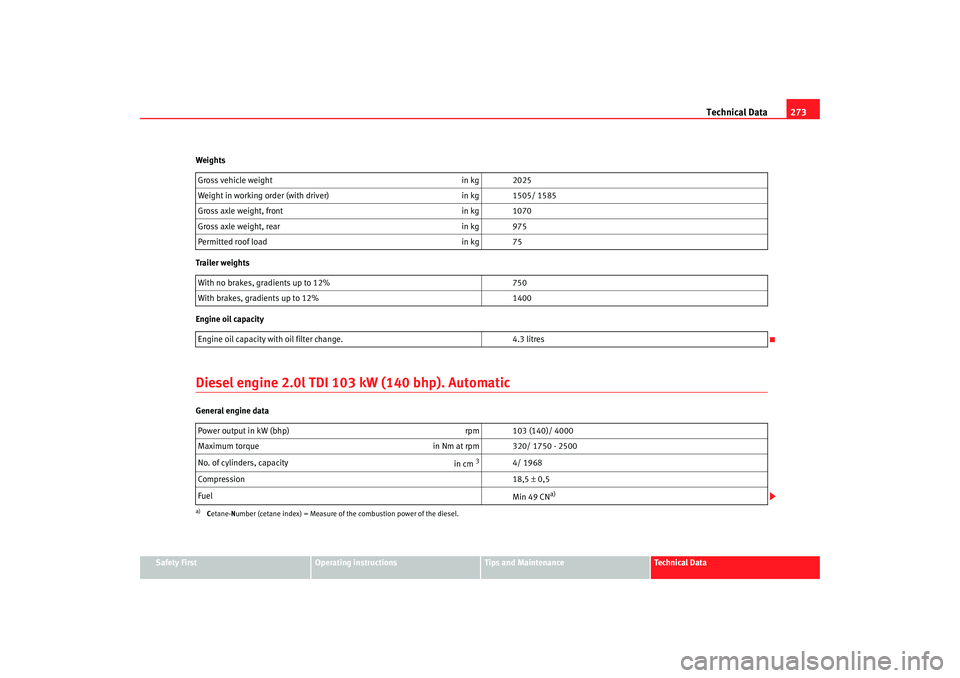

Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 2.0l TDI 1
03 kW (140 bhp). AutomaticGeneral engine dataGross vehicle weight
in kg 2025
Weight in working order (with driver) in kg 1505/ 1585
Gross axle weight, front in kg 1070
Gross axle weight, rear in kg 975
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the diesel.
altea_ingles Seite 273 Dienstag, 4. Oktober 2005 6:57 18

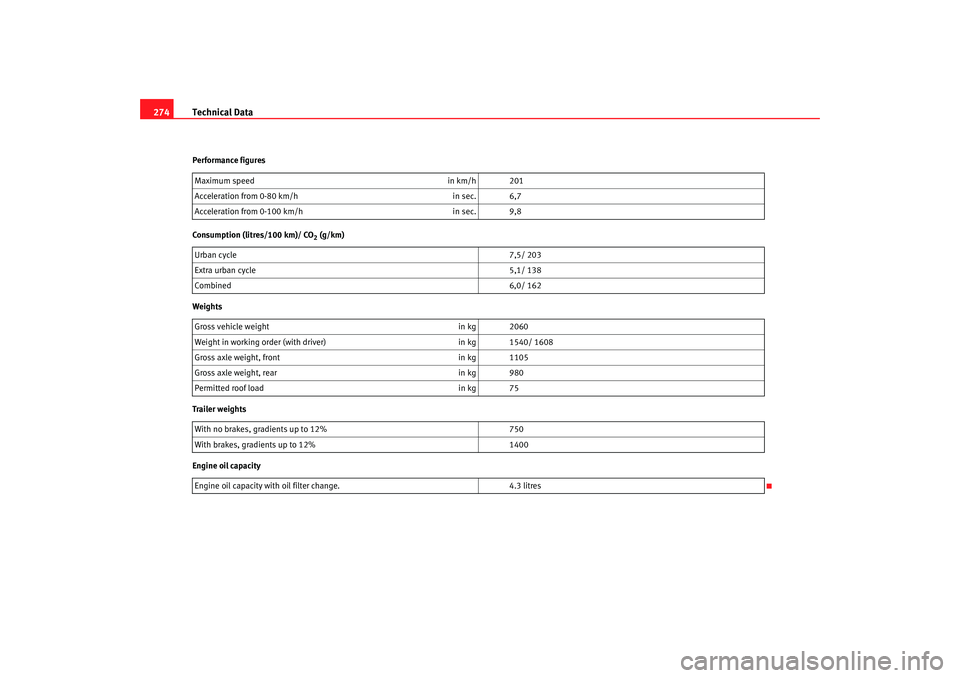

Technical Data
274Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 201
Acceleration from 0-80 km/h in sec. 6,7
Acceleration from 0-100 km/h in sec. 9,8
Urban cycle 7,5/ 203
Extra urban cycle 5,1/ 138
Combined 6,0/ 162
Gross vehicle weight in kg 2060
Weight in working order (with driver) in kg 1540/ 1608
Gross axle weight, front in kg 1105
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.3 litres
altea_ingles Seite 274 Dienstag, 4. Oktober 2005 6:57 18
Technical Data275
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

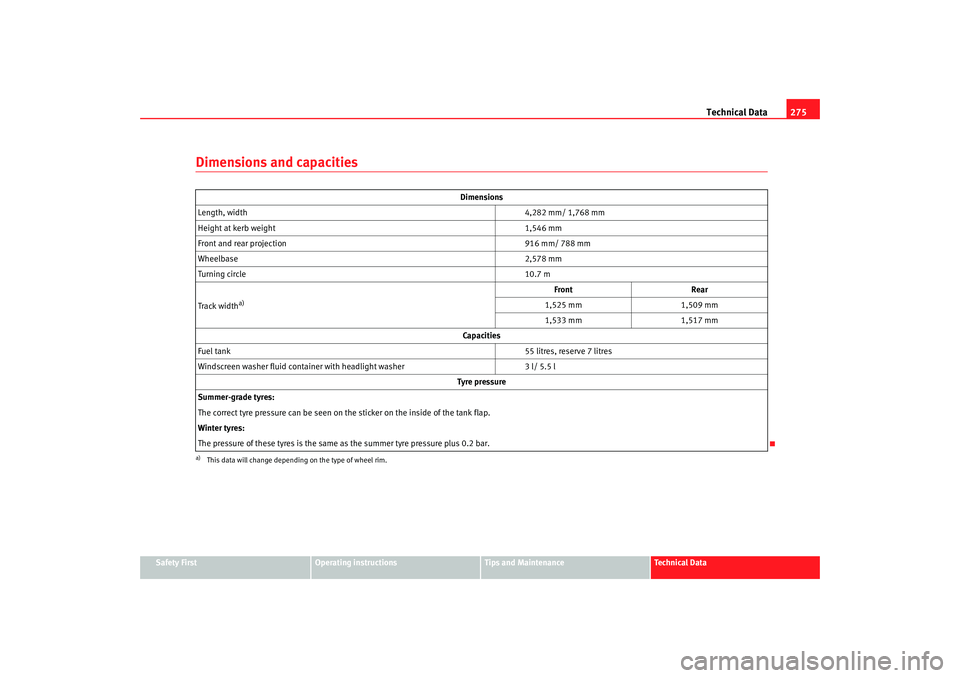

Dimensions and capacities
Dimensions
Length, width 4,282 mm/ 1,768 mm
Height at kerb weight 1,546 mm
Front and rear projection 916 mm/ 788 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,525 mm 1,509 mm
1,533 mm 1,517 mm
Capacities
Fuel tank 55 litres, reserve 7 litres
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
