Fuses on left side of dash panelFuses
Number Electrical equipment Amperes
1 Electro-chromatic mirror / relay 50 5
2 Engine control unit 5
3 Lights switch / Headlight control unit / Right hand side headlight / Telephone 5
4 Telephone pre-installation 5
5 Flow meter, frequency tube 10
6A ir b ag 5
7 Vacant
8 Vacant
9 Power steering 5
10 Diagnosis, reverse gear switch 5
11 Heated windscreen 5
12 FSI measure 10
13 Trailer control unit 5
14 ESP/TCP, ABS/ESP control unit 5
15 Automatic gearbox 5
16 Heating controls / Climatronic / Pressure sensor / Heated seats 10
17 Engine 7,5
18 Vacant
19 Vacant
20 Engine fuse box supply 5
21 Gear lever 5
altea_ingles Seite 237 Dienstag, 4. Oktober 2005 6:57 18

If and when239
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

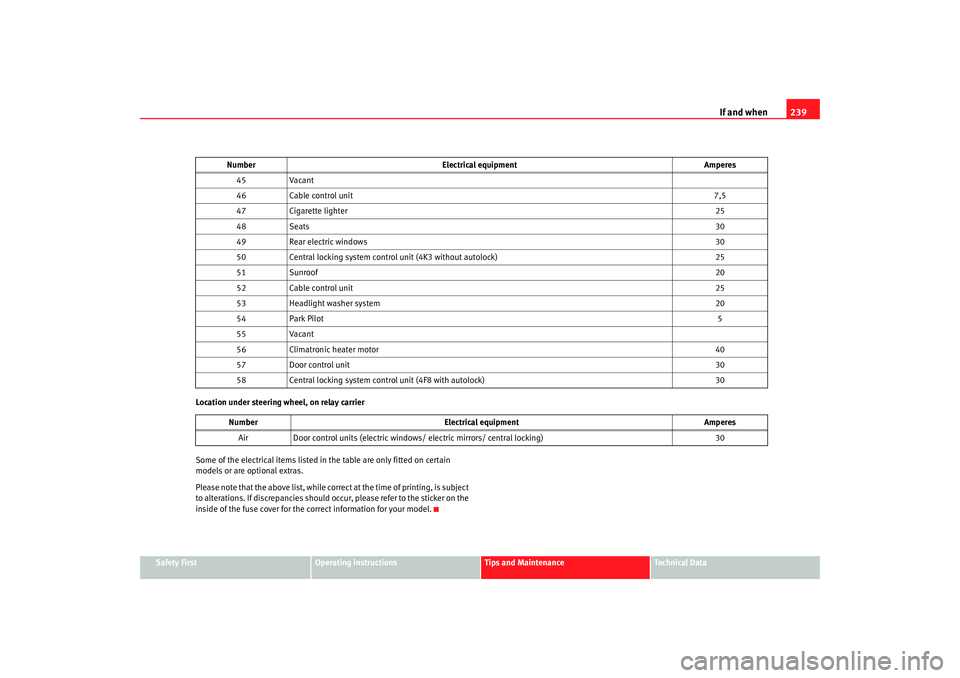

Location under steering wheel, on relay carrier
Some of the electrical items listed in
the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the
inside of the fuse cover for the co rrect information for your model.
45
Vacant
46 Cable control unit 7,5
47 Cigarette lighter 25
48 Seats 30
49 Rear electric windows 30
50 Central locking system control unit (4K3 without autolock) 25
51 Sunroof 20
52 Cable control unit 25
53 Headlight washer system 20
54 Park Pilot 5
55 Vacant
56 Climatronic heater motor 40
57 Door control unit 30
58 Central locking system control unit (4F8 with autolock) 30
Number Electrical equipment Amperes
Air Door control units (electric windows/ electric mirrors/ central locking) 30
Number
Electrical equipment Amperes
altea_ingles Seite 239 Dienstag, 4. Oktober 2005 6:57 18

If and when

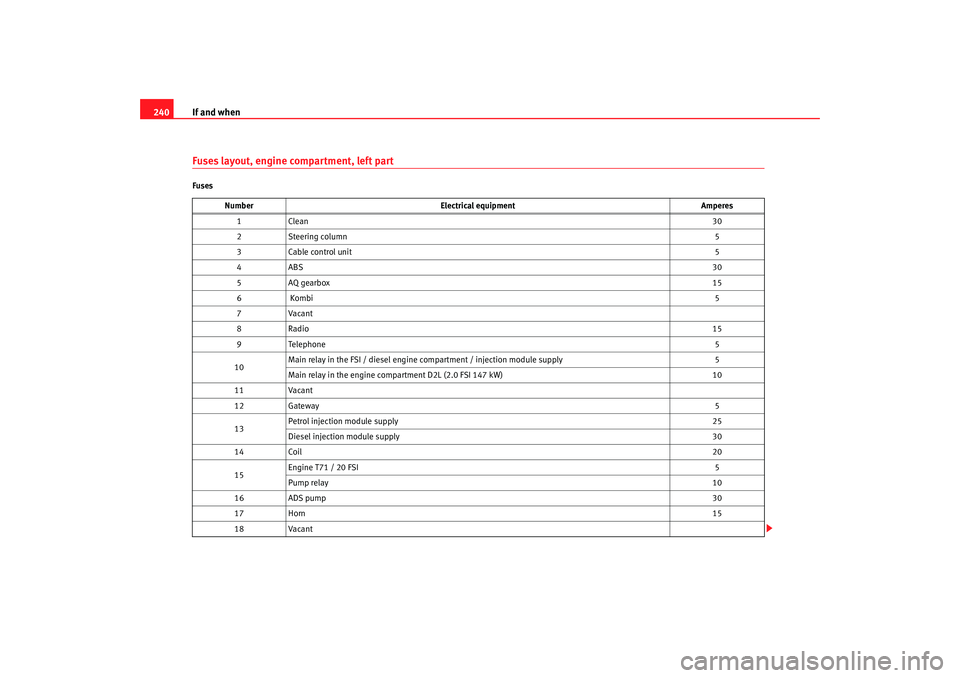

240Fuses layout, engine compartment, left partFuses
Number Electrical equipment Amperes
1C le a n 30
2 Steering column 5
3 Cable control unit 5
4A BS 30
5 AQ gearbox 15
6 Kombi 5
7 Vacant
8R ad io 15
9 Telephone 5
10 Main relay in the FSI / diesel engine compartment / injection module supply
5
Main relay in the engine compartment D2L (2.0 FSI 147 kW) 10
11 Vacant
12 Gateway 5
13 Petrol injection module supply
25
Diesel injection module supply 30
14 Coil 20
15 Engine T71 / 20 FSI
5
Pump relay 10
16 ADS pump 30
17 Horn 15
18 Vacant
altea_ingles Seite 240 Dienstag, 4. Oktober 2005 6:57 18

If and when241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
19
Clean 30
20 Vacant
21 Lambda probe 15
22 Brake pedal, speed sensor 5
23 Engine 1.6, main relay (relay n° 100)
5
T 71 diesel EGR 10
2.0 D2L High-pressure fuel pump 15
24 ARF, change valve 10
25 Right lighting 40
26 Left lighting 40
1.6 SLP engine 40
1.9 TDI Glow plug relay 50
28 KL15 40
29 Electric windows (front and back)
50
Electric windows (front) 30
30 KLX 40
Number
Electrical equipment Amperes
altea_ingles Seite 241 Dienstag, 4. Oktober 2005 6:57 18
