Seat Altea 2009 Owner's Manual

Technical Data

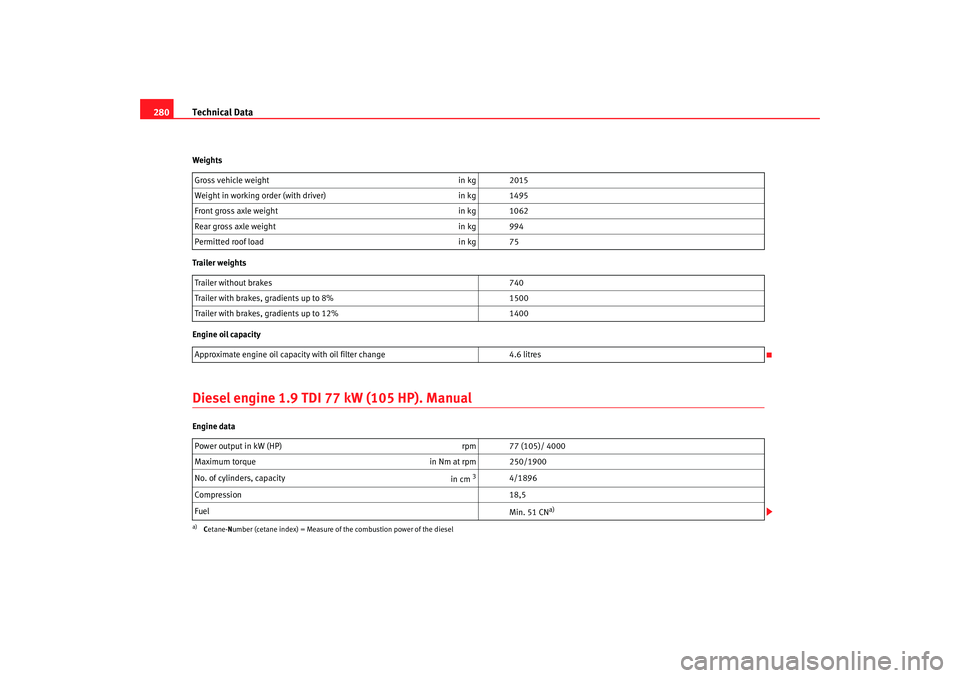

280Weights
Trailer weights
Engine oil capacityDiesel engine 1.9 TDI 77 kW (105 HP). ManualEngine dataGross vehicle weight
in kg 2015
Weight in working order (with driver) in kg 1495
Front gross axle weight in kg 1062
Rear gross axle weight in kg 994
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.6 litres
Power output in kW (HP) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel
Altea_EN.book Seite 280 Montag, 19. Januar 2009 1:31 13

Technical Data281
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

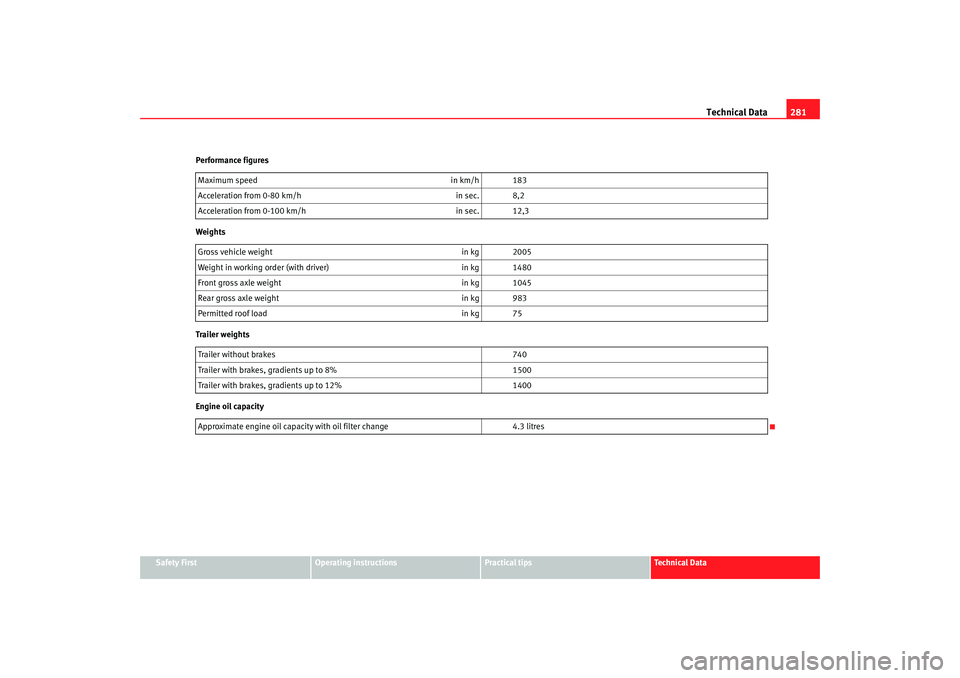

Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 183
Acceleration from 0-80 km/h in sec. 8,2
Acceleration from 0-100 km/h in sec. 12,3
Gross vehicle weight in kg 2005
Weight in working order (with driver) in kg 1480
Front gross axle weight in kg 1045
Rear gross axle weight in kg 983
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Altea_EN.book Seite 281 Montag, 19. Januar 2009 1:31 13

Technical Data

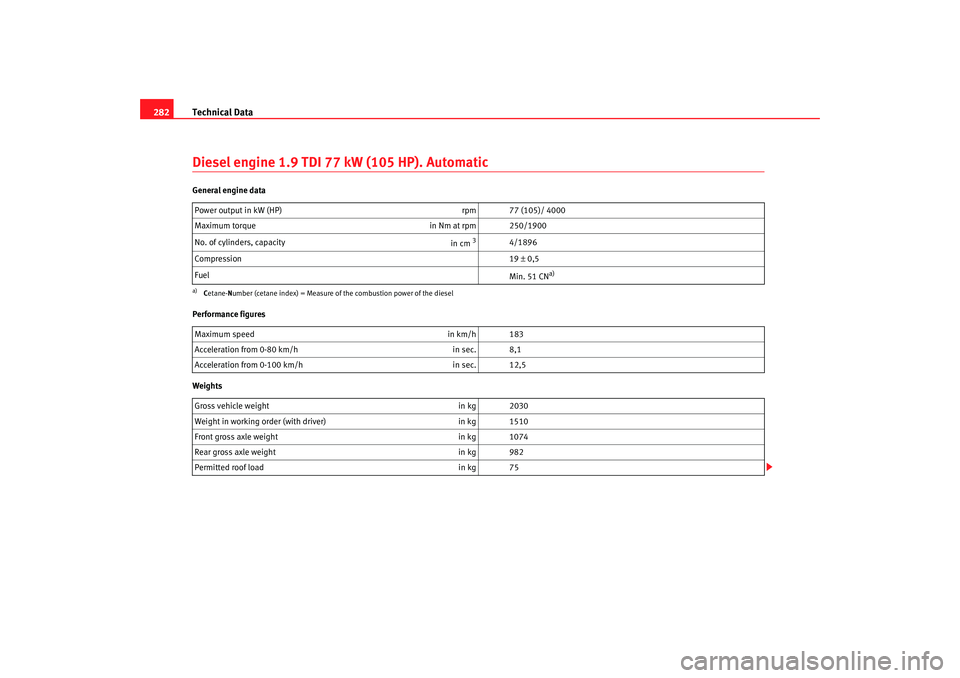

282Diesel engine 1.9 TDI 77 kW (105 HP). AutomaticGeneral engine data
Performance figures
Weights Power output in kW (HP)
rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 19 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8,1
Acceleration from 0-100 km/h in sec. 12,5
Gross vehicle weight in kg 2030
Weight in working order (with driver) in kg 1510
Front gross axle weight in kg 1074
Rear gross axle weight in kg 982
Permitted roof load in kg 75
Altea_EN.book Seite 282 Montag, 19. Januar 2009 1:31 13

Technical Data283
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

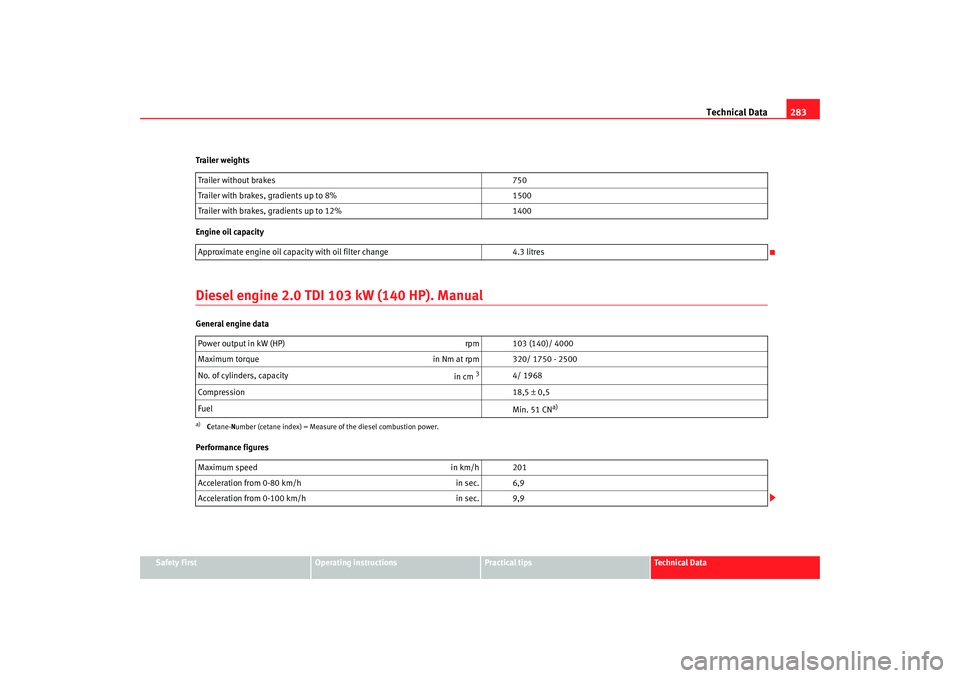

Trailer weights
Engine oil capacity
Diesel engine 2.0 TDI 103 kW (140 HP). ManualGeneral engine data
Performance figures
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (HP) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 201
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 9,9
Altea_EN.book Seite 283 Montag, 19. Januar 2009 1:31 13

Technical Data

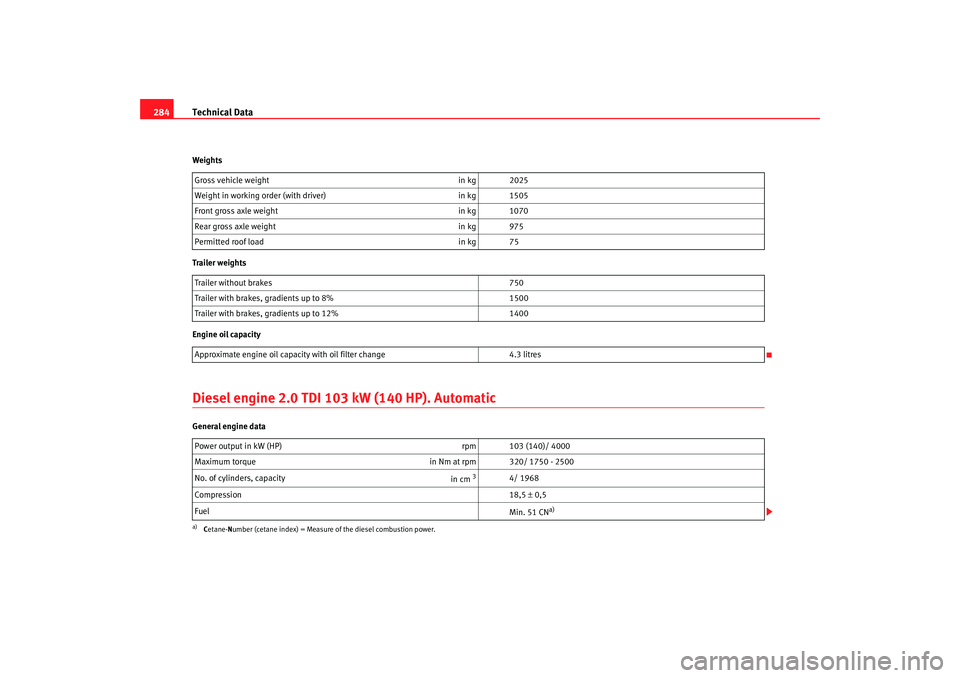

284Weights
Trailer weights
Engine oil capacityDiesel engine 2.0 TDI 103 kW (140 HP). AutomaticGeneral engine data Gross vehicle weight
in kg 2025
Weight in working order (with driver) in kg 1505
Front gross axle weight in kg 1070
Rear gross axle weight in kg 975
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (HP) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Altea_EN.book Seite 284 Montag, 19. Januar 2009 1:31 13

Technical Data285
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 201
Acceleration from 0-80 km/h in sec. 6,7
Acceleration from 0-100 km/h in sec. 9,8
Gross vehicle weight in kg 2060
Weight in working order (with driver) in kg 1540
Front gross axle weight in kg 1105
Rear gross axle weight in kg 980
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Altea_EN.book Seite 285 Montag, 19. Januar 2009 1:31 13

Technical Data

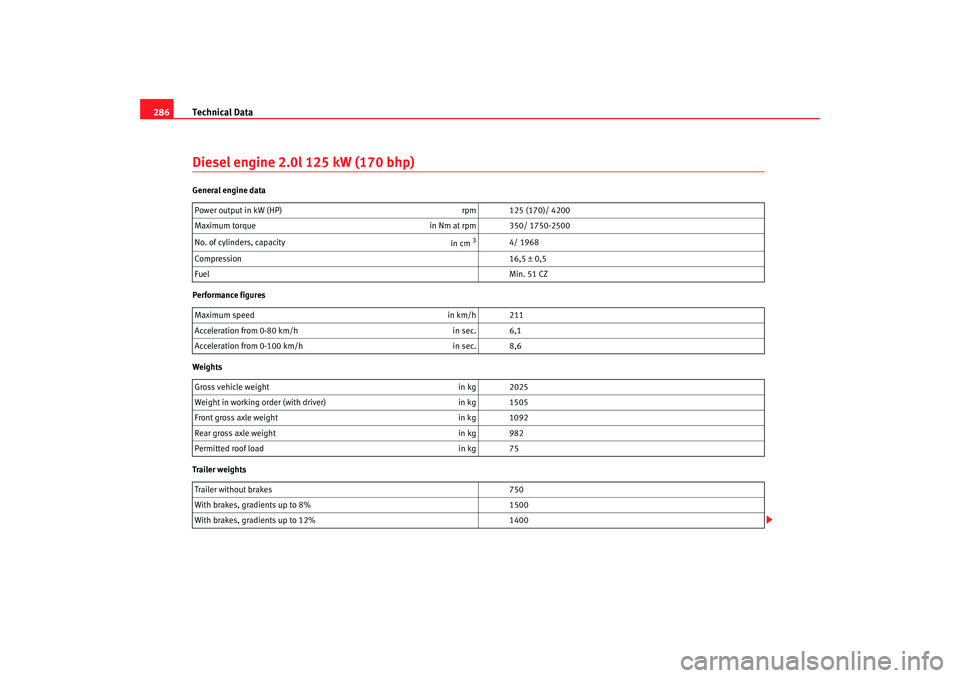

286Diesel engine 2.0l 125 kW (170 bhp)General engine data
Performance figures
Weights
Trailer weights Power output in kW (HP)
rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 16,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 211
Acceleration from 0-80 km/h in sec. 6,1
Acceleration from 0-100 km/h in sec. 8,6
Gross vehicle weight in kg 2025
Weight in working order (with driver) in kg 1505
Front gross axle weight in kg 1092
Rear gross axle weight in kg 982
Permitted roof load in kg 75
Trailer without brakes 750
With brakes, gradients up to 8% 1500
With brakes, gradients up to 12% 1400
Altea_EN.book Seite 286 Montag, 19. Januar 2009 1:31 13

Technical Data287
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

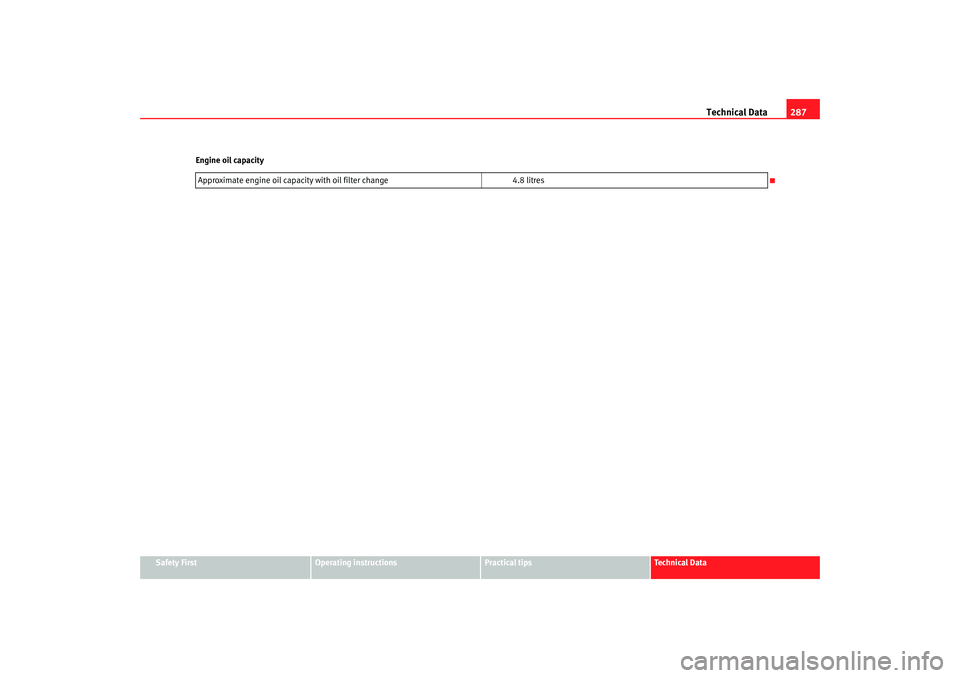

Engine oil capacity
Approximate engine oil capacity with oil filter change 4.8 litres
Altea_EN.book Seite 287 Montag, 19. Januar 2009 1:31 13

Technical Data

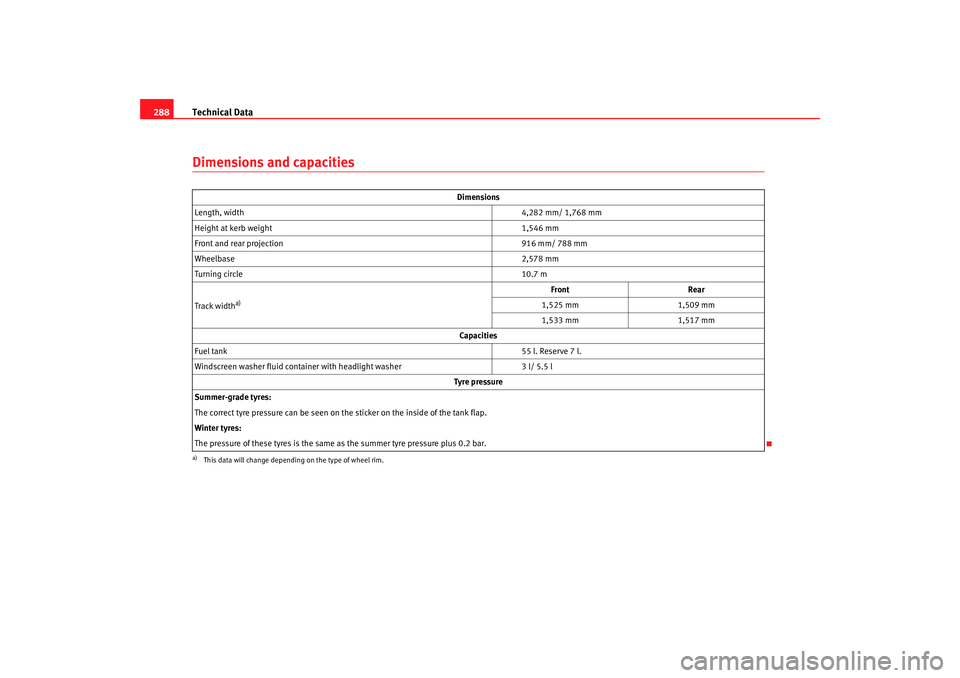

288Dimensions and capacities
Dimensions
Length, width 4,282 mm/ 1,768 mm
Height at kerb weight 1,546 mm
Front and rear projection 916 mm/ 788 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,525 mm 1,509 mm
1,533 mm 1,517 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
Altea_EN.book Seite 288 Montag, 19. Januar 2009 1:31 13

Index289

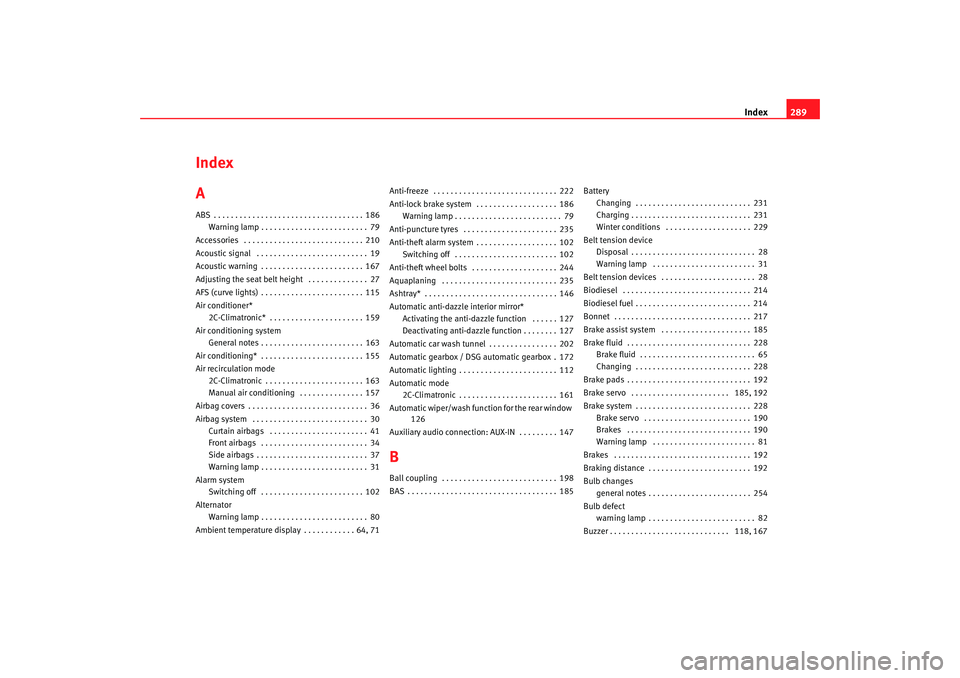

Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 79
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 167
Adjusting the seat belt height . . . . . . . . . . . . . . 27
AFS (curve lights) . . . . . . . . . . . . . . . . . . . . . . . . 115
Air conditioner* 2C-Climatronic* . . . . . . . . . . . . . . . . . . . . . . 159
Air conditioning system General notes . . . . . . . . . . . . . . . . . . . . . . . . 163
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 155
Air recirculation mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 163
Manual air conditioning . . . . . . . . . . . . . . . 157
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 34
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 31
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . 102
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80
Ambient temperature display . . . . . . . . . . . . 64, 71 Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 186
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 79
Anti-puncture tyres . . . . . . . . . . . . . . . . . . . . . . 235
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . 102 Switching off . . . . . . . . . . . . . . . . . . . . . . . . 102
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 244
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . 127
Deactivating anti-dazzle function . . . . . . . . 127
Automatic car wash tunnel . . . . . . . . . . . . . . . . 202
Automatic gearbox / DS G automatic gearbox . 172
Automatic lighting . . . . . . . . . . . . . . . . . . . . . . . 112
Automatic mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 161
Automatic wiper/wash function for the rear window 126
Auxiliary audio connection: AUX-IN . . . . . . . . . 147
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Battery
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Winter conditions . . . . . . . . . . . . . . . . . . . . 229
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 31
Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 28
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Brake assist system . . . . . . . . . . . . . . . . . . . . . 185
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228 Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 185, 192
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 228 Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 190
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 81
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 192
Bulb changes general notes . . . . . . . . . . . . . . . . . . . . . . . . 254
Bulb defect warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118, 167
