Seat Altea 2011 Workshop Manual

Child safety49
Safety First
Operating Instructions
Practical Tips
Technical Specifications

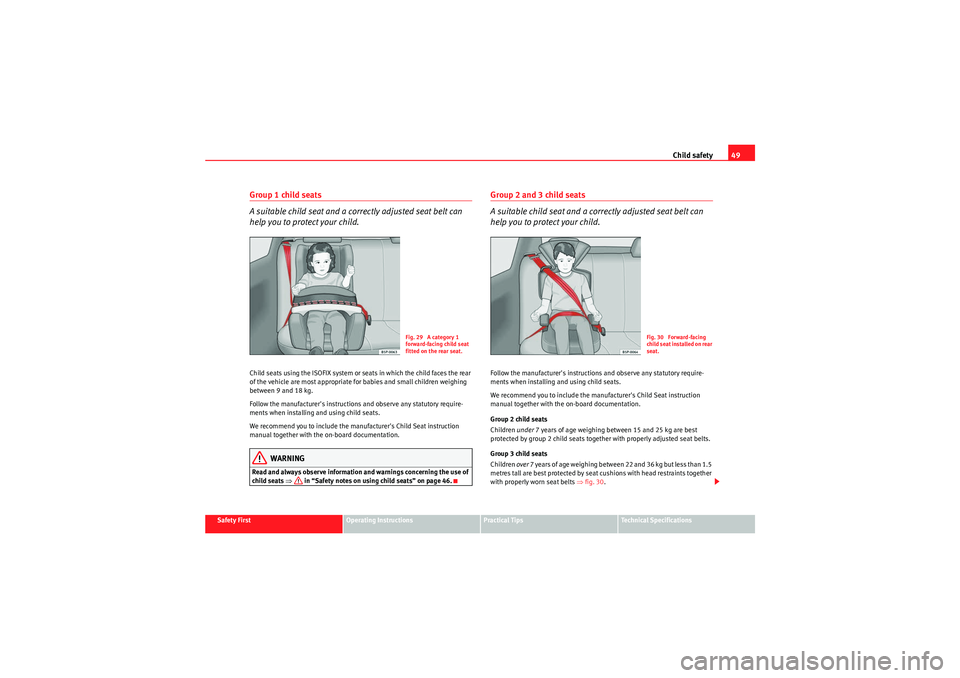

Group 1 child seats
A suitable child seat and a correctly adjusted seat belt can
help you to protect your child.Child seats using the ISOFIX system or seats in which the child faces the rear
of the vehicle are most appropriate for babies and small children weighing
between 9 and 18 kg.
Follow the manufacturer's instructions and observe any statutory require-
ments when installing and using child seats.
We recommend you to include the manufacturer's Child Seat instruction
manual together with the on-board documentation.
WARNING
Read and always observe information and warnings concerning the use of
child seats ⇒ in “Safety notes on using child seats” on page 46.
Group 2 and 3 child seats
A suitable child seat and a correctly adjusted seat belt can
help you to protect your child.Follow the manufacturer's instructions and observe any statutory require-
ments when installing and using child seats.
We recommend you to include the manufacturer's Child Seat instruction
manual together with the on-board documentation.
Group 2 child seats
Children under 7 years of age weighing between 15 and 25 kg are best
protected by group 2 child seats together with properly adjusted seat belts.
Group 3 child seats
Children over 7 years of age weighing between 22 and 36 kg but less than 1.5
metres tall are best protected by seat cushions with head restraints together
with properly worn seat belts ⇒fig. 30 .
Fig. 29 A category 1
forward-facing child seat
fitted on the rear seat.
Fig. 30 Forward-facing
child seat installed on rear
seat.
Altea_EN.book Seite 49 Donnersta g, 2. September 2010 2:00 14

Child safety
50

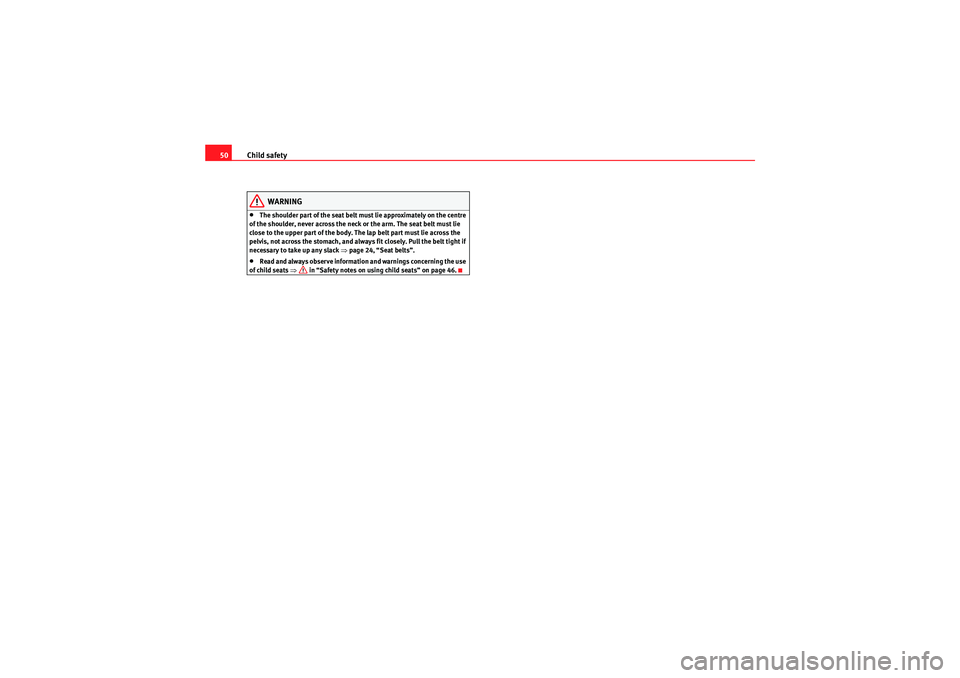

WARNING
•The shoulder part of the seat belt must lie approximately on the centre
of the shoulder, never across the neck or the arm. The seat belt must lie
close to the upper part of the body. The lap belt part must lie across the
pelvis, not across the stomach, and always fit closely. Pull the belt tight if
necessary to take up any slack ⇒page 24, “Seat belts”.•Read and always observe information and warnings concerning the use
of child seats ⇒ in “Safety notes on using child seats” on page 46.
Altea_EN.book Seite 50 Donnersta g, 2. September 2010 2:00 14

Child safety51
Safety First
Operating Instructions
Practical Tips
Technical Specifications

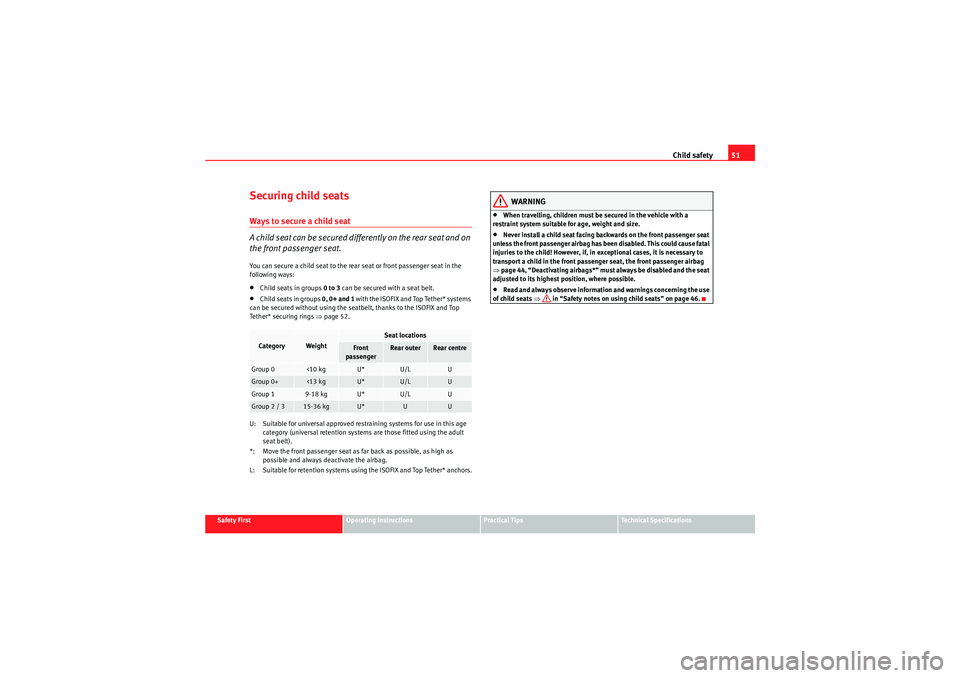

Securing child seatsWays to secure a child seat
A child seat can be secured differently on the rear seat and on
the front passenger seat.You can secure a child seat to the rear seat or front passenger seat in the
following ways:•Child seats in groups 0 to 3 can be secured with a seat belt.•Child seats in groups 0, 0+ and 1 with the ISOFIX and Top Tether* systems
can be secured without using the seatbelt, thanks to the ISOFIX and Top
Tether* securing rings ⇒ page 52.
U: Suitable for universal approved restraining systems for use in this age category (universal retention systems are those fitted using the adult
seat belt).
*: Move the front passenger seat as far back as possible, as high as possible and always deactivate the airbag.
L: Suitable for retention systems using the ISOFIX and Top Tether* anchors.
WARNING
•When travelling, children must be secured in the vehicle with a
restraint system suitable for age, weight and size.•Never install a child seat facing backwards on the front passenger seat
unless the front passenger airbag has been disabled. This could cause fatal
injuries to the child! However, if, in exceptional cases, it is necessary to
transport a child in the front passenger seat, the front passenger airbag
⇒ page 44, “Deactivating airbags*” must always be disabled and the seat
adjusted to its highest position, where possible.•Read and always observe information and warnings concerning the use
of child seats ⇒ in “Safety notes on using child seats” on page 46.
Category
Weight
Seat locations
Front
passenger
Rear outer
Rear centre
Group 0
<10 kg
U*
U/L
U
Group 0+
<13 kg
U*
U/L
U
Group 1
9-18 kg
U*
U/L
U
Group 2 / 3
15-36 kg
U*
U
U
Altea_EN.book Seite 51 Donnersta g, 2. September 2010 2:00 14

Child safety

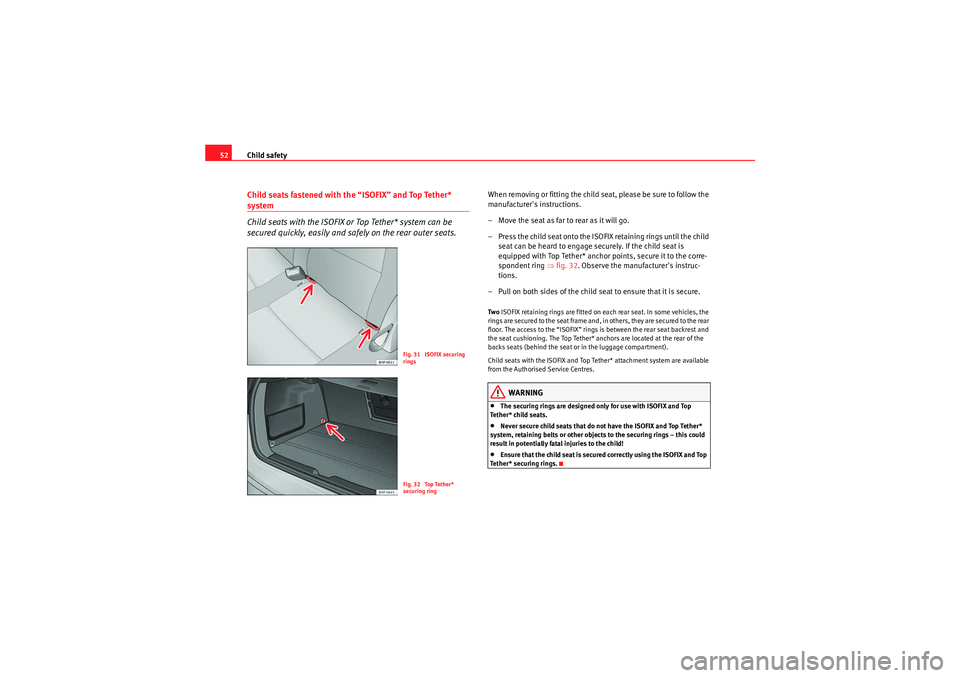

52Child seats fastened with the “ISOFIX” and Top Tether* system
Child seats with the ISOFIX or Top Tether* system can be
secured quickly, easily and safely on the rear outer seats.
When removing or fitting the child seat, please be sure to follow the
manufacturer's instructions.
– Move the seat as far to rear as it will go.
– Press the child seat onto the ISOFIX retaining rings until the child
seat can be heard to engage securely. If the child seat is
equipped with Top Tether* anchor points, secure it to the corre-
spondent ring ⇒fig. 32 . Observe the manufacturer's instruc-
tions.
– Pull on both sides of the child seat to ensure that it is secure.Two ISOFIX retaining rings are fitted on each rear seat. In some vehicles, the
rings are secured to the seat frame and, in others, they are secured to the rear
floor. The access to the “ISOFIX” rings is between the rear seat backrest and
the seat cushioning. The Top Tether* anchors are located at the rear of the
backs seats (behind the seat or in the luggage compartment).
Child seats with the ISOFIX and Top Tether* attachment system are available
from the Authorised Service Centres.
WARNING
•The securing rings are designed only for use with ISOFIX and Top
Tether* child seats.•Never secure child seats that do not have the ISOFIX and Top Tether*
system, retaining belts or other objects to the securing rings – this could
result in potentially fatal injuries to the child!•Ensure that the child seat is secured correctly using the ISOFIX and Top
Tether* securing rings.
Fig. 31 ISOFIX securing
ringsF i g . 3 2 To p Te t h e r *
securing ring
Altea_EN.book Seite 52 Donnersta g, 2. September 2010 2:00 14

53
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Altea_EN.book Seite 53 Donnerstag, 2. September 2010 2:00 14

54

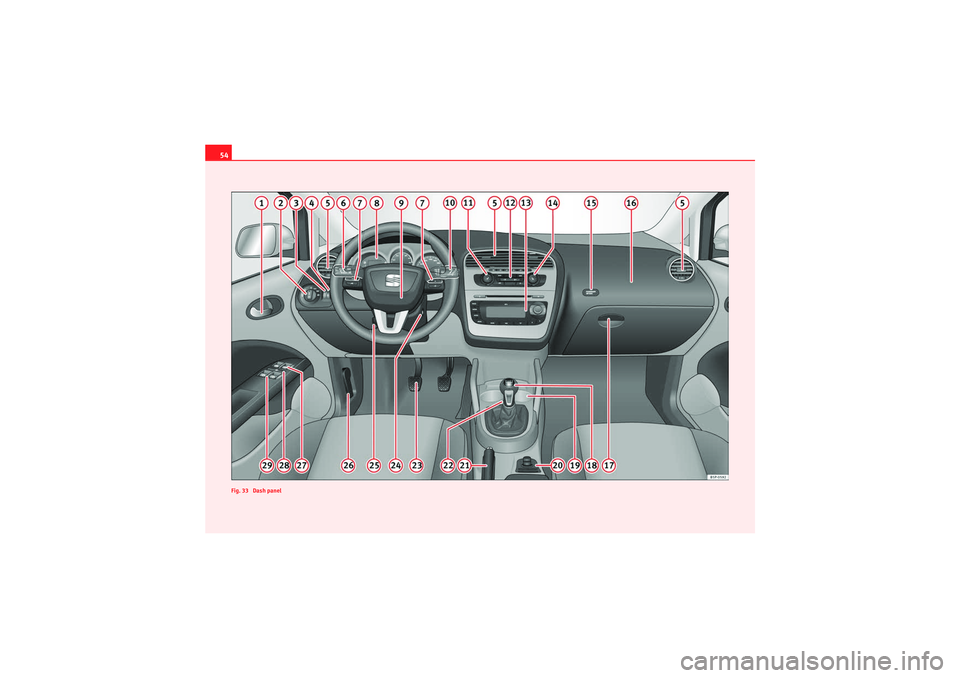

Fig. 33 Dash panelAltea_EN.book Seite 54 Donnerstag, 2. September 2010 2:00 14

Cockpit55
Safety First
Operating Instructions
Practical Tips
Technical Specifications

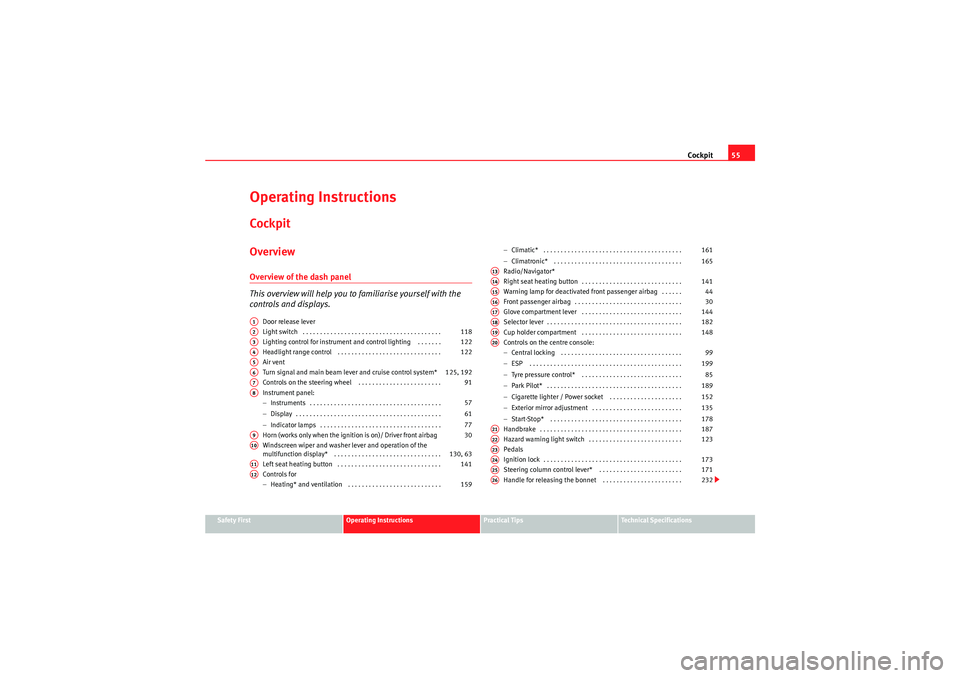

Operating InstructionsCockpitOverviewOverview of the dash panel
This overview will help you to familiarise yourself with the
controls and displays.
Door release lever
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lighting control for instrument and control lighting . . . . . . .
Headlight range control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air vent
Turn signal and main beam lever and cruise control system*
Controls on the steering wheel . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel:
− Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn (works only when the ignition is on)/ Driver front airbag
Windscreen wiper and washer lever and operation of the
multifunction display* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Left seat heating button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls for
− Heating* and ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . −
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Climatronic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio/Navigator*
Right seat heating button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning lamp for deactivated front passenger airbag . . . . . .
Front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove compartment lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls on the centre console:
− Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Tyre pressure control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Park Pilot* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Cigarette lighter / Power socket . . . . . . . . . . . . . . . . . . . . .
− Exterior mirror adjustment . . . . . . . . . . . . . . . . . . . . . . . . . .
− Start-Stop* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning light switch . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedals
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering column control lever* . . . . . . . . . . . . . . . . . . . . . . . .
Handle for releasing the bonnet . . . . . . . . . . . . . . . . . . . . . . .
A1A2
118
A3
122
A4
122
A5A6
125, 192
A7
91
A8
57
61
77
A9
30
A10
130, 63
A11
141
A12
159 161
165
A13A14
141
A15
44
A16
30
A17
144
A18
182
A19
148
A20
99
199 85
189
152
135
178
A21
187
A22
123
A23A24
173
A25
171
A26
232
Altea_EN.book Seite 55 Donnersta g, 2. September 2010 2:00 14

Cockpit
56

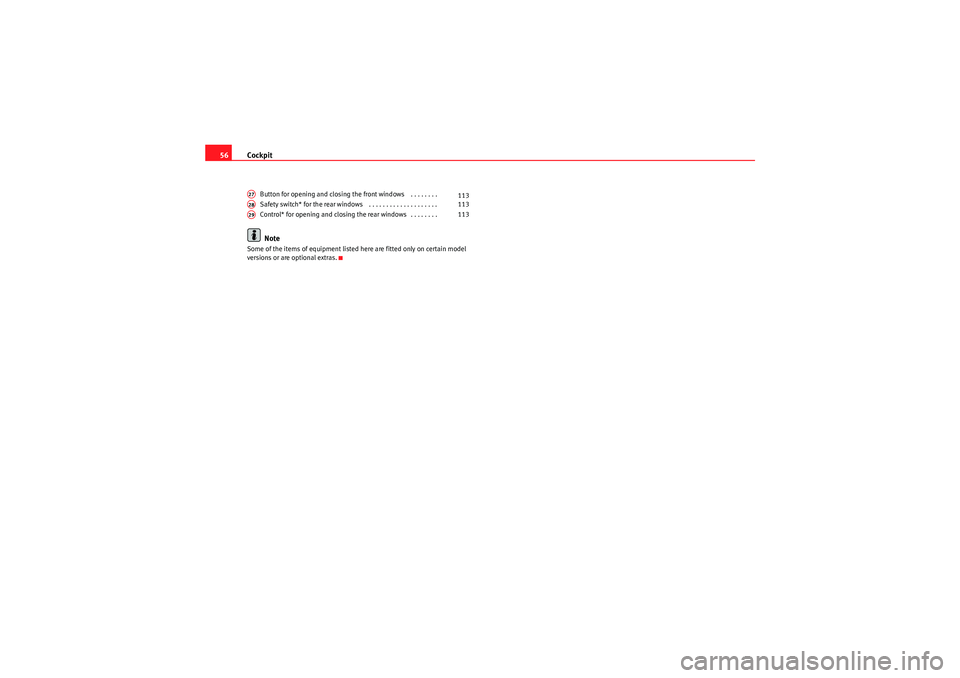

Button for opening and closing the front windows . . . . . . . .
Safety switch* for the rear windows . . . . . . . . . . . . . . . . . . . .
Control* for opening and closing the rear windows . . . . . . . .Note
Some of the items of equipment listed here are fitted only on certain model
versions or are optional extras.A27
113
A28
113
A29
113
Altea_EN.book Seite 56 Donnersta g, 2. September 2010 2:00 14

Cockpit57
Safety First
Operating Instructions
Practical Tips
Technical Specifications

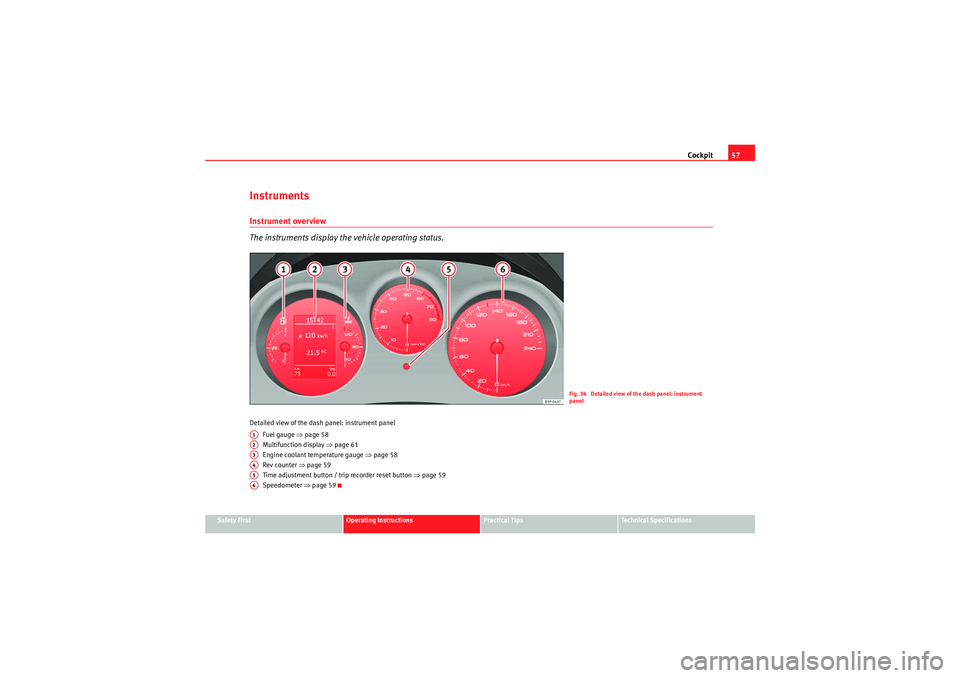

InstrumentsInstrument overview
The instruments display the vehicle operating status.Detailed view of the dash panel: instrument panel
Fuel gauge ⇒ page 58
Multifunction display ⇒page 61
Engine coolant temperature gauge ⇒ page 58
Rev counter ⇒ page 59
Time adjustment button / trip recorder reset button ⇒page 59
Speedometer ⇒page 59
Fig. 34 Detailed view of the dash panel: instrument
panel
A1A2A3A4A5A6
Altea_EN.book Seite 57 Donnersta g, 2. September 2010 2:00 14

Cockpit

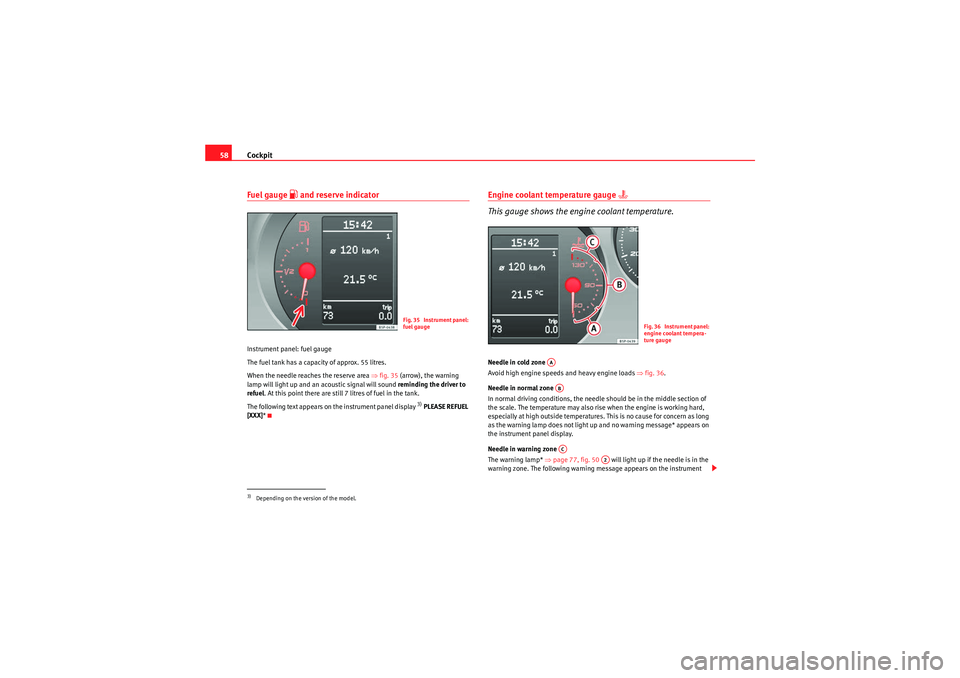

58Fuel gauge
z and reserve indicator
Instrument panel: fuel gauge
The fuel tank has a capacity of approx. 55 litres.
When the needle reaches the reserve area ⇒fig. 35 (arrow), the warning
lamp will light up and an acoustic signal will sound reminding the driver to
refuel . At this point there are still 7 litres of fuel in the tank.
The following text appears on the instrument panel display
3) PLEASE REFUEL
[XXX] *
Engine coolant temperature gauge
v
This gauge shows the engine coolant temperature.
Needle in cold zone
Avoid high engine speeds and heavy engine loads ⇒fig. 36 .
Needle in normal zone
In normal driving conditions, the needle should be in the middle section of
the scale. The temperature may also rise when the engine is working hard,
especially at high outside temperatures. This is no cause for concern as long
as the warning lamp does not light up and no warning message* appears on
the instrument panel display.
Needle in warning zone
The warning lamp* ⇒page 77, fig. 50 will light up if the needle is in the
warning zone. The following warning message appears on the instrument
3)Depending on the version of the model.
Fig. 35 Instrument panel:
fuel gauge
Fig. 36 Instrument panel:
engine coolant tempera-
ture gauge
AAABAC
A2
